Description
John Deere 9400 9500 SideHill 9500 and 9600 MAXIMIZER Combines Diagnostics and Repair Technical Manual (TM1402S)
John Deere 9400 9500 SideHill 9500 and 9600 MAXIMIZER Combines INDEX:
SECTION IO—GENERAL
Group 05—Safety
SECTION 50–POWER TRAIN REPAIR
Group 20—Hydrostatic System

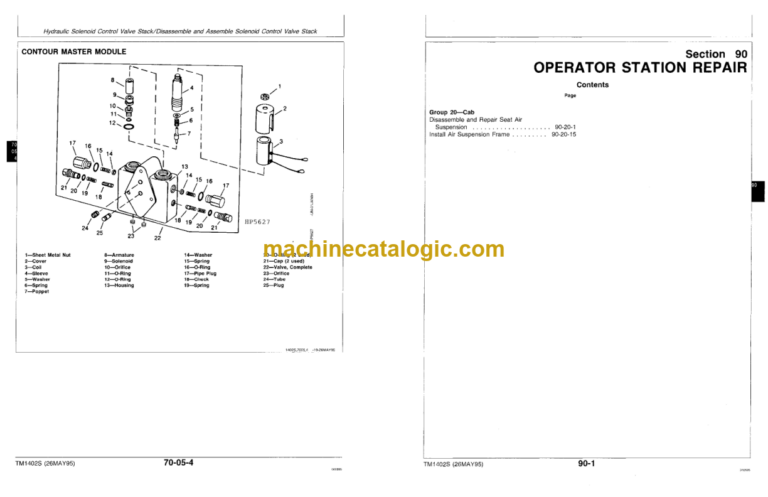

SECTION 70—HYDRAULlC REPAIR
Group 05—Hydraulic Solenoid Control Valve
Stack
SECTION 90—0PERATOR STATION REPAIR
Group 20—Cab
SECTION IIO—CONTOUR MASTER FEEDER HOUSE REPAIR
Group 05—Platform Driveshafts
Group Io—Tilt Cylinder
Group 15—TiIt Frame
Group 25—CONTOUR MASTER Feederhouse
SECTION 120—SEPARATOR
Group 25—Shoe Supply Augers, Cleaning Fan,
Chaffer and Sieve Frame
SECTION 130—GRAlN TANK AND UNLOADING SYSTEM REPAIR
Group 25—1Jpper Clean Grain Eevator
SECTION 240—0PERATlON AND TESTS ELECTRICAL DIAGNOSTICS
Group 5F—Engine Control Unit (Inj. Pump)
System Identification
Group 5K—Bosch Engine Control
Diagnostics—Type C
Group 51J—Concave Position Adjust Diagnostics
Group 5BO
—Combine Data Center Diagnostics
Group 5AK—Dial-A-Matic Diagnostics
Group 5AL—DiaI-A-Matic Diagnostics—Type A
Group 5AM
—Dial-A-Matic Diagnostics—Type B
Group Diagnostics—Type C

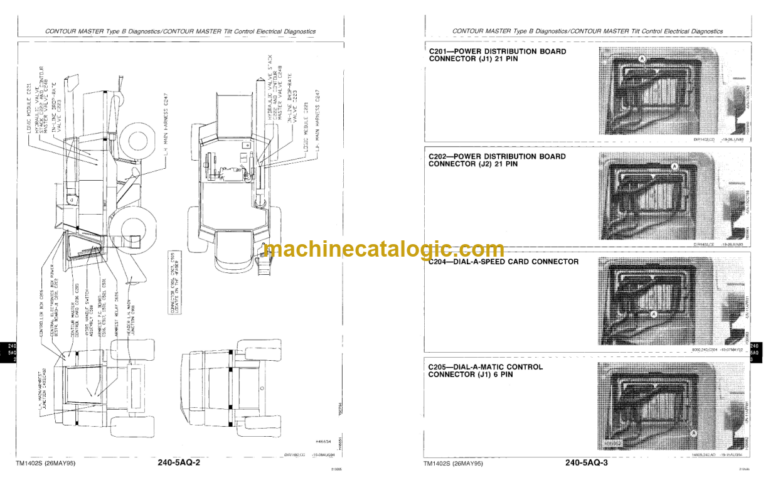

Group 5AO—CONTOUR MASTER Tilt Control System Identification
Group 5AP—CONTOUR MASTER Type A Diagnostics
Group 5AO—CONTOUR MASTER Type B Diagnostics
