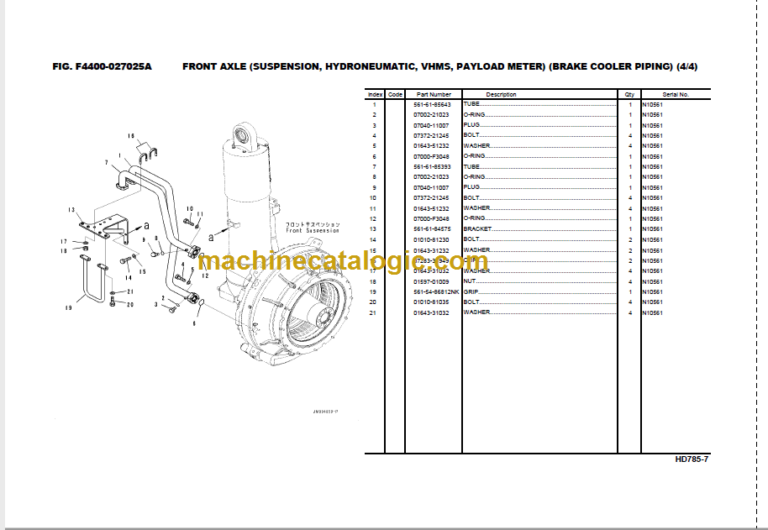

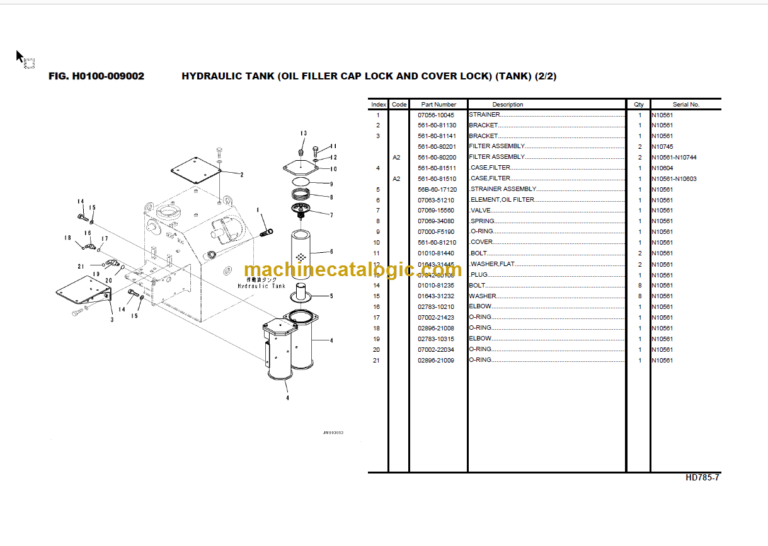

Komatsu HD785-7 Engine Parts Manual
TABLE OF CONTENT
ENGINE CYLINDER HEAD AND ITS RELATED PARTS
CYLINDER HEAD A1010-001001
CYLINDER HEAD COVER A1110-001001
AIR INTAKE MANIFOLD (INTAKE MANIFOLD) A1310-002001
AIR INTAKE MANIFOLD (AIR INTAKE CONNECTION AND SENSOR) A1310-002002
EXHAUST MANIFOLD A1510-004001
EXHAUST MANIFOLD (FOR ENGINE PRE-LUBRICATION SYSTEM) A1510-005001
EXHAUST MANIFOLD (FOR VHMS LESS) A1510-006001
EXHAUST MANIFOLD (FOR SEMIRARA) A1510-007001
TURBOCHARGER (INNER PARTS, R.H.) A1530-003001
TURBOCHARGER (INNER PARTS, L.H.) A1530-003002
TURBOCHARGER (LUBRICATION PIPING) A1530-003003
TURBOCHARGER (WATER PIPING) A1530-003004
HEAT SHIELD (1/2) A1570-001001
HEAT SHIELD (2/2) A1570-001001A
EXHAUST BRAKE (FOR ENGINE EXHAUST BRAKE SYSTEM) (INNER PARTS) (1/2) A1650-001001
EXHAUST BRAKE (FOR ENGINE EXHAUST BRAKE SYSTEM) (INNER PARTS) (2/2) A1650-001001A
EXHAUST BRAKE (FOR ENGINE EXHAUST BRAKE SYSTEM) (MOUNTING PARTS) A1650-001002
EXHAUST BRAKE A1650-003001
EXHAUST BRAKE A2250-001001
ENGINE CYLINDER BLOCK AND ITS RELATED PARTS
CAMSHAFT A2410-001001
CAMSHAFT RELATED PARTS (CAM FOLLOWER) A2411-001001
CAMSHAFT RELATED PARTS (ROAD LINER) A2411-001002
CAM FOLLOWER COVER (FOR COLD AREA SPECIFICATION, ENGINE OIL PAN AND COOLANT HEATER) A2060-002001
CAM FOLLOWER COVER (FOR EXTRA BAD FUEL AND POOR FUEL SPECIFICATION,
WATER+DUST, ADDITIONAL FILTER, ENGINE PRE-LUBRICATION SYSTEM)
A2060-003001
FRONT GEAR TRAIN CASE (FOR EXTRA BAD FUEL AND POOR FUEL SPECIFICATION,
WATER+DUST, ADDITIONAL FILTER) (ACCESSORY PARTS)
A2041-002001
FRONT GEAR TRAIN CASE (FOR EXTRA BAD FUEL AND POOR FUEL SPECIFICATION,
WATER+DUST, ADDITIONAL FILTER) (BREATHER AND BLOWBY SENSOR)
A2041-002002
FRONT GEAR TRAIN CASE (ACCESSORY PARTS) A2041-003001
FRONT GEAR TRAIN CASE (BREATHER AND BLOWBY SENSOR) A2041-003002
FRONT GEAR TRAIN CASE (FOR EXTRA BAD FUEL AND POOR FUEL SPECIFICATION,
WATER+DUST, ADDITIONAL FILTER, VHMS) (ACCESSORY PARTS)
A2041-006001
FRONT GEAR TRAIN CASE (FOR EXTRA BAD FUEL AND POOR FUEL SPECIFICATION,
WATER+DUST, ADDITIONAL FILTER, VHMS) (BREATHER)
A2041-006002
FRONT GEAR TRAIN CASE (FOR EXTRA BAD FUEL AND POOR FUEL SPECIFICATION,
WATER+DUST, ADDITIONAL FILTER, VHMS) (BLOWBY SENSOR)
A2041-006003
FRONT GEAR TRAIN CASE (FOR EXTRA BAD FUEL AND POOR FUEL SPECIFICATION,
WATER+DUST, ADDITIONAL FILTER, VHMS LESS) (ACCESSORY PARTS)
A2041-008001
FRONT GEAR TRAIN CASE (FOR EXTRA BAD FUEL AND POOR FUEL SPECIFICATION,
WATER+DUST, ADDITIONAL FILTER, VHMS LESS) (BREATHER)
A2041-008002
FRONT GEAR TRAIN CASE (FOR EXTRA BAD FUEL AND POOR FUEL SPECIFICATION,
WATER+DUST, ADDITIONAL FILTER, VHMS LESS) (COVER)
A2041-008003
FRONT COVER A2040-002001
IDLE GEARS A2050-001001
FLYWHEEL HOUSING A2210-003001
FLYWHEEL A2230-001001
ENGINE OIL PAN (OIL PAN) A2110-009001
ENGINE OIL PAN (OIL LEVEL SENSOR) A2110-009002
ENGINE OIL PAN (OIL LEVEL GAUGE) A2110-009003
ENGINE OIL PAN (SUCTION TUBE) A2110-009004
ENGINE OIL PAN (FOR COLD AREA SPECIFICATION, ENGINE OIL PAN AND COOLANT HEATER,
ENGINE PRE-LUBRICATION SYSTEM) (OIL PAN)
A2110-010001
ENGINE OIL PAN (FOR COLD AREA SPECIFICATION, ENGINE OIL PAN AND COOLANT HEATER,
ENGINE PRE-LUBRICATION SYSTEM) (OIL LEVEL SENSOR)
A2110-010002
ENGINE OIL PAN (FOR COLD AREA SPECIFICATION, ENGINE OIL PAN AND COOLANT HEATER,
ENGINE PRE-LUBRICATION SYSTEM) (OIL LEVEL GAUGE)
A2110-010003
ENGINE OIL PAN (FOR COLD AREA SPECIFICATION, ENGINE OIL PAN AND COOLANT HEATER,
ENGINE PRE-LUBRICATION SYSTEM) (SUCTION TUBE)
A2110-010004
ENGINE OIL PAN (FOR COLD AREA SPECIFICATION, ENGINE OIL PAN AND COOLANT HEATER,
ENGINE PRE-LUBRICATION SYSTEM) (OIL PAN)
A2110-011001 AND MORE
HD785 – 7
Serial No. N10561 and up
ENGINE SAA12V140E -3B-02
Engine No 505792 and up
FEN02186-00-NI-04
