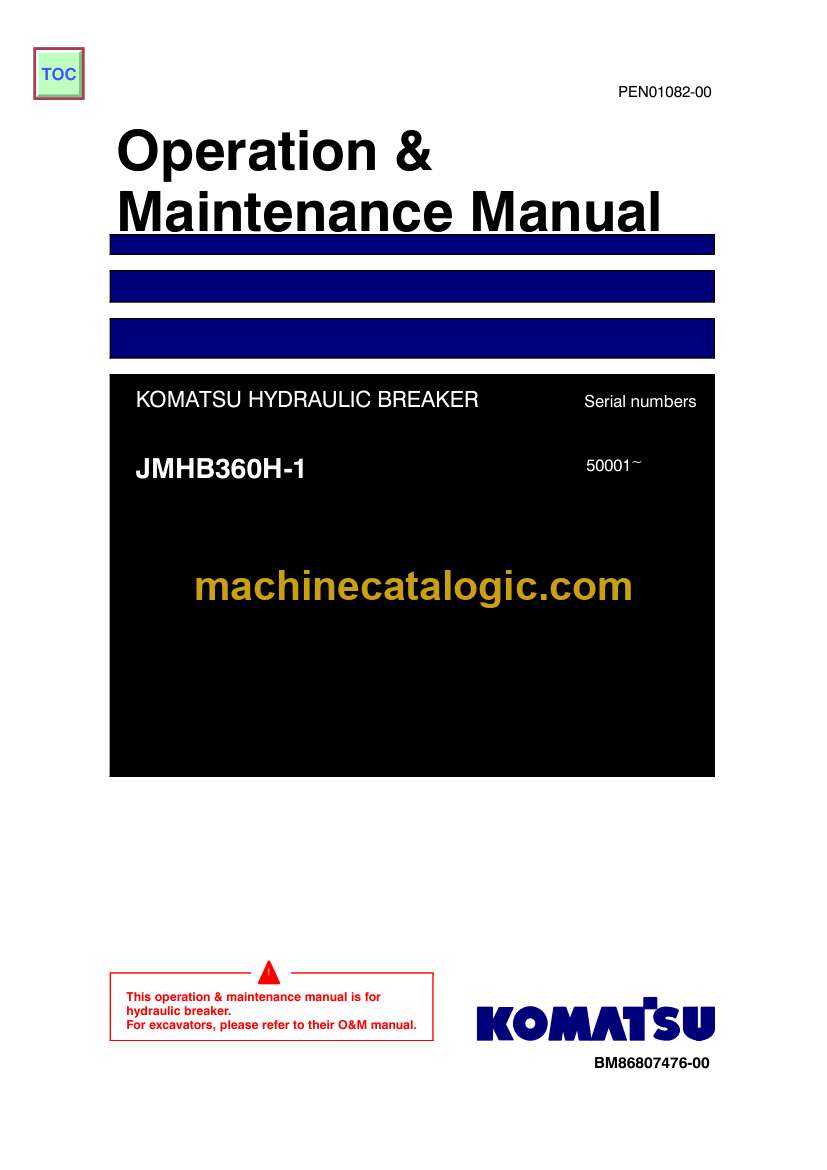

Komatsu JMHB360H-1 Hydraulic Breaker Operation and Maintenance Manual (PEN01082-00)

On a breaker like the JMHB360H-1, you’re hammering rock, concrete, and hard trench work all day, usually in dust, vibration, and temperature swings. This Operation and Maintenance Manual is what I’d keep handy to set up a sane service rhythm, so the breaker hits hard without beating itself to death. When I see things like weak impact, excessive tool play, or abnormal heat in the housing, I’d use this manual to trace through the basic checks, verify adjustments, and decide if it’s a quick on-site fix or if it needs shop time.

Applications & Use Cases

• Plan preventive maintenance so you grease, inspect, and re‑torque at sensible intervals instead of waiting for a failure.
• Walk around the breaker with the book and systematically inspect tool, bushings, hoses, and mounts for early wear.
• Confirm operating practices for different materials so the operator doesn’t idle-chisel or side-load and shorten component life.
• Isolate performance issues like weak blows or oil leaks by following the suggested check order.
• Coordinate with the carrier’s service to keep breaker settings and hydraulic flow in a safe range.

FAQ

Q: Can I keep this manual on a tablet in the cab?

A: Yes, it’s practical to use digitally so you can zoom diagrams and search terms while you’re at the machine.

Q: Is it worth printing certain pages?

A: Many techs print the routine checks and torque/inspection tables to keep in a job box for quick reference.

Safety Note

Always depressurize the hydraulic system and secure the breaker before any inspection or maintenance.
