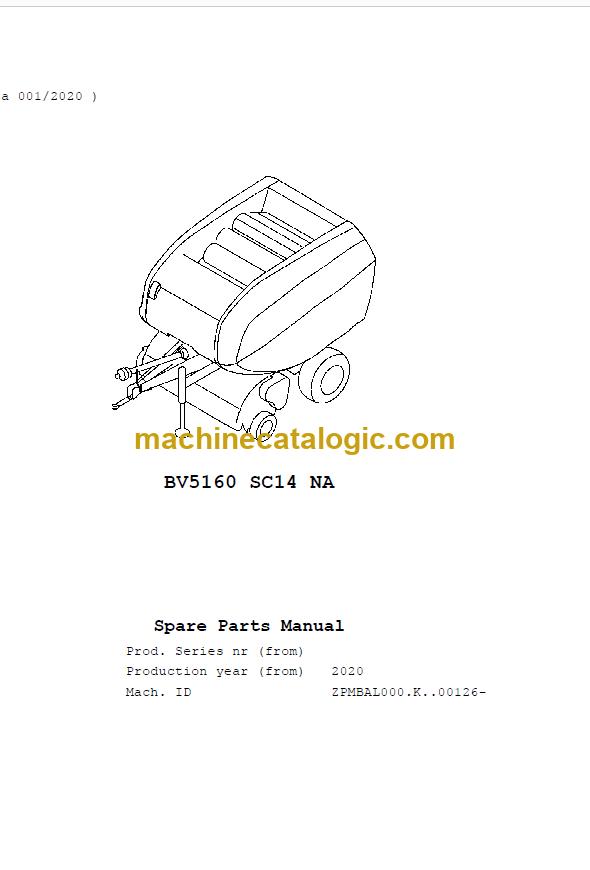

Kubota BV5160 SC14 NA Variable Chamber Round Baler Parts Manual

The Kubota BV5160 SC14 NA is a variable chamber round baler, the kind you hook behind a decent-sized tractor when you’re rolling a lot of hay. Folks who grab the Kubota BV5160 SC14 NA parts manual are usually like me with my L3901 or BX: they’d rather look up their own parts than sit at the dealer waiting. You’re typically trying to ID a broken roller bearing, pickup tine, or shield, and order everything in one shot before you drag the baler into the shop. This is a parts manual, not a how‑to‑fix‑it book.

What this manual helps you do

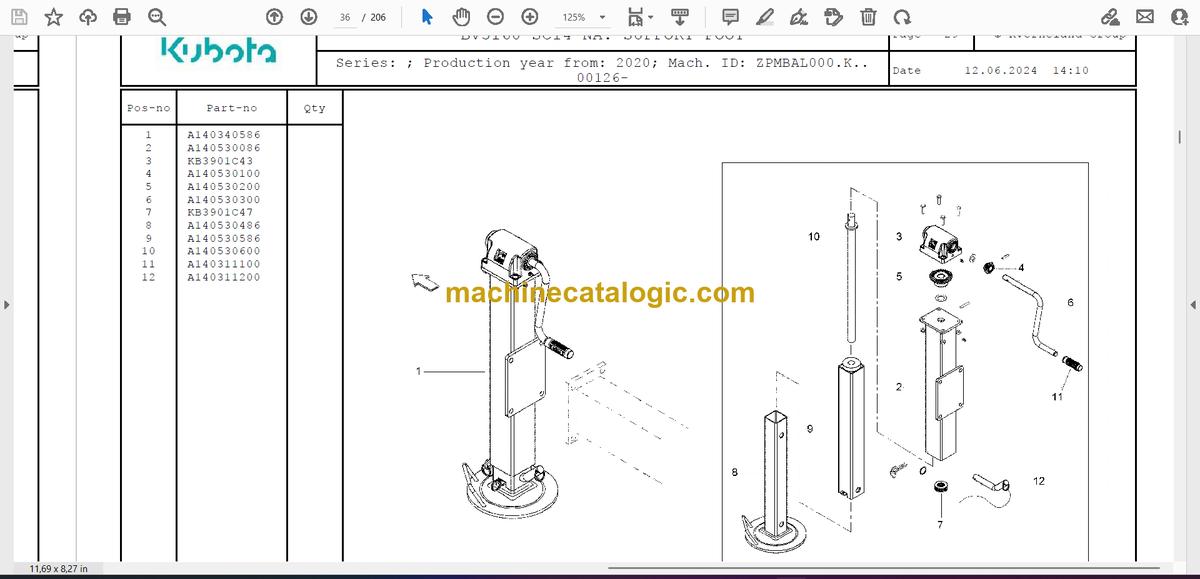

• Identify every replaceable part on the baler using exploded diagrams of the main frame, pickup, chamber, net system, and other assemblies.
• Locate exactly where a part lives in the machine so you don’t guess at which bearing, chain, or sprocket you’re ordering.
• Look up the correct Kubota OEM part numbers so you can call the dealer and sound like you know what you’re after.
• Cross-reference older part numbers shown in the Kubota BV5160 SC14 NA parts manual when the dealer says, “that’s been superseded,” and confirm you’re still on the right piece.
• Verify quantities for bolts, nuts, seals, and small bits so you buy everything you need once and skip repeat trips to town.

Who this is for

This fits an independent ag mechanic, a farm owner-operator running their own hay, or a dealer parts person who wants the factory breakdown in front of them. If you’re after torque specs, setup procedures, or troubleshooting for the baler, you want the Workshop/Service Manual instead, not this parts catalog.

FAQ

Q: Does this cover the full baler, including pickup, chamber, hydraulics, and electrics?

A: Yes, a Kubota parts manual like this normally breaks down all major assemblies: pickup, chamber, drive, hydraulics, and electrical components.

Q: Are the part numbers in here the latest ones from Kubota?

A: The manual shows the OEM numbers and usually notes superseded numbers, but your dealer’s system is the final word on the most current part number.

Bottom line: If you already know how to wrench and just need diagrams and part numbers for a BV5160 SC14 NA, this is the right book; if you need step‑by‑step repair instructions, keep looking for the service manual.
