Kubota GZD15-HD, GZD15-LD Zero-Turn Mower Parts Manual

The Kubota GZD15-HD, GZD15-LD parts manual is for the diesel zero‑turn mowers with the out‑front deck, the ones landscapers and grounds crews run hard around farmyards and sites. It’s what I reach for when I’m trying to ID a spindle, pulley, or belt before I tear into the deck and park a machine. If you’re trying to match up blades, carriers, bearings, or hardware without guessing at the dealer counter, this is the right type of book. If you’re hoping for repair steps or specs, this isn’t that.

What this manual helps you do

• Identify the correct blades, spindle assemblies, pulleys, and deck hardware for your GZD15-HD or GZD15-LD by diagram and OEM number.
• Locate belts, idlers, and drive components in the deck and traction drive so you can order parts before the mower is down.

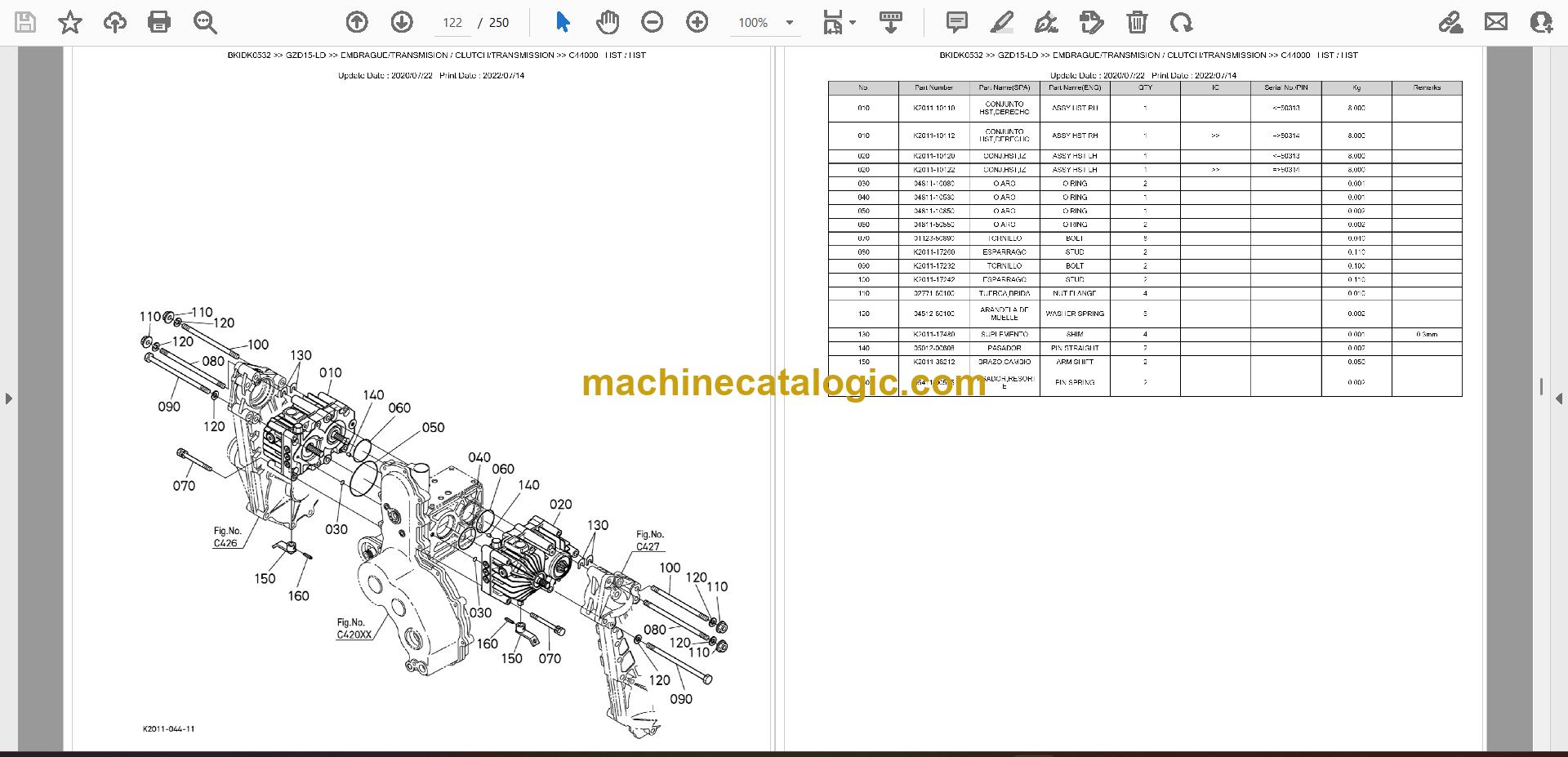

• Look up engine, HST/transmission, and axle-related parts by exploded view instead of trying to describe them at the parts counter.
• Cross-reference older Kubota part numbers to newer superseded numbers, since this listing includes two revisions (BKIDK0530, BKIDK0532).
• Verify the part number and quantity of fasteners, seals, and small bits so you don’t get caught one bolt or gasket short during reassembly.

Who this is for

This suits a farm owner‑operator, independent ag mechanic, landscape contractor, or Kubota dealer parts desk that needs clean diagrams and part numbers for the GZD15-HD, GZD15-LD mowers. If you need torque specs, wiring tests, adjustments, or troubleshooting, you want the Kubota Workshop/Service Manual instead, not this parts catalog.

FAQ

Q: Does this cover the engine, hydraulics, and electrical along with the mower deck?

A: Yes, a Kubota GZD15-HD, GZD15-LD parts manual typically shows all major assemblies: engine, HST drive, hydraulics, deck, chassis, and electrical components.

Q: Are the part numbers in here current?

A: The manuals include Kubota supersession notes, and this listing bundles two revisions (BKIDK0530 and BKIDK0532), which helps catch updated part numbers over time.

Bottom line: If you need to identify and order the right hard parts for a Kubota GZD15-HD or GZD15-LD zero‑turn, this is what you want; if you’re after repair instructions, keep looking for the service manual instead.

Table of Contents:

• Cutting Deck
  • Deck Shell Assembly
  • Spindle Assemblies
  • Blades & Blade Carriers
  • Anti-Scalp Wheels
  • Discharge Chute / Mulching Plug
• Drive System
  • Drive Belts & Pulleys
  • Belt Tensioners & Idlers
  • Spindle Drive Components
  • Hydrostatic Transmission (HST)
  • Drive Wheels & Hubs
• Engine
  • Engine Assembly (Gasoline or Diesel)
  • Air Filter & Intake
  • Exhaust & Muffler
  • Fuel Tank & Lines
• Deck Lift & Adjustment
  • Deck Lift Linkage
  • Height-of-Cut Adjusters
  • Deck Lift Pedal / Lever
• Steering & Controls
  • Steering Levers / Wheel
  • Speed Control / Pedal
  • Park Brake Lever
  • Operator Presence Switch
• Operator Station
  • Seat Assembly
  • Operator Platform
  • Footrests
  • ROPS (if equipped)
• Wheels & Casters
  • Front Caster Wheels
  • Rear Drive Wheels
  • Tire Hardware
• Electrical System
  • Battery & Cables
  • Starter & Solenoid
  • Wiring Harness
  • Switches & Safety Interlocks
• Reference
  • Bolts, Nuts & Washers
  • Decals & Safety Labels
  • Numerical Part Number Index

Note: Topics above are typical for Kubota parts manuals of this equipment type. The actual manual may contain additional sections and detailed breakdowns.
