Kubota KC250HR Crawler Carrier Parts Manual (BKIDA0404)

The Kubota KC250HR is a small rubber‑track crawler carrier used for hauling material in tight or soft ground areas—think jobsite or farm yards where a wheelbarrow would be misery. The Kubota KC250HR parts manual is what parts counters, mechanics, and owners grab when they need to see how an assembly goes together and what part number to order before tearing into it. If you’re trying to rebuild a track system, fix a dump bed issue, or replace worn pins and rollers, this is the book you reach for. It’s not the book that tells you how to adjust, test, or torque anything.

What this manual helps you do

• Identify the exact Kubota OEM part number for KC250HR components like undercarriage, dump body hardware, controls, and frame parts.

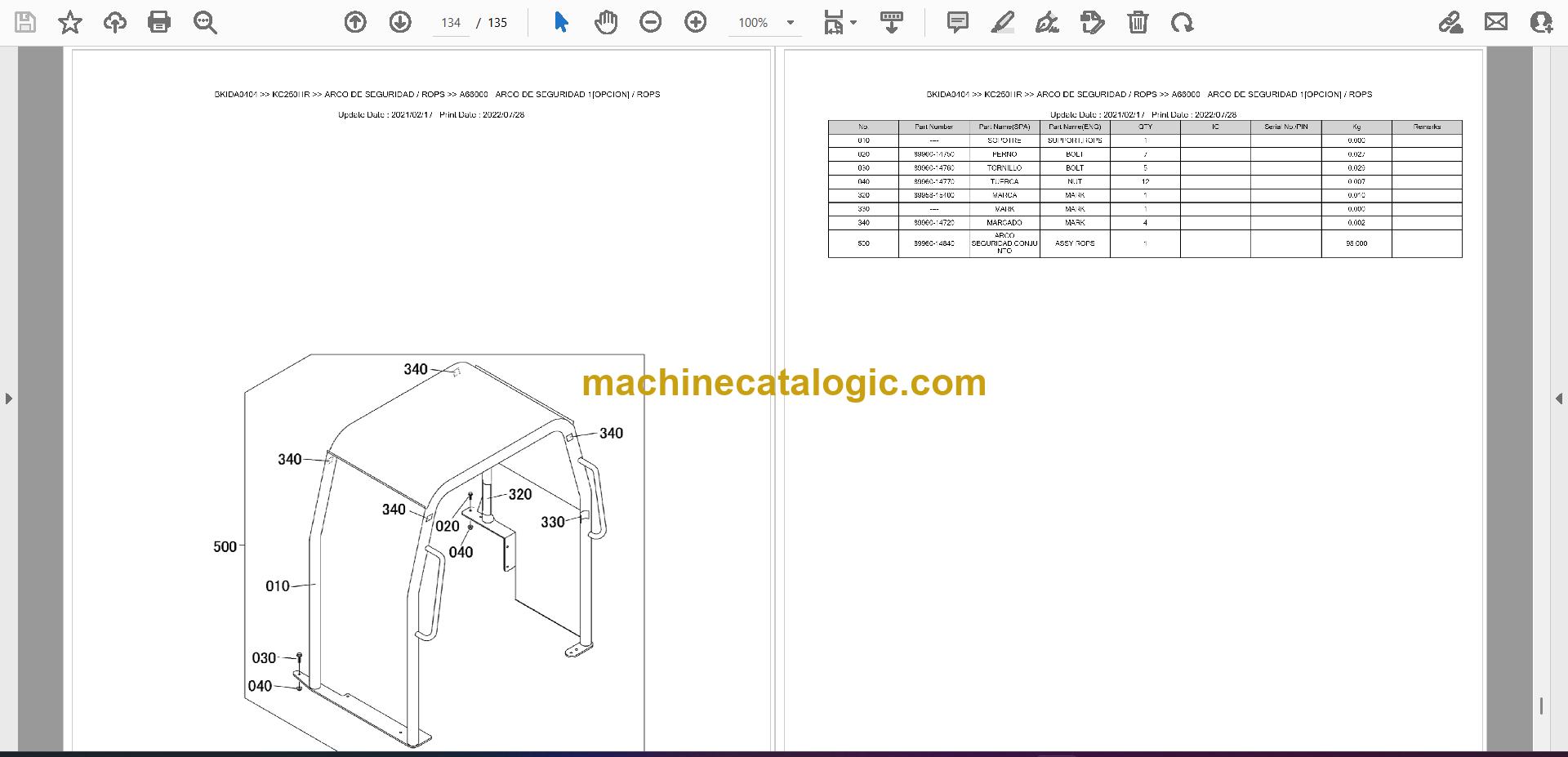

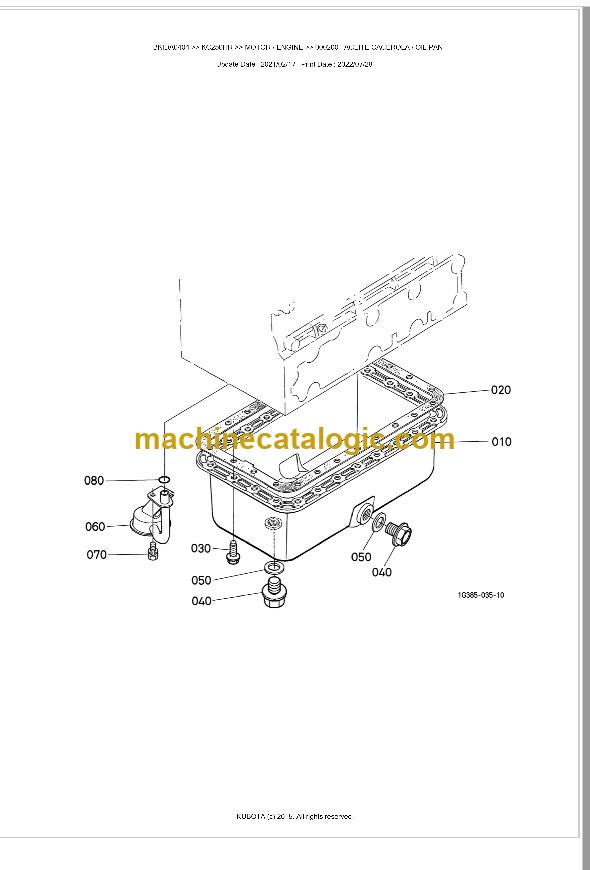

• Locate where a specific bracket, pin, seal, or bearing sits in the crawler carrier using exploded view diagrams.
• Look up quantity-per-machine for bolts, washers, seals, and other small hardware so you order the right count the first time.
• Cross-reference older KC250HR part numbers to newer superseded Kubota numbers when the dealer says “that number’s been updated.”
• Verify that a part on your bench matches the correct diagram callout before you reassemble the carrier.

Who this is for

This parts manual suits an independent ag/construction mechanic, a contractor running a KC250HR, Kubota dealer parts staff, or anyone maintaining a small fleet of these carriers. If you need torque specs, hydraulic testing steps, or repair procedures, you want the Workshop/Service Manual, not this parts catalog.

FAQ

Q: Does this cover the engine, hydraulics, and track assemblies on the KC250HR?

A: Yes, a Kubota KC250HR parts manual like BKIDA0404 typically shows exploded views and part numbers for the engine, hydraulic components, track/undercarriage, and related hardware.

Q: Are the part numbers in this manual up to date with Kubota’s current numbers?

A: The manual shows the OEM numbers and usually notes superseded numbers, but your Kubota dealer will confirm the latest valid part number at the counter.

Bottom line: If you’re trying to identify and order the right KC250HR parts by diagram and part number, this is the right manual; if you’re looking for how-to repair steps, keep looking for the WSM.

Table of Contents:

• Major Assemblies
  • Primary Component Groups
  • Sub-Assembly Breakdowns
  • Exploded View Diagrams
• Engine Components (if equipped)
  • Engine Block & Internals
  • Cooling & Lubrication
  • Fuel System
  • Air Intake & Exhaust
  • Electrical Components
• Mechanical Systems
  • Drivetrain Components
  • Hydraulic System (if equipped)
  • Controls & Linkages
  • Bearings, Shafts & Couplings
• Frame & Structure
  • Main Frame / Chassis
  • Body Panels & Covers
  • Mounting Hardware
• Electrical System (if equipped)
  • Battery & Cables
  • Wiring Harness
  • Switches, Lights & Sensors
• Reference
  • Fasteners (Bolts, Nuts, Washers)
  • Gaskets, Seals & O-Rings
  • Decals & Warning Labels
  • Numerical Part Number Index

Note: Topics above are typical for Kubota parts manuals of this equipment type. The actual manual may contain additional sections and detailed breakdowns.
