Kubota KX121-3ALPHA Compact Excavator Parts Manual (BKIDA0304)

The Kubota KX121-3ALPHA is a rubber-track compact excavator, the kind you see on farms for trenching, tile repairs, and yard projects, and on small contractor jobs. The Kubota KX121-3ALPHA parts manual is what I reach for when I’m trying to figure out exactly which pin, bushing, seal kit, or hose a customer needs before we tear anything apart. If you’re trying to save downtime and avoid ordering the wrong orange box from Kubota, this is the right kind of book. It’s not a how‑to‑fix‑it guide, it’s the “what part do I actually need?” guide.

What this manual helps you do

• Identify the correct OEM part number for boom, arm, and bucket pins, bushings, and linkages before you start a pivot rebuild.

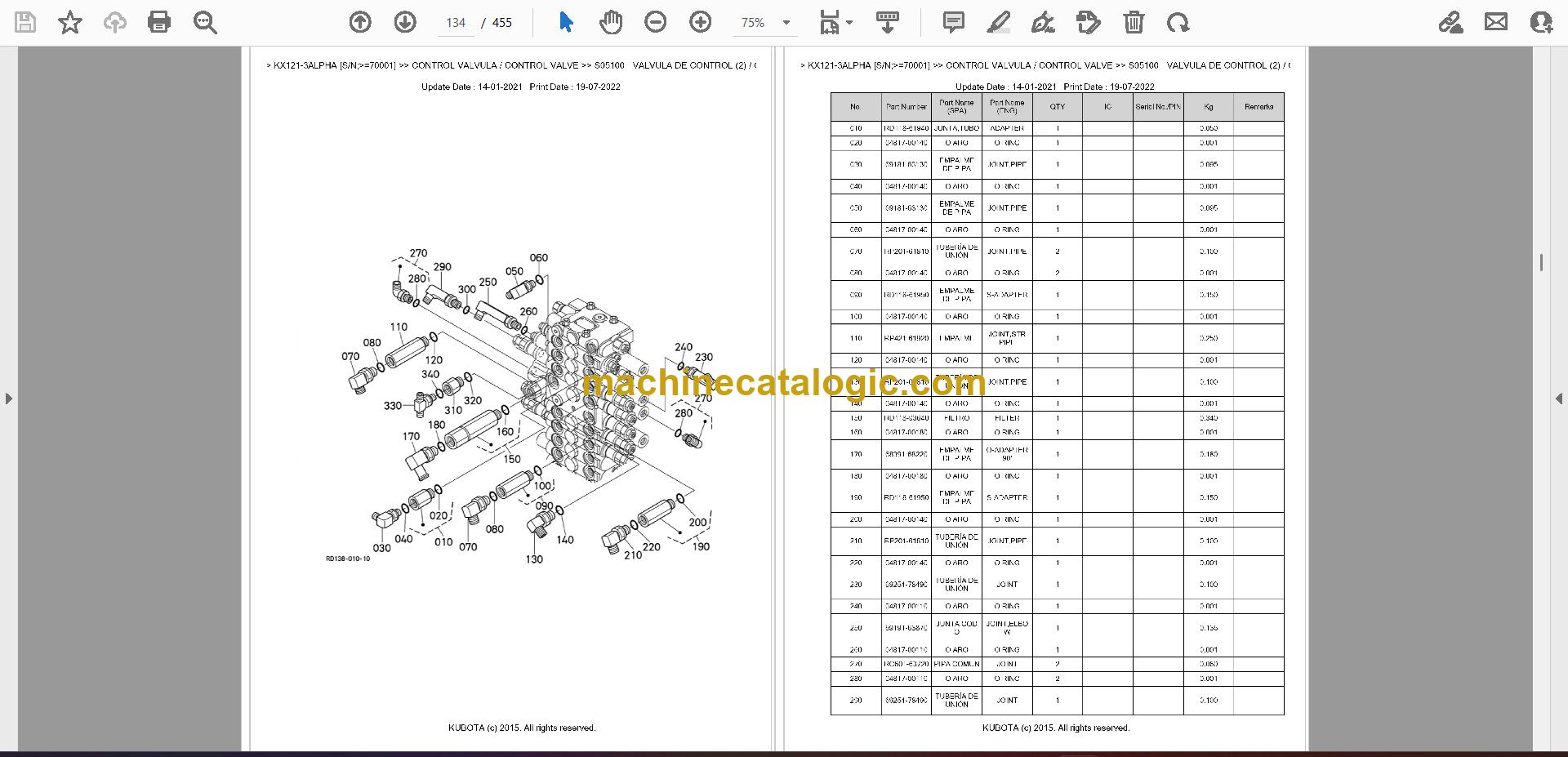

• Locate every component in the hydraulic system—pumps, control valves, cylinders, swing motor, and travel motors—using exploded diagrams.
• Look up seal kits, gaskets, O-rings, and small hardware with quantity-per-machine so you don’t come up short mid‑job.
• Cross-reference older Kubota part numbers to the newer superseded numbers your dealer’s system will actually recognize.
• Verify that a used or aftermarket part matches the original Kubota layout by comparing it to the illustrated parts breakdown.

Who this is for

This parts manual is aimed at an independent ag mechanic, farm owner-operator, or small contractor who wants to source the right Kubota parts, sometimes cheaper than walking blind into the dealer. If you’re after torque specs, troubleshooting, or step‑by‑step repair procedures, you want the Workshop/Service Manual instead, not this parts catalog.

FAQ

Q: Does this cover the engine, hydraulics, undercarriage, and electrics on the KX121-3ALPHA?

A: Yes, a Kubota KX121-3ALPHA parts manual like this normally shows exploded views and part numbers for engine, hydraulic groups, undercarriage, and electrical components.

Q: Are the part numbers in this manual the latest ones Kubota uses?

A: The manual shows the OEM numbers and usually notes superseded numbers, but your dealer’s system is the final word on the most current part number.

Bottom line: If your goal is to identify and order the right hard parts for a Kubota KX121-3ALPHA, this BKIDA0304 parts manual is what you want; if you’re trying to learn how to do the actual repairs, keep looking for the WSM/service manual instead.
