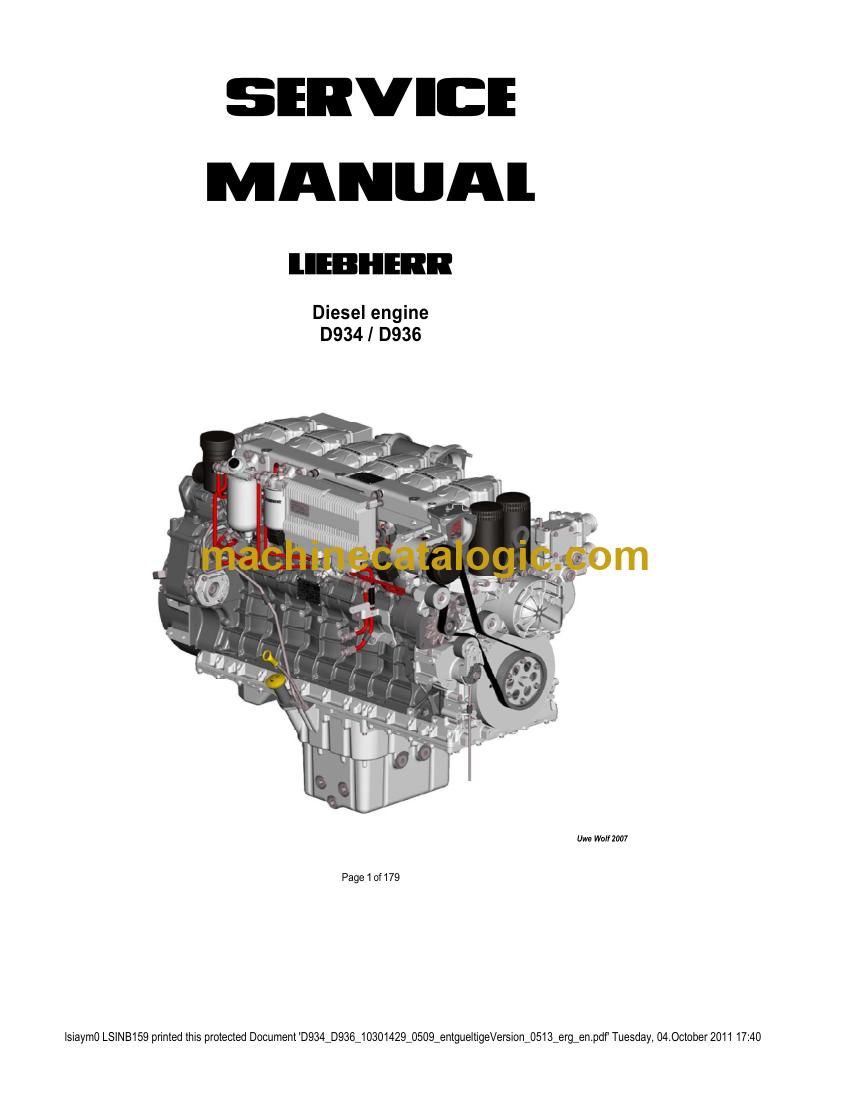

Liebherr D 934 and D 936 Engine Service Manual

The D 934 and D 936 are Liebherr diesel engines used to power cranes and other heavy machines. When one runs rough, throws a fault or needs to come apart, the service manual is the book you reach for. Shop mechanics, fleet technicians and anyone working on a machine that's out of warranty use it to find test values, adjustment steps and fault meanings.

What this manual helps you do

• Trace faults through the mechanical fault list and the electronic fault list.
• Check the lube oil circuit and water circuit when pressure or temperature problems show up.
• Follow the cylinder head section when you're removing, inspecting or refitting the head.
• Diagnose problems on the suction side and exhaust side of the engine.
• Verify readings using the level – 1 parameters and measuring points section.

Who this is for

Independent repair shops and rental fleet mechanics who service these engines in-house. It also suits dealer technicians and plant maintenance staff who need the workshop-level detail for a D 934 or D 936. A used machine that arrived with no paperwork is a good example.

FAQ

Q: What do I receive and how is it organised?

A: One PDF file, 179 pages, in English. The text can be searched and copied, so you can jump straight to a fault or a system. You'd expect it to run from the foreword and product description through the engine systems, maintenance and fuels, then the fault lists.

Q: Which engines does it fit?

A: It's the D934 and D936 Diesel Engine Service Manual, publication number 10301429. It documents both engines, with descriptions of both the electronic injection system and the mechanical injection system.

Q: How does it fit the job I'm doing?

A: If you're diagnosing a fault, adjusting, or rebuilding a section of the engine, it gives you the workshop reference for that work. The electrical system, accessories and maintenance sections sit alongside the main engine groups.

If you have a D 934 or D 936 on the bench, this is the manual to have open beside it.

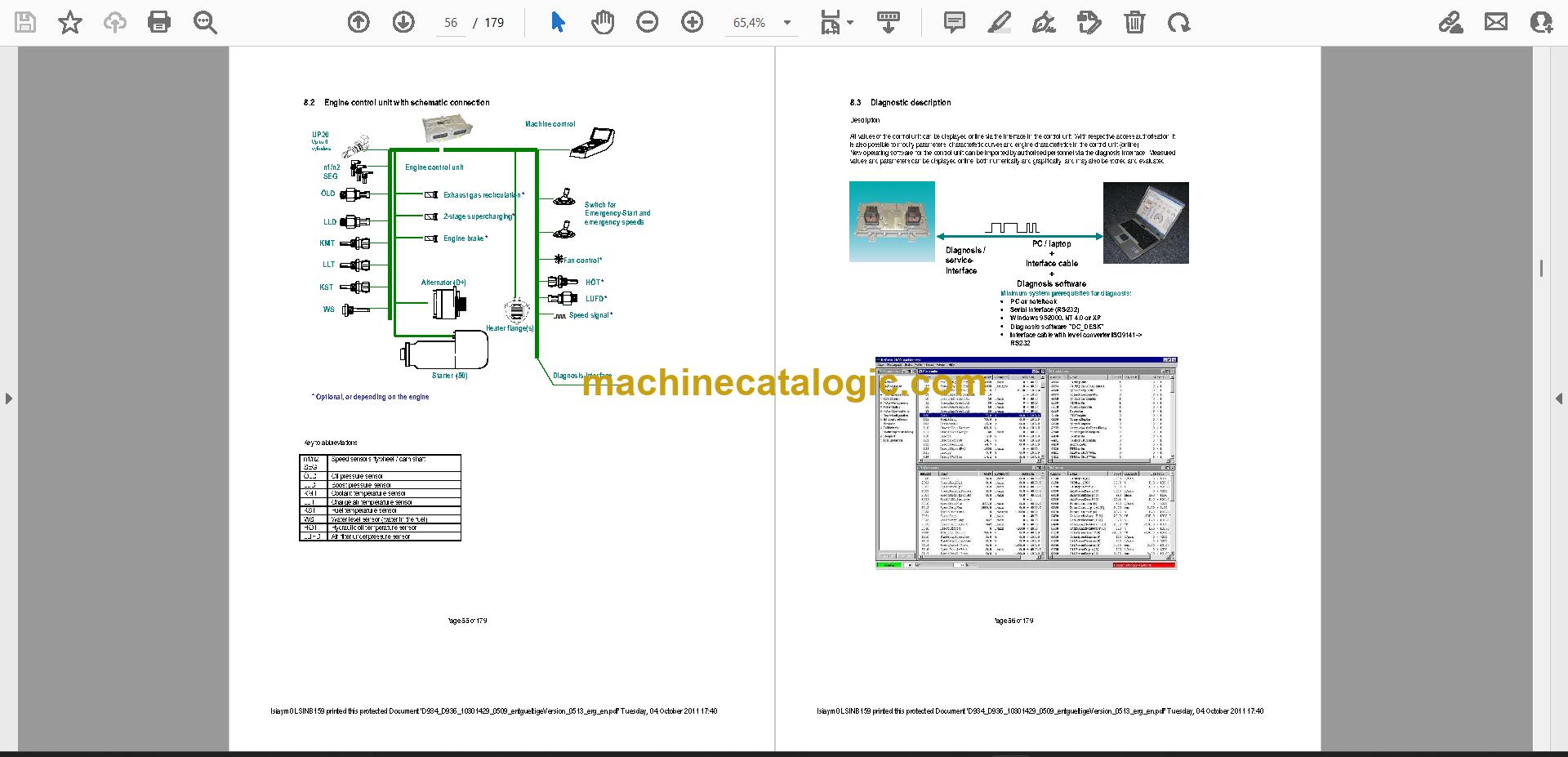

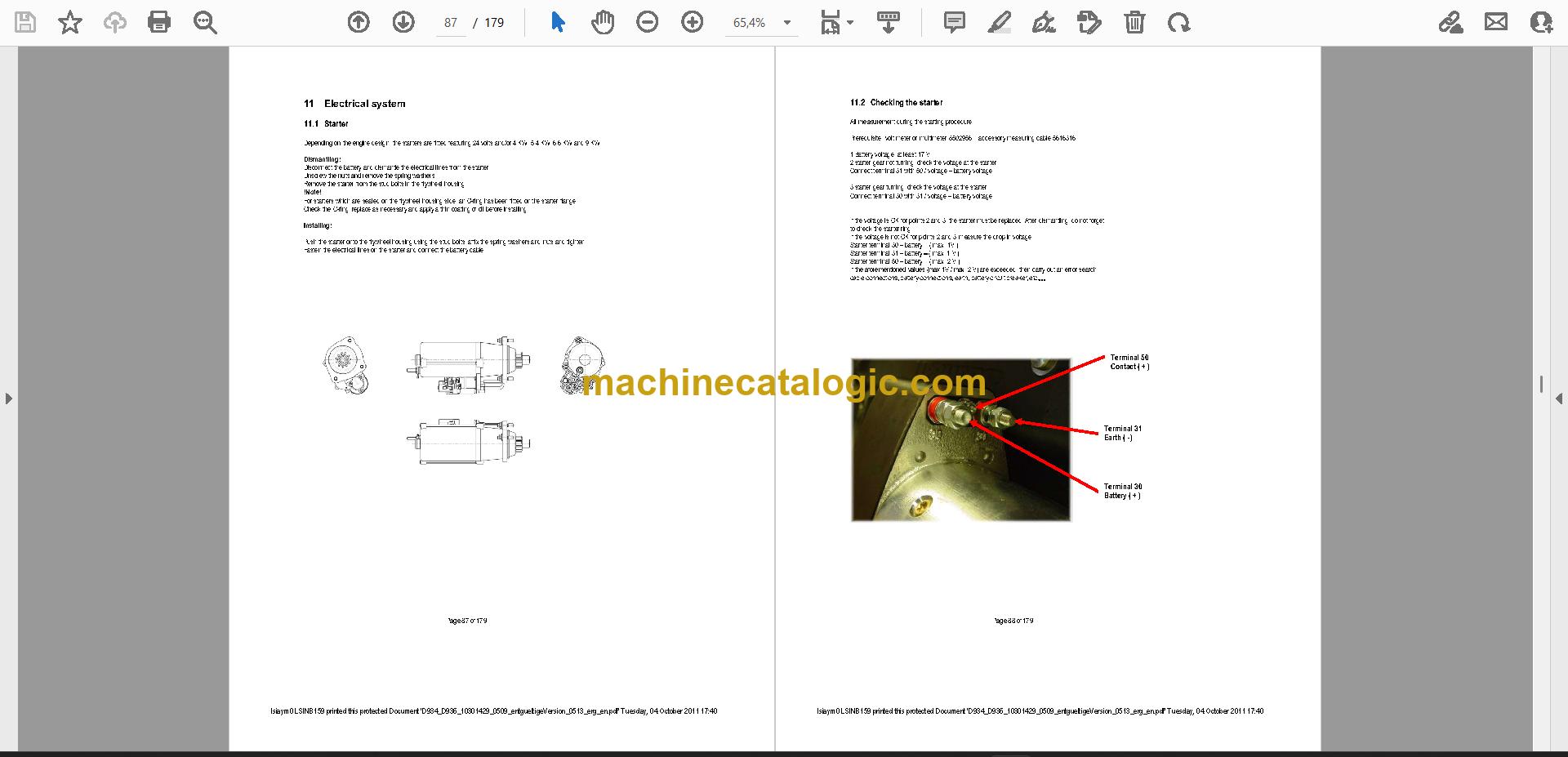

Click here to view the preview (PDF)
