The Liebherr LTM 1030-2 Mobile Crane with SN 050897 is a solid little all‑terrain crane you’ll see on tight urban jobs and general taxi work. When something electrical or hydraulic acts up, the first person reaching for the BMK / Technical Information is usually the tech with the laptop and the wiring diagram. Component identification matters because if you can’t find “K15” or “V12” on the actual crane, you’re wasting time and guessing at faults. This BMK manual is basically the map that links the paper (or screen) to the iron.
What this manual helps you do

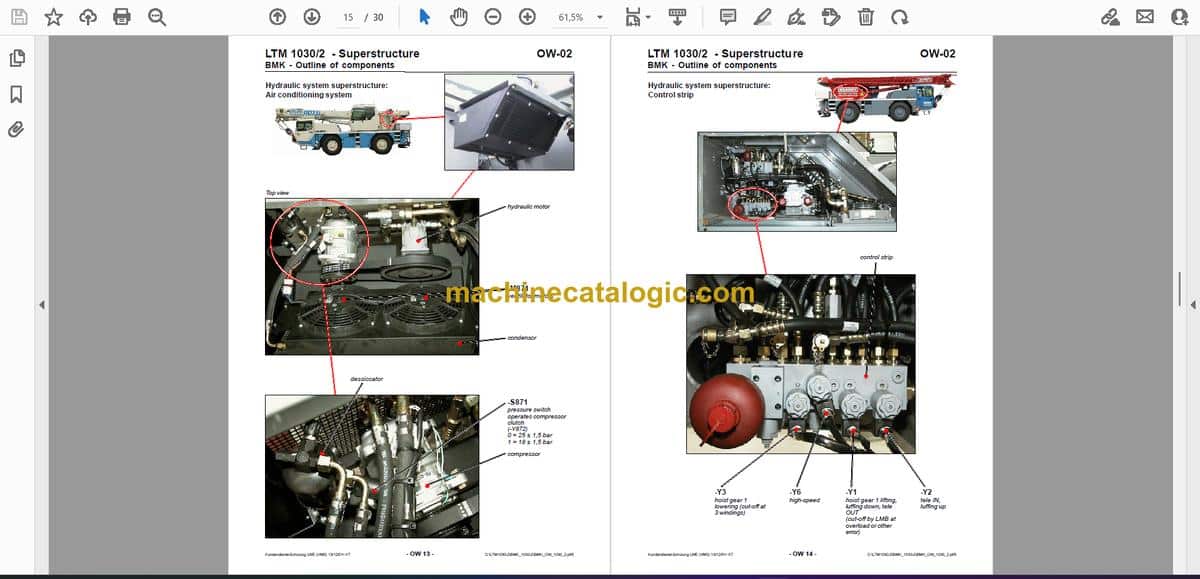

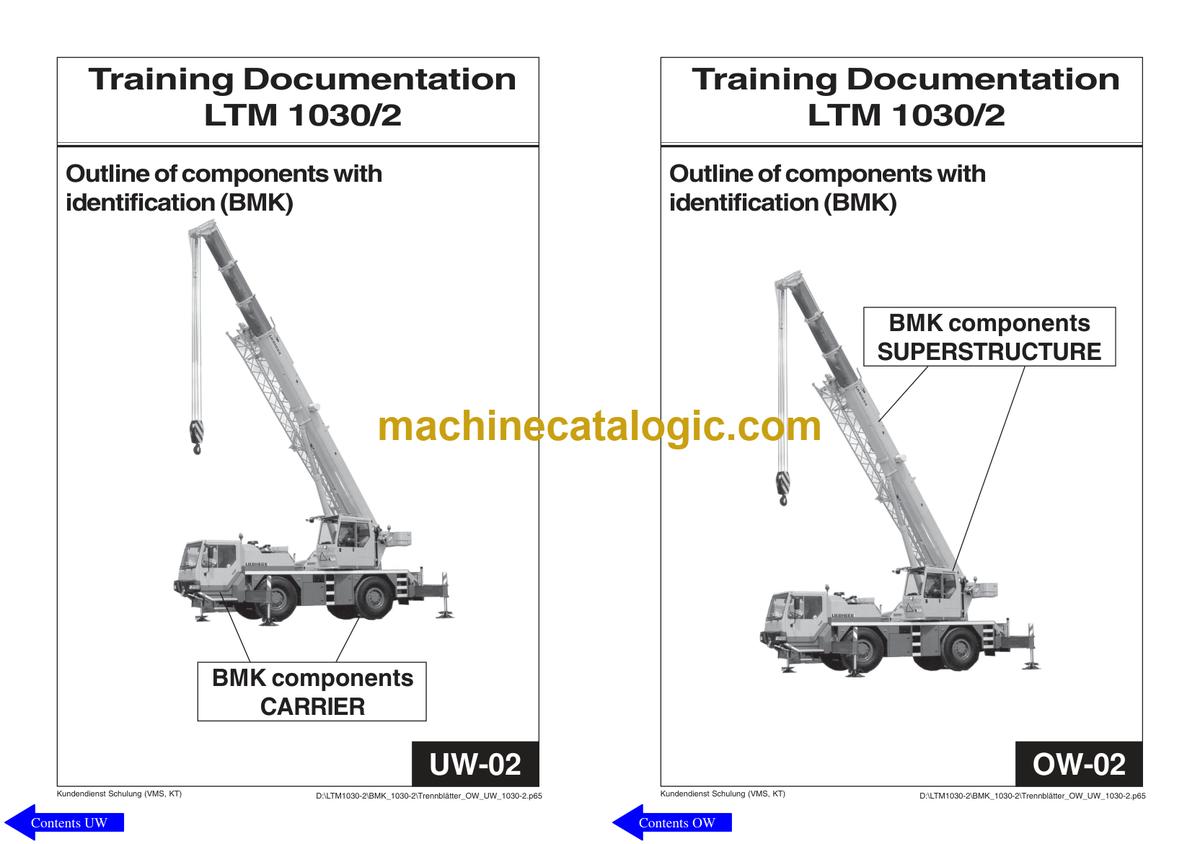

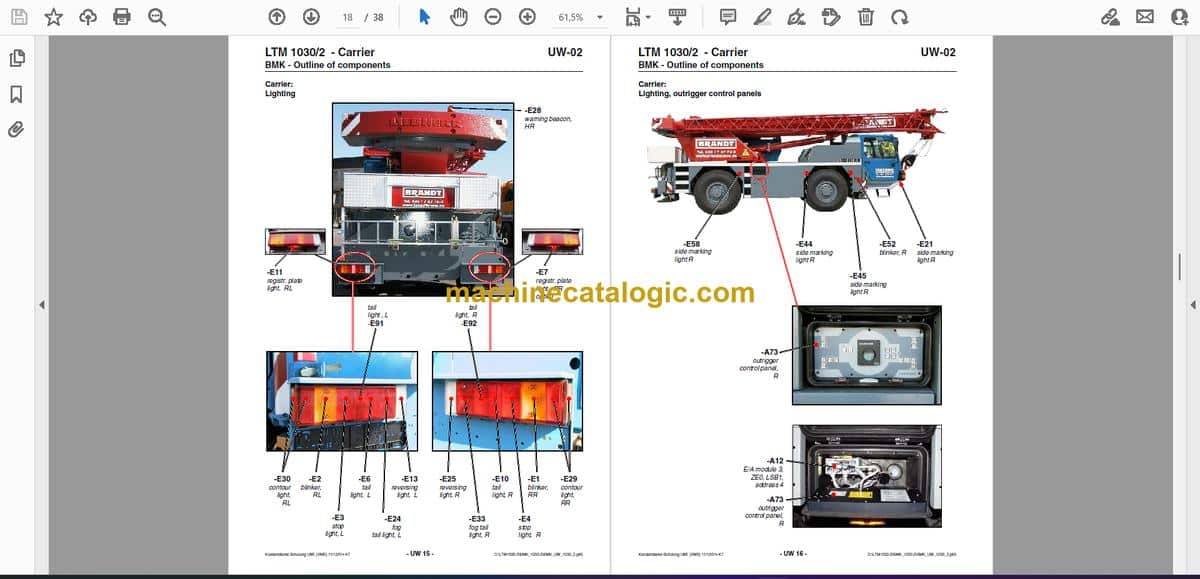

- Identify where specific Liebherr‑named components sit on the carrier and superstructure using outline and layout diagrams.
- Locate reference designators like E1, K3, V12, or X45 on the physical LTM 1030-2 crane when you’re following wiring or hydraulic schematics.
- Trace components related to a fault code or schematic symbol so you know exactly which box, valve, or sensor you’re dealing with.
- Cross-reference BMK numbers with other Liebherr documents, like wiring diagrams, service instructions, or training material.
- Pinpoint components for new techs so they learn the machine layout without having to shadow your most experienced fitter all day.
Who this is for
This suits a workshop technician, field service tech, electrical diagnostic engineer, fleet mechanic, or training instructor who already has or uses other Liebherr documents. If you need repair procedures, torque specs, or part numbers, you want the service manual and parts catalogue instead, not this BMK component identification manual.
FAQ
Q: Are the diagrams clear and searchable in the PDF?
A: These BMK PDFs are usually clean scans or native files, and you can zoom in to read the component labels and search text like “K15” or “E12”.
Q: Does it cover both the carrier and the upper crane?
A: Yes, this Technical Information & BMK Components Manual covers both the carrier and the superstructure in one package for SN 050897.
Q: Does it work together with other Liebherr manuals?
A: Yes, the BMK for the Liebherr LTM 1030-2 Mobile Crane is meant to be used alongside wiring diagrams, service manuals, and parts catalogues to tie schematic IDs to real components.
Bottom line: If your question is “Where is this component and what does Liebherr call it?”, this is exactly what you need. If your question is “How do I fix or order it?”, this is not the right manual.
📘 Show Index
Table of Contents:
Carrier — Table of Contents
- CARRIER
- TABLE OF CONTENTS
- BMK-Table (-A1 to -E16)
- BMK-Table (-E17 bis -L4)
- BMK-Table (-M1 to -S354)
- BMK-Table (-U50 to -Y43)
- BMK-Table (-Y44 bis -Y176)
- Carrier:
- ABV (antilocking system), transverse differential locks
- ABV (antilocking system), ASR (automatic track control)
- ABV (antilocking system), rear-axle release
- Supporting system, rear-axle steering
- Suspension
- Outside temperature sensor, batteries
- Lighting
- Lighting, outrigger control panels
- Coolant level
- Slewing pass-through
- Air drier
- Compact control block
- Pneumatic valves
- Horn
- Brake pressure sensor
- Driver's cab:
- Mirrors, interior lighting
- Operating elements
- Pneumatic system
- Heater, windscreen washer
- Centre console
- Fuses, diagnostic connector
- Additional heater
- Drive:
- Autom. transmission ZF Ergopower 6 WG-210
- Diesel engine OM 906 LA
- Air filter
- INDEX
- INDEX CARRIER
- -A 8
- -A 9
- -A10
- -A11
- -A12
- -A13
- -A17
- -A18
- -A19
- -A23
- -A24
- -A26
- -A32
- -A33
- -A50
- -A51
- -A64
- -A73
- -A74
- -A90
- -B 2
- -B 5
- -B 6
- -B 7
- -B 8
- -B 9
- -B10
- -B19
- -B31
- -B32
- -B33
- -B34
- -B37
- -B38
- -B39
- -B40
- -B41
- -B42
- -B43
- -B44
- -B45
- -E 1
- -E 2
- -E 3
- -E 4
- -E 5
- -E 6
- -E 7
- -E 9
- -E10
- -E11
- -E13
- -E14
- -E15
- -E16
- -E17
- -E18
- -E19
- -E20
- -E21
- -E24
- -E25
- -E27
- -E28
- -E29
- -E30
- -E31
- -E32
- -E33
- -E36
- -E37
- -E39
- -E40
- -E41
- -E42
- -E43
- -E44
- -E45
- -E46
- -E51
- -E52
- -E57
- -E58
- -E91
- -E92
- -E95
- -F 1 bis -F6
- -F 7 bis -F12
- -F13 bis -F18
- -F19 bis -F24
- -F25 bis -F30
- -F31 bis -F36
- -F37 bis -F42
- -F43 bis -F48
- -F49 bis -F54
- -F55 bis -F60
- -F61 bis -F66
- -F67 bis -F72
- -F79
- -F80
- -G1
- -G2
- -G3
- -G4
- -H101
- -H102
- -K50
- -K51
- -L1
- -L2
- -L3
- -L4
- -M 1
- -M 2
- -M 4
- -M10
- -M19
- -M20
- -M21
- -M22
- -M23
- -M24
- -M25
- -M26
- -M300
- -N1
- -P11
- -P14
- -R20
- -R22
- -R25
- -R26
- -R27
- -S 10
- -S 11
- -S 17
- -S 19
- -S82
- -S104
- -S105
- -S106
- -S114
- -S116
- -S118
- -S119
- -S121
- -S122
- -S123
- -S131
- -S134
- -S135
- -S137
- -S139
- -S142
- -S144
- -S146
- -S148
- -S151
- -S199
- -S313
- -S354
- -U50
- -X 47
- -X 49
- -X 50.1-6
- -X 57
- -X 74
- -X 75
- -X 76
- -X 81
- -X 99
- -X100
- -X101
- -X102
- -X104
- -X205
- -X207
- -X209
- -X210
- -X215
- -X266
- -X299
- -X329
- -XF1
- -XF2
- -XF3
- -XF4
- -XF5
- -XF6
- -XF7
- -XF8
- -XF9
- -XF10
- -XF11
- -XF12
- -Y 1
- -Y 2A
- -Y 2B
- -Y 3
- -Y 4
- -Y 5
- -Y 7
- -Y 9a
- -Y 9b
- -Y10
- -Y11
- -Y12
- -Y13
- -Y16
- -Y17
- -Y18
- -Y19
- -Y20
- -Y21
- -Y22a
- -Y22b
- -Y23
- -Y24
- -Y26a
- -Y26b
- -Y27a
- -Y27b
- -Y28a
- -Y28b
- -Y29a
- -Y29b
- -Y30a
- -Y30b
- -Y31a
- -Y31b
- -Y32a
- -Y32b
- -Y33a
- -Y33b
- -Y35
- -Y40
- -Y41
- -Y42
- -Y43
- -Y44
- -Y50
- -Y60
- -Y62
- -Y63
- -Y64
- -Y65
- -Y66
- -Y67
- -Y148
- -Y149
- -Y176
