The Liebherr LTM 1060-2 Mobile Crane spends its life in tight jobsites where downtime costs real money, so knowing exactly where each component sits is a big deal. Techs usually reach for the BMK when a wiring diagram says “K15” or “X45” and they need to find that thing on the actual machine. In the workshop, clear component identification is what keeps you from tearing half the crane apart just to find one sensor. This Technical Information & BMK Components Manual for SN 057440 is built for that kind of work, not for step‑by‑step repairs.
What this manual helps you do
- Identify which physical component matches a reference like E1, V12, K3, or X45 on your wiring or hydraulic schematics.
- Locate components on the carrier and superstructure using outline views and layout diagrams of the crane.
- Trace harnesses, valves, and sensors from schematic symbols to their real mounting positions on the machine.
- Cross-reference Liebherr component IDs with other manuals so you can jump between BMK, wiring diagrams, and service info.
- Pinpoint what Liebherr actually calls a component so you can talk the same language as their tech support and parts staff.
Who this is for
This is aimed at workshop technicians, field service techs, electrical diagnostic engineers, fleet mechanics, and training instructors teaching crane layout. If you need repair procedures, torque specs, or part numbers, you’re after a service manual or parts catalogue instead, not this BMK.
FAQ
Q: Are the diagrams clear, and is the PDF searchable?
A: These BMK PDFs usually have clean outline drawings and text you can search by component ID or keyword.
Q: Does it cover both the carrier and the superstructure?
A: Yes, this product combines BMK information for the lower carrier and the upper crane body in one manual.
Q: Does it work alongside other Liebherr documents?
A: Yes, it’s meant to be used with wiring diagrams, parts catalogues, and service manuals by matching the same reference designators.
Bottom line: If your goal is finding and naming components on a Liebherr LTM 1060-2 Mobile Crane, this BMK/Technical Information manual is exactly what you need; if you want how‑to repair instructions or part numbers, it’s not the right book.
📘 Show Index
Table of Contents:
Carrier — Table of Contents
- BMK components CARRIER
- CONTENTS:
- BMK-Tabelle (-A bis -E3):
- BMK-Tabelle (-E3U bis -E76):
- BMK-Tabelle (-E77 bis -MSP10):
- BMK-Tabelle (-MSP11 bis -S146):
- BMK-Tabelle (-S148 bis -X103):
- BMK-Tabelle (-X104 bis -X622):
- BMK-Tabelle (-X623 bis -XM103):
- BMK-Tabelle (-Y bis -Y872):

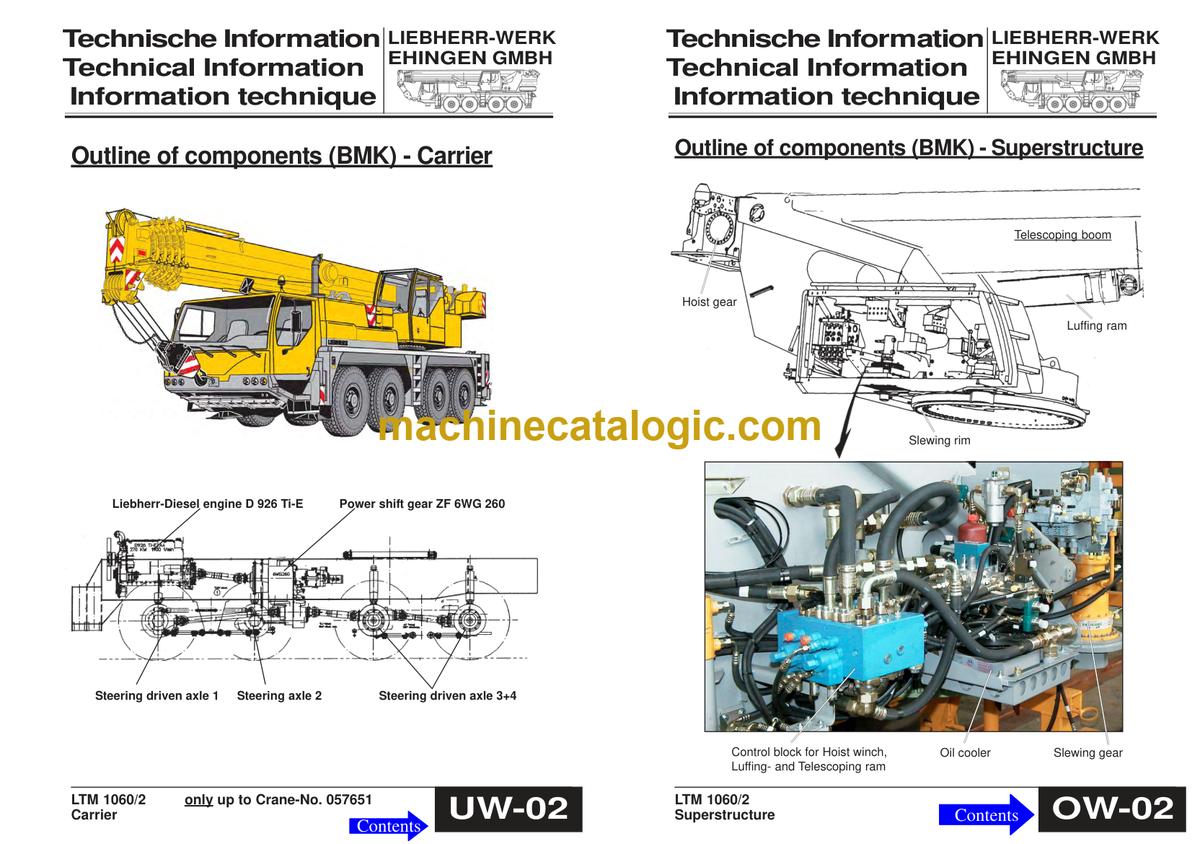

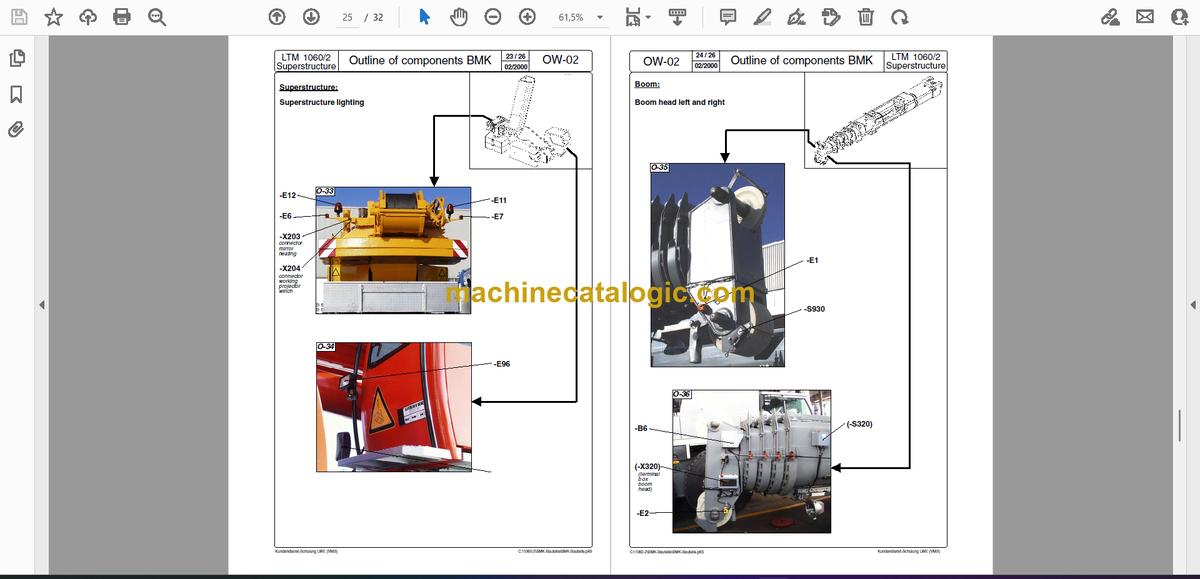

- Outline of components:
- Carrier:
- Front view, lighting
- Rear view, lighting
- View from the right, lighting and outrigger control panels
- View from the left, lighting and outrigger control panels

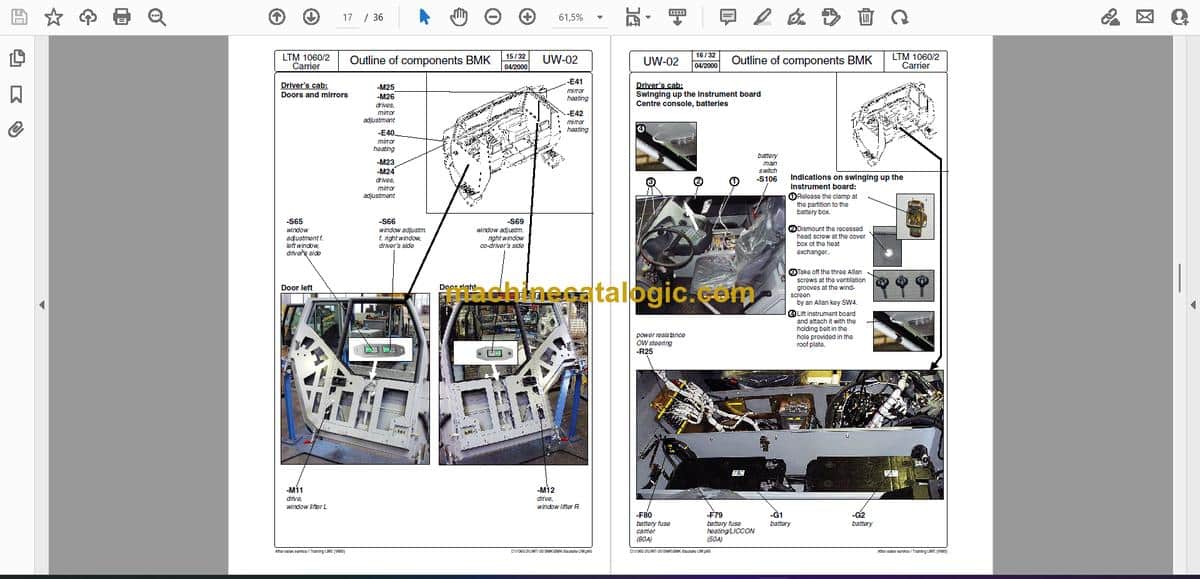

- Driver’s cab:
- Control elements
- Doors and mirrors
- Swinging up the instrument board
- Centre console, batteries
- Wind-screen washing device, heater
- Centre console, components and modules
- Centre console, fuses, diagnostic connector
- Bottom, additional heater
- Pneumatic system
- Drive:
- Diesel engine D 926 TI-E A4
- Intake air-flow
- Cooling system:
- Rotary slip-ring unit:
- Autom. transmission ZF, 6WG-260:
- View from the left
- View from the right
- Cardan shafts, transv. differential locks, Telma:
- Suspension:
- Outriggers and supporting rams, rear axle steering:
- Pneumatic valves, main control block:
- Index
- Index CARRIER
- -A 8
- -A 9
- -A10
- -A11
- -A12
- -A13
- -A14
- -A17
- -A23
- -A24
- -A26
- -A29
- -A31
- -A33
- -A50
- -A51
- -A64
- -A73
- -A74
- -A75
- -A90
- -B 2
- -B 5
- -B 6
- -B 7
- -B 8
- -B 9
- -B10
- -B15
- -B19
- -B31
- -B32
- -B33
- -B34
- -B35
- -B36
- -B37
- -B38
- -E 1
- -E 2
- -E 3
- -E 4
- -E 5
- -E 6
- -E 9
- -E10
- -E11
- -E13
- -E14
- -E15
- -E16
- -E17
- -E18
- -E19
- -E20
- -E21
- -E24
- -E25
- -E27
- -E28
- -E29
- -E30
- -E31
- -E32
- -E33
- -E36
- -E37
- -E38
- -E39
- -E40
- -E41
- -E42
- -E43
- -E44
- -E45
- -E46
- -E51
- -E52
- -E57
- -E58
- -E76
- -E77
- -E78
- -E79
- -E91
- -E92
- -F 1 to -F6
- -F 7 to -F12
- -F13 to -F18
- -F19 to -F24
- -F25 to -F30
- -F31 to -F36
- -F37 to -F42
- -F43 to -F48
- -F49 to -F54
- -F55 to -F60
- -F79
- -F80
- -G1
- -G2
- -G3
- -G4
- -H101
- -H102
- -K51
- -L1
- -M 1
- -M 2
- -M 4
- -M10
- -M11
- -M12
- -M19
- -M20
- -M21
- -M22
- -M23
- -M24
- -M25
- -M26
- -N1
- -P11
- -P14
- -R 9
- -R11
- -R14
- -R18
- -R22
- -R25
- -R26
- -R38
- -S17
- -S19
- -S65
- -S66
- -S69
- -S82
- -S103
- -S104
- -S105
- -S106
- -S110
- -S114
- -S116
- -S118
- -S119
- -S121
- -S122
- -S124
- -S131
- -S134
- -S135
- -S137
- -S139
- -S142
- -S144
- -S146
- -S148
- -S151
- -S160
- -S199
- -S313
- -S354
- -X47
- -X49
- -X50.1-6
- -X81
- -X94
- -X102
- -X207
- -X209
- -X277
- -X278
- -X279
- -X280
- -X281
- -X283
- -X284
- -X292
- -X295
- -Y 1
- -Y 2A
- -Y 2B
- -Y 3
- -Y 4
- -Y 4 (=F,+F3)
- -Y 5
- -Y 7
- -Y 8
- -Y 9a
- -Y 9b
- -Y10
- -Y11
- -Y12
- -Y13
- -Y16
- -Y17
- -Y18
- -Y19
- -Y20
- -Y21
- -Y22a
- -Y22b
- -Y24
- -Y26a
- -Y26b
- -Y27a
- -Y27b
- -Y28a
- -Y28b
- -Y29a
- -Y29b
- -Y30a
- -Y30b
- -Y31a
- -Y31b
- -Y32a
- -Y32b
- -Y33a
- -Y33b
- -Y34
- -Y35
- -Y48
- -Y50
- -Y63a
- -Y63b
- -Y105
- -Y148
