The Liebherr MK 88 Mobile Construction Crane is a mobile tower crane used for tight urban sites, fast setup, and frequent relocations. The Liebherr MK 88 Mobile Construction Crane Spare Parts Catalogue (SN 076869) is what parts counters and techs grab when they need to identify what to order, not how to repair. Most people use this kind of spare parts catalogue to match worn or damaged items on the crane to the correct OEM part numbers and quantities.
What this catalogue helps you do
- Identify the correct OEM part number for MK 88 components like boom sections, slewing gear, cab parts, and electrical items.
- Locate where a part sits in an assembly using exploded view diagrams, so you don’t guess from a blurry phone photo.
- Look up the quantity-per-crane for fasteners, seals, and hoses before you quote or open a job.
- Cross-reference older MK 88 part numbers to newer superseded numbers shown in the catalogue.
- Verify that the part you’re holding in your hand visually matches the drawing and callout before you order.
Who this is for
This spare parts catalogue suits a parts manager, dealer parts desk, fleet mechanic, field technician, or independent crane shop that already knows how to service an MK 88 and just needs the correct parts information. If you’re looking for torque specs, wiring tests, hydraulic pressures, or step‑by‑step repair procedures, you need a service or workshop manual instead.
FAQ
Q: Is this a searchable PDF with selectable part numbers?
A: Yes, this is typically supplied as a searchable PDF where you can zoom diagrams and search or copy text-based part numbers.
Q: Does it cover all major assemblies like engine, hydraulics, boom, and superstructure?
A: These Liebherr spare parts catalogues usually include breakdowns for all major groups on the MK 88, from undercarriage and superstructure to hydraulics, electrics, and cab equipment.
Q: Are superseded part numbers shown, or only the original ones?
A: These catalogues normally list current numbers and show supersessions, so you can see when an older part number has been replaced by a newer one.
Bottom line: If your main goal is to identify and order the right Liebherr MK 88 parts by number and diagram, this is the right document; if you need repair instructions or specs, you should keep looking for a service manual instead.
📘 Show Index
Table of Contents:
- Catalog
- MK 88 -003 / LIEBHERR CRANE CHASSIS MK 88

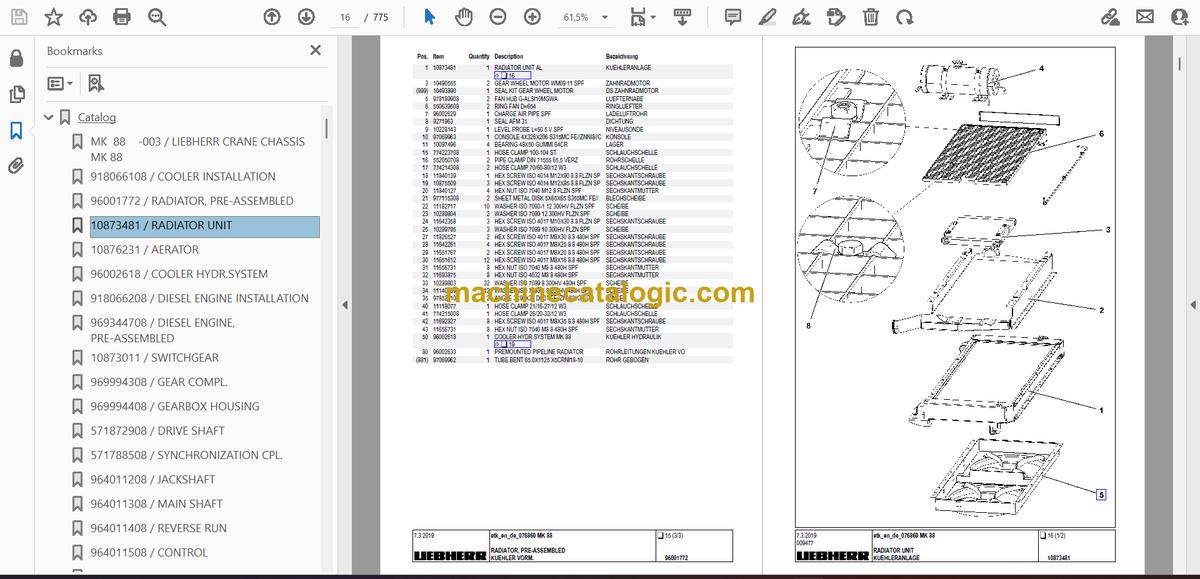

- 918066108 / COOLER INSTALLATION
- 96001772 / RADIATOR, PRE-ASSEMBLED
- 10873481 / RADIATOR UNIT
- 10876231 / AERATOR
- 96002618 / COOLER HYDR.SYSTEM
- 918066208 / DIESEL ENGINE INSTALLATION
- 969344708 / DIESEL ENGINE, PRE-ASSEMBLED
- 10873011 / SWITCHGEAR
- 969994308 / GEAR COMPL.
- 969994408 / GEARBOX HOUSING
- 571872908 / DRIVE SHAFT
- 571788508 / SYNCHRONIZATION CPL.
- 964011208 / JACKSHAFT
- 964011308 / MAIN SHAFT
- 964011408 / REVERSE RUN
- 964011508 / CONTROL
- 571782108 / GV CIRCUIT
- 969994508 / GB-CASE
- 969994608 / PLANETARY GEARBOX
- 571782408 / SYNCHRONIZATION CPL.
- 964011708 / GP CIRCUIT
- 10343526 / COUPLING
- 571876708 / CLUTCH ACTUATOR
- 969994708 / IT AS-TRONIK
- 969995208 / HOUSING
- 969995308 / CONTROL
- 969995408 / RETARDER
- 969995508 / HEAT EXCHANGER
- 969995608 / CABLING
- 964024708 / REP.TRANSMISSION ACTUATOR
- 962181308 / ADD-ON PARTS
- 964024108 / RK TEMPERATURE SENSOR
- 962921008 / CLUTCH ASSEMBLY
- 11621217 / VARIABLE PUMP
- 10411208 / CONTROL VALVE
- 11601110 / VARIABLE PUMP
- 11621215 / VARIABLE PUMP
- 11485425 / DRIVING GEAR
- 11481534 / VARIABLE PUMP
- 96002657 / HYDRAULIK PUMP ASSEMBLY
- 968789808 / PREMOUN PIPELINE DIESEL ENGINE
- 969768808 / CABLE CLAMP
- 918234908 / INTERM.GEARBOX
- 96005222 / INTERMEDIATE GEAR,PRE-ASSEMBLE
- 10873495 / DISTRIBUTOR GEARBOX
- 10874185 / VARIABLE PUMP
- 10653025 / CONTROL VALVE
- 10870694 / VARIABLE PUMP
- 96005223 / HYDRAULICS
- 919041408 / DIESEL ENGINE PURCHASED PARTS
- 12542434 / DIESEL ENGINE
- 11389619 / CRANKCASE CPL. WITH CYLINDER
- 10154457 / CYLINDER
- 10147687 / POWER UNIT SUPPORT ATTACHMENT
- 10138450 / FINAL CONTROL VALVE
- 10142750 / PISTON COOLING
- 10142018 / CRANKCASE BREATHER ASSEMBLY
- 10136800 / CRANKCASE BREATHER
- 10135440 / OIL SUMP WITH FASTENING
- 10155296 / OIL SUMP PRE-ASS.
- 5004624 / OIL DRAIN PLUG
- 10139539 / PIPELINE INSTALLATION
- 10142567 / OIL DIPSTICK CPL.
- 10134517 / LEVEL SENSOR
- 10146716 / OIL LINE PRE-ASSEMBLY
- 10153675 / CRANKSHAFT WITH GEAR
- 9076458 / SET MAIN BEARINGS
- 10116928 / RS CRANKSHAFT BEARING KPL.
- 10141983 / CRANKSHAFT ADD-ON PARTS
- 9076459 / CONROD
- 10146366 / PISTON CPL.
- 10149580 / CYLINDER HEAD ASSEMBLY
- 10148437 / ROCKER ARM BRACKET CPL.
- 12584740 / ROCKER ARM BRACKET PRE-ASS.
- 11358132 / CYLINDER HEAD COVER ASSEMBLY
- 10153574 / CAMSHAFT CPL.
- 10141507 / GEARWHEEL PRE-ASS.
- 9079870 / CONTROL PARTS
- 10142875 / LUBE OIL PUMP WITH FASTENING
- 10142942 / LUBE OIL FILTER ASSEMBLY
- 10150857 / HIGH PRESSURE PUMP W.FASTENING
- 10152865 / INJECTOR WITH FASTENING
- 10151150 / RK INJECTOR
- 10135080 / HIGH PRESSURE CONNECTOR
- 10153151 / HIGH PRESS.CONNECTOR W.FASTEN.
- 10146797 / FUEL FINE-FILTER ASSEMBLY
- 10146753 / FUEL FINE FILTER
- 10143347 / FUEL LINES
- 10145885 / LEAK OIL RETURN LINE
- 10143828 / INJECTION LINES
- 10142023 / CONNECTING PIECE PRE-ASS.
- 10147366 / AIR INTAKE PIPE ASS.
- 10147367 / INTAKE STACK ASSEMBLY
- 10147364 / AIR INTAKE ASSEMBLY
- 11448325 / CONNECTING LINE ADD-ON
- 9078314 / HEATING FLANGE ADD-ON
- 10299988 / HEATING FLANGE PRE.ASS.
- 10144316 / PIPELINE INSTALLATION
- 12444866 / ACCESSORIES AIR COMPRESSOR
- 10144314 / HIGH PRESSURE PIPE ASSEMBLY
- 10155177 / INTERMEDIATE GEAR CPL.
- 10151445 / CLAMP – ADD-ON UNIT
- 10142734 / WATER PUMP WITH FASTENING
- 10148215 / THERMOSTAT HOUSING ASSEMBLY
- 10148217 / PIPELINE INSTALLATION
- 10142742 / COOLANT PIPE BEND ADD-ON
- 10142744 / COOLING WATER AIR BLEEDING
- 11354700 / MANIFOLD FOR WATER CPL.
- 10142935 / FAN DRIVE
- 10147370 / HEAT PROTECTION W.FASTENING
- 10141371 / EXHAUST TC MOUNTING
- 12466338 / EXHAUST NOZZLE ATTACHMENT
- 10146224 / REGULATION BOOST PRESSURE
- 10142863 / GENERATOR, PRE-ASSEMBLED
- 10145859 / GENERATOR ADD-ON
- 10115539 / STARTER INSTALLATION
- 10219978 / STARTER
- 11386644 / STARTER PRE-ASSY.
- 10145548 / TRANSPORT DEVICE ATTACHEMENT
- 10142864 / TRANSPORT DEVICE ATTACHEMENT
- 10142079 / FLYWHEEL HOUSING MOUNTING
- 10144802 / FLYWHEEL ASSEMBLY
- 10146795 / CONTROL BOX ANNEXE
- 10144098 / FASTENING CLAMP
- 10144962 / CABLE HARNESS MOUNTING
- 10147557 / WIRING HARNESS ASSEMBLY
- 10150508 / CLAMP – ADD-ON UNIT
- 10142977 / ENGINE CONTROL SENSORS
- 10133077 / ROTATIONAL SPEED SENSOR CPL.
- 10146421 / CLAMP – ADD-ON UNIT
- 10142747 / LOCKING PIECES
- 9078249 / LOCKING PIECES
- 10145429 / AUXILIARY DRIVE PRE-ASS.
- 10145434 / AUXILIARY DRIVE ASSEMBLY LEFT
- 10145435 / AUXILIARY DRIVE PRE-ASS.
- 918747608 / AXLE 1 WITH SUSPENSION
- 96019347 / AXLE 1, PRE-ASSEMBLED
- 10872759 / STEERING AXLE
- 530110708 / TRACK ROD
- 11632174 / BRAKE
- 11632175 / BRAKE
- 10876433 / STEERING CYLINDER
- 521148808 / AXLE STRUT
- 521143408 / AXLE STRUT
- 96019348 / PNE&HYD 1ST AXLE PREASSEMBLED:
- 918747708 / AXLE 2 WITH SUSPENSION
- 96019349 / AXLE 2, PRE-ASSEMBLED
- 10876616 / DRIVEN STEERING AXLE
- 11691412 / PLANETARY GEARBOX
- 10877786 / FINAL DRIVE
- 10287060 / TRIPLE-STOP CYLINDER
- 96019350 / PNE&HYD 2ND AXLE PREASSEMBLED:
- 10216631 / SUSPENSION CYLINDER
- 918747808 / AXLE 3 WITH SUSPENSION
- 96019351 / AXLE 3, PRE-ASSEMBLED
- 10876617 / DRIVEN STEERING AXLE
- 11643299 / PLANETARY GEARBOX
- 10877789 / FINAL DRIVE
- 10876432 / STEERING CYLINDER
- 10876345 / STEERING CENTERING CYLINDER
- 96019352 / PNE&HYD 3RD AXLE PREASSEMBLED:
- 918747908 / AXLE 4 WITH SUSPENSION
- 96019353 / AXLE 4, PRE-ASSEMBLED
- 10876618 / DRIVEN STEERING AXLE
- 10878331 / FINAL DRIVE
- 96019354 / PNE&HYD 4TH AXLE PREASSEMBLED:
- 915443108 / TYRES
- 964591908 / TIRE CPL.
- 11060539 / DISC WHEEL
- 918326508 / STEERING MECHANISM
- 10873304 / STEERING GEAR
- 918371408 / STEERING HYDRAULICS
- 96006545 / STEERING PIPEWORK
- 96010680 / MECHANICAL AUXILIARIES
- 11622724 / CONTROL BLOCK
- 11482347 / DIRECTIONAL SOLENOID
- 11601058 / CONTROL BLOCK
- 11651745 / DIRECTIONAL CONTROL VALVE
- 510668108 / PRESSURE FILTER
- 510675308 / PRESSURE FILTER
- 915469308 / DRIVE SHAFT FITTING
- 918355308 / ADDITIONAL HEATING
- 918759208 / ADDITIONAL HEATING
- 96019560 / ADDNL.HEATING, PRE-ASSEMBLED
- 10876576 / WATER HEATING SYSTEM
- 918347408 / SUPPORT SYSTEM CPL
- 918404308 / SLIDING BEAM WITH BEARING
- 96008538 / SLIDING BEAM FRONT,PRE-ASSEMB
- 96008539 / SLIDING BEAM REAR, PRE-ASSEMBL
- 918404408 / HYDR.COMPONENTS SUPPORT
- 10471933 / SUPPORT CYLINDER
- 96008541 / HYDR.SLIDING BEAM FRONT,PRE-AS
- 96008542 / HYDRAULICS SLIDING BEAM REAR
- 915469608 / WHEEL CHOCKS WITH HOLDER
- 915024808 / SUPPORT PLATES ADD-ON
- 963865008 / SUPPORT PLATE COMPL.
- 917393508 / JIB SUPPORT BLOCK
- 967992908 / BOOM JIB SUPPORT BLOCK PRE-ASS
- 918286108 / TOOL BOX ADD-ON
- 96003666 / TOOL BOX, PRE-ASSEMBLED
- 96003700 / ROPE BOX PRE-ASSEMBLY
- 915470108 / EQUIPMENT BOX WITH FASTENER
- 965234908 / EQUIPMENT BOX PRE-ASS.
- 965237908 / DOOR
- 965372208 / MOUNTING PRE-ASS.
- 965372308 / COVER PRE-ASSY.
- 10870756 / FOLDING LADDER
- 917412408 / STORAGE BOX
- 968028708 / STORAGE BOX
- 918067008 / FUEL FEED
- 967536008 / PREMOUNTED FUEL FILTER
- 10303007 / FUEL PREFILTER
- 510693008 / BALL VALVE
- 915470308 / FUEL TANK ADD-ON UNIT
- 965144008 / FUEL TANK, PRE-ASSEMBLED
- 918235008 / OIL RESERVOIR, EXTENSION
- 96007012 / OIL TANK PRE-ASS.
- 510654508 / AERATION FILTER
- 919080708 / UREA PLANT
- 96029199 / UREA TANK, PRE-MOUNTING
- 96035867 / UREA TANK
- 96035857 / EXTRACTION UNIT
- 10144093 / INJECTOR CPL.
- 96005079 / COOLING WATER HOSES UREA SYS
- 918072708 / AIR VESSEL MOUNTING
- 918073008 / ADDITIONAL PART LEVEL IV
- 969128708 / ADDITIONAL PART AIR FILTER SYS
- 919041508 / EXHAUST SYSTEM
- 96029176 / EXHAUST SYSTEM PRE-ASSEMBLED
- 96028787 / MIXING PIPE
- 96029003 / SCR MODULE
- 11403701 / SCR CPL.
- 918067608 / AIR FILTER ASSY. W. AIR FLAP
- 965954908 / CONTROL SYSTEM
- 914008808 / MANEUVERING COUPLING
- 918950608 / SUPPLEMENT SEATS DRIVERS CABIN
- 96023590 / WIRING HARNESS
- 915471308 / DISPATCH ASSY.MECH.PARTS
- 965441608 / ADD ON SPLASH GUARD
- 965487708 / ADD-ON UNIT LADDER
- 917399408 / MIRROR INST. CAB
- 918810208 / SEATS DRIVER'S CAB
- 10877140 / OPERATOR SEAT
- 10877139 / CO-DRIVER'S SEAT
- 911674208 / TACHOGRAPH
- 919143008 / DRIVER'S CABIN CONTROLS
- 96033132 / WIRES COMPL. INSTRUMENTS
- 922648308 / TERMINAL BOARD PRE-ASS.
- 964599308 / INSERTION MODULE
- 968688208 / DASHBOARD CENTER CONSOLE PRE-A
- 967435008 / FUSE CARRIER
- 96009353 / WIRING HARNESS
- 96008145 / ADAPTER CABLE
- 965751208 / FAN ATTACHMENT
- 96033232 / RADIO SYSTEM INSTALLATION
- 10450273 / ANTENNA
- 918068408 / ELECTRIC FOR DRIVER'S CABIN
- 969050608 / ELECTRICAL SYSTEM BATTERY
- 965576708 / LOUDSPEAKER CPL.
- 916876108 / BACK-UP CAMERA PREPARATION
- 915231808 / LIGHTING SUPPORT SYSTEM
- 10296538 / WORK LIGHT
- 918068508 / TIRE COVER PANELLING
- 918068608 / ENGINE COVERING
- 917338408 / MONITORING SUPPORTING PRESSURE
- 915472108 / OPERATOR CAB ACCESSORIES
- 918482608 / SUPPORT PRESSURE INDICATION
- 919143308 / UNDERCARRIAGE ELEC. SYSTEM
- 96008716 / CABLE LIST ELECTRICAL SYSTEM
- 96008849 / WIRING HARNESS
- 96008850 / WIRING HARNESS
- 96008851 / WIRING HARNESS
- 965649508 / DOUBLE HORN PRE-ASS.
- 916876008 / ROTARY FEED THROUGH
- 918069008 / LIGHTING LEFT-HAND DRIVE
- 961852108 / LAMP CLAMP CPL.REAR LEFT
- 607150708 / TAIL LAMP
- 961852208 / LAMP CLAMP CPL.REAR RIGHT
- 607150808 / TAIL LAMP
- 968260008 / BUMPER COMPL. W. COVERING
- 10814244 / FLOODLIGHT
- 918069608 / COMPRESSED AIR PLANT
- 96005217 / PIPEWORK AIR INSTALLATION
- 11320946 / AIR DRYER
- 511308008 / SOLENOID VALVE
- 919095808 / PNEUMAMATIC DRIVER'S CABIN
- 96029121 / PNEUMAMATIC DRIVER'S CABIN
- 502992908 / BRAKE VALVE
- 502650008 / HANDBRAKE VALVE
- 502926208 / DIRECTIONAL CONTROL VALVE
- 918069708 / HYDRAULIC SUPPORT
- 96005241 / PIPEWORK LOWERING BRAKE VALVE
- 10333692 / SLIDE VALVE BLOCK
- 511302208 / DIRECTIONAL CONTROL VALVE
- 918069808 / HYDRAULIC AXLE SUSPENSION
- 96005243 / PIPEWORK RETROFIT CONTROL
- 10030767 / AXLE LOCKING VALVE
- 570933008 / AIR ACTUATION SECTION
- 918748008 / HOSE LINES UNDERCARRIAGE
- 918748108 / PIPELINES UNDERCARRIAGE
- 918102108 / HOSE LINES SLIDING BEAM
- 915457208 / CHARGER
- 912676508 / RADIO PREPARATION LOWER CARRIA
- 918803608 / TOOL CARRIER
- 96025073 / PIN COMPL.
- 96023396 / SIGNS
- 96021452 / ELECTRIC DEVICE CARRIER
- 96021883 / LIGHTING
- 607144108 / TAIL LAMP
- 607144208 / TAIL LAMP
- 962636008 / HYDRAULIC IMPLEMENT CARRIER
- 917913608 / BACKING WARNING ACOUSTIC
- 917339908 / COOLING WATER PRE-HEATING
- 96035589 / EL.COOLANT PREHEAT
- 918072808 / AIR CONDITIONING UNDERCARRIAGE
- 10145970 / AIR COND. COMPRESSOR ADD-ON
- 918072908 / AIR CONDITIONING UNDERCARRIAGE
- 553187908 / AIR COND. EVAPORATOR RFK
- 918068008 / DRIVER'S CABIN PRE-ASS.2
- 968526608 / OPERATOR CAB ACCESSORIES
- 968526208 / ADD-ON PARTS VEHICLE
- 963010808 / ANTI-SWAY GEAR
- 918974508 / DRIVER'S CABIN PRE-ASS.1
- 96031209 / INTERNAL PANELLING INSTALLATIO
- 96012463 / BASE MATS
- 962211808 / LEATHER CLADDING
- 968026508 / WINDOW ASSEMBLY
- 96005069 / STEERING COLUMN MOUNTING
- 964966008 / STEERING COLUMN PRE-ASS.
- 962838908 / REWORK STEERING COLUMN
- 961931508 / STEERING COLUMN SHEATHING
- 521103408 / ANGULAR GEAR
- 968026708 / WIPERS INSTALLATION
- 962568308 / SCREEN WHIPING SYS. PRE-ASS.
- 591080408 / WATER BASIN
- 96015567 / INSTRUMENT BOX, INSTALLATION
- 964232008 / INSTRUMENT BOX CPL.
- 96015580 / COVER PRE-ASS.
- 968026908 / ROLLO INSTALLATION
- 11006956 / BLIND
- 96031210 / SMALL PARTS INSTALLATION
- 968035408 / AIR GUIDE SYSTEM
- 968031308 / BRAKE PEDAL INSTALLATION
- 968117708 / INST. ROOF COVER
- 917315108 / DRIVER CABIN DOOR INSTALLATION
- 917330508 / DOOR LEFT, CPL.
- 921865108 / DOOR HINGE CPL.
- 972090008 / WINDOW, CRANK, LEFT
- 963225108 / DOOR STOPPER COMPL.
- 967814708 / CLOSING DEVISE CPL.
- 917330608 / DOOR RIGHT, CPL.
- 972124008 / WINDOW, CRANK, RIGHT
- 918304608 / HEATING DRIVERS CABIN
- 96009642 / PREASSEMBLED HEATING DEVICE
- 11621289 / WATER HEATING SYSTEM
- 969862108 / VALVE PLATE, PRE-ASSEMBLED
- 918500608 / BATTERY COVER INSTALLATION
- 96012635 / BATTERY BOX, PRE-ASSEMBLED
- 918502408 / MOBILE PHONE HOLDER
- 919083808 / TRAILER TOW COUPLING
- 96031191 / TRAILER COUPLING SIGN
- 96028296 / EOEECTR.TRAILER COUPLING
- 916173108 / CAR RADIO
- 916876308 / MONITOR ATTACHMENT
- 910503808 / EMERGENCY STOP CABIN
- 921213008 / LEAD
- 918980008 / PLUG SOCKET
- 914720808 / SOCKET
- 963600108 / VOLTAGE REGULATOR
- 918974708 / QUTSIDE POWER SUPP.EQUIPT.
- 918362708 / TOOLS AND ACCESSORIES
- 928569808 / MAIN TOOLS
- 928620008 / ACCESSORIES
- 917412208 / ADD-ON PARTS
- 11212257 / BELT CARRIER SYSTEM
- 968369308 / ADD-ON PARTS
- 918073708 / PLATING SCHWEDEN
- 915731908 / EL.COMP. DISPATCH ASSEMBLY
- 916876208 / CAMERA COLOR
- 917471408 / CONSPICUOUS MARKING
- Numerical index
- Alphabetical index (EN)
- Alphabetical index (DE)
Liebherr Crane
