Mitsubishi S6R-Y1PTA Diesel Engine Service Manual (TP6523)

On these Mitsubishi S6R‑Y1PTA engines—usually driving generators or big pumps in plants, mines, or marine setups—this service manual is what I keep open when something doesn’t sound or feel right. It walks you through how to confirm a fault before you start unbolting heavy parts. For example, if the engine is hunting under load, I’d use this to trace fuel and governor issues step by step, verify adjustments, and only then decide if anything actually needs replacing.

Applications & Use Cases

• Trace low power complaints by systematically checking fuel, air, and timing before condemning major components.
• Isolate hard‑start or no‑start faults using the outlined test sequences and measurement points.
• Follow the disassembly/assembly order so you don’t miss seals, shims, or alignment steps on a top‑end or full overhaul.
• Verify and fine‑tune governor and linkage adjustments after a repair or component swap.
• Inspect and test auxiliaries (starters, chargers, pumps) to separate engine problems from peripheral failures.

FAQ

Q: Can I use this manual on a tablet at the genset?

A: Yes, it works well digitally; you can zoom diagrams and keep your hands free while working.

Q: Is it worth printing parts of it?

A: Many techs print only the procedures they’re using that day, then mark notes or test results right on the pages.

Safety Note

Always lock out the driven equipment and disable starting circuits before putting your hands or tools on this engine.

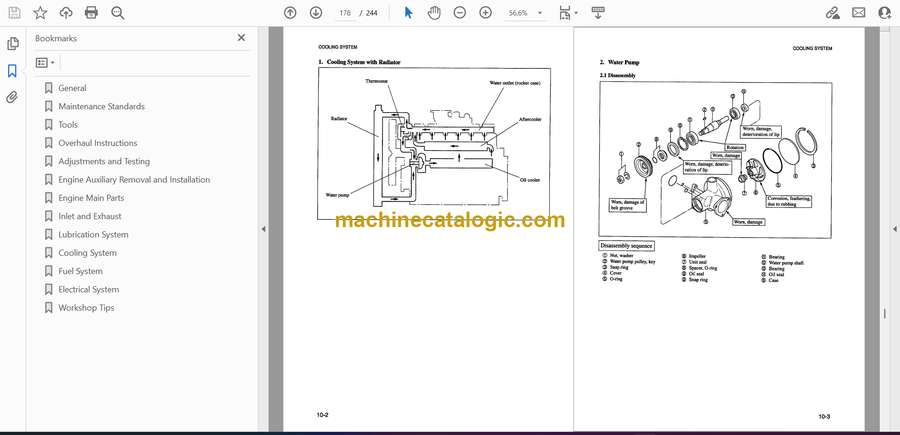

Mitsubishi S6R-Y1PTA Diesel Index:

• General
• Maintenance Standards
• Tools
• Overhaul Instructions
• Adjustments and Testing
• Engine Auxiliary Removal and Installation
• Engine Main Parts
• Inlet and Exhaust
• Lubrication System
• Cooling System
• Fuel System
• Electrical System
• Workshop Tips
