PAT PRS145 Load Moment Indicator Service Manual

The PAT PRS145 is a load moment indicator. It watches crane loading and warns the operator as the machine nears its limit. When the system acts up, throws a fault, or needs a part swapped, the service manual is what a technician picks up to sort it out in the shop. The cover may show the older brand name Hirschmann, so don't let the logo throw you.

What this manual helps you do

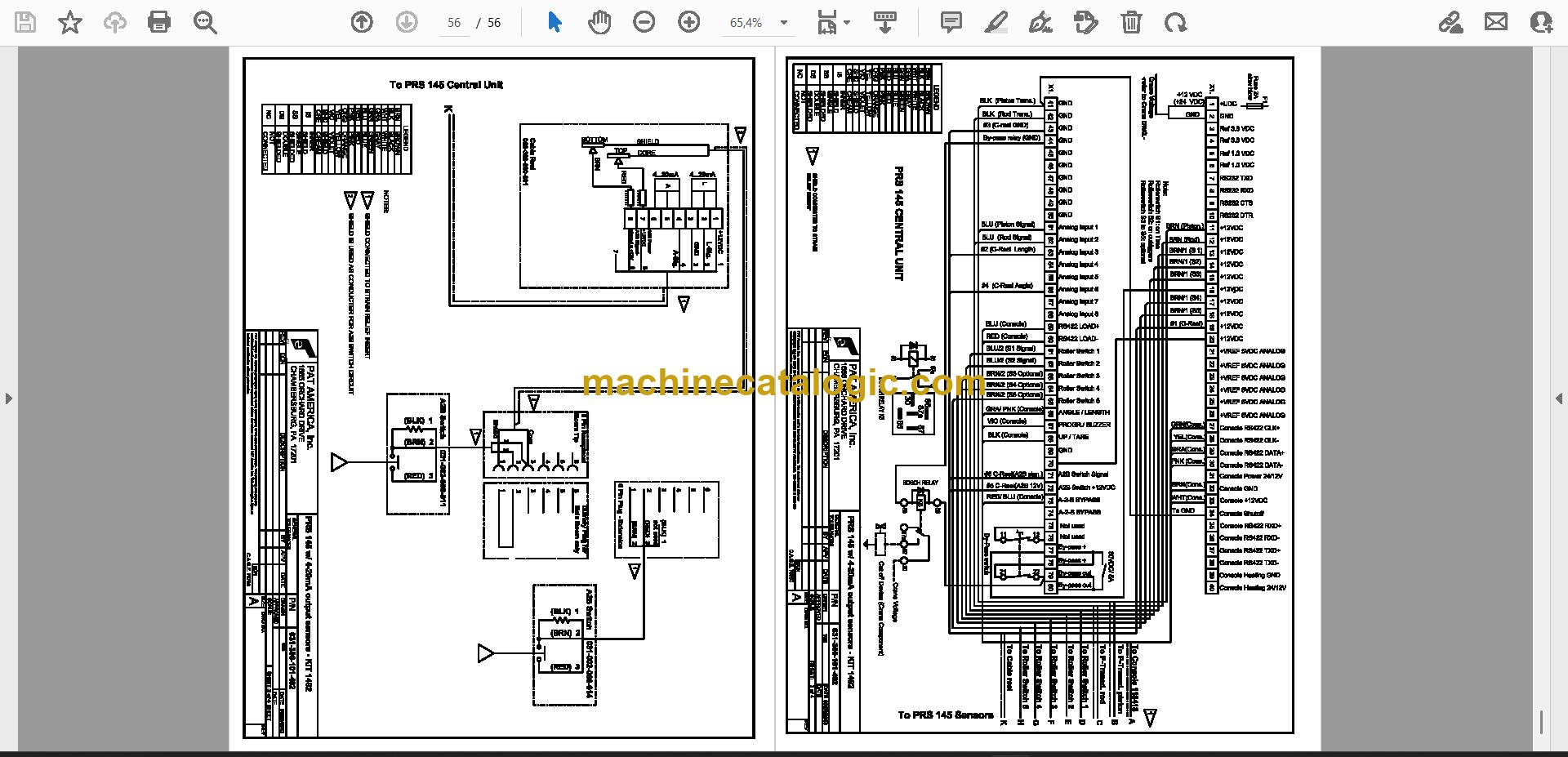

• Trace the connections between the console and the central unit when the display or readings drop out.

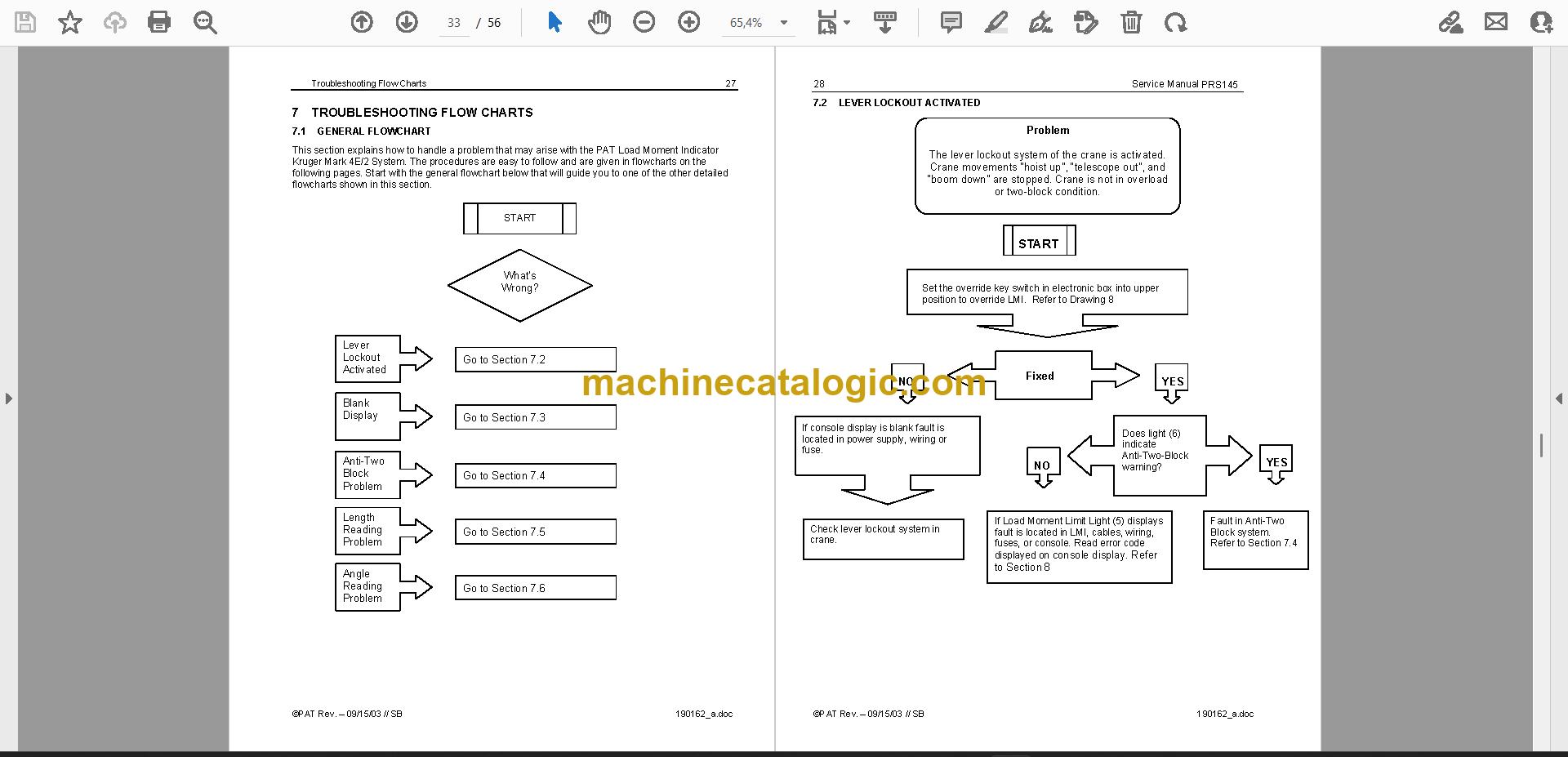

• Follow the troubleshooting flow charts to narrow down a fault step by step.
• Look up error codes and see what each one points to.
• Adjust the basic hardware settings on the central unit using the documented procedures.
• Replace components and check the work against the drawings and definitions.

Who this is for

A crane service technician or rental fleet mechanic who keeps LMI systems running. Also an independent repair shop that gets a PRS145 on a machine with no paperwork and has to fix it in-house.

FAQ

Q: What do I receive and how is it organised?

A: One English PDF, 56 pages, publication number 031-300-190-162. It runs from the mechanical description of the components and the central unit through hardware adjustment, definitions, drawings, procedures, troubleshooting flow charts, error codes and the console/central unit connection description.

Q: Which equipment does it fit?

A: The PRS145 Load Moment Indicator. The title on the manual reads "PRS145 Load Moment Indicator Service Manual," so you can match it to the unit on your bench.

Q: How does it fit the job I'm doing?

A: If you're chasing a fault, you have error codes and flow charts. If you're pulling or setting up hardware, you have the adjustment steps, drawings and connection details. It's the complete manual for this component.

Keep it on the bench next to the PRS145 and work through the fault from the first flow chart to the final check.

Click here to view the preview (PDF)
