Description
Sumitomo SH300-2, SH450LHD Hydraulic Excavator Shop Manual (WEL3001-0W)
Sumitomo SH300-2, SH450LHD Hydraulic Excavator Index:
ATION
GENERAL
(Materiål for special course)
SERVICE TEXT SH300-2JSH450LHD
WHL3000-OW
SPECIFICATIONS
PERFORMANCE

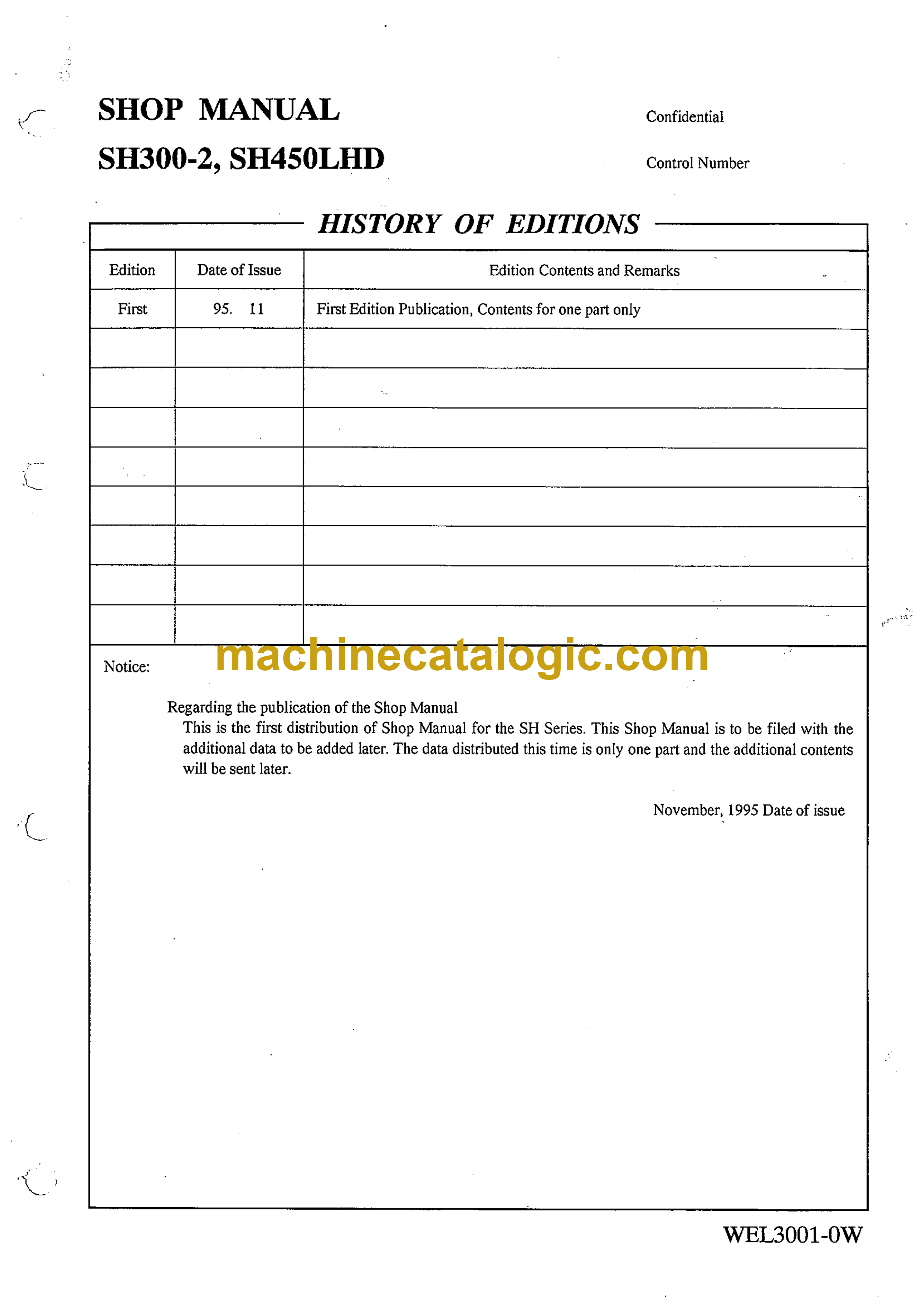

Contents and History Of Editions
Safety
Introduction
How to Use The Shop Manual
Precautions
Standard Tom ue Specifications
Numerical Value Conversion Table
Product Concept
Specifications
Summary System
Hydraulic
Pressure Measurement and Adjustment
Electric System
Main Motor Equipments Specifications
Main Body Oils and Greases
Main Body Weight
Suspension Performance (For Reference)
MAIN BODY DISASSEMBLY AND SERVICING PROCEDURES
S Lower Mechanism
5 2, Upper Mechanism

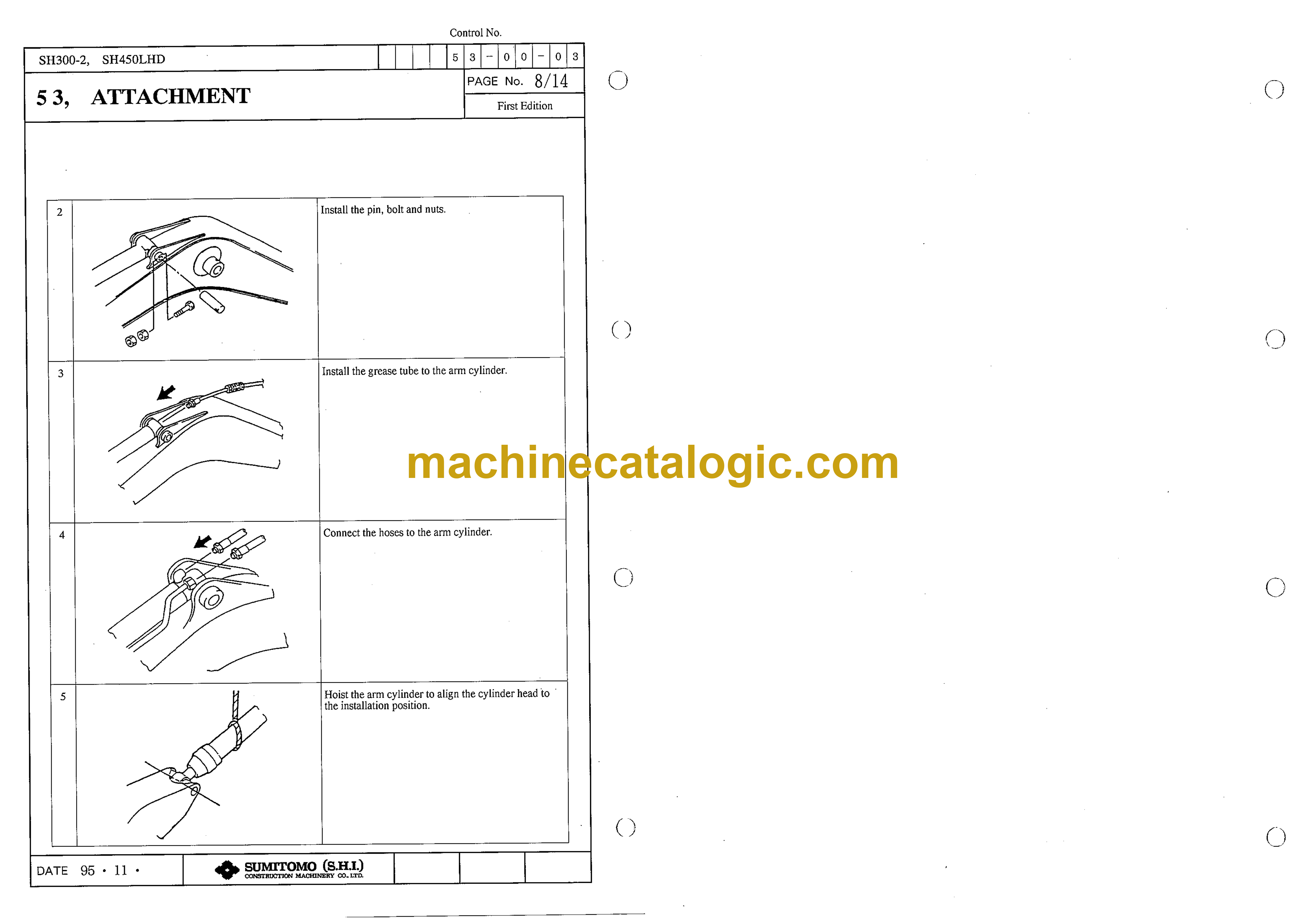

S 3, Attachment
S 4, Maintenance Standards
MAJOR COMPONENTS DISASSEMBLY AND SERVICING PROCEDURES
Tig htening Torque for Major parts
Take-Up Roller
Upper Roller
Lower Roller
Recoil Spring
Rotating Joint
Engine
MAJOR HYDRAURIC DISASSEMBLY AND SERVICING PROCEDURES

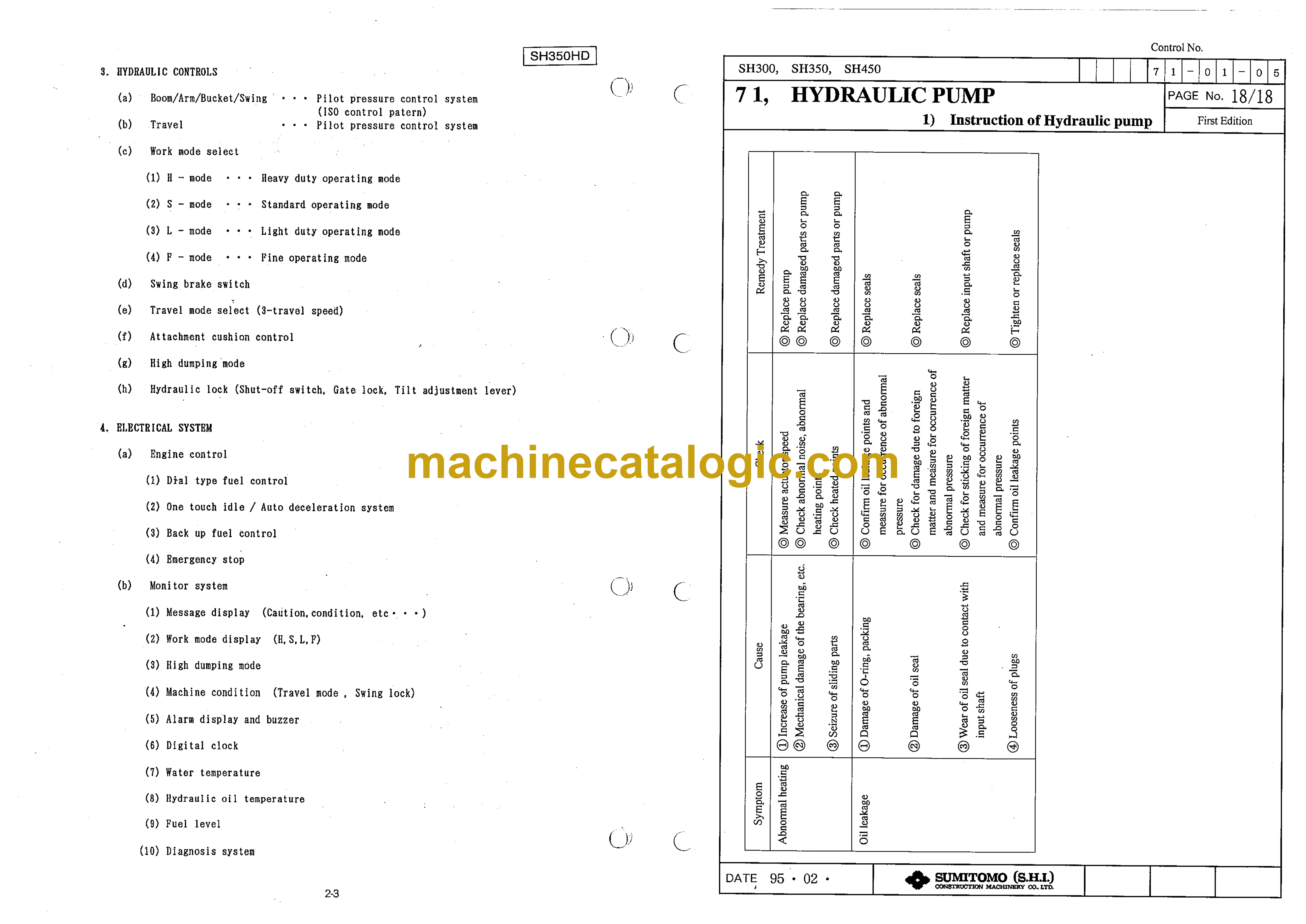

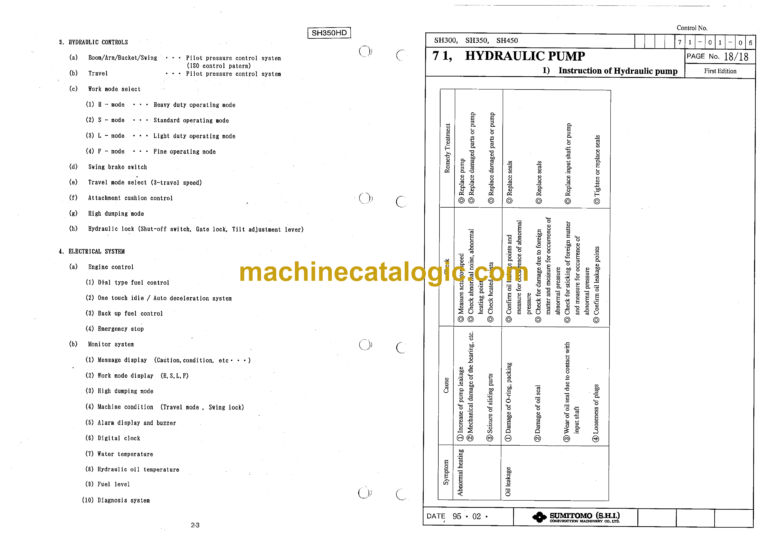

Hydraulic Pump

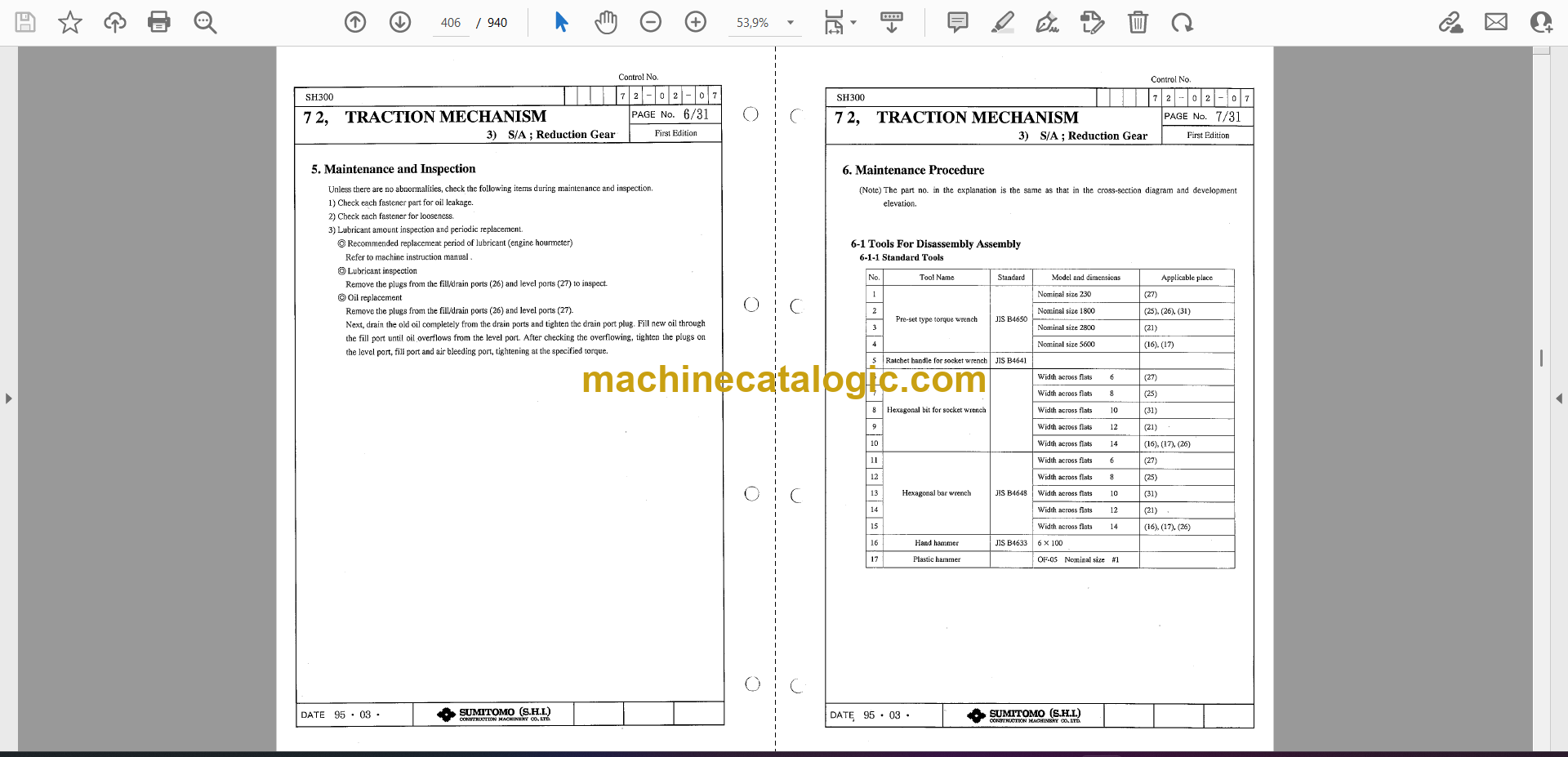

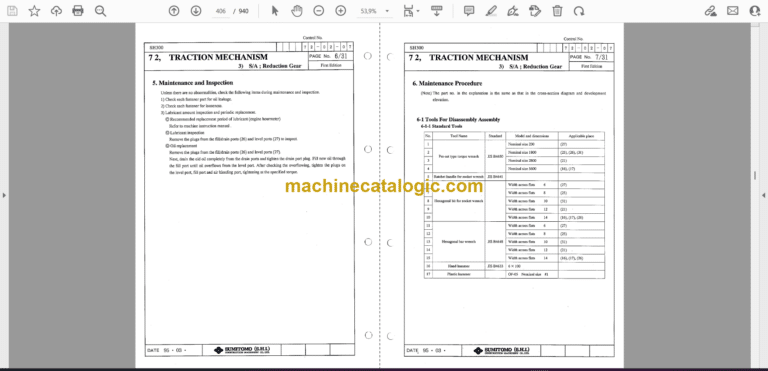

Traction Mechanism
Swing Mechanism
Control Valve
Cylinder
Remote Control Valve
orr10Ns. ETC.
DATA, ETC.
