Description

Sumitomo SH75X-3 Hydraulic Excavator Shop Manual (WLSM075X3-00W)

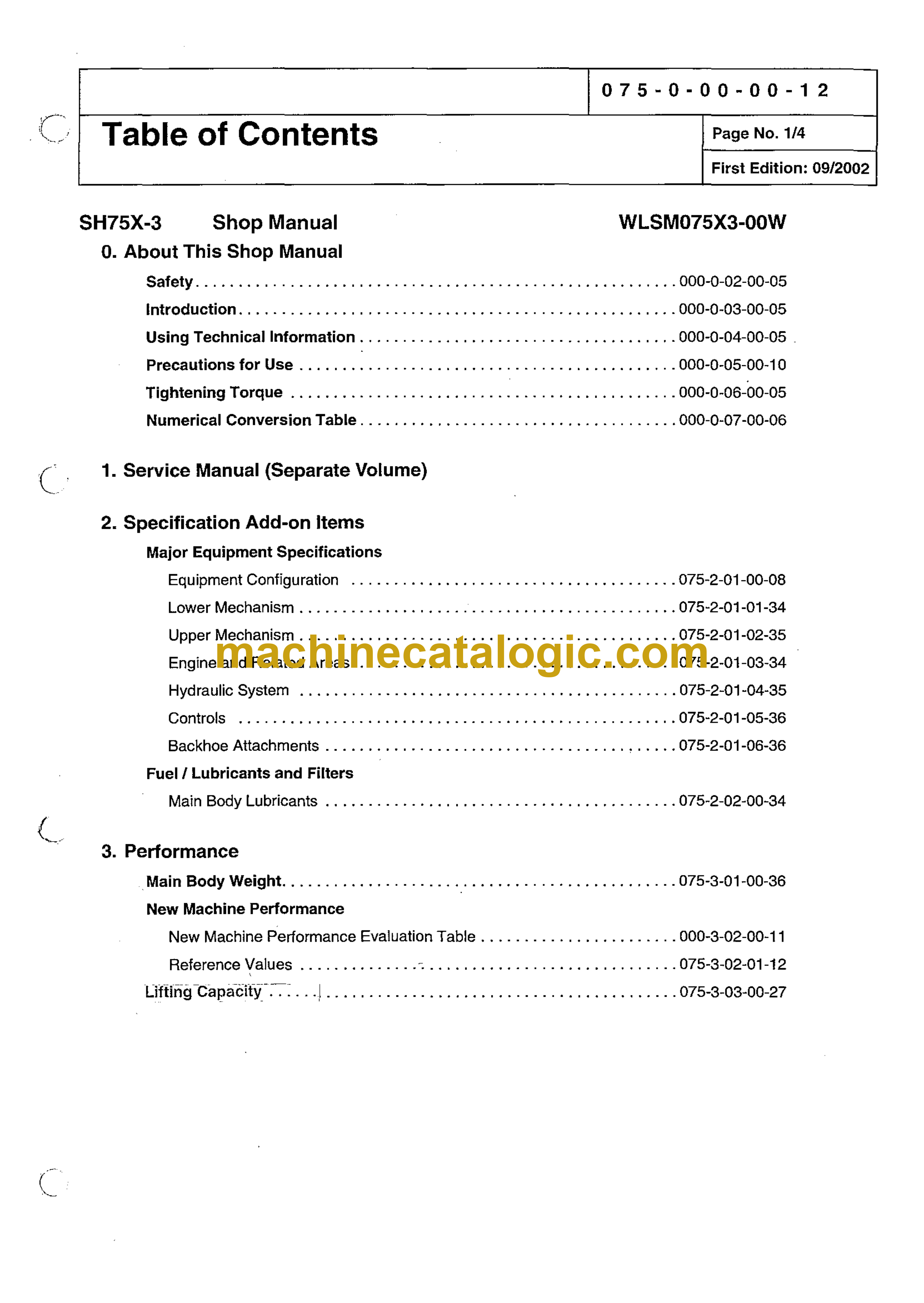

Sumitomo SH75X-3 Hydraulic Excavator Index:

O. About This Shop Manual
Safety.
Introduction..
Using Technical Information .
Precautions for Use
Tightening Torque
Numerical Conversion Table .
1. Service Manual (Separate Volume)
2. Specification Add-on Items
Major Equipment Specifications
Equipment Configuration
Lower Mechanism
IJpper Mechanism …
Engine and Related Areas .
Hydraulic System
Controls
Backhoe Attachments
Fuel I Lubricants and Filters
Main Body Lubricants
3. Performance
Main Body Weight.
New Machine Performance
New Machine Performance Evaluation Table .
Reference
Liftiög-CapaCity

4. Troubleshooting (not published yet)
5. Disassembling and Maintenance Instructions for the Main Body
Maintenance Instructions
Maintenance Instructions…
Tightening Torque for Major Parts
Lower Mechanism
Track Shoe .
Travel Unit
Recoil Spring Assembly
Upper Roller .
Lower Roller
Rotating Joint …. …
Upper Mechanism

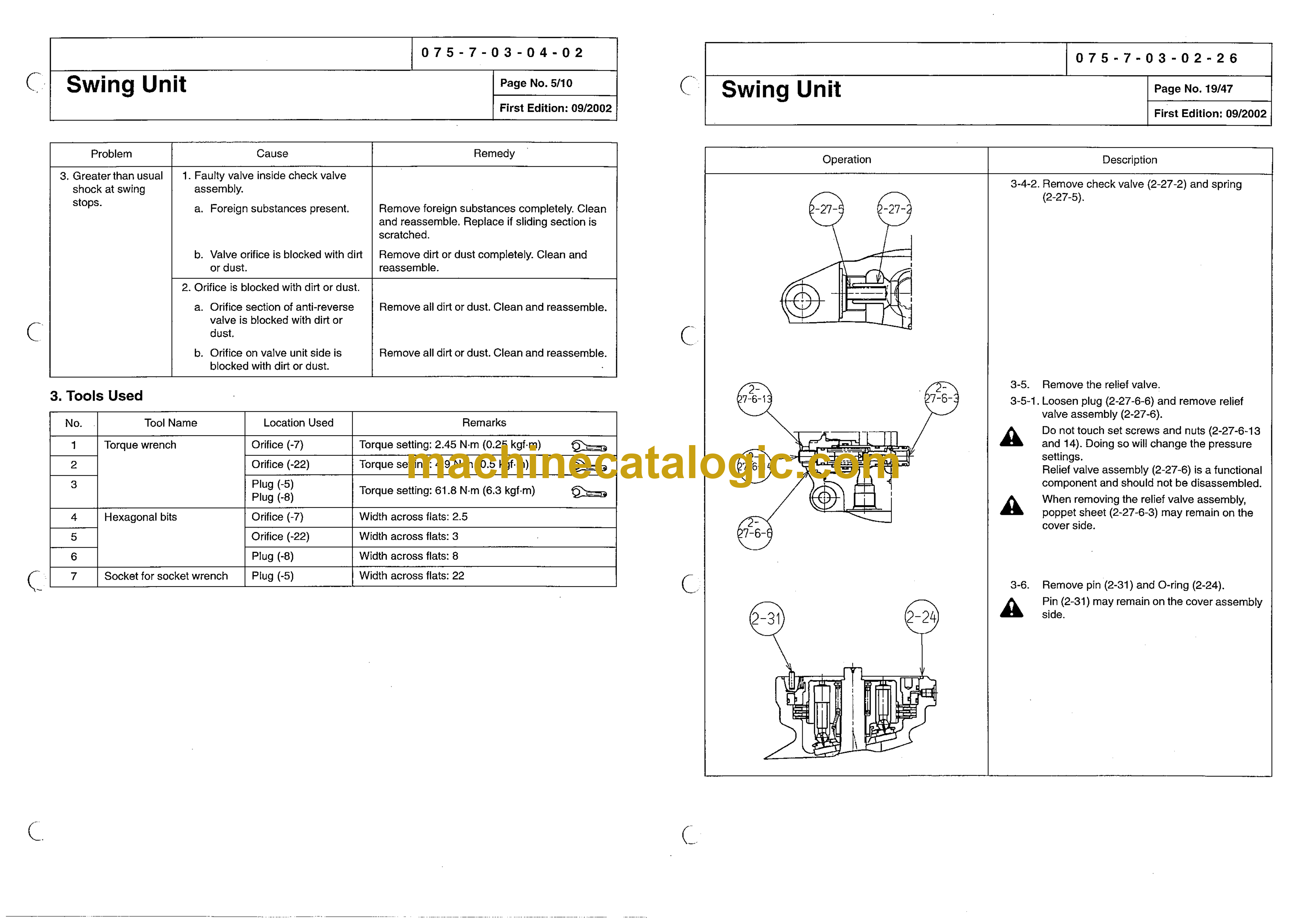

Swing Unit ….. ……
Engine ..
Hydraulic’ Pump
Control Valve
Remote Control Valve ….
Operator’s Cab
Attachments
Attachments.
Attachments (For Offset) ……

6. Disassembling and Maintenance Instructions for Major Parts
Take-up Roller
Disassembling and Assembling Instructions
Assembly Drawings
Upper Roller
Disassembling and Assembling Instructions
Assembly Drawings
Lower Roller
Disassembling and Assembling Instructions
Assembly Drawings
Grease Cylinder
Disassembling and Assembling Instructions
Assembly Drawings
Rotating Joint
Disassembling and Assembling Instructions
Assembly Drawings
Air Conditioner
Disassembling and Assembling Instructions
Maintenance Standards
Check Sheets
Check Sheets (For Offset)
Maintenance Standards Value
List of Shims for Adjusting Attachment Gaps
Inspection Gauges
