Tadano GR-300EX-1 Rough Terrain Crane Service Manual

Tadano GR-300EX-1 Rough Terrain Crane Service Manual

Format: PDF (Printable Document)

File Language: English

File Pages: 863

File Size: 36.19 MB (Speed Download Link)

File Count: 5 PDF files

Brand: Tadano

Model: GR-300EX-1

Equipment Type: Rough Terrain Crane

Book No: GR-300EX-1-S1-2E

Manuals Included: 3 separate publications

Type of Document: Service Manual

Serial No.: 560678 and later

Searchable: Yes, text is searchable and copyable

Delivery: Instant download after payment

Categories: PDF, Tadano

$ 55

Tadano GR-300EX-1 Rough Terrain Crane Service Manual

The GR-300EX-1 is a single-cab rough terrain crane with a telescopic boom and outriggers, built to work on uneven ground where a truck crane can't get in. When one comes into the shop with a hydraulic fault, a swing problem or a brake complaint, the technician needs workshop procedures, not guesswork. That's when you reach for the service manual.

What this manual helps you do

Trace faults through the hydraulic power generating system, outrigger system and swing system.
Adjust the boom elevating, boom telescoping and winch systems using the data, adjusting and checks section.
Check the safety system and control system when a function acts up or shuts down.
Rebuild or replace components in the steering, brake and suspension systems.
Follow the system diagrams to track a circuit before you cut into it.

Who this is for

You're a crane service technician, a rental fleet mechanic or an independent repair shop doing the work in-house. It also suits a dealer technician who needs a procedure at the bench, or anyone who just took in a used GR-300EX-1 with no paperwork.

FAQ

Q: What do I receive and how is it organised?

A: You get 5 PDF files, 863 pages in total, in English. The text is searchable and copyable, so you can jump straight to a system or a term. The download holds 3 manuals: publication GR-300EX-1-S1-2E for serial no. 560678 and later (418 pages, the main manual), publication GR-300EX-1-S2-3E for serial no. 560916 and later (418 pages), and a third manual of 27 pages.

Q: Which machine does it fit?

A: It is the GR-300EX-1 Service Manual, and the main manual is printed for serial number 560678 and later. Check your crane's serial plate against that before you order.

Q: How does it fit the job I'm doing?

A: It's laid out by system, from safety and foreword through hydraulics, outriggers, swing, boom, winch, steering, brakes and suspension, then data and diagrams. Open the section for the system you're working on and follow the procedure.

Keep the full set on your shop computer or tablet, search the system you're working on, and have the procedure open before you pull the first component.

Does this manual fit your machine?

Model	Serial No.
GR-300EX-1	560678 and later

The serial number shown is the one printed on the manual cover. Check the model and serial number on your machine's data plate before ordering.

📘 Show Index

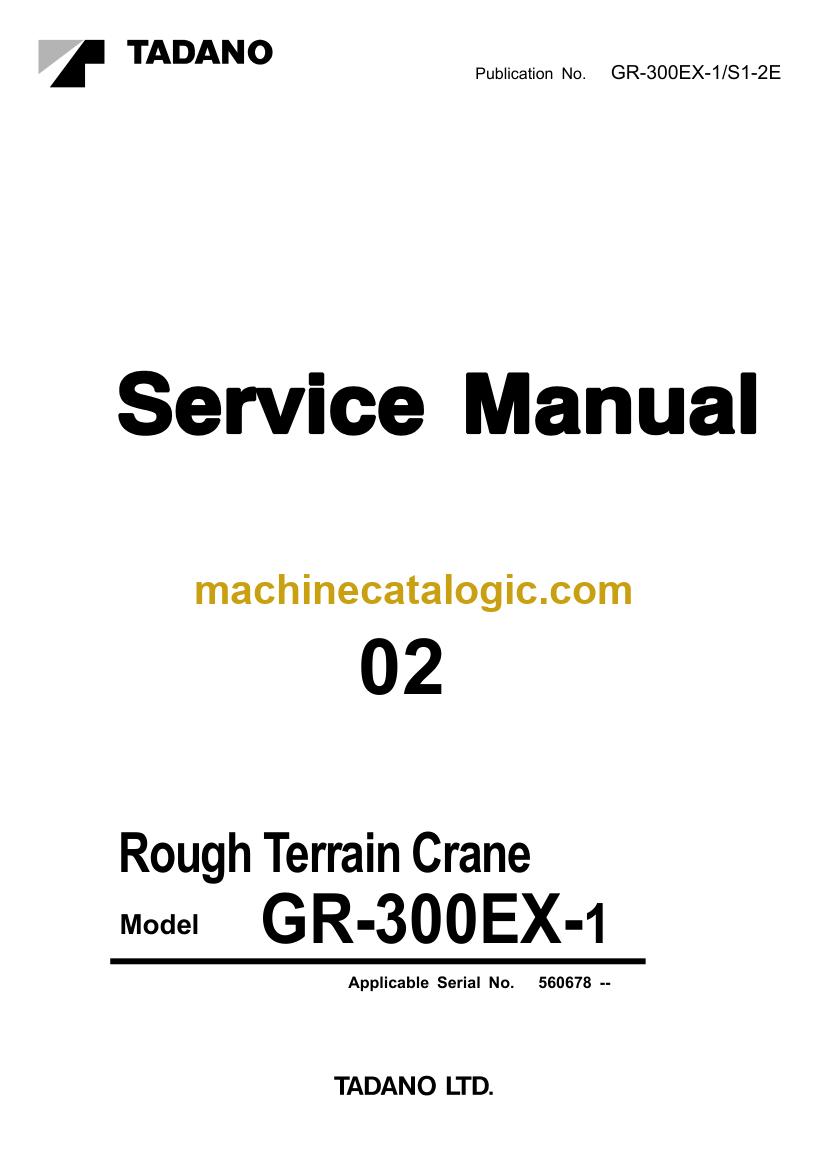

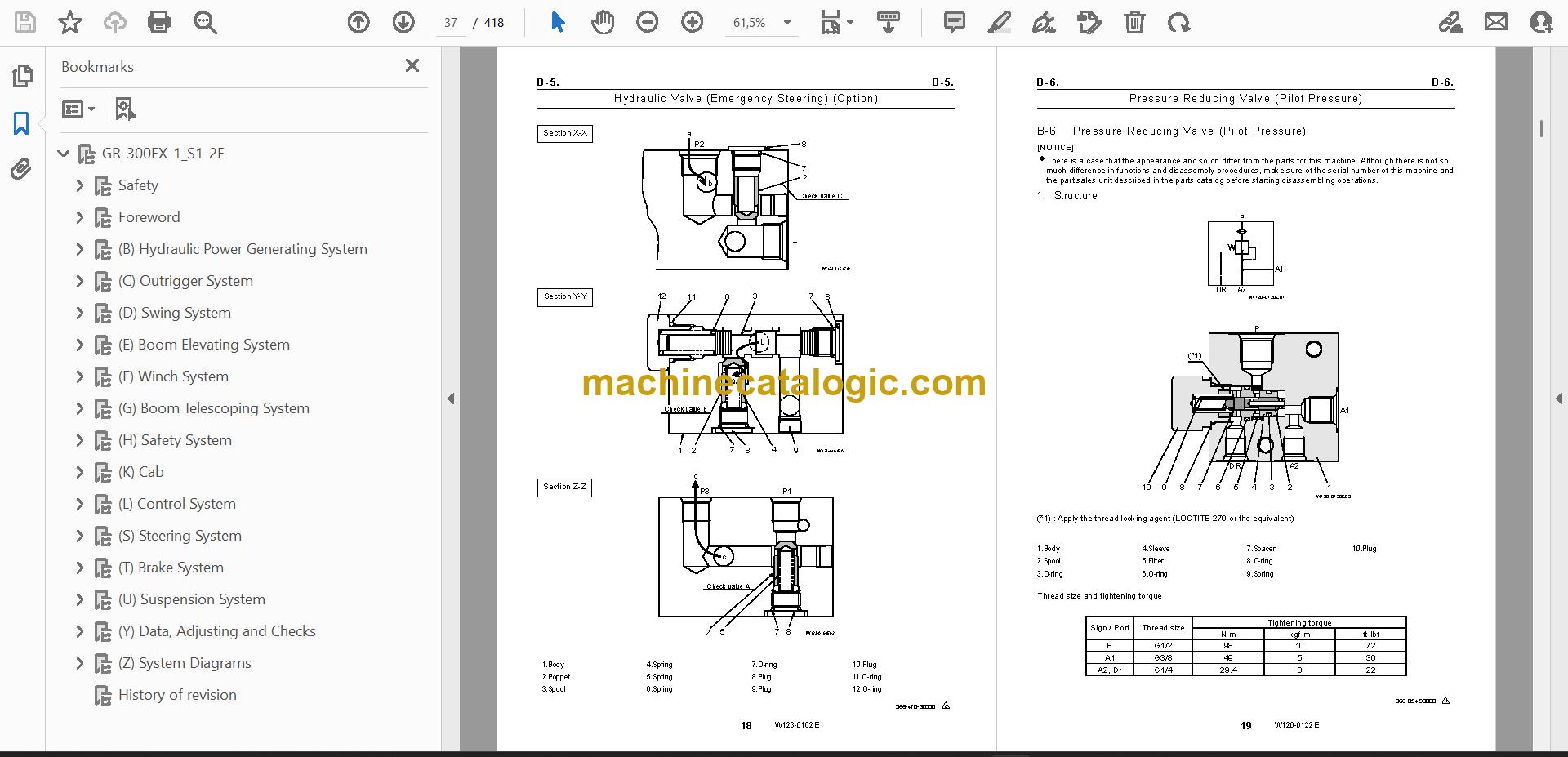

Publication GR-300EX-1-S1-2E / Serial No. 560678 and later (418 pages)
- Safety
  - Fundamental cautions
  - Cautions in working
  - Cautions in operation
- Foreword
  - Applicable spec. No
  - Separate service manual
  - Outline of specifications
- (B) Hydraulic Power Generating System
  - B-1 Hydraulic Power Generating System
  - B-2 Hydraulic Pump (Double Variable Displacement Pump)
  - B-3 Hydraulic Pump (Double Gear Pump)
- (C) Outrigger System
  - C-1 Outrigger System
  - C-2 Jack Cylinder
  - C-3 Pilot check Valve (Jack Cylinder Retracting Prevention)
- (D) Swing System
  - D-1 Swing System
  - D-2 Swing Assembly
  - D-3 Hydraulic Pilot Control Valve (Swing)
- (E) Boom Elevating System
  - E-1 Elevating System
  - E-2 Elevating Cylinder
  - E-3 Counterbalance Valve (Elevating)
- (F) Winch System
  - F-1 Winch System
  - F-2 Winch
  - F-3 Hydraulic Motor and Counterbalance Valve
- (G) Boom Telescoping System
  - G-1 Telescoping System
  - G-2 Boom (Four-Section Boom)
  - G-4 Telescoping Cylinder
- (H) Safety System
  - H-1 Safety System
  - H-2 Boom Length and Angle Detector
  - H-3 Outrigger Extension Length Detector
- (L) Control System
  - L-1 Control System
  - L-2 Remote Control Valve (Lever)
  - L-3 Remote Control Valve (Pedal)
- (S) Steering System
  - S-1 Steering System
  - S-2 Priority Valve
  - S-3 Orbitrol
- (T) Brake System
  - T-1 Brake System
  - T-2 Brake (Service Brake)
  - T-3 Brake Valve
- (U) Suspension System
  - U-1 Suspension System
  - U-2 Spring Lock Cylinder
  - U-3 Pilot Check Valve (Spring Lock Cylinder)
- (Y) Data, Adjusting and Checks
  - Y-1 Hydraulic Pressure Setting Table
  - Y-2 Air Pressure Setting Table
  - Y-3 Air Bleeding Procedure
- (Z) System Diagrams
  - Z-1 Hydraulic Circuit
  - Z-2 Torque Converter Circuit
  - Z-3 Brake Circuit (Pneumatic Circuit)
- History of revision

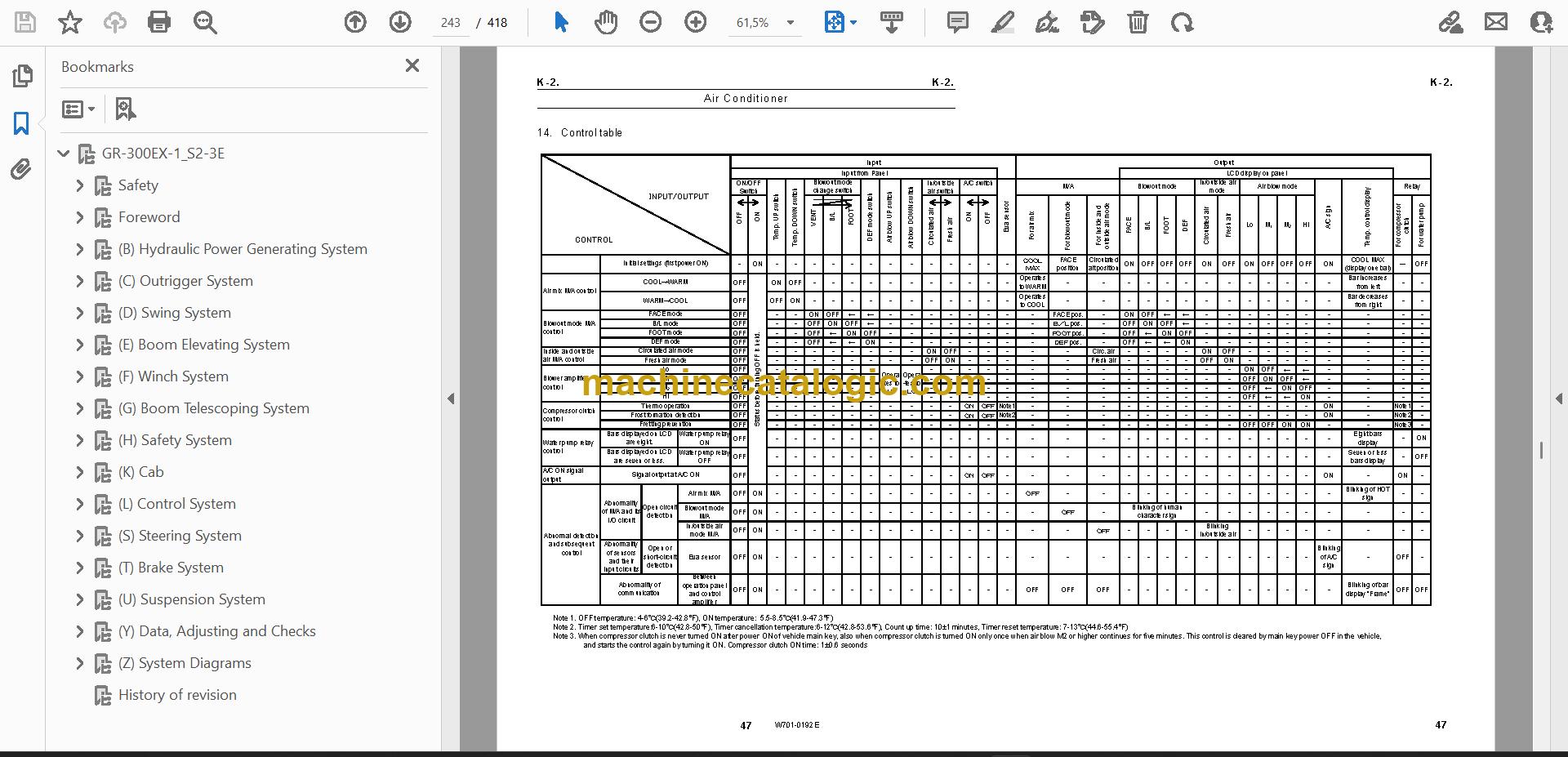

Publication GR-300EX-1-S2-3E / Serial No. 560916 and later (418 pages)
- Safety
  - Fundamental cautions
  - Cautions in working
  - Cautions in operation
- Foreword
  - Applicable spec. No
  - Separate service manual
  - Outline of specifications
- (B) Hydraulic Power Generating System
  - B-1 Hydraulic Power Generating System
  - B-2 Hydraulic Pump (Double Variable Displacement Pump)
  - B-3 Hydraulic Pump (Double Gear Pump)
- (C) Outrigger System
  - C-1 Outrigger System
  - C-2 Jack Cylinder
  - C-3 Pilot check Valve (Jack Cylinder Retracting Prevention)
- (D) Swing System
  - D-1 Swing System
  - D-2 Swing Assembly
  - D-3 Hydraulic Pilot Control Valve (Swing)
- (E) Boom Elevating System
  - E-1 Elevating System
  - E-2 Elevating Cylinder
  - E-3 Counterbalance Valve (Elevating)
- (F) Winch System
  - F-1 Winch System
  - F-2 Winch
  - F-3 Hydraulic Motor and Counterbalance Valve
- (G) Boom Telescoping System
  - G-1 Telescoping System
  - G-2 Boom (Four-Section Boom)
  - G-4 Telescoping Cylinder
- (H) Safety System
  - H-1 Safety System
  - H-2 Boom Length and Angle Detector
  - H-3 Outrigger Extension Length Detector
- (L) Control System
  - L-1 Control System
  - L-2 Remote Control Valve (Lever)
  - L-3 Remote Control Valve (Pedal)
- (S) Steering System
  - S-1 Steering System
  - S-2 Priority Valve
  - S-3 Orbitrol
- (T) Brake System
  - T-1 Brake System
  - T-2 Brake (Service Brake)
  - T-3 Brake Valve
- (U) Suspension System
  - U-1 Suspension System
  - U-2 Spring Lock Cylinder
  - U-3 Pilot Check Valve (Spring Lock Cylinder)
- (Y) Data, Adjusting and Checks
  - Y-1 Hydraulic Pressure Setting Table
  - Y-2 Air Pressure Setting Table
  - Y-3 Air Bleeding Procedure
- (Z) System Diagrams
  - Z-1 Hydraulic Circuit
  - Z-2 Torque Converter Circuit
  - Z-3 Brake Circuit (Pneumatic Circuit)
- History of revision
Manual 3 (27 pages)
