Tadano GR-500XL-1 Rough Terrain Crane Parts Manual

A rough terrain crane works on uneven job sites, using outriggers and a telescopic boom to place materials where truck-mounted equipment may not be practical. Parts counters, rental fleet maintenance teams, service shops and dealer technicians use this manual to identify a component, check how it fits an assembly and order the correct replacement.

What this manual helps you do

• Identify replacement parts from exploded views and item numbers.
• Look up descriptions and quantities for an assembly.
• Match components to groups such as carrier chassis, hydraulic system, outriggers and electrical system.
• Confirm how related parts fit together before placing an order.
• Order the right part with a documented reference for the Tadano GR-500XL-1.

Who this is for

This is for a parts counter handling Tadano orders, rental fleet maintenance staff tracking parts for a working crane, and independent crane service shops. Dealer technicians can also use the assembly breakdowns during parts identification.

FAQ

Q: What do I receive, and how is it organised?

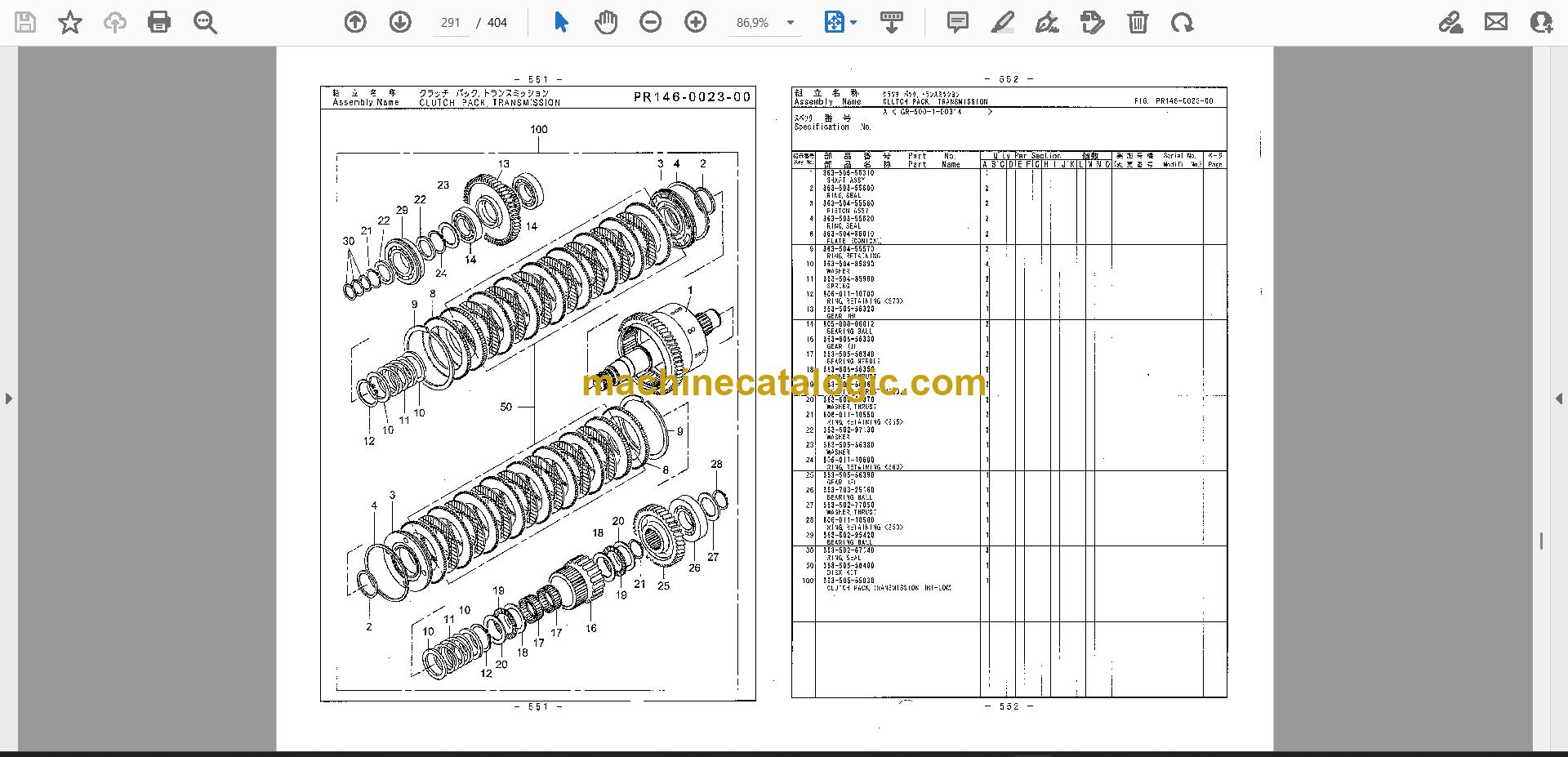

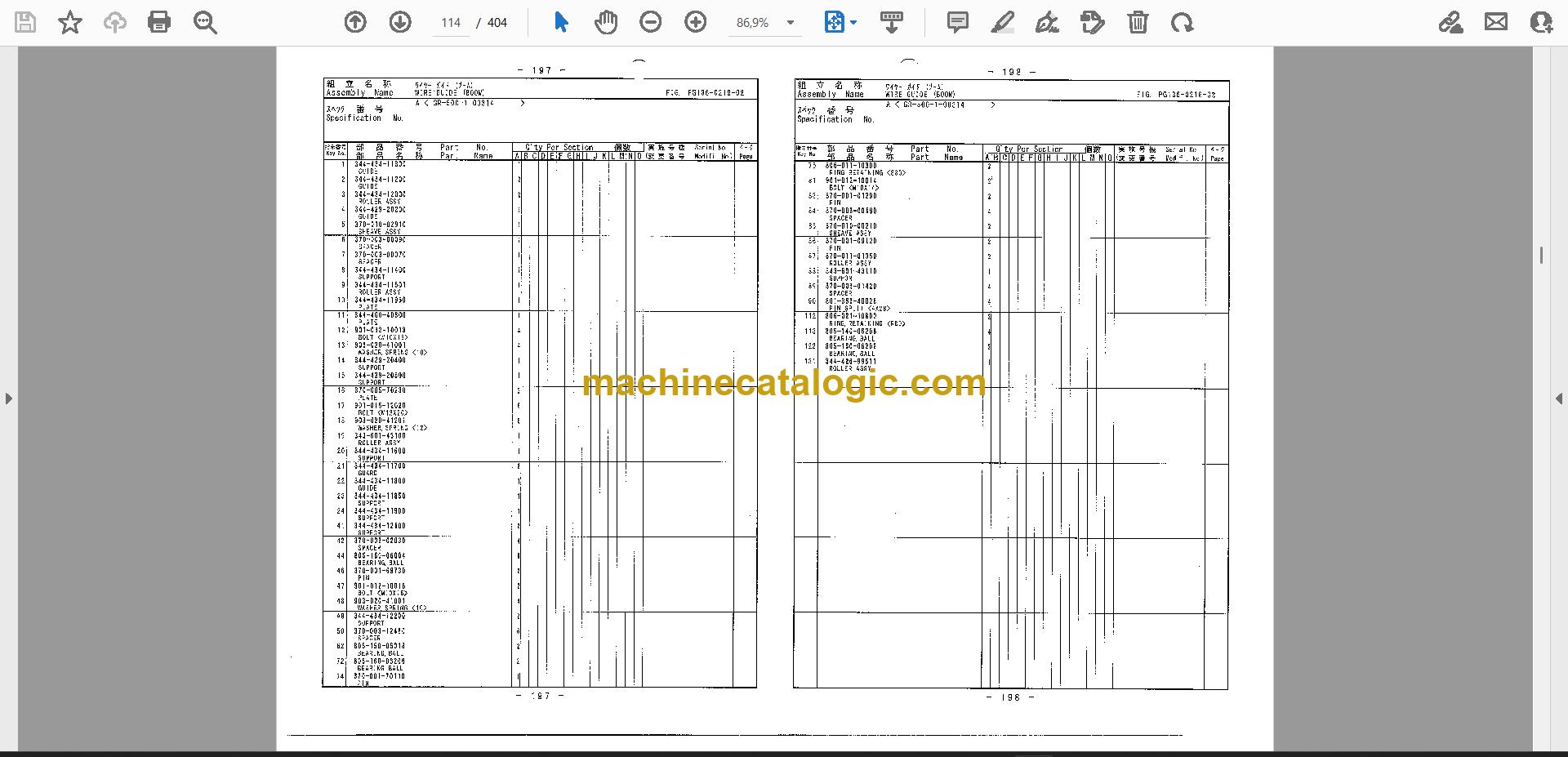

A: You receive one English PDF containing 404 pages. It is an illustrated parts catalog with assembly breakdowns, exploded views, item numbers, descriptions and quantities. Publication number: GR-500XL-1-P3(U)-1EJ.

Q: Which machine and serial number does it fit?

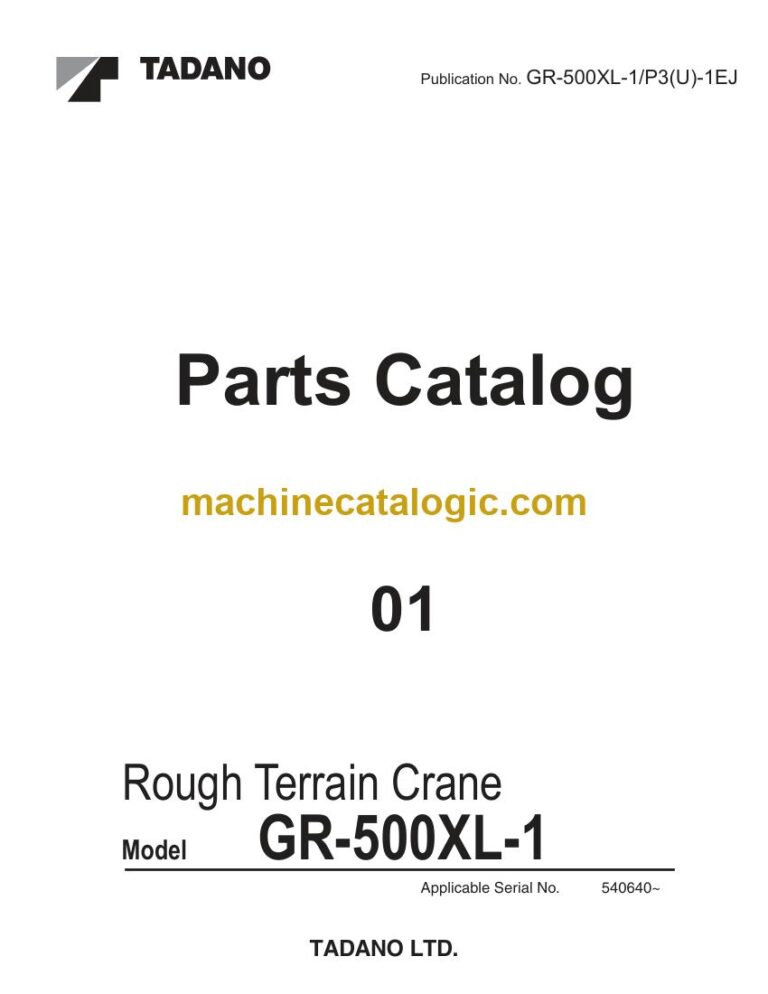

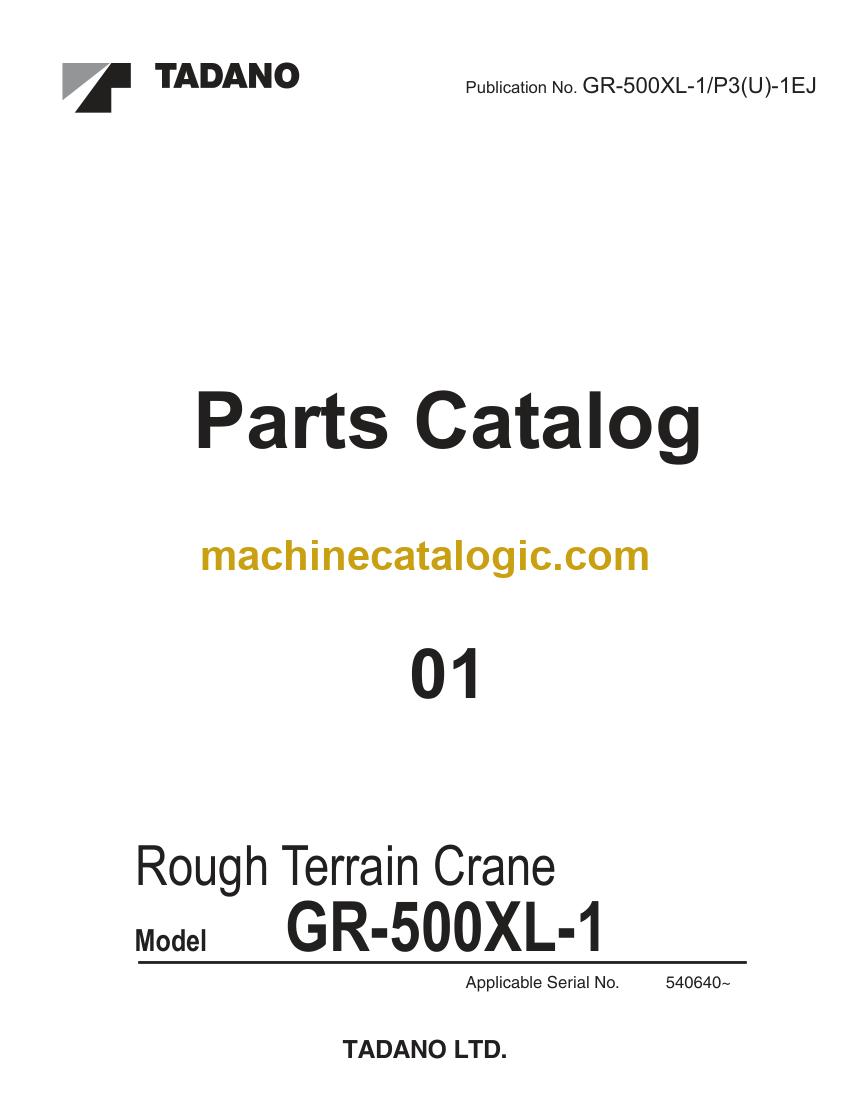

A: It is for the Tadano GR-500XL-1 rough terrain crane. The catalog cover identifies serial number 540640 and up.

Q: How does this fit the job I’m doing?

A: Use it when a part must be identified and ordered, when a used crane has limited documentation, or when a technician needs to confirm which components belong together. It gives the parts reference needed to move from an assembly view to a purchase request.

Yes, this is the right manual for identifying and ordering parts on a Tadano GR-500XL-1 covered by serial number 540640 and up.

Click here to view the preview (PDF)

Does this manual fit your machine?

The serial number shown is the one printed on the catalog cover. Check the model and serial number on your machine's data plate before ordering.

Table of Contents:

General outline of the sections a parts manual of this type usually contains. Actual structure and section names vary by model and edition.

• Introduction and how to use this parts manual
• Ordering information
• Carrier chassis, axles and suspension
• Engine and drive train
• Steering and brakes
• Hydraulic system
• Cab and superstructure
• Telescopic boom and hoist
• Outriggers
• Electrical system
• Illustrated parts breakdowns with item numbers
• Part numbers, descriptions and quantities for each assembly
• Index of part numbers
