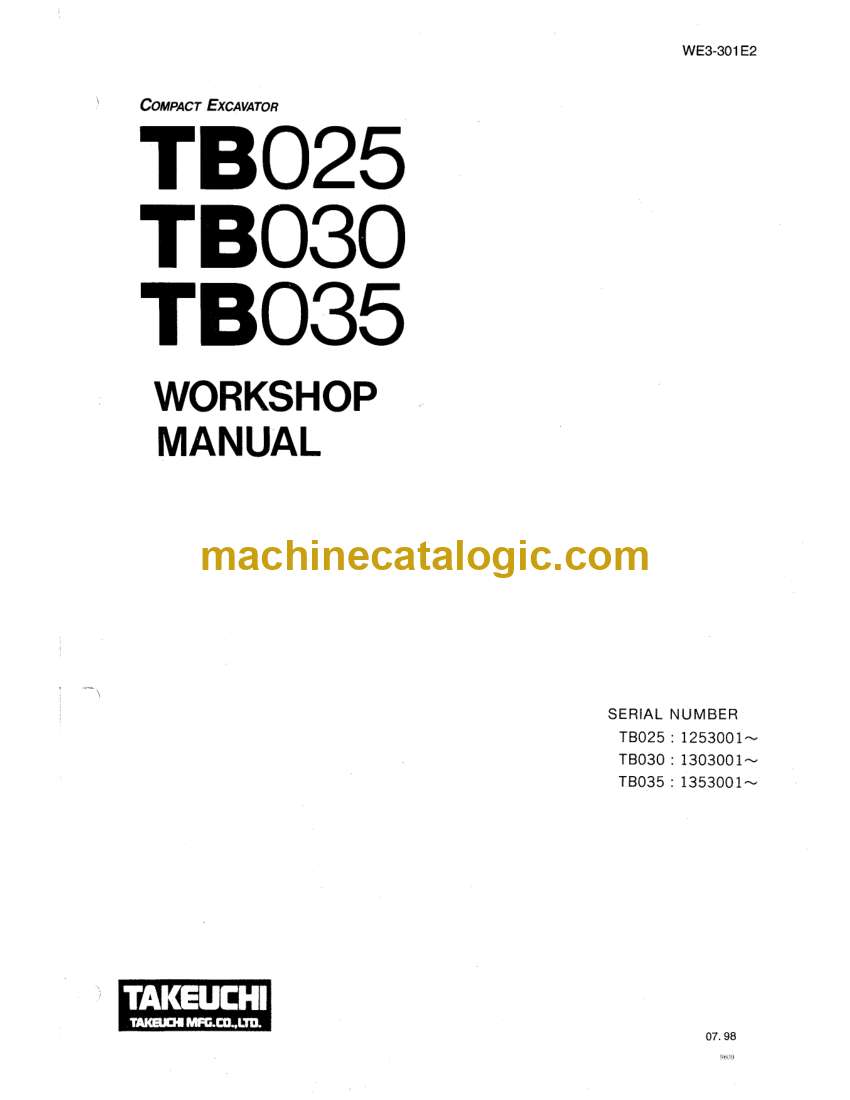

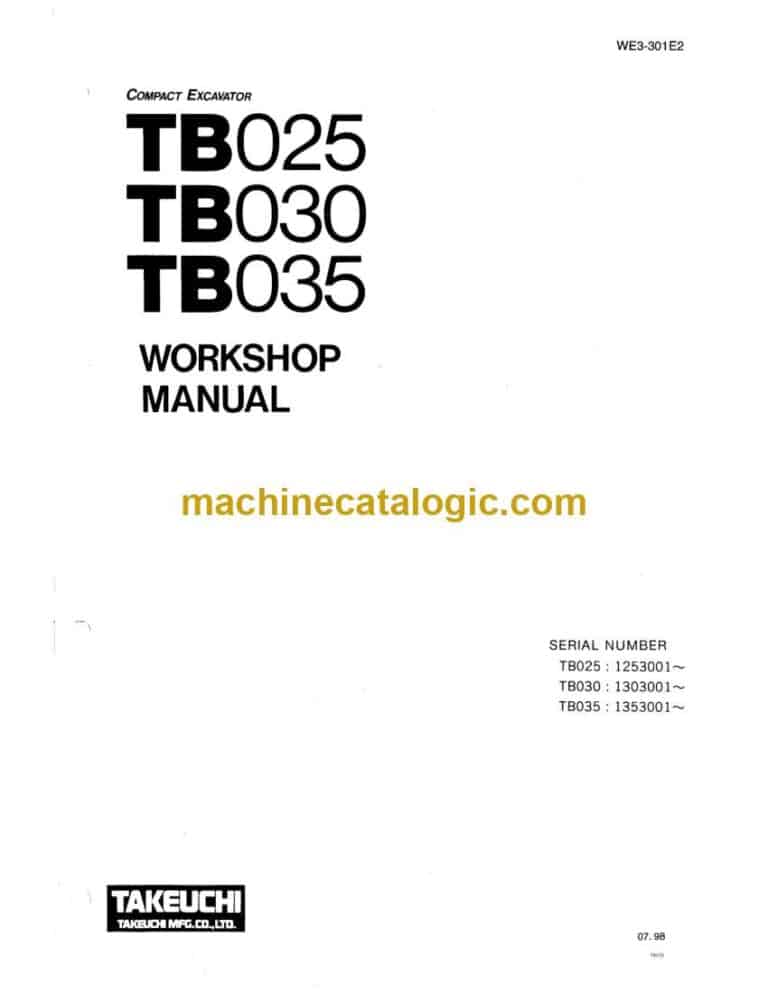

Takeuchi TB025, TB030, TB035 Compact Excavator Workshop Manual (WE3-301E2)

Takeuchi TB025, TB030, TB035 Compact Excavator Workshop Manual (WE3-301E2)

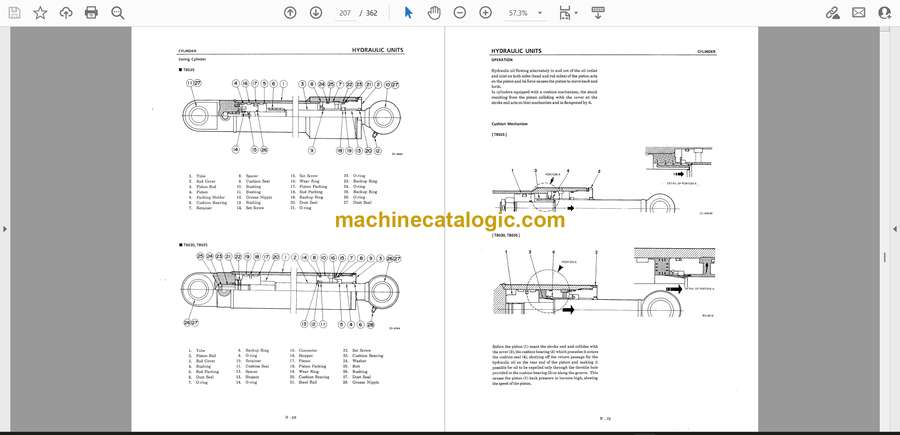

These TB025, TB030, and TB035 compact excavators usually live in tight construction sites, utilities work, and landscaping where they dig, trench, and load all day. This workshop manual is what I’d pull out when I need a clear, step‑by‑step sequence to strip down a major component, inspect it, and bolt it back on without guesswork. For example, if a boom cylinder is drifting or the swing feels sloppy, this book guides you through a logical process to trace the fault, verify clearances, and reinstall everything so it tracks straight and lifts safely.

Applications & Use Cases

• Plan a full teardown and rebuild of major components with the correct order of disassembly and reassembly.
• Trace hydraulic issues like weak digging force or jerky functions using structured troubleshooting steps.
• Inspect wear points on pins, bushings, and linkages so you know what to replace before it fails.
• Verify adjustments after repairs—controls, travel, and swing—so the machine runs true and predictable.
• Check routing and sealing of hoses, lines, and fittings when replacing parts or repairing leaks.

FAQ

Q: Can I use this manual on a tablet in the field?

A: Yes, it works well digitally; you can zoom diagrams and search text while you’re beside the machine.

Q: Is it worth printing sections of this manual?

A: Many techs print the procedures they’re working on so they can mark notes and keep it next to the machine.

Safety Note

Always lock out, support, and relieve system pressure exactly as described before loosening any component.

Takeuchi TB025, TB030, TB035 Compact Excavator Index:

GENERAL
SPECIFICATIONS
MACHINE CONFIGURATION
HYDRAULIC UNITS
TROUBLESHOOTING
