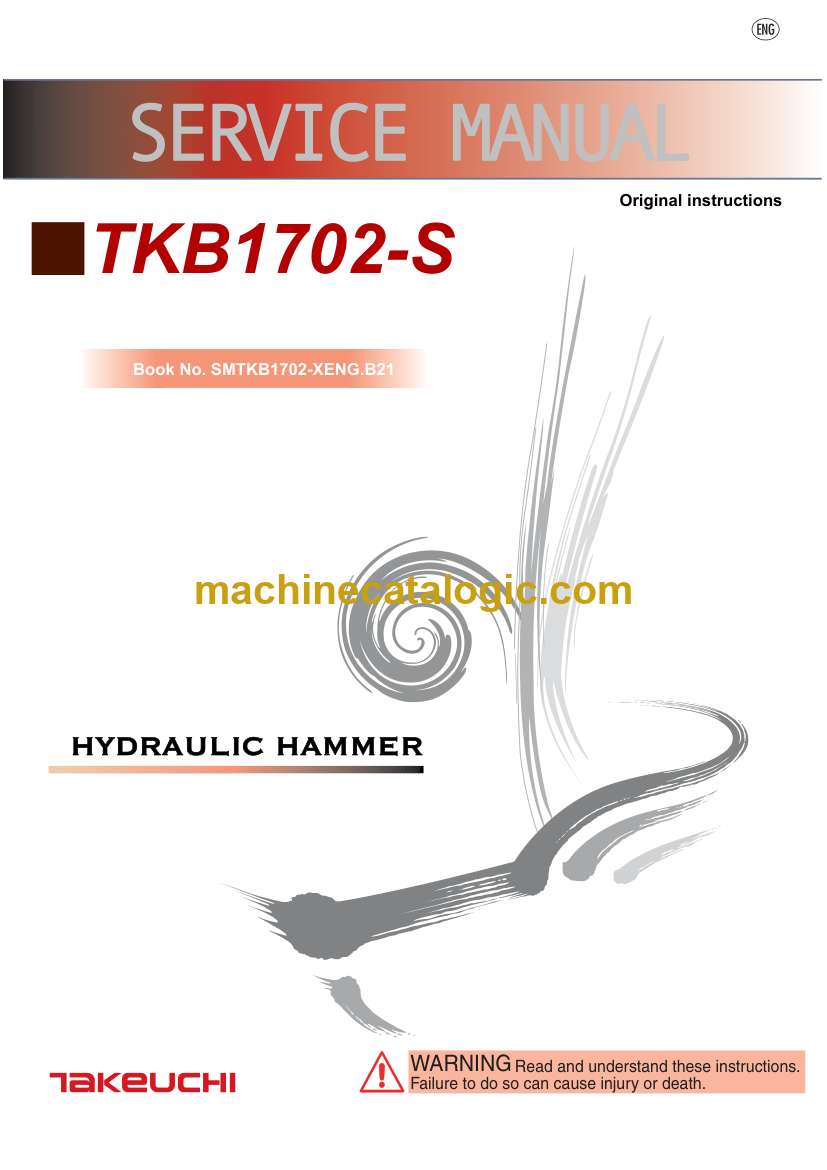

Takeuchi TKB1702-S Hydraulic Hammer Service Manual

Out on demolition or rock trenching jobs, this TKB1702-S hammer takes a real beating—dust, rebar, mis-hits, and long, hot runs. This service manual is what I’d keep on hand when the hammer starts losing impact power, running hot, or leaking around the tool bushings. It walks you through how to confirm what’s actually failed before you start throwing parts at it—whether you’re chasing a gas charge issue, a sticking valve, or worn seals after a hard season.

Applications & Use Cases

• Trace low impact power by following the manual’s diagnostic checks before blaming the carrier or hydraulics.
• Isolate internal leaks and decide if you’re doing a seal kit, piston inspection, or a full teardown.
• Follow the disassembly sequence so you don’t damage bushings, pins, or valve components during overhaul.
• Use the reassembly and adjustment guidance to correctly align parts and verify clearances before putting it back in service.
• Confirm gas precharge and basic functional tests after a rebuild so the hammer hits correctly from the first start.

FAQ

Q: Can I use this manual on a tablet in the field?

A: Yes, it’s practical to keep it on a tablet or laptop; just zoom in on diagrams when you’re at the hammer.

Q: Should I still print pages from this manual?

A: Many techs print the steps and exploded views they need for a specific job, then mark notes or torque checks as they go.

Safety Note

Always bleed pressure, support the hammer securely, and follow lockout procedures before opening any hydraulic or gas-charged components.
