Takeuchi TS50V, TS60V Skid Steer Loader Service Manual

These TS50V and TS60V skid steers usually live in dirt, mud, and gravel, loading trucks, feeding hoppers, and cleaning sites all day. This service manual is what I’d keep on hand when I need to trace a hydraulic issue, chase an electrical fault, or tear down a component without guessing. For example, if the loader arms start creeping down under load, I’d use this book to step through the checks—valves, cylinders, controls—before I ever order parts.

Applications & Use Cases

• Diagnose hydraulic problems by following the circuit diagrams to isolate a weak pump, a sticky valve, or a misrouted hose.
• Track down electrical faults when gauges, lights, or safety interlocks act up, using the wiring layouts to verify power and grounds.
• Plan disassembly and reassembly of major components so you don’t miss seals, shims, or alignment steps.
• Set and verify adjustments on linkages, controls, and drive components to remove slop and avoid premature wear.
• Build a proper maintenance routine so filters, fluids, and inspections are done in a logical sequence.

FAQ

Q: Can I use this manual on a tablet in the field?

A: Yes, it’s practical to keep it on a tablet so you can zoom diagrams and search terms right next to the machine.

Q: Is it worth printing parts of the manual?

A: I’d print the diagrams and procedures you use often, put them in plastic sleeves, and keep them in the service truck.

Safety Note

Always lock out, support, and relieve system pressure exactly as described before opening any hydraulic, electrical, or mechanical system.

Takeuchi TS50V, TS60V Skid Steer Loader Index:

• TOC
• 1. Product Safety
• 3. Circuit Diagrams
• 4. Maintenance
• 5. Machine Controls & Instrumentation
• 6. Operator Encolsure
• 7. Chassis & Fuel Tank
• 8. Radiator & Oil Cooler

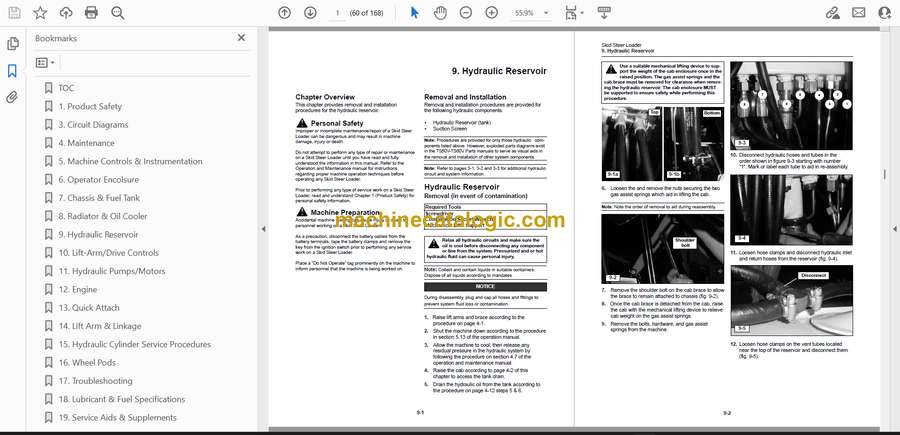

• 9. Hydraulic Reservoir
• 10. Lift-Arm/Drive Controls
• 11. Hydraulic Pumps/Motors
• 12. Engine
• 13. Quick Attach
• 14. Lift Arm & Linkage
• 15. Hydraulic Cylinder Service Procedures
• 16. Wheel Pods
• 17. Troubleshooting
• 18. Lubricant & Fuel Specifications
• 19. Service Aids & Supplements
