Webasto DW 80 Heater Service Manual

The Webasto DW 80 is a coolant heater. On a crane or heavy vehicle it warms the engine coolant and the cab before startup, so the operator isn't climbing into a frozen machine. When it quits or runs rough, the person with the wrench in hand needs workshop-level information, not guesswork. That's what this service manual is for.

What this manual helps you do

• Check the technical data before you start testing or replacing anything.
• Trace the electrical diagrams to find a dead circuit or a bad connection.
• Troubleshoot a heater that won't start or won't stay lit, using the trouble shooting section.
• Follow the repair instructions to pull, repair and refit heater components.
• Identify the instruments and tools you'll want on the bench before you open the unit.

Who this is for

Independent repair shops and rental fleet mechanics who fix heaters in-house. Also crane service technicians and plant maintenance staff who have a DW 80 on a machine with no paperwork.

FAQ

Q: What do I receive and how is it organised?

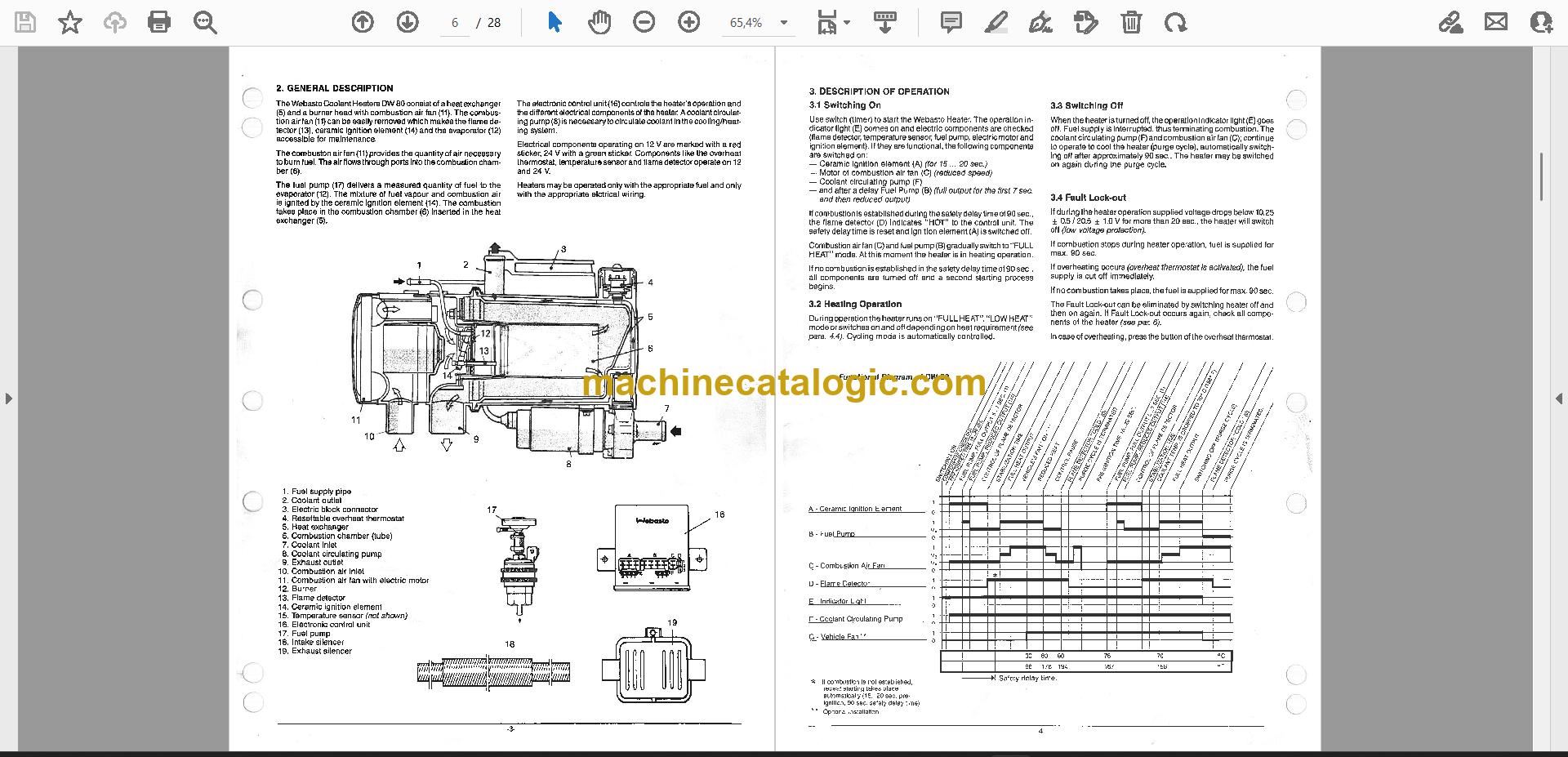

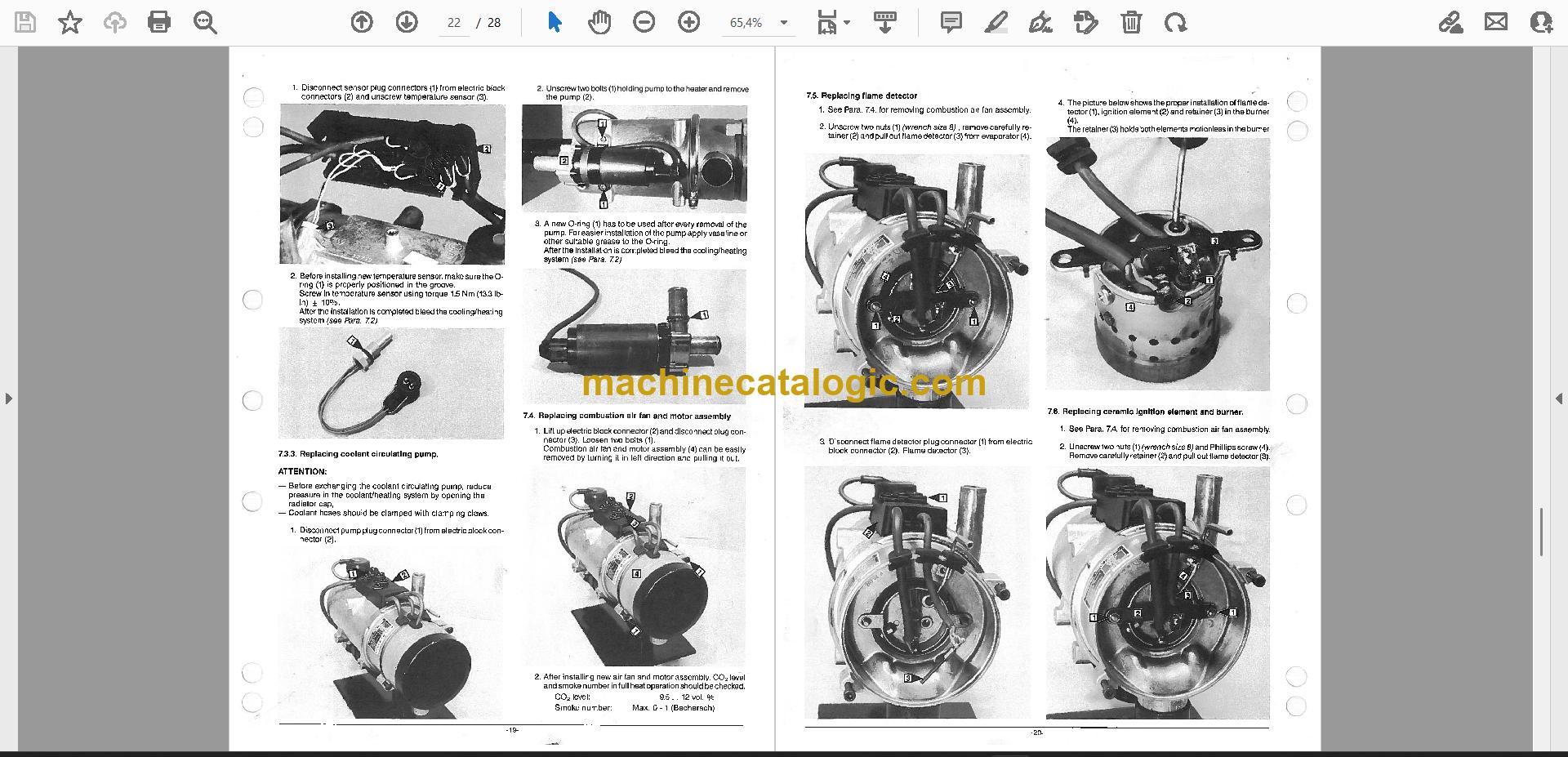

A: You get 1 PDF file, 28 pages, in English. It's the complete manual, and it runs from technical data and general description through description of operation, heater components, electrical diagrams, trouble shooting, repair instructions, and instruments and tools.

Q: Which heater does it fit?

A: The Webasto DW 80. The title reads "DW 80 Coolant Heater Service and Repair Manual," so if your heater is a DW 80, this is the book.

Q: How does it fit the job I'm doing?

A: A service manual like this usually gives you the operating sequence, the wiring layout and the repair steps in one place. You can read how the heater should behave, find where it departs from that, and work through the fix.

Download it, print the electrical diagrams, and keep the trouble shooting pages next to the heater while you work.

Click here to view the preview (PDF)

All Crane Manuals
