Format: PDF (Printable Document)
File Language: English
File Pages: 231
File Size: 14.72 MB (Speed Download Link)
Brand: Weidemann
Model: 1070 D-M Wheel Loader
Type of Document: Parts Catalog
$ 45
A Weidemann 1070 D/M wheel loader usually spends its life in tight yards, barns, and construction sites, shuttling buckets, pallets, and feed where bigger machines won’t fit. This parts catalog is what I’d keep open when I’m tearing into the loader and need to match the exact components before ordering. If, for example, the lift cylinder starts leaking or a steering joint gets sloppy, I use this book to trace the exploded view, confirm every seal, bushing, and retaining ring, and make sure I’m not mixing early and late design parts.
Applications & Use Cases
FAQ
Q: Can I rely on this catalog to order parts just from a photo of my machine?
A: You should always confirm using the machine’s identification plate and then match the illustrated breakdowns to avoid wrong revisions.
Q: Is this practical to use on a tablet in the workshop?
A: Yes, zooming into the drawings on a tablet makes it easier to read callouts, and you can still print key pages to keep next to the machine.
Safety Note
Always isolate the machine, relieve stored pressure, and secure all raised components before using this catalog to guide any disassembly.
9-10 Wichtige Hinweise Important Notices Notices Importantes Observaciones Importantes
12-13 Filtersatz filter set jeu de filtres juego de filtros

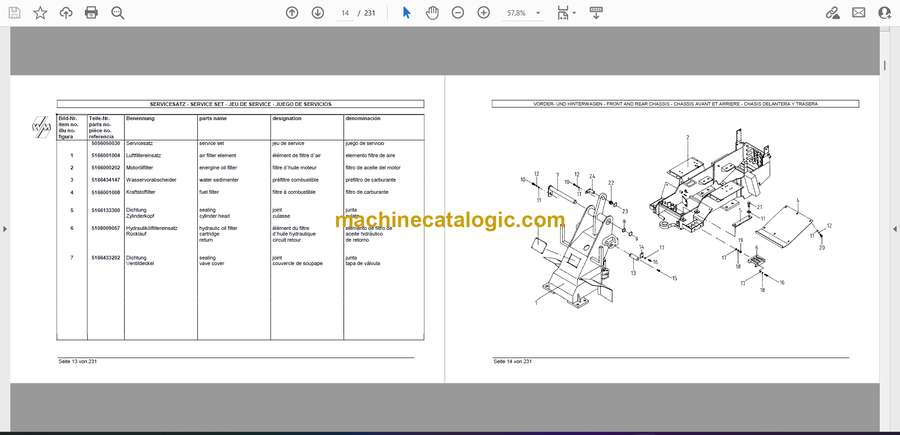

1 14-17 Vorder- und Hinterwagen Front And Rear Chassis Chassis avant et arriere Chasis delantera y trasera
2 18-21 Mittelgelenk Central joint Pivot Centrale Rótula central
3 22-31 Haube und Trittplatte Bonnet, running board Bonnet, planche de Capot, estribo
32-35 Dämmatten Insulating material Materiel isolant
marchepied
Material de insonorizacion
4 36-39 Schwinge MV 915 Loading arm MV 915 Bras chargeur MV 915 Brazo de cargo MV 915
40-43 Schwinge MV 918
Hohe Hubhöhe
Loading arm MV 918
High hight
Bras chargeur MV 918
Haut levée hauteur
Brazo de cargo MV 918
Alto carrera altura
44-47 Schwinge HV 920 Loading arm HV 920 Bras chargeur HV 920 Brazo de cargo HV 920
48-51 Schwinge HV 921
Hohe Hubhöhe
Loading arm HV 921
High hight
Bras chargeur HV 921
Haut levée hauteur
Brazo de cargo HV 921
Alto carrera altura
5 52-59 Motor engine Moteur Motor
60-63 Auspuff und Luftfilter Exhaust and air filter Echapement et filtre Escape y filtro de aire
64-65 Gasbetätigung accelerator accelerateur acelerador
66-67 Drehzahlverstellung Revolution Adjustment Changement de vitesse Ajuste de velocidad
68-69 Inchbetätigung inch control commande actividad
70-73 Kraftstoffanlage Fuel system Systeme de combustible Sistema de carburante
7 74-79 Elektrische Anlage Electric System Système électrique Sistema eléctrica
80-83 Armaturenlenksäule Dashboard Tableau de bord Tablero de mando
84 Stromlaufplan Electrical wiring diagramme Schéme de couplage électriq. Diagrama de circuito eléctrico
8 85 Hydrauliklaufplan Hydraulic wiring diagramme Schéme de couplage hydr. Diagrama de circuito hidráulico
8 86-87 Verstellpumpe Variable displacement pump Pompe à débit variable Bomba de caudal variable
8 88-95 Fahrhydraulik Driving hydraulic Transmission hydraul. Transmission hidráulica
9 96-103 Lenkanlage Steering system Système de direction Sistema de conducción
10 104-111 Hydraulikanlage DN 8 MV Hydraulic System Système hydraulique Sistema hidráulica
112-121 Hydraulikanlage DN 8 HV Hydraulic System Système hydraulique Sistema hidráulica
122-129 Hydraulikanlage DN12 MV
Standard Hubhöhe
hydraulic system DN12 MV
stand. hight
systeme hydr. DN12 MV
stand. levée hauteur
sistema hidr. DN12 MV stand.
carrera
130-135 Hydraulikanlage DN 12 MV
Hohe Hubhöhe
hydraulic system DN 12 MV
high hight
systeme hydr. DN 12 MV
haut levée hauteur
sistema hidr. DN 12 MV alto
carrera
136-145 Hydraulikanlage DN12 HV
Standard Hubhöhe
hydraulic system DN12 HV
stand. hight
systeme hydr. DN12 HV
stand. levée hauteur
sistema hidr. DN12 HV stand.
carrera
146-153 Hydraulikanlage DN 12 HV
Hohe Hubhöhe
hydraulic system DN 12 HV
high hight
systeme hydr. DN 12 HV haut
levée hauteur
sistema hidr. DN 12 HV alto
carrera
1 Dreiwegehahn 1 three-way tap vanne á 3 voies grifo de 3 viàs
154-161 Hydraulikanlage DN12 HV
Standard Hubhöhe
hydraulic system DN12 HV
stand. hight
systeme hydr. DN12 HV
stand. levée hauteur
sistema hidr. DN12 HV stand.
carrera
2 Dreiwegehähne 2 three-way tap vanne á 3 voies grifo de 3 viàs
162-169 Hydraulikanlage DN 12 HV
Hohe Hubhöhe
hydraulic system DN 12 HV
high hight
systeme hydr. DN 12 HV haut
levée hauteur
sistema hidr. DN 12 HV alto
carrera
2 Dreiwegehähne 2 three-way tap 2 vanne á 3 voies 2 grifo de 3 viàs
11 170-173 Kreuzsteuerventil Cross steering valve distributeur hydraul. válvula de mando en cruz
12 174-179 Bremsanlage Brake system Système des freins Sistema de frenos
180-185 Vorderachse SPY86 bis 04.96 Front axle SPY86 to 04.96 Essieu avant jusqu á 04.96 Eje delantera hasta 04.96
186-191 Vorderachse SPY86 ab 05.96 Front axle SPY86 from 05.96 Essieu avant SPY86 de 05.96 Eje delantera SPY86 del 05.96
192-199 Vorderachse SPY 106 Front axle SPY 106 Essieu avant SPY 106 Eje delantera SPY 106
13 200-205 Achsantrieb hinten I Rear gear box Boite de vitesse ar. Caja de cambios tras.
206-211 Achsantrieb hinten II Rear gear box Boite de vitesse ar. Caja de cambios tras.
212-219 Achsantrieb hinten III Rear gear box Boite de vitesse ar. Caja de cambios tras.
14 220-223 Erdschaufel Bucket earth Godet Cuchara de tierra
224-229 Krokodilgebiß Crocodile teeth Fourche crocodile Pinza crocodilo
230-231 Palettengabel Pallet forks Palettiseur Horquillas de palet
