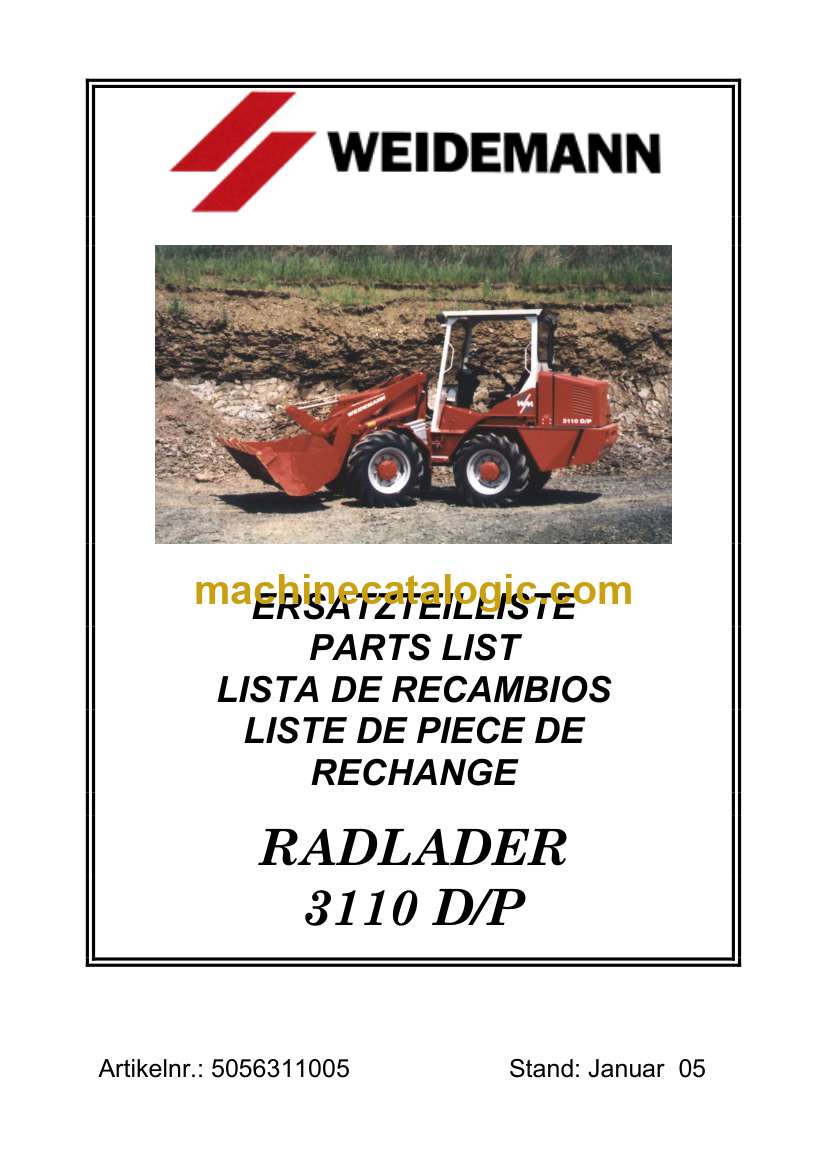

Weidemann 3110 D/P Radlader Parts Catalog

Weidemann 3110 D-P Radlader Parts Catalog (5056311005)

This Weidemann 3110 D/P wheel loader parts catalog is what I’d keep open when the machine is working in tight yards, barns, or small construction sites and I need to sort out the right components fast. It helps you match exactly what’s on your loader to the correct replacement part, especially when there are different revisions or options. For example, if you’re chasing a hydraulic leak around a lift cylinder or the loader arm, this catalog lets you trace the exploded view, verify every seal and bushing, and order everything you need in one go instead of tearing it down twice.

Applications & Use Cases

Identify correct part variants when there are multiple versions of the same valve, joint, or bracket.
Use exploded views to see how pins, shims, and seals stack so you can reassemble in the right order.
Confirm filter sets and related hardware before a service, avoiding last‑minute parts runs.
Trace hydraulic line routing to isolate a damaged hose or fitting and match it to the right part number.
Check small hardware (clips, circlips, spacers) that are easy to overlook but stop the job if missing.

FAQ

Q: Can I use this catalog on a tablet in the workshop?

A: Yes, it works well digitally; you can zoom in on the diagrams to see small parts and numbers clearly.

Q: Is it worth printing sections of this catalog?

A: Printing key assemblies you’re working on is handy; you can mark off replaced parts and keep it next to the machine.

Safety Note

Always isolate the machine, relieve stored pressure, and follow Weidemann’s safety instructions before removing or installing any parts.

📘 Show Index

Weidemann 3110 D-P Radlader Index:

9-10 WICHTIGE HINWEISE IMPORTANT NOTICES NOTICES IMPORTANTES OBSERVACIONES IMPORTANTES
12-13 FILTERSATZ FILTER SET JEU DE FILTRES JUEGO DE FILTROS
1 14-21 VORDER- UND HINTERWAGEN FRONT AND REAR CARRIAGE PARTIE AVANT ET ARRIERE PARTE DELANTERA Y TRASERA
2 22-25 MITTELGELENK CENTRAL JOINT PIVOT CENTRALE RÓTULA CENTRAL
3 26-31 KABINE UNTERTEIL CABIN LOWER PART CABINE PARTIE INFERIEUR CABINA PARTE INFERIOR
3 32-39 KABINE OBERTEIL CABIN UPPER PART CABINA PARTIE SUPERIOR CABINA PARTE SUPERIOR
3 40-43 FAHRERSCHUTZDACH DRIVER’S CAP CADRE DE SECURITE CUADRO DE SEGURIDAD
44-45 HEIZUNG I HEATING I CHAUFFAGE I CALEFACCIÓN I
46-47 HEIZUNG II HEATING II CHAUFFAGE II CALEFACCION II
4 48-49 MOTORHAUBE ENGINE BONNET CAPOT CAPÓ
50-55 DÄMMATTEN INSULATING MATERIAL MATERIEL ISOLANT MATERIAL DE INSONORIZACION
5 56-59 SCHWINGE 914 LOADING ARM 914 BRAS CHARGEUR 914 BRAZO DE CARGA 914
60-63 SCHWINGE 913 LOADING ARM 913 BRAS CHARGEUR 913 BRAZO DE CARGA 913
6 64-71 MOTOR UND ANBAUTEILE ENGINE AND PARTS MOTEUR ET PIECES MOTOR Y PIEZAS
72-75 AUSPUFF UND LUFTFILTER EXHAUST AND AIR FILTER ECHAPPEMENT ET FILTRE D’AIR ESCAPE Y FILTRO DE AIRE
76-77 GASBETÄTIGUNG ACCELERATOR ACCELÉRATEUR ACELERADOR

78-81 INCHBETÄTIGUNG INCH CONTROL COMMANDE ACTIVIDAD
7 82-85 DIESELTANK FUEL TANK RESERVOIR COMBUSTIBLE DEPOSITO DE CARBURANTE
8 86-91 ELEKTRISCHE ANLAGE I ELECTRIC SYSTEM DIAGRAMME I SYSTEME ELECTRIQUE I SISTEMA ELÉCTRICO I
92-99 ELEKTRISCHE ANLAGE II ELECTRIC SYSTEM DIAGRAMME II SYSTEME ELECTRIQUE II SISTEMA ELÉCTRICO II
9 100-103 ARMATURENLENKSÄULE I DASHBOARD I TABLEAU DE BORD I TABLERO DE MANDO I
104-107 ARMATURENLENKSÄULE II DASHBOARD II TABLEAU DE BORD II TABLERO DE MANDO II
108-109 STROMLAUFPLAN ELECTRICAL WIRING SCHEME DE COUPLAGE DIAGRAMA DE CIRCUITO
110-111 HYDRAULIKLAUFPLAN HYDRAULIC WIRING DIAGRAMME SCHEME DE COUPLAGE HYDR. DIAGRAME DE CIRCUITO HIDRÁULICO
10 112-115 VERSTELLPUMPE VARIABLE DISPLACEMENT PUMP POMPE A DEBIT VARIABLE BOMBA DE CAUDAL VARIABLE
116-127 FAHRHYDRAULIK DRIVING HYDRAULIC TRANSMISSION HYDRAUL. TRANSMISSION HIDRAULICA
11 128-137 LENKANLAGE STEERING SYSTEM SYSTEME DE DIRECTION SISTEMA DE CONDUCCION
12 138-145 HYDRAULIKANLAGE STANDARD
HUBHÖHE
HYDRAULIC SYSTEM STAND.
HIGHT
SYSTEME HYDR. STAND. LEVÉE
HAUTEUR
SISTEMA HIDR. STAND. CARRERA
1 DREIWEGEHAHN 1 THREE-WAY TAP VANNE A 3 VOIES GRIFO DE 3 VIAS
146-153 HYDRAULIKANLAGE HOHE
HUBHÖHE
HYDRAULIC SYSTEM HIGH HIGHT SYSTEME HYDR. HAUT LEVEE
HAUTEUR
SISTEMA HIDR. ALTO CARRERA
1 DREIWEGEHAHN 1 THREE-WAY TAP VANNE A 3 VOIES GRIFO DE 3 VIAS
154-161 HYDRAULIKANLAGE STANDARD
HUBHÖHE
HYDRAULIC SYSTEM STAND.
HIGHT
SYSTEME HYDR. STAND. LEVÉE
HAUTEUR
SISTEMA HIDR. STAND. CARRERA
2 DREIWEGEHÄHNE 2 THREE-WAY TAP VANNE A 3 VOIES GRIFO DE 3 VIAS

162-169 HYDRAULIKANLAGE HOHE
HUBHÖHE
HYDRAULIC SYSTEM HIGH HIGHT SYSTEME HYDR. HAUT LEVEE
HAUTEUR
SISTEMA HIDR. ALTO CARRERA
2 DREIWEGEHÄHNE 2 THREE-WAY TAP VANNE A 3 VOIES GRIFO DE 3 VIAS
170-175 KREUZSTEUERVENTIL CROSS STEERING VALVE DISTRIBUTEUR HYDRAUL. VALVULA DE MANDO EN CRUZ
13-14 176-183 BREMSANLAGE BRAKE SYSTEM SYSTEME DES FREINS SISTEMA DE FRENOS
13 184-193 PLANETENACHSE VORN PLANET-AXLE FRONT ESSIEU DE PLANETA AVANT EJE DE PLANETA DELANTERA
14 194-201 PLANETENACHSE HINTEN PLANET-AXLE REAR ESSIEU DE PLANETA ARRIERE EJE DE PLANETA TRASERA
202-205 ACHSROHR MIT
PLANETENTRÄGER
AXLE TUBE WITH PLANETARY
SUPPORT
ESSIEU DE ROUE AVEC SUPPORT
PLANETAIRE
TUBO DE EJE CON SOPORTE
PLANETARIO

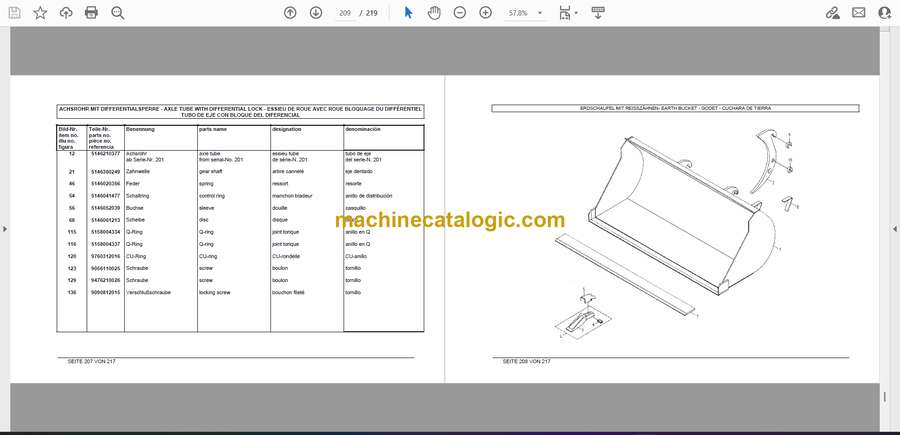

206-207 ACHSROHR MIT
DIFFERENTIALSPERRE
AXLE TUBE WITH DIFFERENTIAL
LOCK
ESSIEU DE ROUE AVEC ROUE
BLOQUAGE DU DIFFERENTIEL
TUBO DE EJE CON BLOQUE DEL
DIFERENCIAL
15 208-209 ERDSCHAUFEL MIT
REISSZÄHNEN
EARTH BUCKET GODET CUCHARA DE TIERRA
15 210-215 UNI-SCHAUFEL BUCKET GODET CUCHARA
15 216-217 PALETTENGABEL PALLET FORKS PALETTISEUR HORQUILLAS DE PALET
