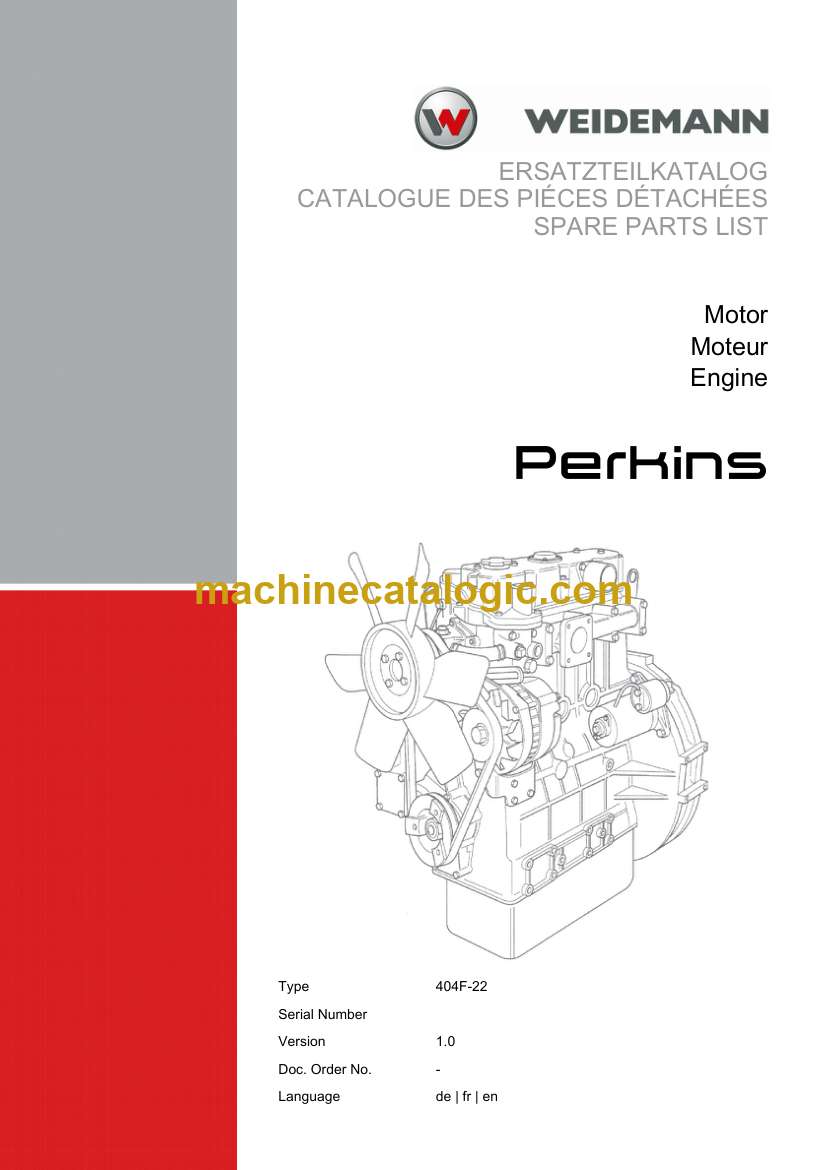

Weidemann Perkins 404F-22 Engine Spare Parts Catalog (de, fr, en)

On these Weidemann machines, the Perkins 404F‑22 is working hard all day in yards, barns, and muddy job sites—loading, stacking, and shuttling material. This catalog is what I use to nail down the exact engine parts before I start tearing anything apart. Say the engine starts burning oil and I decide to overhaul the top end; this book lets me match the correct gaskets, seals, and small hardware so I don’t end up with a wrong revision or missing washer halfway through the job.

Applications & Use Cases

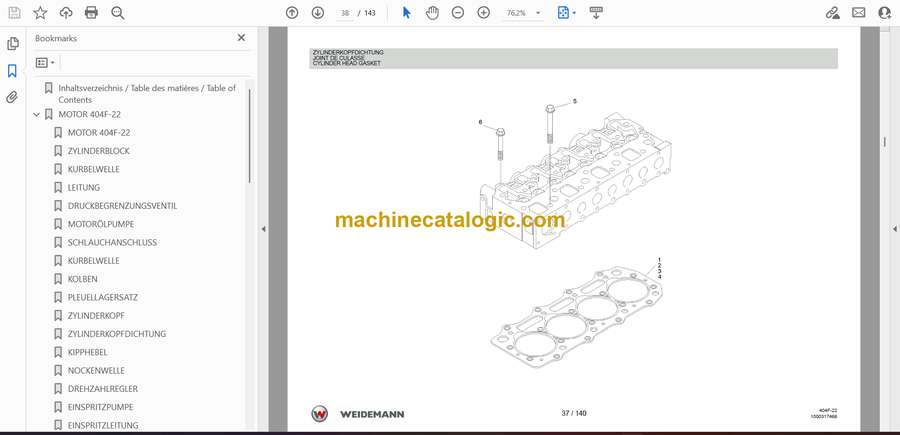

• Trace the full exploded view of the 404F‑22 to see how brackets, housings, and covers stack together before disassembly.
• Isolate the correct variant of injectors, pumps, or sensors when there are multiple Perkins or Weidemann revisions.
• Verify all seals, O-rings, and bushings that are easy to overlook when rebuilding the front cover, timing area, or auxiliaries.
• Confirm the right fasteners and spacers so you don’t reuse stretched bolts or mismatch lengths on mounts and brackets.
• Cross-check part numbers against your dealer’s system to avoid ordering parts that don’t match your engine build.

FAQ

Q: Can I use this catalog on a tablet in the workshop?

A: Yes, it works well digitally—you can zoom in on the exploded views and search part numbers quickly.

Q: Is it worth printing sections of this catalog?

A: Many techs print the relevant pages for a job, mark them with notes or grease pencil, then keep them with the work order.

Safety Note

Always confirm parts with the engine identification data and follow proper lockout and cooling procedures before opening any engine system.
