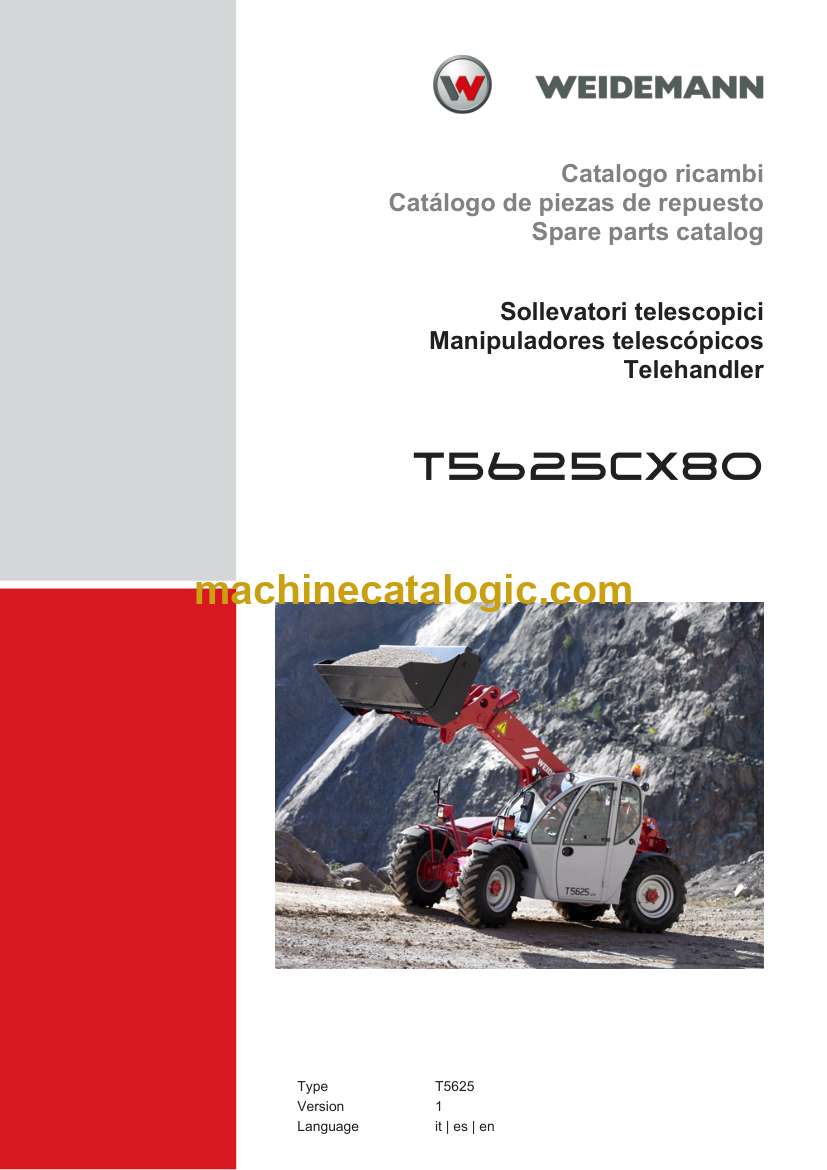

Weidemann T5625CX80 Telehandler Spare Parts Catalog (T5625) (it, es, en)
A T5625CX80 telehandler spends its life loading pallets, feeding stock, and stacking material in tight farmyards and muddy sites, so when something bends, leaks or wears out, you need to know exactly which bits to replace. This parts catalog is what I keep beside the laptop when I’m pricing repairs or rebuilding an attachment carriage. If a boom section is seeping oil or a steering joint has play, I use this book to trace every seal, bushing, and fastener so I don’t miss the small pieces that stop the job later.
Applications & Use Cases
- Identify correct part variants when there are multiple revisions of cylinders, axles, or cabs on similar T5625CX80 machines.
- Use exploded views to see how components stack together before stripping a boom, hub, or hydraulic valve block.
- Verify all small hardware—spacers, shims, circlips, O‑rings—so you order a complete kit, not just the obvious big parts.
- Cross‑check service kits for planned maintenance and confirm what’s included before ordering.
- Compare old parts to diagrams to confirm compatibility when the machine has been previously modified or repaired.
FAQ
Q: Can I use this catalog on a tablet in the workshop?
A: Yes, it’s well suited to viewing digitally so you can zoom into diagrams while working at the machine.
Q: Is it worth printing sections of it?
A: Many techs print the pages for the area they’re rebuilding and mark them up with notes and torque references from the service manual.
Safety Note
Always positively lock out and support the telehandler before removing any structural, hydraulic, or steering components.
📘 Show Index
Weidemann T5625CX80 Telehandler Index:
- INDICE DEI CONTENUTI ÍNDICE CONTENTS
- 1 SERVICE KIT KIT DE SERVICIO SERVICE KIT
- 1.1 GRUPPO DI MANUTENZIONI JUEGO MANTENIMIENTO MAINTENANCE KIT
- 2 ACCESSORI MOTORE ACCESORIOS MOTRIZ ENGINE ATTACHMENTS PARTS
- 2.1 ACCESSORI MOTORE ACCESORIOS MOTRIZ ENGINE ATTACHMENTS PARTS
- 2.2
- 2.3 IMPIANTO DI ALIMENTAZIONE DEL COMBUSTIBI SISTEMA DE ALIMENTACIÓN FUEL SYSTEM
- 2.4 COMANDO A GAS ACCIONAMIENTO DE ACELERADOR SPEED ACTUATING
- 2.5 COMANDO A GAS ACCIONAMIENTO DE ACELERADOR SPEED ACTUATING
- 3 MOTORE TD2011L04W MOTOR TD2011L04W ENGINE TD2011L04W
- 3.1 ACCESSORI MOTORE ACCESORIOS MOTRIZ ENGINE ATTACHMENTS PARTS
- 3.2 TESTATA TESTERA DE CILINDRO CYLINDER HEAD
- 3.3 SISTEMA D’INIEZIONE SISTEMA DE INYECCIÓN FUEL INJECTION EQUIPMENT
- 3.4 CONDOTTO TUBERÍA DE ACEITE OIL LINE
- 3.5 TUBO DI SFIATO CONDUCCIÓN DE VENTILACIÓN BREATHER LINE
- 3.6 ACCESSORI MOTORE ACCESORIOS MOTRIZ ENGINE ATTACHMENTS PARTS
- 3.7 POMPA D’ACQUA BOMBA DE AGUA WATER PUMP
- 3.8 COLLETTORE DI SCARICO TUBERÍA DE EVACUACIÓN EXHAUST MANIFOLD
- 3.9 TURBOCOMPRESSORE A GAS DI SCARICO TURBOCARGADOR DE GAS DE ESCAPE TURBO CHARGER
- 3.10 TURBOCOMPRESSORE A GAS DI SCARICO TURBOCARGADOR DE GAS DE ESCAPE TURBO CHARGER
- 4 TRASLAZIONE E MOTORE PROPULSIÓN DE MARCHA DRIVE UNIT
- 4.1 TRASLAZIONE E MOTORE (<02.2006) PROPULSIÓN DE MARCHA (<02.2006) DRIVE UNIT (<02.2006)
- 4.2 TRASLAZIONE E MOTORE (>02.2006) PROPULSIÓN DE MARCHA (>02.2006) DRIVE UNIT (>02.2006)
- 4.3 VITE POMPA A PORTATA VARIABILE ATORNILLADO BOMBA GRADUABLE SCREW JOINT DISPLACEMENT PUMP
- 4.4 POMPA A PORTATA VARIABILE (exploded view) BOMBA GRADUABLE (exploded view) DISPLACEMENT PUMP (exploded view)
- 4.5 MOTORE DI REGOLAZIONE (exploded view) MOTOR REGULABLE (exploded view) DISPLACEMENT MOTOR (exploded view)
- 4.6 VALVOLA ELETTROMAGNETICA (exploded view) VÁLVULA MAGNÉTICA (exploded view) SOLENOID VALVE (exploded view)
- 5 ASSE (Dana) EJE (Dana) AXLES (Dana)
- 5.1 ASSE (complete) EJE (complete) AXLES (complete)
- 5.2 ASSE ANTERIORE (front) EJE DELANTERO (front) FRONT AXLE (front)
- 5.3 SCATOLA DELL’ASSALE (front) CAJA DE EJE (front) AXLE HOUSING (front)
- 5.4 DIFFERENZIALE (front) DIFERENCIAL (front) DIFFERENTIAL (front)
- 5.5 ASSE POSTERIORE (rear) EJE TRASERO (rear) REAR AXLE (rear)
- 5.6 SCATOLA DELL’ASSALE (rear) CAJA DE EJE (rear) AXLE HOUSING (rear)
- 5.7 DIFFERENZIALE (rear) DIFERENCIAL (rear) DIFFERENTIAL (rear)
- 5.8 SCATOLA DEL CAMBIO (rear) CAJA DE ENGRANAJES (rear) GEAR BOX HOUSING (rear)
- 5.9 STERZO (front + rear) DIRECCIÓN (front + rear) STEERING UNIT (front + rear)
- 5.10 TRAZIONE, PRESA DI FORZA (front) PROPULSIÓN (front) DRIVE (front)
- 5.11 TRAZIONE, PRESA DI FORZA (rear) PROPULSIÓN (rear) DRIVE (rear)
- 6 ASSE (ZF) EJE (ZF) AXLES (ZF)
- 6.1 TUBO ASSIALE (front) TUBO DE EJE (front) AXLE PIPE (front)
- 6.2 TUBO ASSIALE (rear) TUBO DE EJE (rear) AXLE PIPE (rear)
- 6.3 TRAZIONE, PRESA DI FORZA (front) PROPULSIÓN (front) DRIVE (front)
- 6.4 TRAZIONE, PRESA DI FORZA (rear) PROPULSIÓN (rear) DRIVE (rear)
- 6.5 DIFFERENZIALE (front) DIFERENCIAL (front) DIFFERENTIAL (front)
- 6.6 DIFFERENZIALE (rear) DIFERENCIAL (rear) DIFFERENTIAL (rear)
- 6.7 RIPARTITORE DI COPPIA (rear) TRANSMISIÓN DE TOMA DE FUERZA (rear) DISTRIBUTOR GEAR-BOX (rear)
- 6.8 RIPARTITORE DI COPPIA (rear) TRANSMISIÓN DE TOMA DE FUERZA (rear) DISTRIBUTOR GEAR-BOX (rear)
- 6.9 CILINDRO DELLO STERZO (front + rear) CILINDRO DE DIRECCIÓN (front + rear) STEERING CYLINDER (front + rear)
- 6.10 SCATOLA DELLO SNODO (front + rear) CAJA DE ARTICULACIÓN (front + rear) ARTICULATION CASE (front + rear)
- 6.11 M. RUOTA CUBO DE LA RUEDA WHEEL HUB
- 6.12 FRENO FRENO BRAKE
- 7 COMPLESSO DEL FRENO MONTAJE DE FRENO BRAKE ASSEMBLY

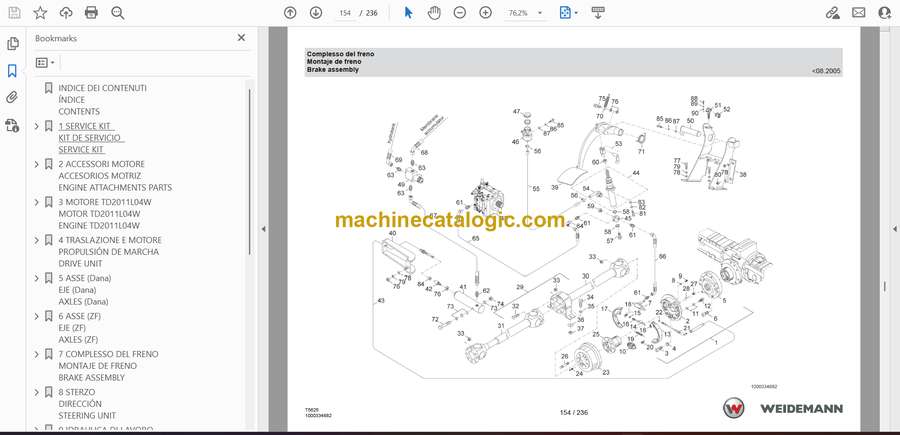

- 7.1 COMPLESSO DEL FRENO (<08.2005) MONTAJE DE FRENO (<08.2005) BRAKE ASSEMBLY (<08.2005)
- 7.2 COMPLESSO DEL FRENO (>08.2005) MONTAJE DE FRENO (>08.2005) BRAKE ASSEMBLY (>08.2005)
- 8 STERZO DIRECCIÓN STEERING UNIT
- 8.1 STERZO DIRECCIÓN STEERING UNIT
- 8.2 STERZO (<7.2005) DIRECCIÓN (<7.2005) STEERING UNIT (<7.2005)
- 8.3 STERZO (>7.2005) DIRECCIÓN (>7.2005) STEERING UNIT (>7.2005)
- 9 IDRAULICA DI LAVORO HIDRÁULICA DEL TRABAJO WORKING HYDRAULIC
- 9.1 VALVOLA DI COMANDO VÁLVULA PILOTO CONTROL VALVE
- 9.2 IDRAULICA DI LAVORO HIDRÁULICA DEL TRABAJO WORKING HYDRAULIC
- 9.3 COMANDO UNIDAD DE CONTROL CONTROL
- 10 ELETTRICO SISTEMA ELÉCTRICO ELECTRIC
- 10.1 CRUSCOTTO PANEL DE INSTRUMENTOS INSTRUMENT PANEL
- 10.2 ILLUMINAZIONE DI LAVORO LUZ DEL TRABAJO WORKING LIGHTING
- 10.3 PROIETTORE GIREVOLE DI RICONOSCIMENTO FARO ROTATORIO ROTATING BEACON
- 11 RIVESTIMENTO REVESTIMIENTO TRIM
- 11.1 COFANO MOTORE (< 09.2005) CUBIERTA DE MOTOR (< 09.2005) ENGINE HOOD (< 09.2005)
- 11.2 COFANO MOTORE (> 10.2005) CUBIERTA DE MOTOR (> 10.2005) ENGINE HOOD (> 10.2005)
- 12 TELAIO BASTIDOR FRAME
- 12.1 TELAIO BASTIDOR FRAME
- 13 IMPIANTO DI CARICAMENTO/BRACCIO PRINCIPA SISTEMA DE CARGA/BRAZO DE ELEVACIO+BALAC LOADING SYSTEM/ARMSYSTEM
- 13.1 IMPIANTO DI CARICO PER TELESCOPIO EQUIPO DE CARGA TELESCÓPICO TEKESCOP LOADING DEVICE
- 14 CABINA CABINA DEL CONDUCTOR CABIN
- 14.1 CABINA CABINA DEL CONDUCTOR CABIN
- 14.2 PORTIERA DELLA CABINA PUERTA DE CABINA CAB DOOR
- 14.3 TERGICRISTALLO LIMPIAPARABRISAS WINDSHIELD WIPER
- 14.4 LUNOTTO POSTERIORE CRISTAL TRASERO REAR WINDOW
- 14.5 SEDILE ASIENTO SEAT
- 14.6 FODERA FUNDA SLIP-COVER
- 14.7 BRACCIOLO APOYABRAZOS ARM REST
- 14.8 S. I. CABINA ESTERA ABSORBENTE CABINA INSULATING MAT CABINE
- 15 RISCALDAMENTO/CLIMATIZZATORE CALEFACCIÓN/SISTEMA DE ACONDICIONAMIENTO HEATING/AIR CONDITION SYSTEM
- 15.1 RISCALDAMENTO, CONDIZIONAMENTO D´ARIA CALEFACCIÓN, AIRE ACONDICIONADO HEATING, AIR-CONDITIONING PLANT
- 16 ACCESSORI ACCESORIO ACCESSORIES
- 16.1 CROCODILE TEETH PINZAS DE COCODRILO CROCODILE TEETH
- 16.2 FORCA PER PALLET HORQUILLA DE PALETAS PALLET FORKS
