Broderson IC-200-2G and IC-200-3G Crane Operation and Maintenance Manual

A Broderson IC-200 pick and carry crane lifts a load and moves it across the yard or site without setting up again. If you run one yourself, you know the machine only earns when it's working. The operation and maintenance manual is what you grab when the next scheduled service is due and you want the intervals in front of you.

What this manual helps you do

• Check the lubrication schedule before each service and grease the points it lists.
• Verify fluid volume and transmission fluids before you top off or change anything.
• Follow the hydraulic oil specification when you buy oil for the hydraulic system and filters.
• Inspect hoist cable using the installation and inspection section, and adjust boom chain as described.
• Adjust cooling system and mechanical settings, and verify axle wheel nut torque against the torque data.

Who this is for

Owner-operators who do their own servicing. You get the schedule, fluids and adjustments for the IC-200-2G and IC-200-3G in one file. It also suits a field or workshop mechanic who needs the lubrication points and fluid details at the crane.

FAQ

Q: What do I receive and how is it organised?

A: One PDF file, 66 pages, in English. The text is searchable, so you can jump to a section like Lubrication Schedule, Fluid Volume or Torque Data.

Q: Which machine does it fit?

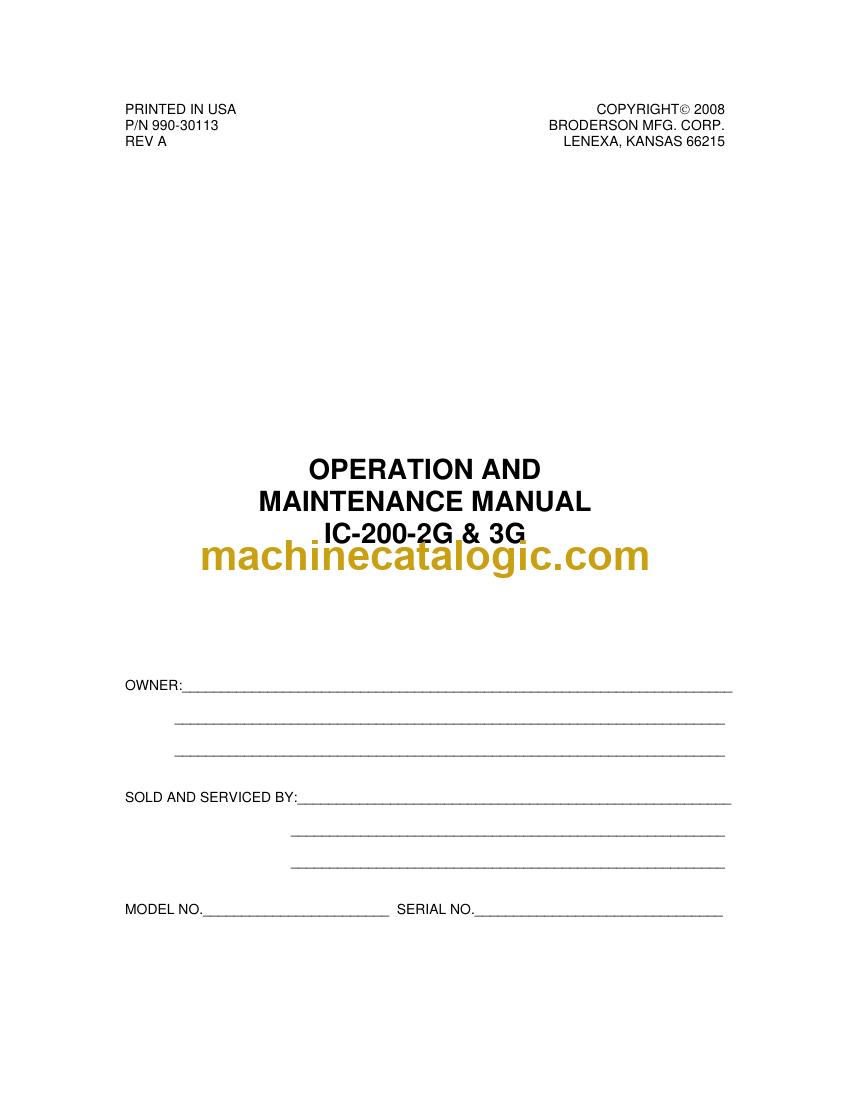

A: The cover reads "IC-200-2G and 3G Operation and Maintenance Manual", publication number 990-30113. It is written for the Broderson IC-200-2G and IC-200-3G.

Q: How does it fit my service work?

A: You'd expect to use it at the crane with the schedule open, working through lubrication, fluids, inspections and adjustments. Sections like Instruments and Controls, Normal Gauge Reading and Safety Devices sit alongside them.

If you service an IC-200-2G or IC-200-3G, this is the manual to keep on your phone or in the shop for every service.

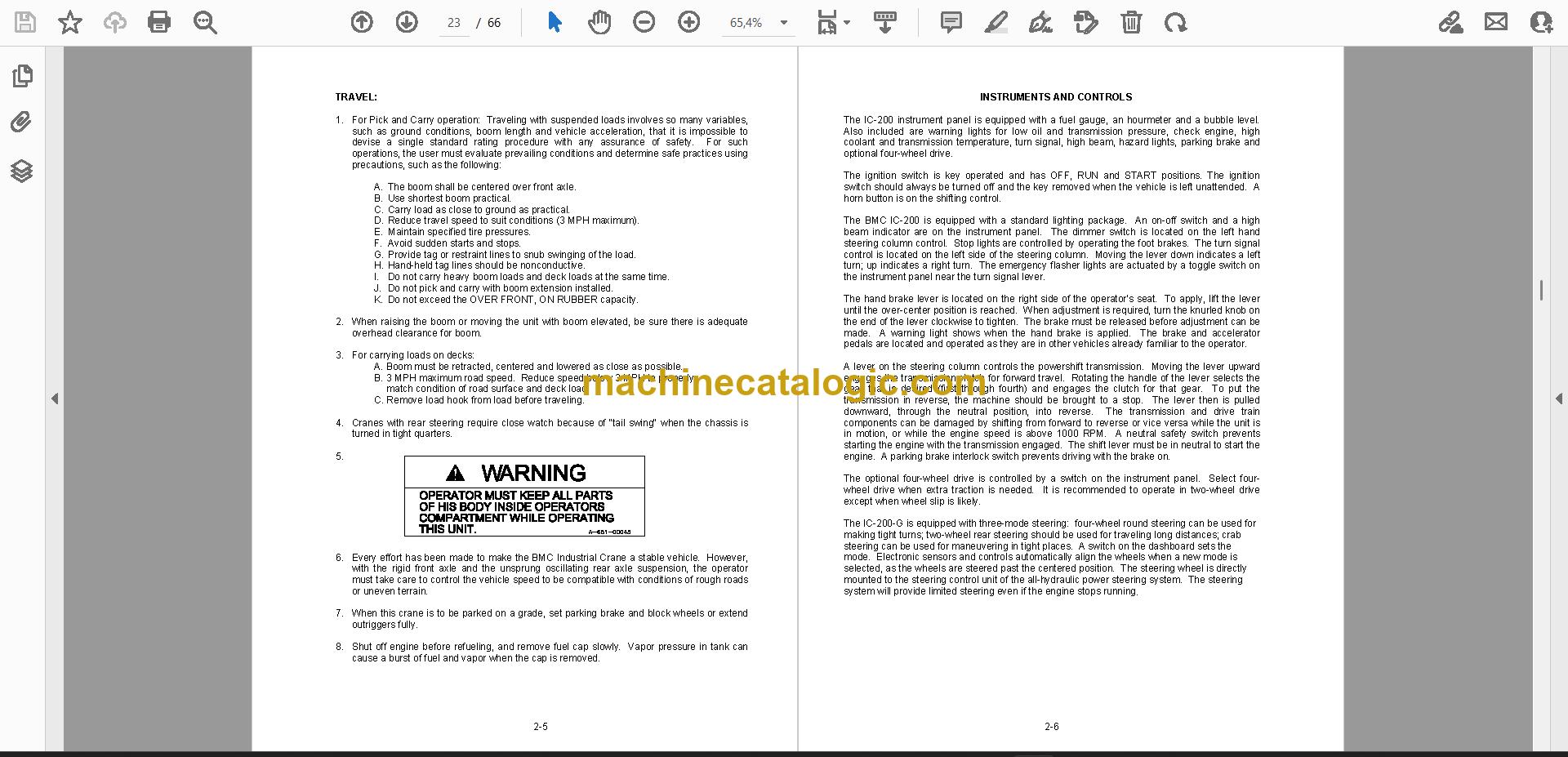

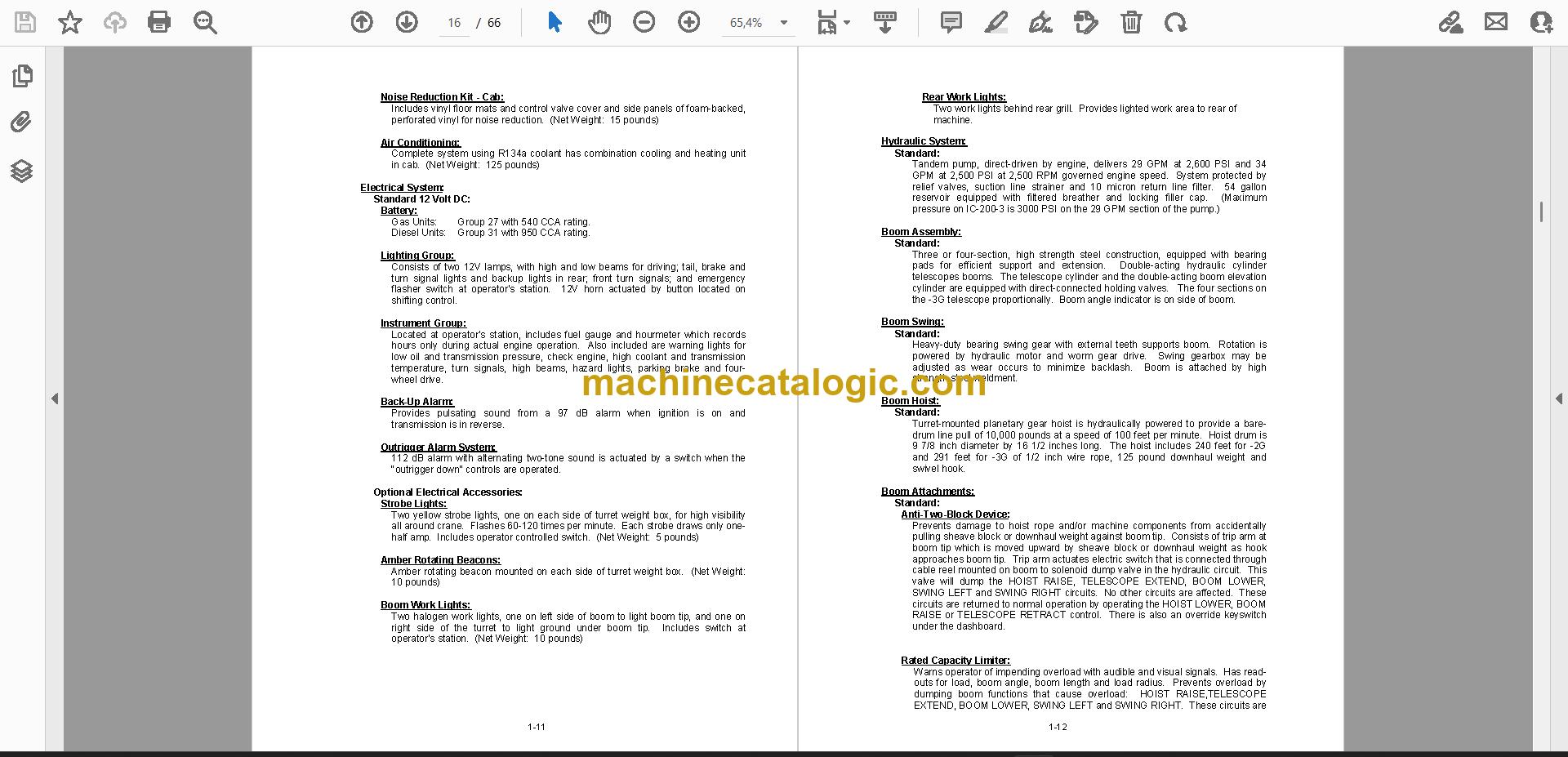

Click here to view the preview (PDF)
