Caterpillar EP13TCA Forklift Service Manual (99N19-60100)

This electric counterbalanced Cat truck moves pallet loads around warehouses, plants, and loading areas. A warehouse maintenance tech, dealer technician, or rental fleet mechanic reaches for this manual when the truck needs measured diagnosis and repair by the book. It is for tracing faults, setting service adjustments, and restoring the truck to working condition.

What this manual helps you do

• Trace wiring faults, alarm codes, and electrical supply problems.
• Diagnose traction motor, controller, drive unit, brake, steering, and hydraulic faults.
• Follow procedures for mast, forks, lift chains, cylinders, and related adjustments.
• Check service data while repairing the power train, axles, cooling system, and chassis systems.
• Verify controller parameters and service intervals during planned maintenance or audited repairs.

Who this is for

This suits plant maintenance staff, independent forklift repair shops, Cat dealer technicians, and rental fleet mechanics working on electric counterbalanced trucks. The operator handbook and parts catalog are companion publications also available, while this manual is the workshop repair reference.

FAQ

Q: What do I receive, and how is it organized?

A: You receive 19 PDF files containing two separate Cat publications, split by service section, with 402 pages total. The files have a real text layer, so you can search and copy text, as well as print or zoom the pages.

Q: Which trucks and serial numbers does it cover?

A: It covers EP13TCA, EP15TCA/18TCA, and EP20TCA. For EP13TCA, the printed serial coverage is 215AF0001-up, giving you a direct fit check before starting work.

Q: How does it fit the job I'm doing?

A: This is the service manual set for workshop repairs, fault diagnosis, adjustments, and planned maintenance on these Cat electric trucks. It gives a technician the procedures and service data needed to do the job by the book.

Yes, this is the right manual set when your truck matches those models and coverage. You get the two-publication PDF set for diagnosing, servicing, and repairing the truck.

Models covered by this manual

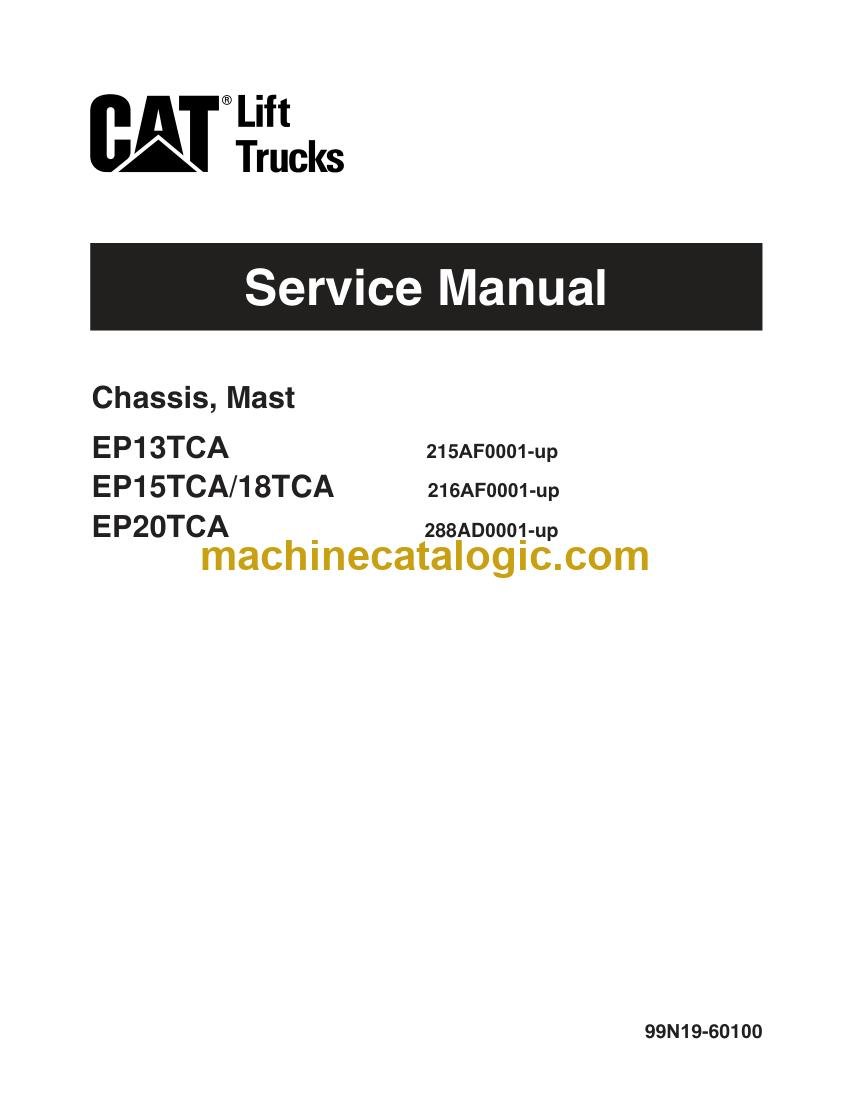

Caterpillar publication 99N19-60100 is the factory service manual for the EP13TCA, serial range 215AF0001-up. The same publication covers 3 further forklift models: EP15TCA, EP18TCA, EP20TCA. The cover also lists EP15TCA/18TCA. Check the model and serial number on your data plate before ordering.

Table of Contents:

• Sit on the seat and turn on the key switch
• Push the lift lever forward to lower the fork on the ground
• Repeat pushing forward and releasing the lift lever a few times between
• Do not make a sudden valve lever operation at a
• Do not run sideways or handle on an incline
• When the red lamp of battery capacity indicator
• Check electrolyte every week and replenish water
• Be sure to use the prescribed fuses
• LASER
• ELECTRIC
• SERVICE
• MOTOR
• MPa (140 kgf /
• MPa (160 kgf /
