Caterpillar EP18TCA Forklift Service Manual (99N19-60100)

The Cat EP18TCA is an electric counterbalanced forklift used to move and stack pallet loads around warehouses, yards, and plant floors. In my shop, this is the kind of manual a maintenance tech pulls out when the truck has a fault, needs adjustment, or is being torn down for repair. It gives the technician a proper workshop reference instead of relying on guesswork or generic brand advice.

What this manual helps you do

• Trace wiring, controls, and electrical faults on the electric truck.
• Diagnose traction motor, controller, brake, steering, and drive-system problems.
• Follow procedures for hydraulic, mast, fork, and axle service.
• Adjust and verify truck systems during repair and recommissioning.
• Troubleshoot faults using service data, testing procedures, and repair guidance.

Who this is for

This suits warehouse maintenance techs, plant mechanics, rental fleet mechanics, dealer technicians, and independent forklift repair shops working on Cat electric trucks. It is a workshop service manual, not an operator handbook. The operator handbook and companion chassis material are also available for operating and related truck reference.

FAQ

Q: What do I receive, and how is it organised?

A: You receive 19 PDF files totaling 402 pages, split by section, plus the bundled set of 2 Cat publications for this truck. The files carry a real text layer, so you can search and copy text, as well as print or zoom the pages.

Q: Which trucks and serials does it fit?

A: It covers EP13TCA, EP15TCA, EP18TCA, and EP20TCA models, including serial coverage 215AF0001-up, 216AF0001-up, and 288AD0001-up. Check your truck identification against those details before starting work.

Q: How does it fit the job I'm doing?

A: Use it for in-house repairs, electrical troubleshooting, hydraulic and mast work, drive-system service, adjustments, and fault diagnosis. That's the trade manual you want when the truck is in the bay.

If your truck matches the listed model and serial coverage, yes, this is the right service-manual set for shop repairs and maintenance.

Models covered by this manual

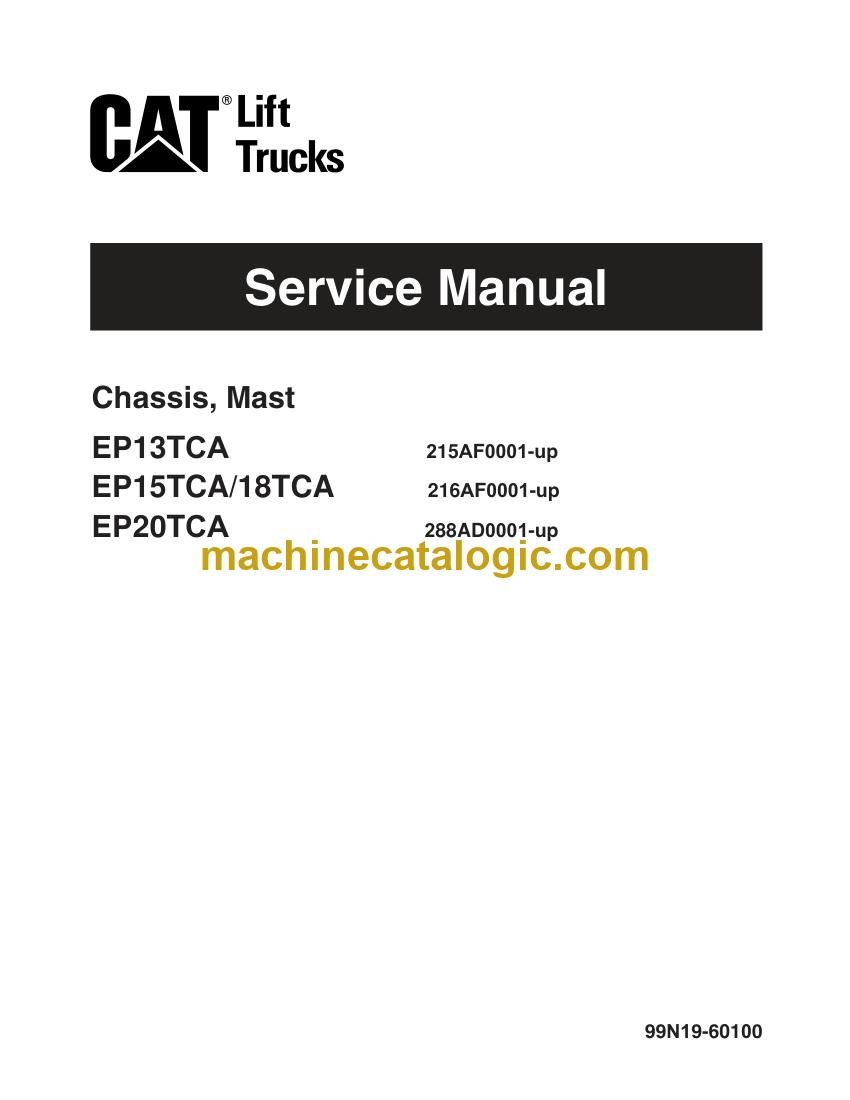

Caterpillar publication 99N19-60100 is the factory service manual for the EP18TCA. The same publication covers 3 further forklift models: EP13TCA, EP15TCA, EP20TCA. The cover also lists EP15TCA/18TCA. Check the model and serial number on your data plate before ordering.

Table of Contents:

• Sit on the seat and turn on the key switch
• Push the lift lever forward to lower the fork on the ground
• Repeat pushing forward and releasing the lift lever a few times between
• Do not make a sudden valve lever operation at a
• Do not run sideways or handle on an incline
• When the red lamp of battery capacity indicator
• Check electrolyte every week and replenish water
• Be sure to use the prescribed fuses
• LASER
• ELECTRIC
• SERVICE
• MOTOR
• MPa (140 kgf /
• MPa (160 kgf /
