Demag RK 8500 Crawler Crane Parts Manual

The Demag RK 8500 is a track-mounted crawler crane used for heavy lifting on long-term construction and industrial jobs. When a component needs replacement, the parts manual helps identify the correct assembly and order the right item. Parts counters, fleet maintenance staff and crane technicians use it to match drawings, item numbers and descriptions to the machine.

What this manual helps you do

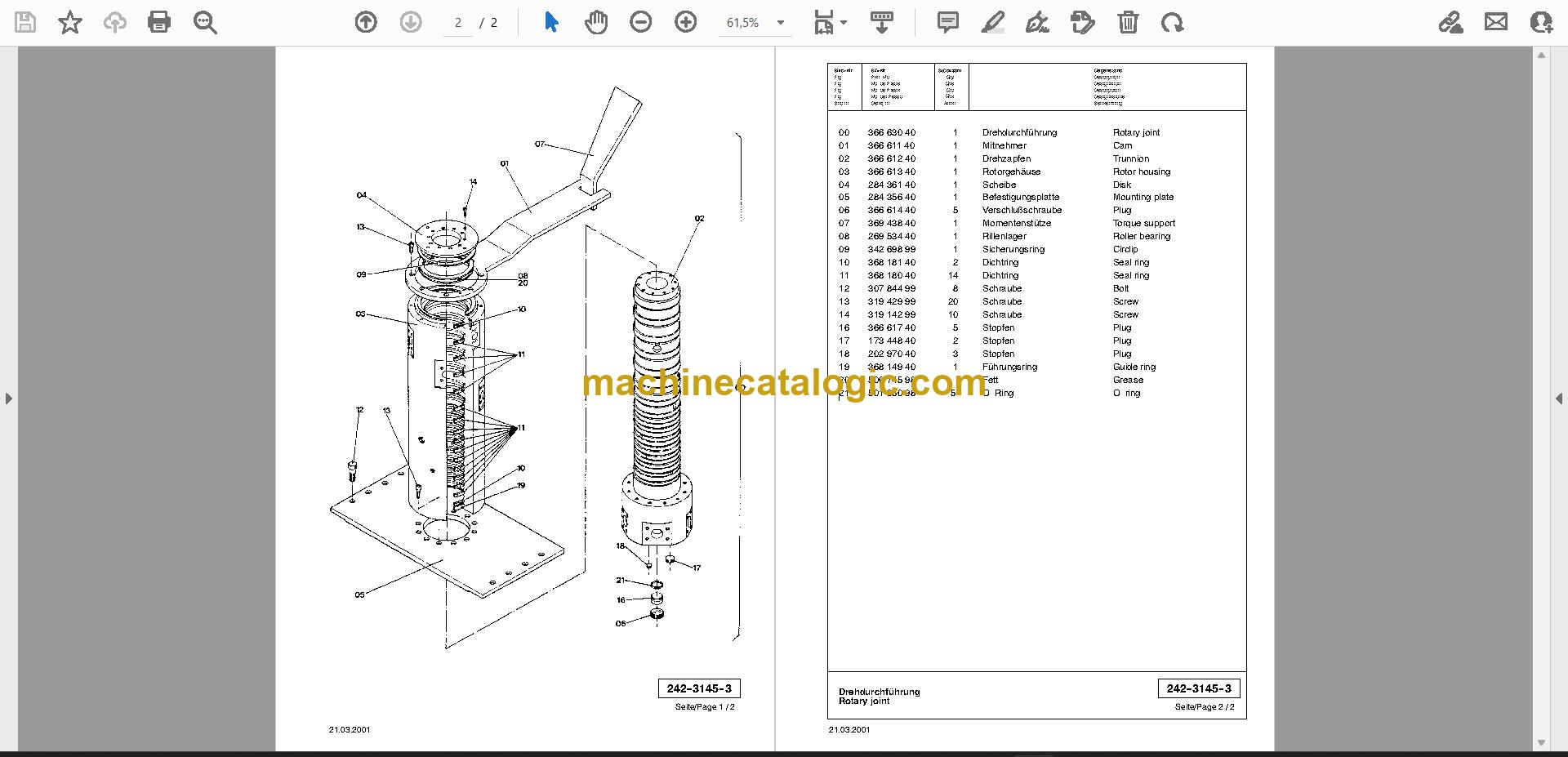

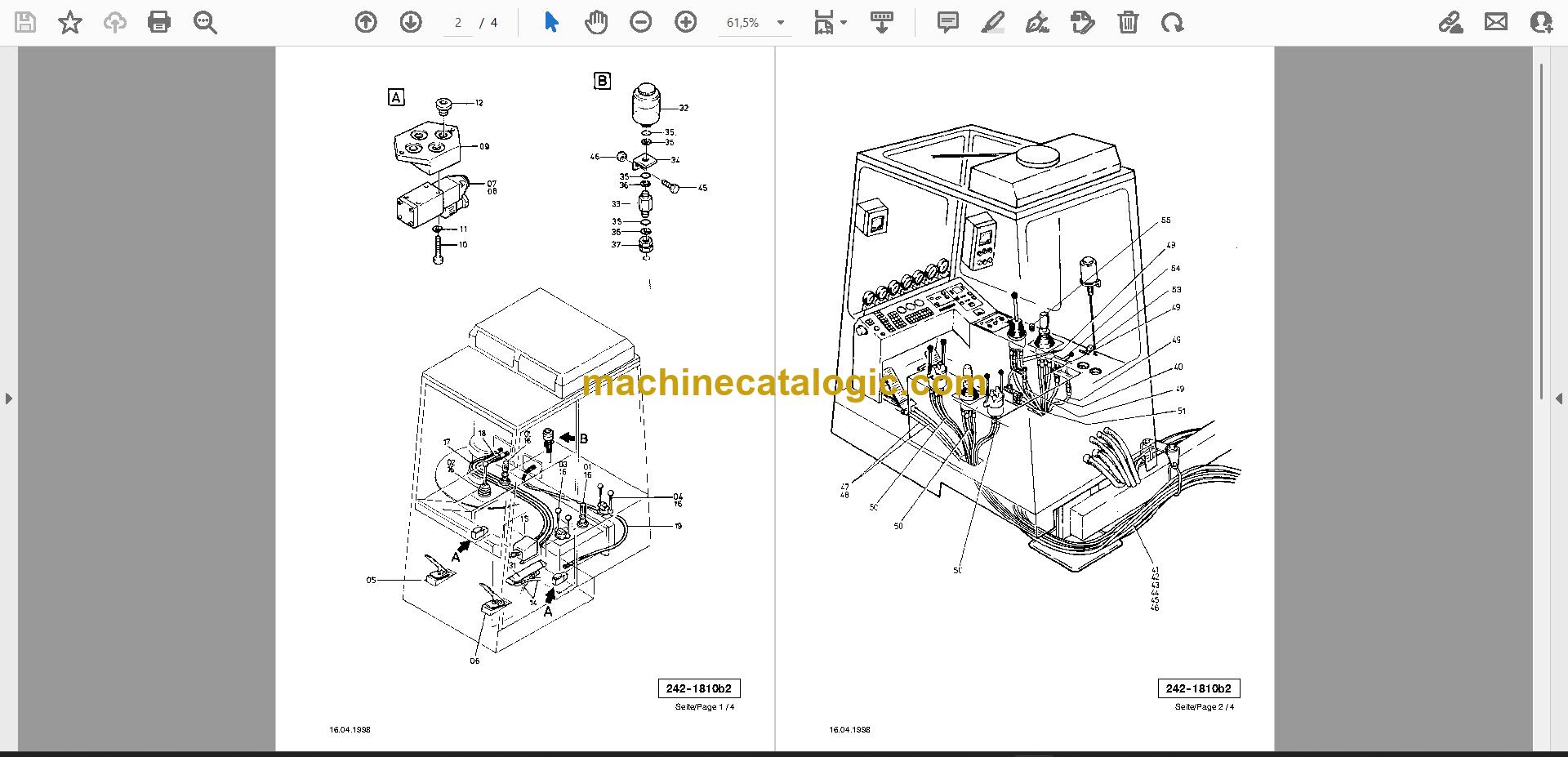

• Identify replacement parts from exploded-view drawings and item numbers.
• Look up components by assembly, description and listed quantity.
• Match a part to the correct breakdown before placing an order.
• Confirm how components fit together within the undercarriage and crawler tracks, superstructure and cab, engine, boom and jib, hoist winches, counterweight, hydraulic system and electrical system.
• Locate parts references quickly using searchable text in the PDF files.

Who this is for

This manual is for a rental fleet maintenance team, parts counter, independent crane service shop or dealer technician working with a Demag RK 8500. It gives the parts identification information needed for quoting, stocking and ordering.

FAQ

Q: What do I receive, and how is it organised?

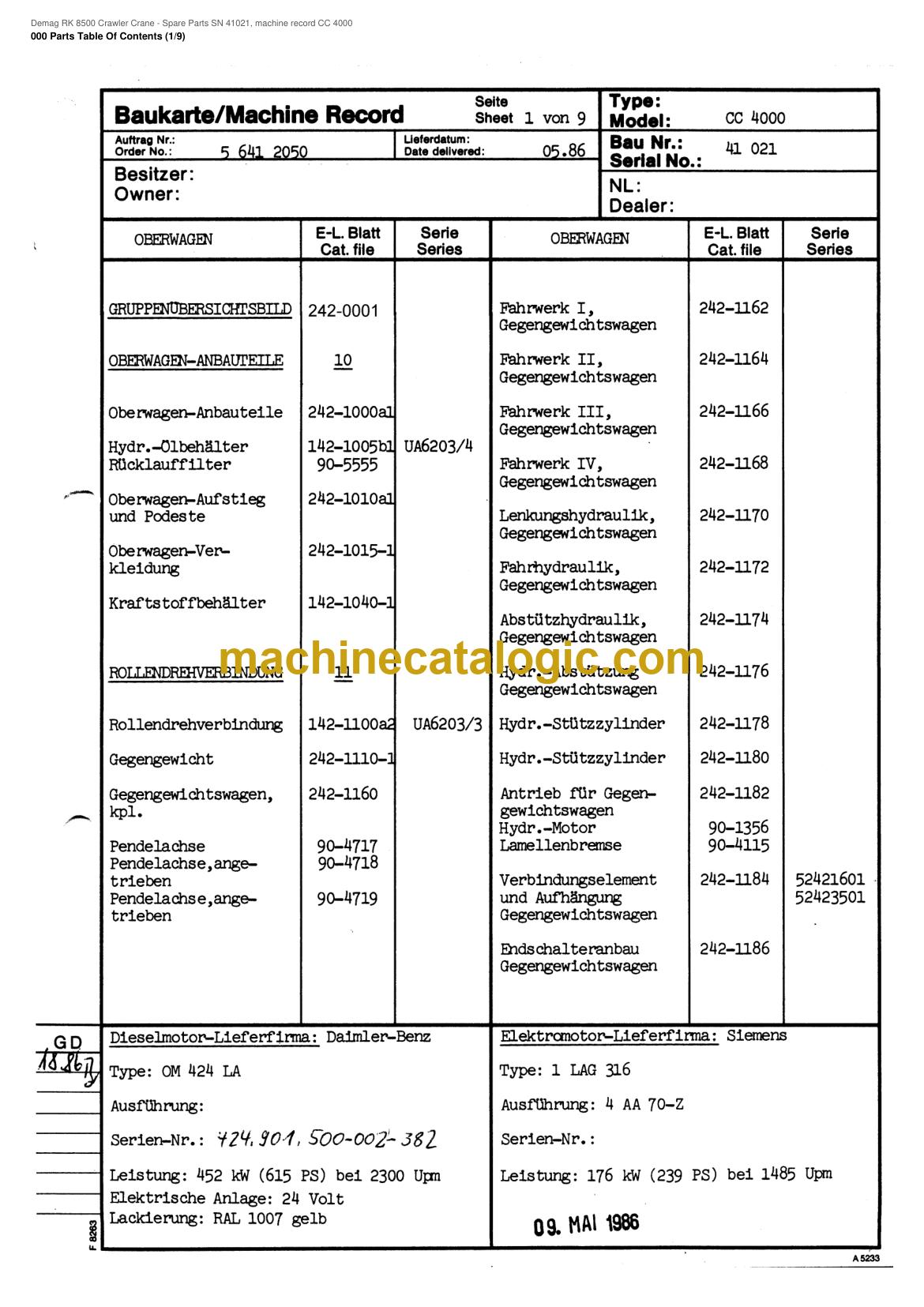

A: You receive 36 PDF files with 743 pages total. The files are separate catalog pages or assembly groups, in bilingual German and English, and are printed from the manufacturer's electronic catalog data.

Q: Which machine and serial number does it fit?

A: It is for the Demag RK 8500 crawler crane. The main catalog cover shows serial number 41021 and up.

Q: How does this fit the job I am doing?

A: Use it when you have a worn, missing or unidentified component and need the drawing, item reference, description and quantity to order the correct replacement. It also helps confirm which components belong together during parts checks.

Use this manual to identify RK 8500 parts, verify the assembly breakdown and give your supplier a clear ordering reference.
