Develon DX235LCR-5TF Tunneling Tilting Front Operation and Maintenance Manual

Develon DX235LCR-5TF Tunneling Tilting Front Operation and Maintenance Manual

This machine lives underground—damp tunnels, tight walls, bad visibility, and usually no time for breakdowns. This manual helps you set a steady maintenance rhythm so you can trace issues early, not when the boom’s stuck mid-cut and trucks are stacked up waiting. Say you start hearing a new whine in the swing while you’re cutting a heading; with this, you’ll know what to inspect first, what to test, and what you can safely finish the shift with.

Applications & Use Cases

• Set up daily walk‑around checks so you can spot leaks, loose hardware, or damaged hoses before they fail in the tunnel.
• Plan interval services—filters, fluids, pins—so you can align them with shift changes instead of losing a whole day mid-project.
• Trace and isolate weird tilting-front behavior by following the manual’s sequences to check pressures, verify sensor inputs, and test controls.
• Route your grease and inspection routine so every pivot, cylinder, and tunnel-specific guard actually gets touched, not just the easy ones.
• Bleed and reset hydraulic functions after repairs so the tilting front tracks straight and doesn’t surprise the operator against the wall.

FAQ

Q: Is this something I can keep on a tablet and search through on the job?

A: Usually, yes; most folks run it as a searchable PDF so you can jump straight to the system you’re working on.

Q: Can I print just the sections my crew needs underground?

A: You probably can; most owners print the key service and safety pages, stick them in plastic sleeves, and keep the full file in the office.

Safety Note

Always verify supports and lockouts before working under the tilting front, especially on sloped or uneven tunnel floors.

Develon DX235LCR-5TF Tunneling Tilting Front Index:

• DX235LCR-5 TF Tunneling Tilting Front
  • Table of Contents
  • Introduction
  • Safety
    • Operation Cautions
    • Decals

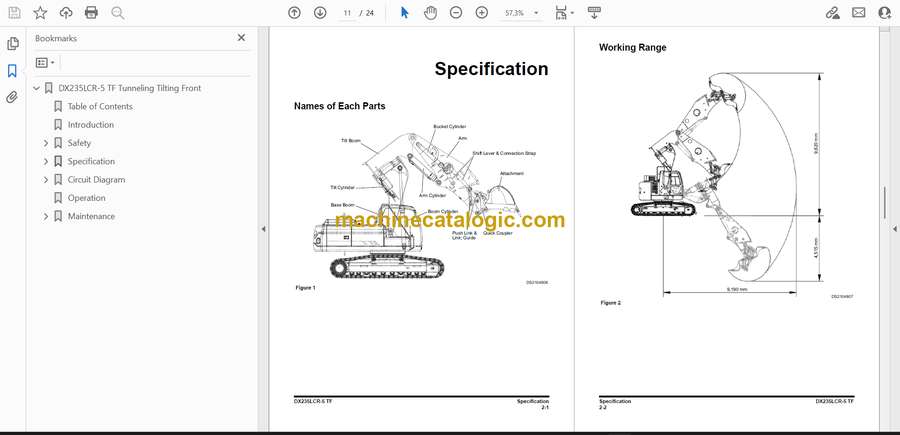

  • Specification
    • Names of Each Parts
    • Working Range
    • Boom Tilting Range
    • Weight of Component (Without Attachment)
      • Dimension
  • Circuit Diagram
    • Hydraulic Circuit Diagram
    • Electric Circuit Diagram
    • Working Lamp Harness
  • Operation
  • Maintenance
    • Greasing
      • 50 Hour/Weekly Service
    • Hydraulic Oil Level Check
      • Posture for Hydraulic System Oil Level Check
