Description

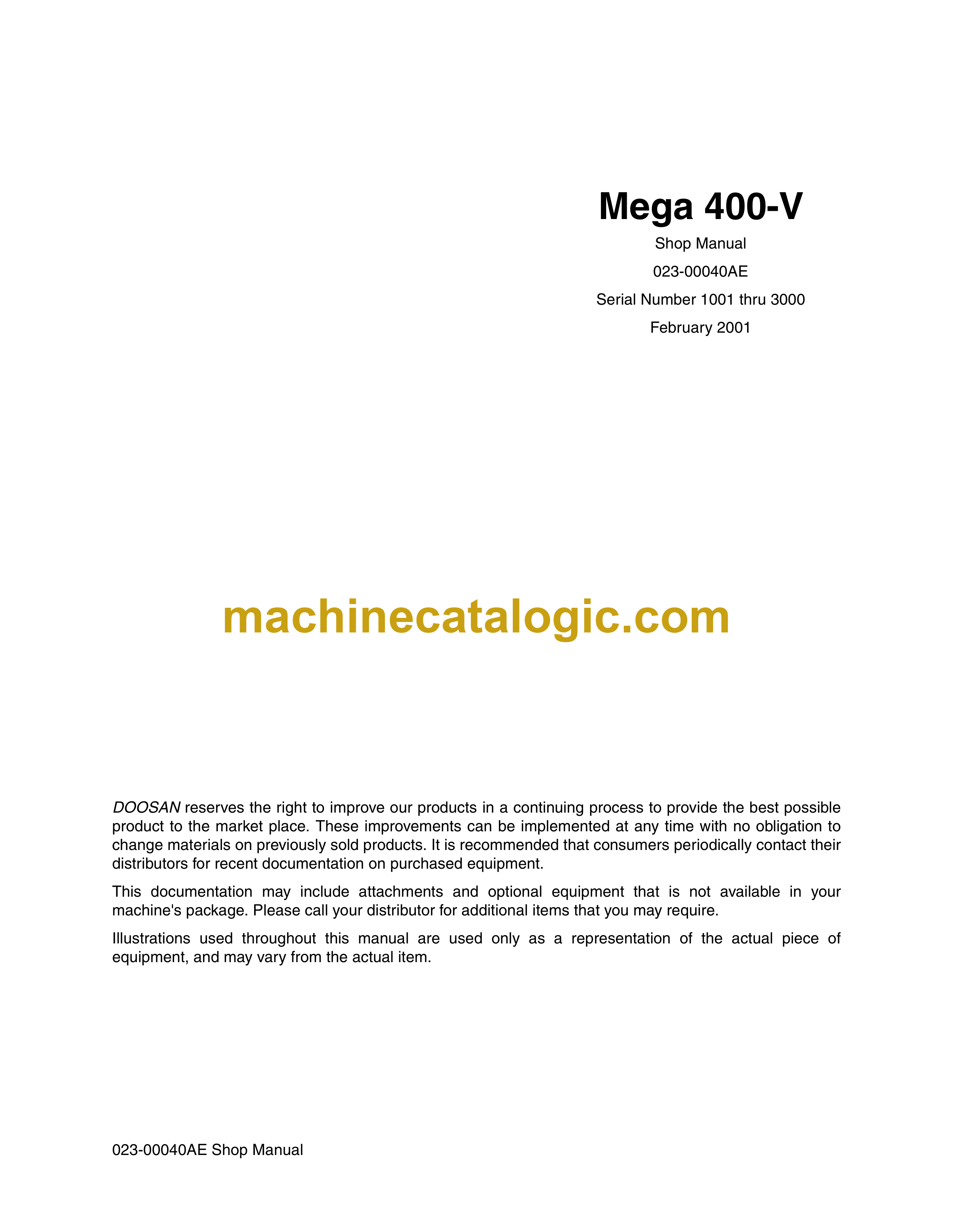

Doosan Mega 400-V Wheel Loader Shop Manual (Serial Number 1001 thru 3000)
Doosan Mega 400-V Wheel Loader Index:
Publication Request for Proposed Revision
Safety
Wheel Loader Safety S0103010K
Specifications
Specifications for Mega 400-V S0203060K
General Maintenance
General Maintenance Procedures S0302000
Standard Torques S0309000
Upper Structure
Counterweight S0403030K
Fuel Transfer Pump S0405500
Hydraulic Oil Tank S0406030K
Lower Structure and Chassis
Center Joint (Articulation Joint) S0502010K
Engine and Drive Train
Front Axle (Volvo LF222103) S0602150K

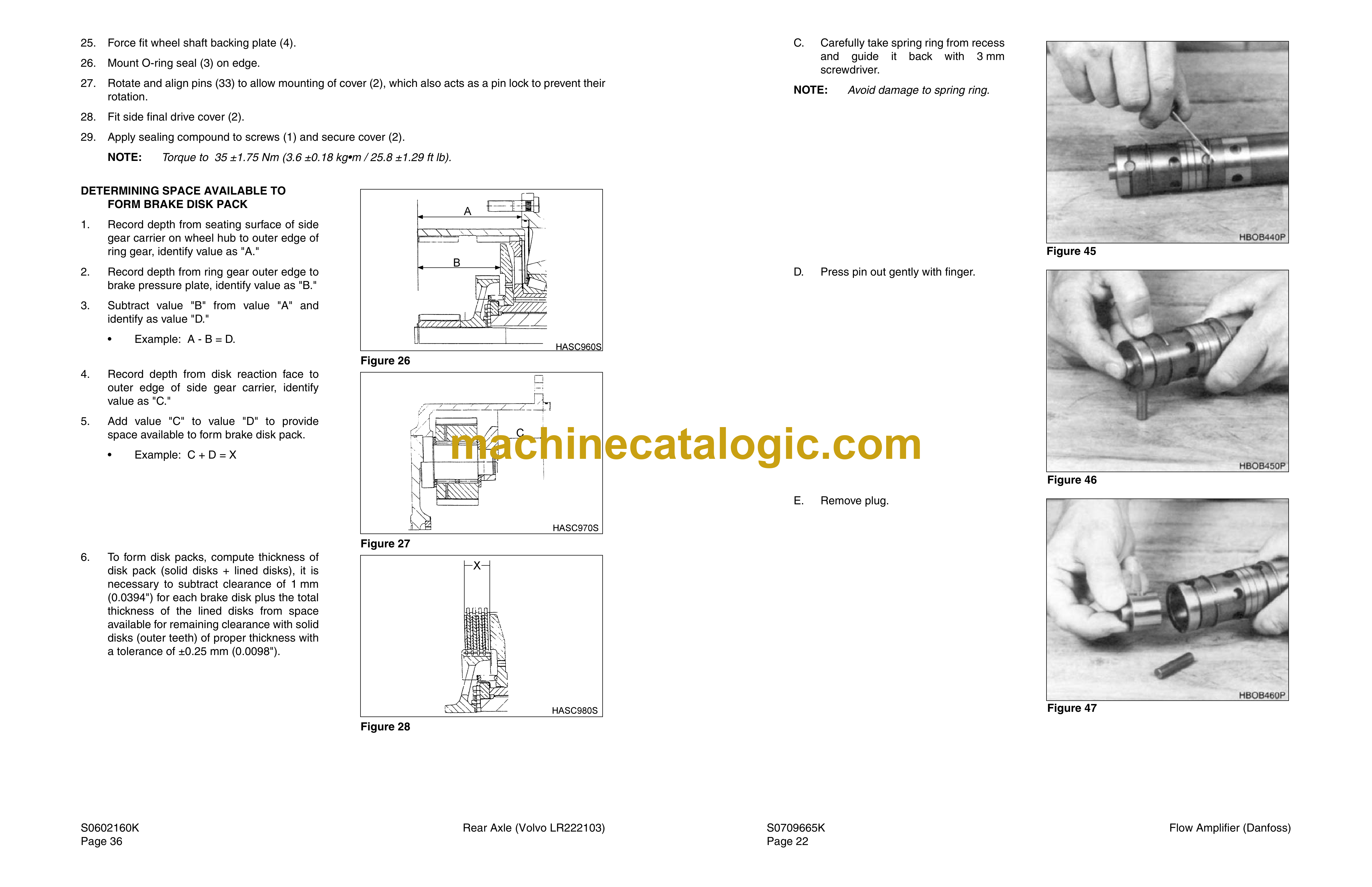

Rear Axle (Volvo LR222103) S0602160K
Air Conditioner S0605050K
Transmission and Torque Converter (ZF4WG260) S0607070K

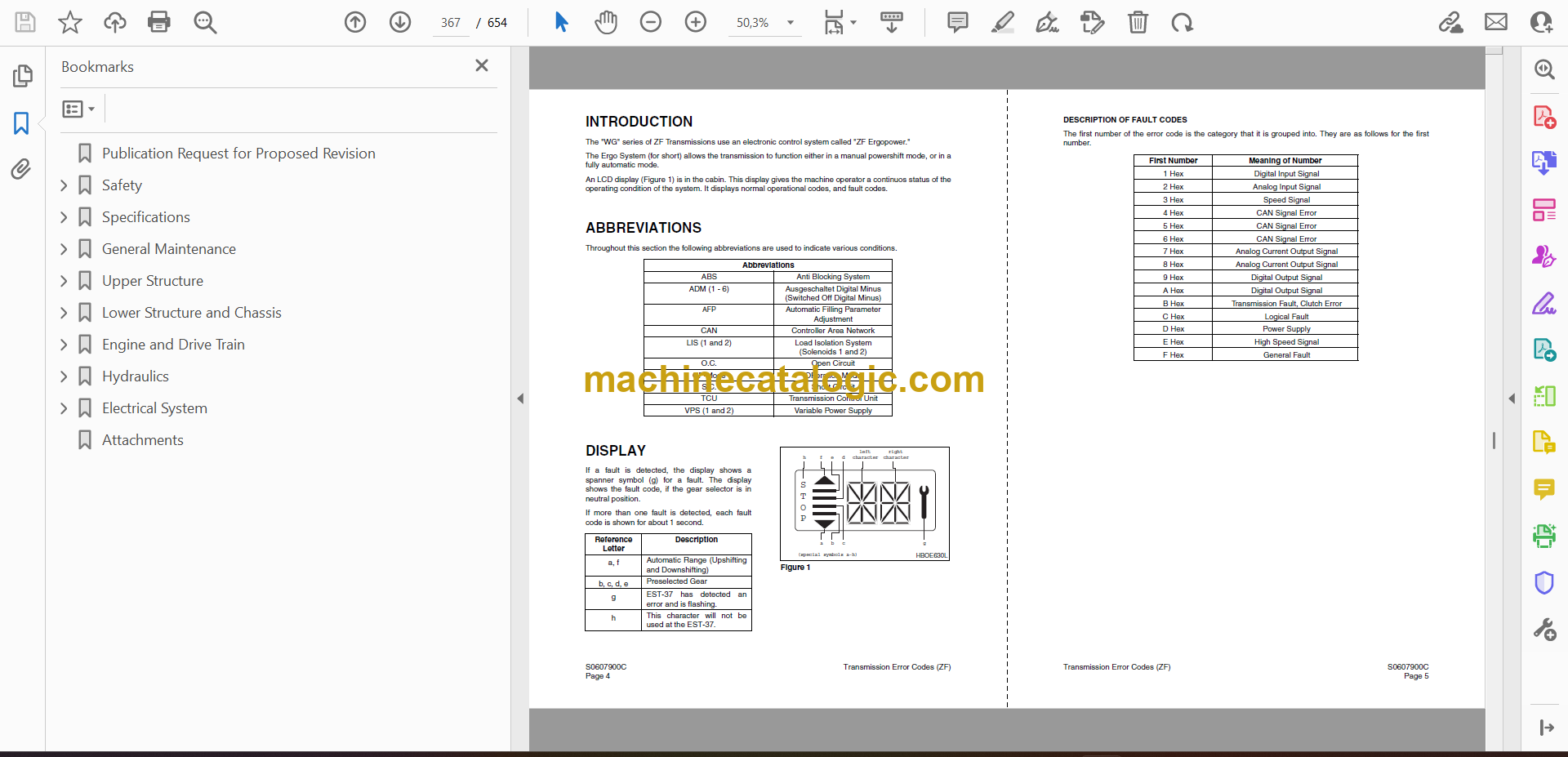

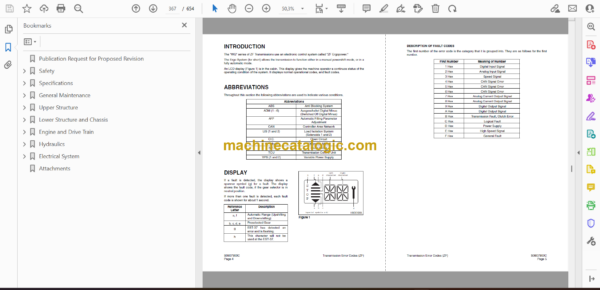

Transmission Error Codes (ZF) S0607900C
Hydraulics
Accumulator S0703000

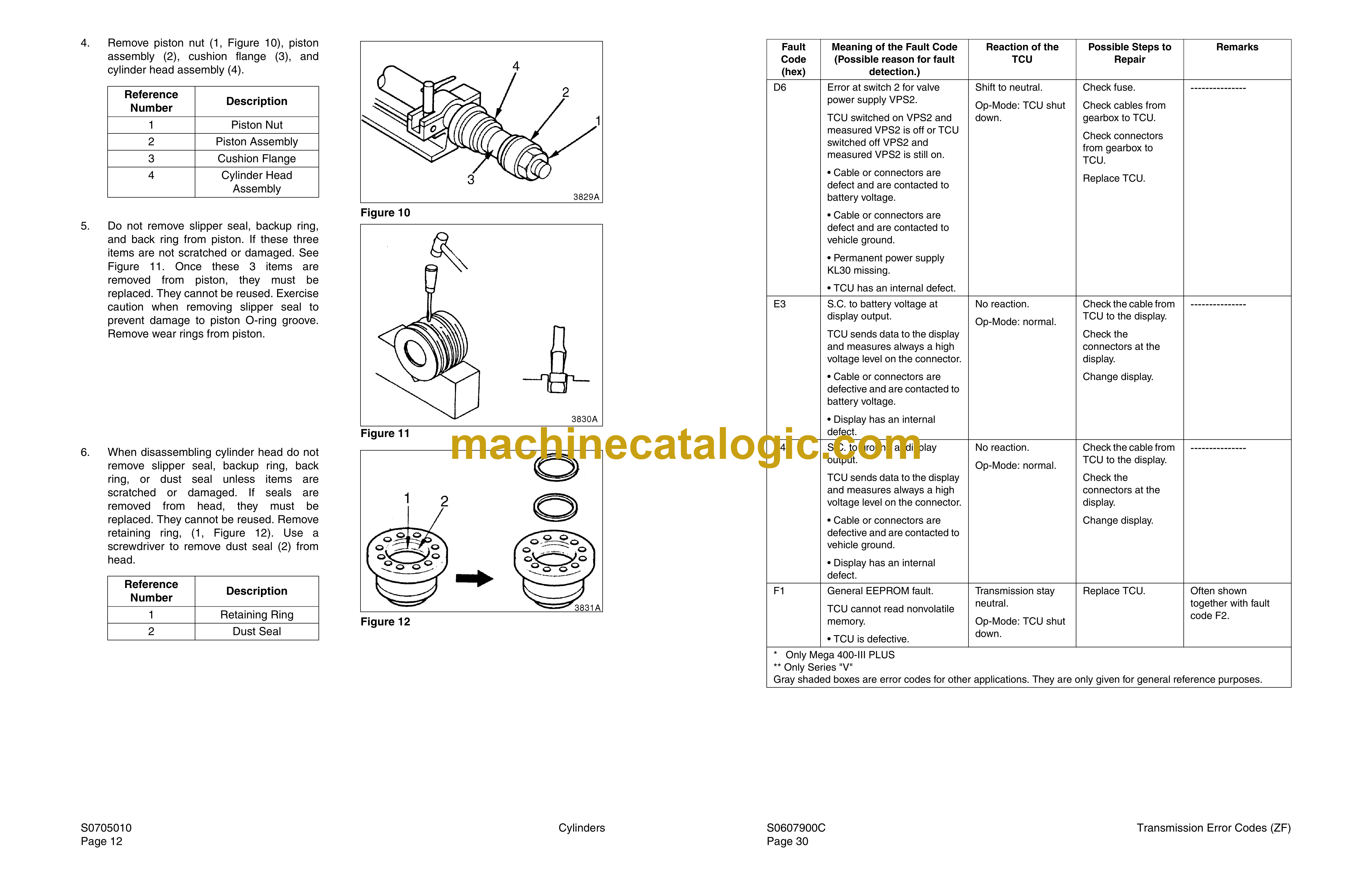

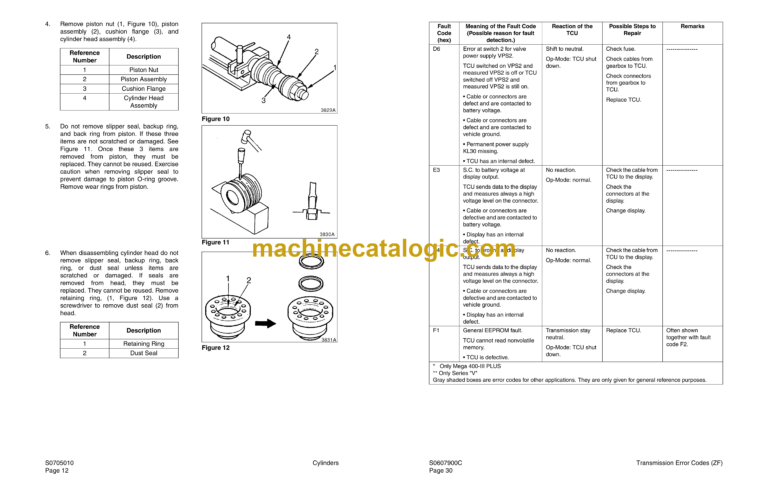

Cylinders S0705010
Fan Drive Hydraulic Motor (Haldex) S0707100K
Main Pump (Denison T6DMY Series) S0708460K
Steering and Brake Pump (Denison T67DB Series) S0708470K
Brake Pedal Valve S0709230K
Main Control Valve (Toshiba) S0709455K
Pilot Control Valve S0709475K
Flow Amplifier (Danfoss) S0709665K
Power Steering Unit S0709730K
Unloader Valve S0709850K
Hydraulic Schematic (Mega 400V) S0793050K
Electrical System
Electrical System S0802180K
Electrical Schematic (Mega 400V) S0893050K
Attachments
