Kubota KC110-HR4 Crawler Carrier Parts Manual (BKIDE5107)

The Kubota KC110-HR4 is a small crawler carrier, handy for hauling material where a wheeled machine just spins. The Kubota KC110-HR4 parts manual is what you grab when you’re trying to see how a component is built and which exact pieces you need, the same way I use the parts book for my L3901 or BX before I order anything. Folks who wrench on their own gear, or want to skip the dealer guesswork, use this to plan repairs and have every nut, seal, and bracket on the bench before tearing into it.

What this manual helps you do

• Identify the correct OEM part numbers for KC110-HR4 components so you can order from Kubota or cross-match aftermarket.

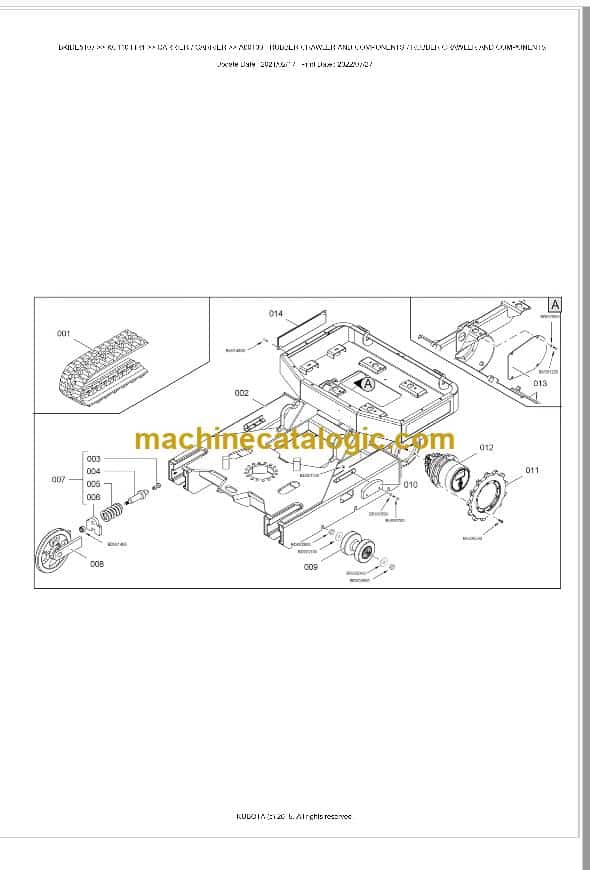

• Locate where a specific pin, seal, or bracket lives in the crawler carrier using exploded view diagrams of each assembly.
• Look up quantity-per-machine for bolts, washers, bearings, and gaskets so you buy everything you need in one trip.
• Cross-reference older Kubota part numbers to the updated numbers shown in the BKIDE5107 catalog when parts have been superseded.
• Verify that a used or “close enough” part actually matches the KC110-HR4 layout before you bolt it on.

Who this is for

This parts manual fits an independent ag mechanic, a farm or property owner-operator, or a fleet/landscape outfit that keeps their Kubota crawler carrier working in-house. If you need torque specs, wiring tests, hydraulic pressures, or step‑by‑step repair procedures, you want the Workshop/Service Manual instead, not this parts catalog.

FAQ

Q: Does this cover the engine, hydraulics, and undercarriage assemblies?

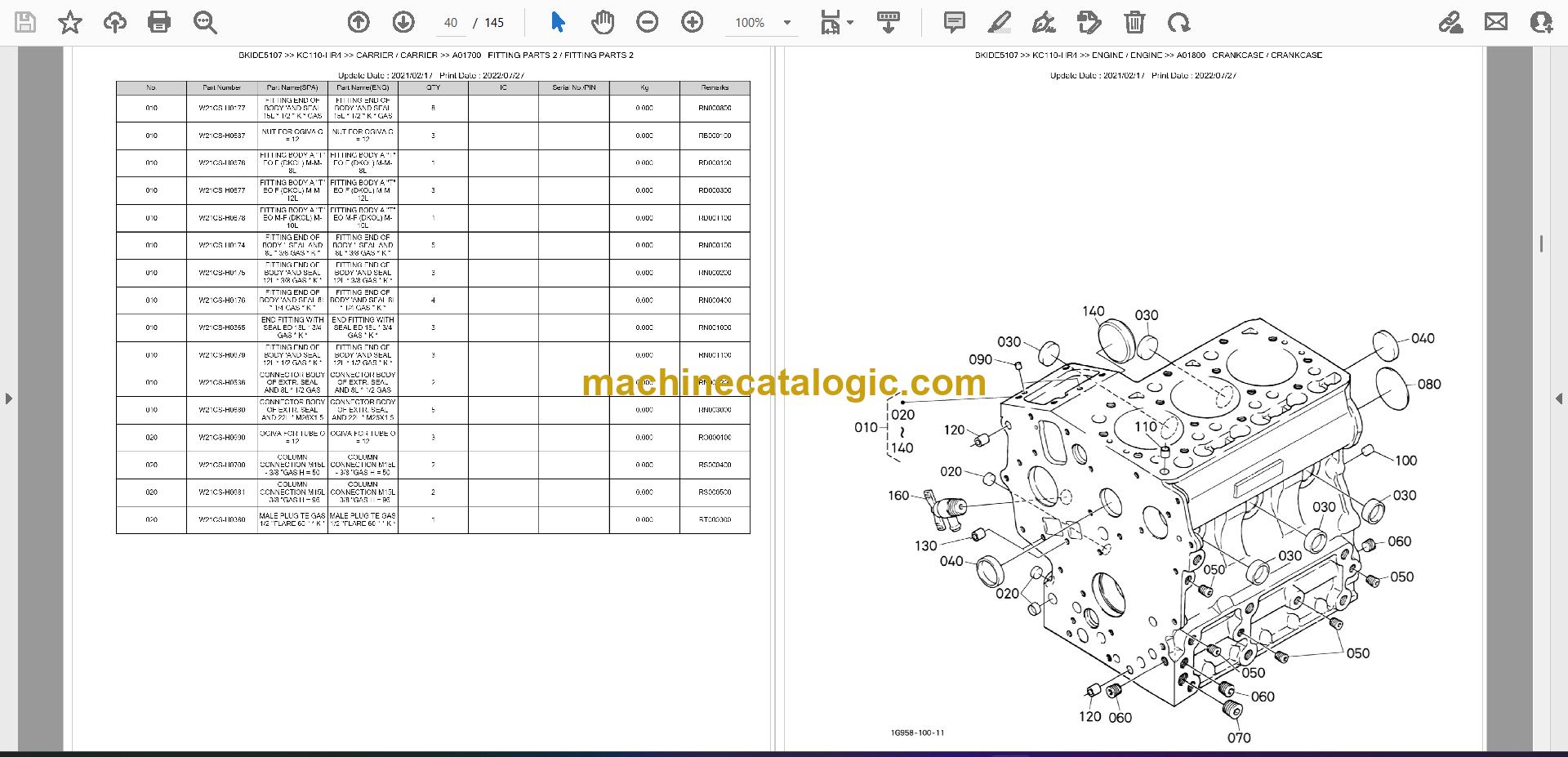

A: Yes, a Kubota KC110-HR4 parts manual like BKIDE5107 typically shows exploded views and part numbers for the engine, hydraulic system, drive/undercarriage, controls, and frame assemblies.

Q: Are the part numbers in this manual current?

A: The parts manual lists the original OEM numbers and usually notes superseded numbers, but your Kubota dealer’s system is the final word on the latest replacements.

Bottom line: If you’re maintaining or rebuilding a Kubota KC110-HR4 and you want the right parts the first time, this parts manual is the right book; if you’re looking for how to actually perform the repairs, keep looking for the WSM/service manual instead.
