Liebherr LTM 1070-4.2 Mobile Crane Technical Information and BMK Components Manual (Carrier + Superstructure) (SN 085939)

The Liebherr LTM 1070-4.2 Mobile Crane spends its life lifting on construction sites, industrial plants, and tight urban jobs where access is tricky and downtime is expensive. When something’s not behaving and you’ve got a fault code or a mystery relay label, the Technical Information & BMK Components Manual is what the electrical or hydraulic tech usually grabs. Component identification matters because if you misidentify a valve, sensor, or plug, you can waste hours testing the wrong thing or even damage a good part. I see new techs struggle most with “I know what K15 is on the drawing, but where is it on the crane?”—this manual solves that exact problem.

What this manual helps you do

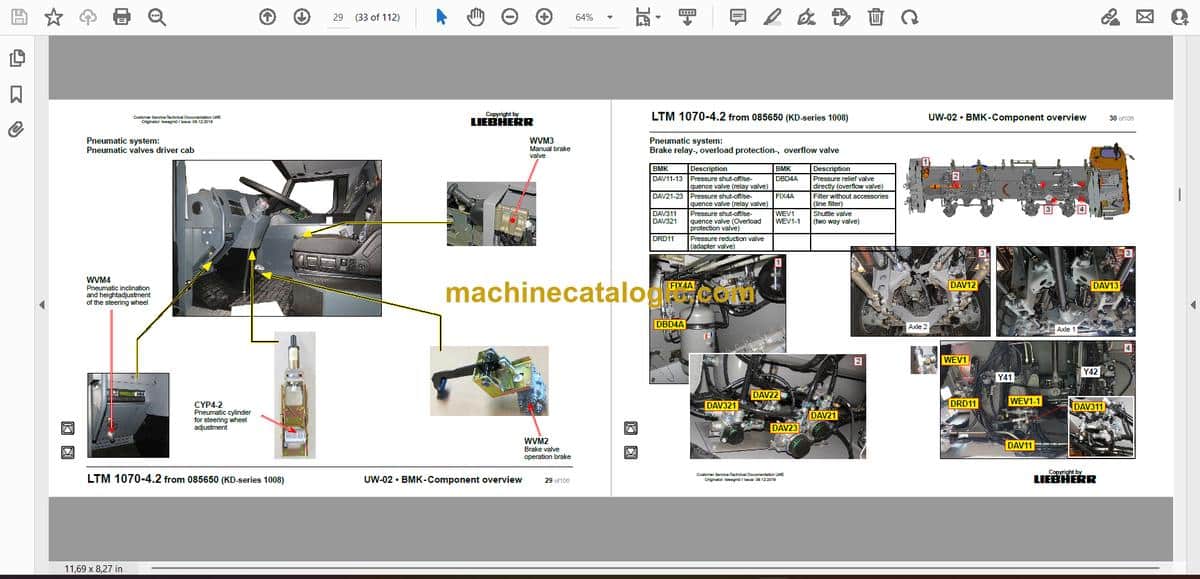

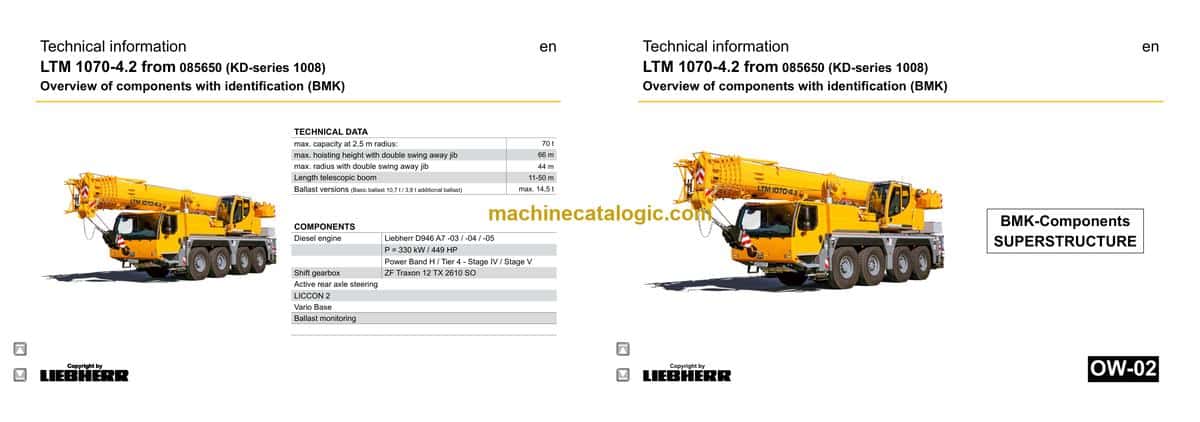

• Identify where specific components sit on the carrier and superstructure from clear outline diagrams.
• Locate a device by its reference designator (E…, V…, K…, X…) from wiring or hydraulic schematics on the actual machine.

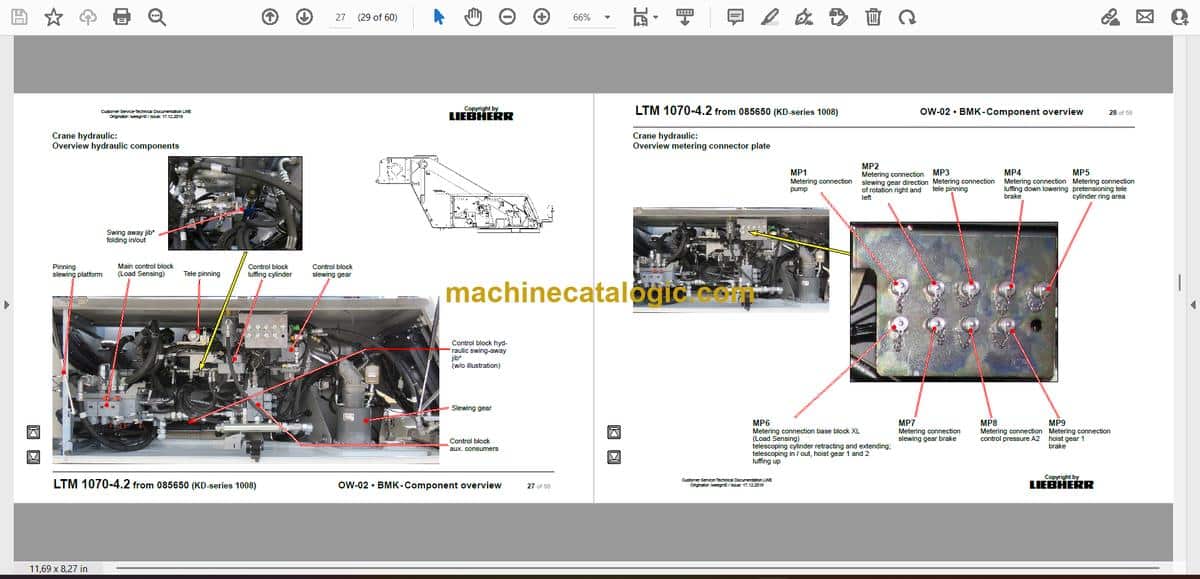

• Trace harnesses, junction boxes, and sensors across the crane using layout views and overlays.
• Cross-reference Liebherr naming and IDs so you can talk correctly to parts, service, or technical support.
• Match fault codes or schematic items on the LTM 1070-4.2 to their physical components for faster diagnosis.

Who this is for

This is aimed at workshop technicians, field service techs, electrical diagnostic engineers, fleet mechanics, and training instructors who need accurate crane layout info. If you’re looking for repair steps, torque specs, or part numbers, you want the service manual or parts catalogue instead, not this BMK.

FAQ

Q: Are the diagrams clear and searchable in the PDF?

A: Yes, these BMK PDFs are designed to be zoomed and searched so you can read labels and jump to specific component IDs.

Q: Does it cover both the carrier and the superstructure for SN 085939?

A: Yes, this product combines BMK information for both the lower carrier and the upper crane body for that serial number.

Q: Does this work together with other Liebherr manuals?

A: Yes, the BMK component identification manual is meant to be used alongside Liebherr wiring diagrams, hydraulic schematics, service manuals, and parts catalogues.

Bottom line: If your main need is to find and name components on the Liebherr LTM 1070-4.2 by their BMK IDs, this is the right document. If you want how-to-repair instructions or part numbers, this is not what you need.
