Mitsubishi 6M60 Engine Service Manual (97821-06000)

The 6M60 is a Mitsubishi diesel engine that powers cranes and other heavy machines, and it's used on Tadano machines. When one comes in for a rebuild or a hard-to-find fault, the person reaching for the service manual is usually the tech or shop owner who has to get it running again without the dealer.

What this manual helps you do

• Rebuild the engine with the disassembly and assembly steps a shop manual normally gives for the engine section.
• Diagnose problems on the electronically controlled fuel system and the fuel and engine control section.
• Check the lubrication system and cooling system against the procedures and test values you'd expect to find.
• Replace parts in the intake and exhaust and emission control sections.
• Trace faults in the electrical section, including special equipment.

Who this is for

Independent repair shops, rental fleet mechanics and crane service technicians who work on Tadano machines with the 6M60 engine. It also suits plant maintenance staff handling an out-of-warranty unit with no paperwork.

FAQ

Q: What do I receive and how is it organised?

A: You get 4 PDF files, 347 pages in total, in English. The download is a set of 2 manuals: publication 97821-06000 (331 pages, the main manual) and "2. Engine" (16 pages).

Q: Which engine does it fit?

A: The 6M60. The title on the manual reads "6M60 Diesel Engine Shop Manual", and the publication number is 97821-06000.

Q: How does it fit the job I'm doing?

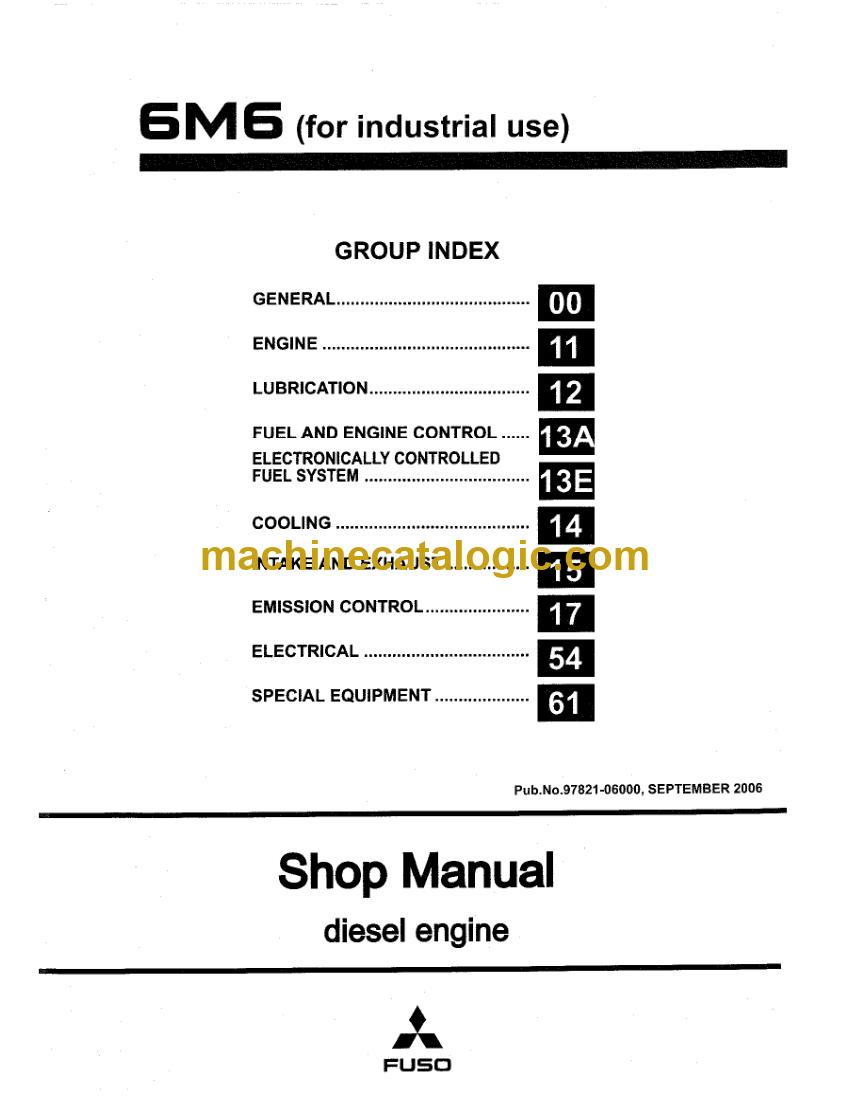

A: The sections run General, Engine, Lubrication, Fuel and Engine Control, Electronically Controlled Fuel System, Cooling, Intake and Exhaust, Emission Control, Electrical and Special Equipment. Whether you're tearing down the engine or chasing a fuel system fault, you can go straight to the section for it.

If you're working on a 6M60, this is the shop manual to have open at the bench.

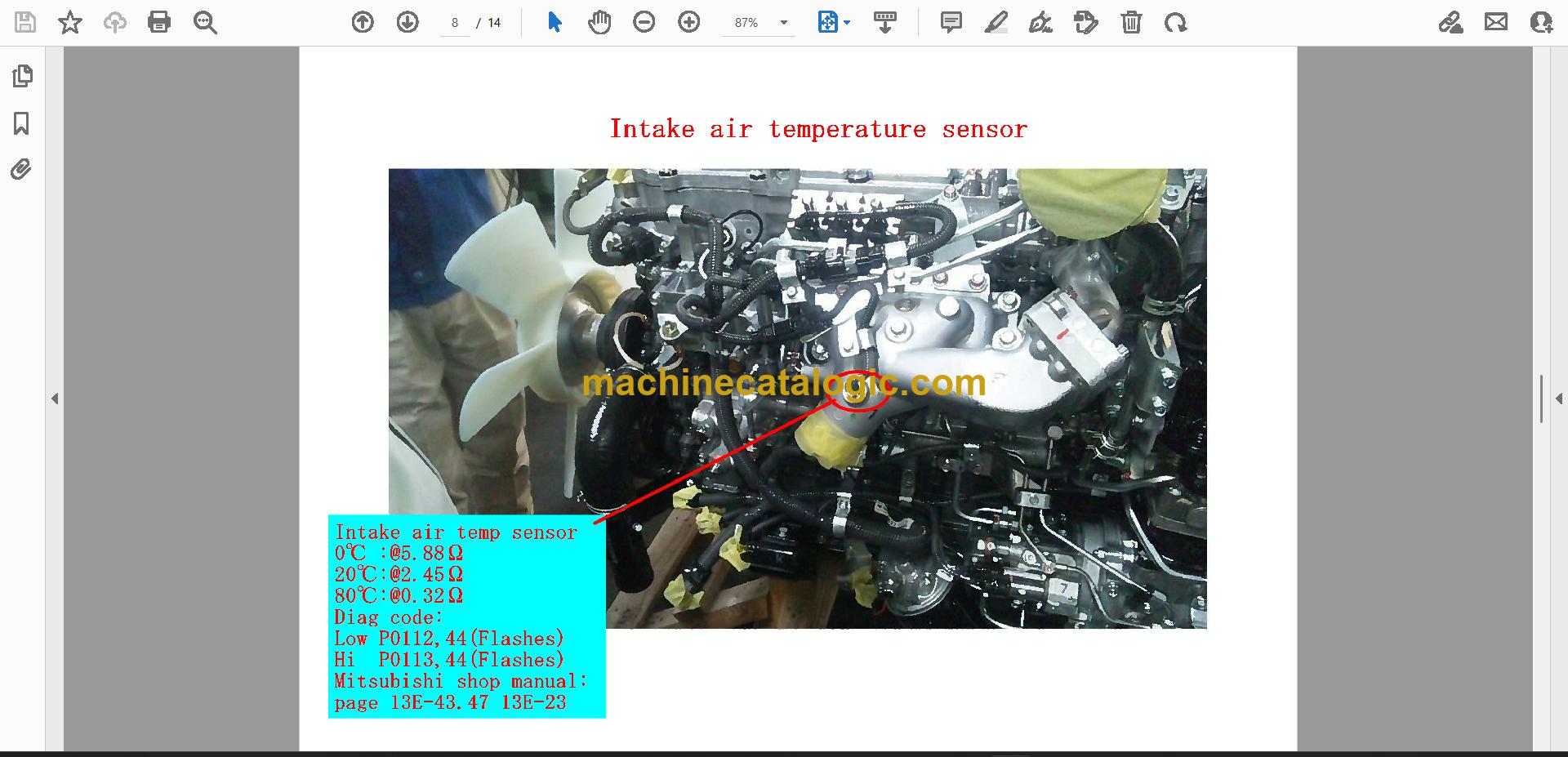

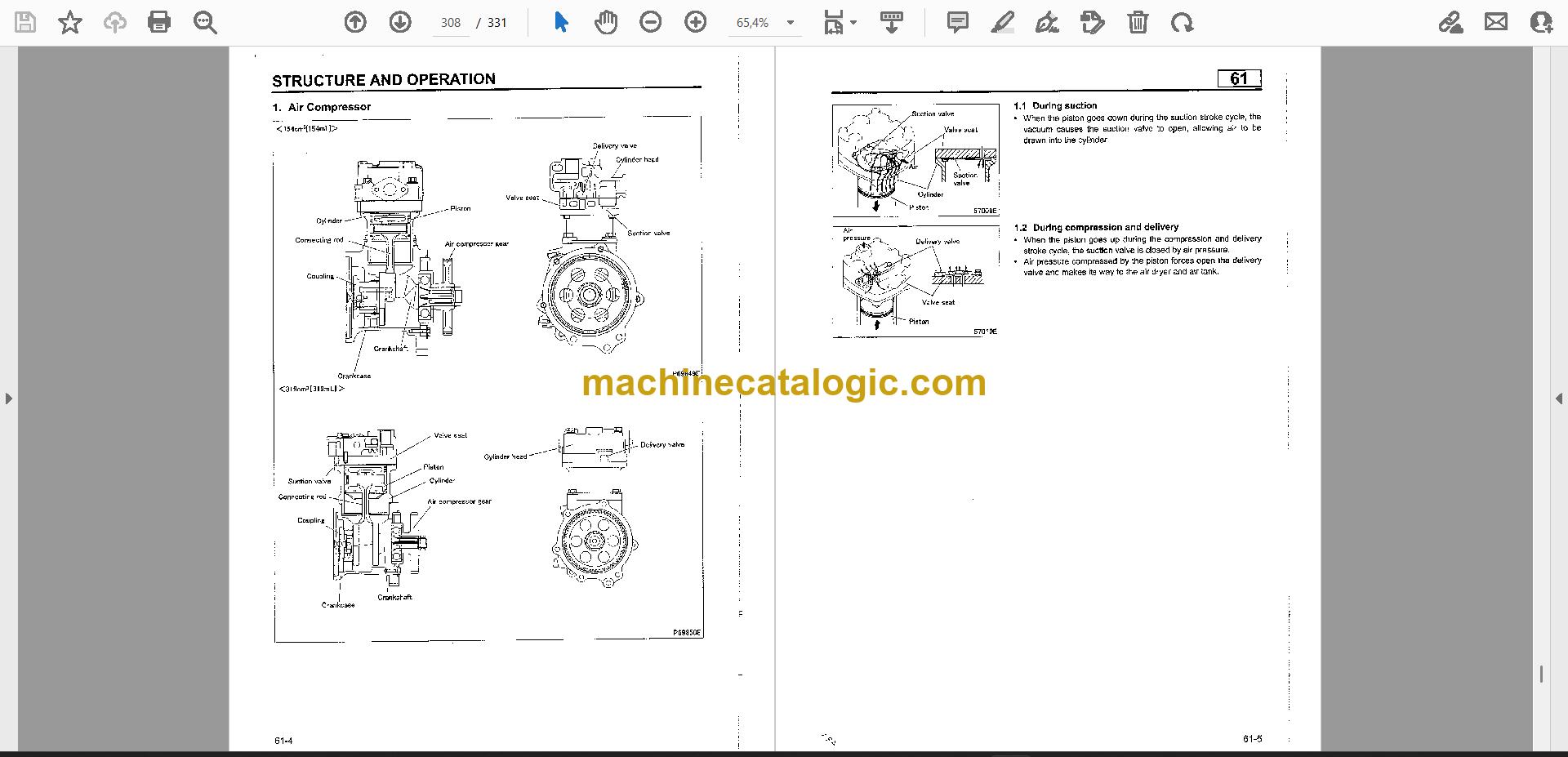

Click here to view the preview (PDF)
