A nine-axle… actually, the ATF 90G-4 is a multi-axle all terrain crane that drives to site on public roads and lifts with a telescopic boom. A workshop taking on a used crane that came without any paperwork is the buyer who needs this set most. One download gives the mechanics, the operator and the parts desk the same documents for the same machine.
What this manual set helps you do
- Operate the crane safely and run the daily checks with the operator manual, which has the technical details, safety instructions and requirements for public road use.

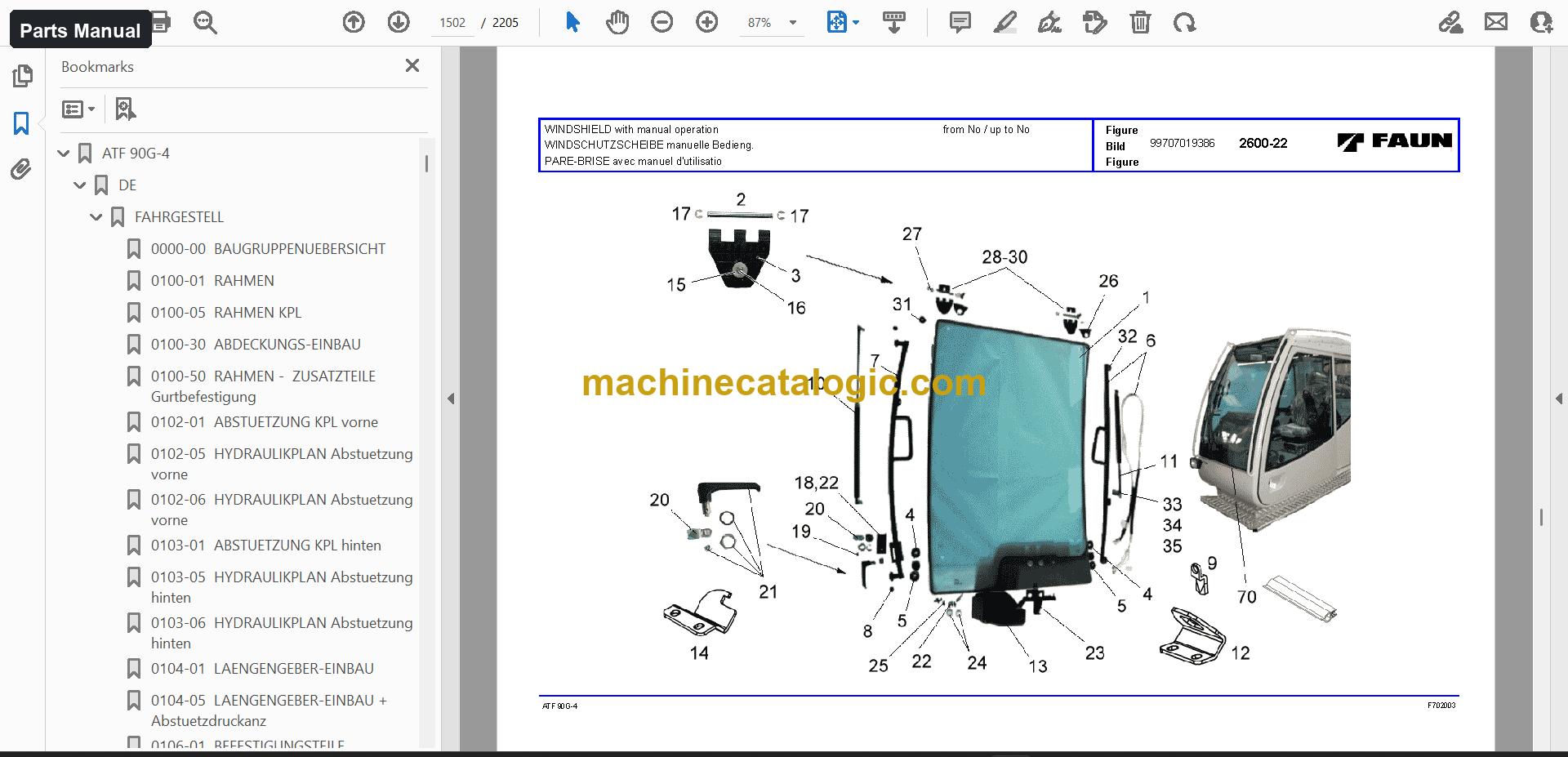

- Order the right parts from the parts manual, which has the spare parts list with exploded views for groups like steering axle installation and trailer coupling.
- Repair and adjust the rear wheel steering with the service manual, including reading error codes, diagnosis with WIN PCS and the steering potentiometer adjustment.
- Trace hydraulic and electrical faults using the schematics, 35 files in all.
- Verify lifting limits against the load charts and the Tadano AML-B load moment indicator component manual.
Who this is for
A workshop or service company that has just taken a used crane in will get the most from it. You can sort out faults, order parts and service the machine without chasing paperwork. Used crane dealers and exporters can also hand it over with the machine.
FAQ
Q: What do I receive and how is it organised?
A: You get 235 files (191 PDF), 15,878 PDF pages in total, in English, German and French. The operator, parts, service and schematics files sit alongside load charts, technical data, inspection forms, training documents, component manuals and diagnostic software. The text can be searched and copied.
Q: Which machine does it fit?
A: It is for the Tadano ATF 90G-4, and it covers that model. The serial number on the main manual cover is 2145024, with the WFN4 RUL R5 numbers 72045107, 82045 and A2045284.
Q: How does it help when I'm taking over a crane with no documents?
A: It gives you the operating, service and maintenance manual, the spare parts list, the steering service documents and the drawings in one place. Your mechanics and parts desk can start working from the same files on day one.
With this set, you can service, repair and hand over the ATF 90G-4 with full documentation in one download.
Does this manual fit your machine?
| Model |
Serial No. |
| ATF 90G-4 |
2145024, WFN4 RUL R5 72045107, WFN4 RUL R5 82045, WFN4 RUL R5 A2045284 |
The serial number shown is the one printed on the manual cover. Check the model and serial number on your machine's data plate before ordering.
📘 Show Index
Table of Contents:
Operator Manual Table of Contents
9,440 pages, 9 files
- Serial No. 2145024, WFN4 RUL R5 72045107, WFN4 RUL R5 82045 (+1 more) (7,341 pages)
- Operating and service Manual
- A Technical Details
- BO Safety Instructions Cassis
- BO Safety Instructions Superstructure
- B Operating Instructions
- B1 Chassis
- B2 Superstructure
- C Service and Maintenance
- General information
- C1 Chassis
- C2 Superstructure
- E Crane testing instructions
- F Troubleshooting
- G Annex
- ZF gearbox
- ZF intarder
- ZF lubricants

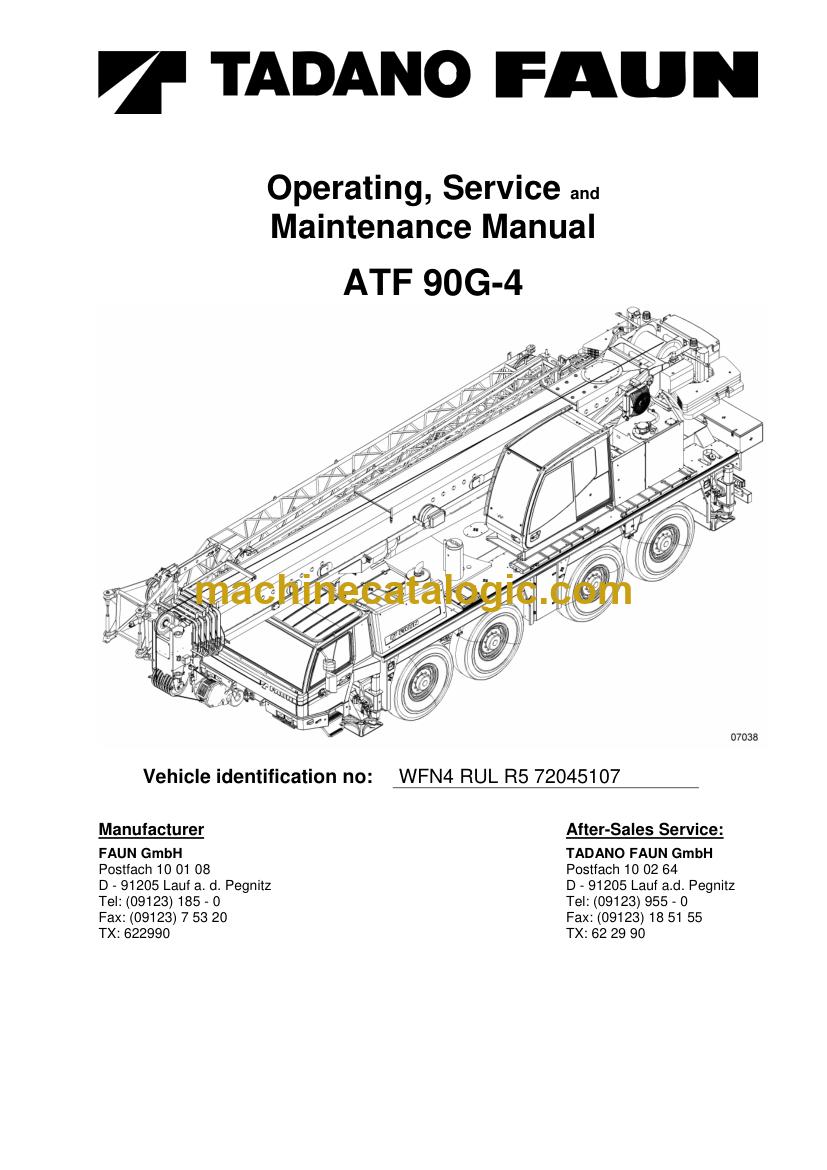

- Operating, Service and Maintenance Manual
- PREFACE
- B0 Safety Instructions
- B0-1 Requirements and conditions for vehicles used in public road traffic
- B0-2 Instructions for the crane operator From # 2045101
- B0-3 Instruction Sheet for Overload Safety Devices for Boom Cranes (excerpts)
- B1 Operating Instructions
- B1-1 General instructions concerning operation of the vehicle From # 2045101
- B1-2 Driver’s cab
- B1-4 How to put the machine into operation From # 2045101
- B2 Operating Instructions Superstructure
- B2-1 General instructions concerning operation of the vehicle
- B2-4 How to put the machine into operation From # 2045101
- B2-6 Crane movements in no-load condition From # 2045101
- C1 Service and Maintenance
- C1-1 General information
- C1-2 Maintenance intervals From # 2045101
- C1-5 Transfer box
- C2 Service and Maintenance Superstructure
- Summary of oil types and filling capacities

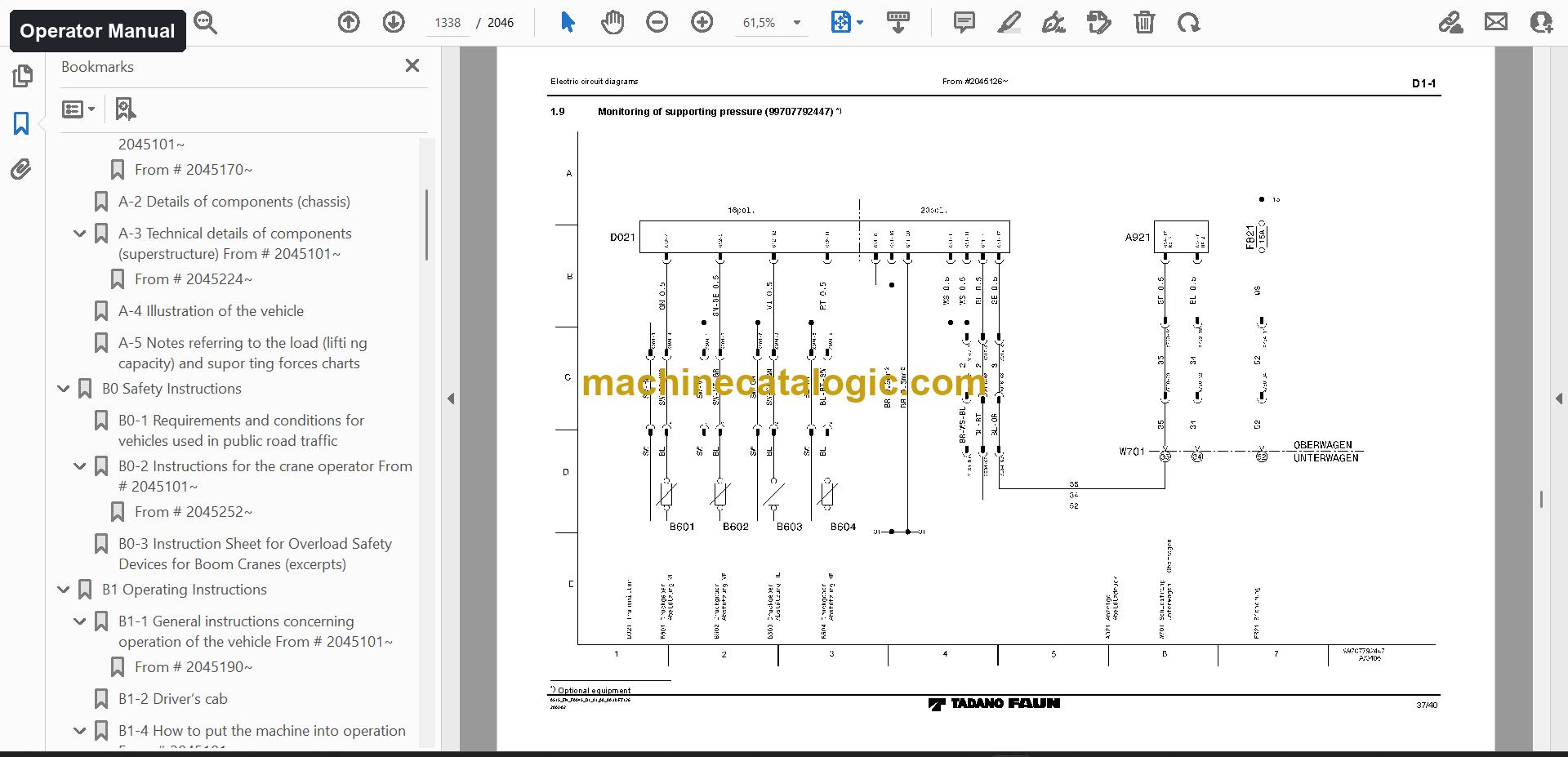

- D1 Circuit and piping diagrams Chassis
- D1-1 Circuit and piping diagrams From # 2045101
- D1-2 Pneumatic diagrams
- D1-3 Hydraulic piping diagrams From # 2045101
- D2 Circuit and piping diagrams Superstructure
- D2-1 Circuit and piping diagrams From # 2045101
- D2-3 Hydraulic piping diagrams From # 2045101
- F1 Troubleshooting Chassis
- F2 Troubleshooting Superstructure
- F3 Connection diagram From # 2045101
- G2 Annex
- Air conditioning system
- Operating Load Moment Limiter (AML)
- Manual 1 (37 pages)
- Function-Keys and Displays
- Input of Operating-Conditions
- Input of Outrigger-Conditions
- Input of Counterweight-Conditions
- Input of Boom- and Jib-Condition
- Telescope-Boom-Operation
- Telescope-Boom-Selection and -Control
- Telescope-Boom-Operation in Jib-Mounting-Mode
- Telescope-Boom-Operation in Manual-Mode
- Working-Range-Limitation
- Selection, Registration and Cancellation
- Display-Information
- Check-Function
- Special Functions
- Speed Preselection
- Telescope Maintenance Function
- Adjustment of Hook-Displacement
- Lift Adjuster
- Serial No. 72045107, A2045282 (2,062 pages)
- Part A) Technical Details
- General technical details (chassis)
- Dimensions and weights
- Driving performance data (according to DIN 70020)
- Technical details of components (chassis)
- Technical details of components (superstructure)
- Illustration of the vehicle
- Notes referring to the load (lifting capacity) and supporting forces charts
- Explanation regarding a load chart
- Supporting forces charts
- Part B.0) Safety Instructions
- Requirements and conditions for vehicles used in public road traffic
- Instructions for the crane operator
- Applications planning
- Steps to be taken before crane operation
- Supporting the crane by outriggers
- Instruction Sheet for Overload Safety Devices for Boom Cranes (excerpts)
- Part B) Operating Instructions – B1) Chassis
- General instructions concerning operation of the vehicle
- Warning and instruction plates
- Location of warning and instruction plates
- Components, assemblies – installation location and position
- Driver's cab
- Explanation of the control elements and of the equipment
- Seat adjustment
- Adjustment of the steering wheel
- How to put the machine into operation
- Steps to be taken and checks to be made before start-up
- Operation of the electrical equipment of the chassis
- air circulation and air conditioner**)
- Gearshift and driving operation
- Gearbox
- Transfer box
- Brakes
- Outrigger the vehicle
- The axle suspension must be locked and the vehicle must be lowered
- Control of the electric outrigger actuation
- Outrigger operation from the chassis
- Emergency control features
- Hydraulic system
- Centering the 3rd and 4th axles
- Operation in winter
- Engine
- Gearbox
- Warming up the hydraulic oil or changing the oil type
- Steps for access to the superstructure
- Attachments, optional equipment and accessories
- Instrument panel – chassis
- Pilot, indicator and warning lamps
- Other components
- Instruments
- Part B) Operating Instructions – B2) Superstructure
- General information
- Warning and instruction plates
- Location of warning and instruction plates
- Components, assemblies – installation location and position
- Crane cabin
- Explanation – control elements
- Adjustment of the seat in the superstructure
- Roller sun visor – skylight
- Gearshift, driving and outrigger operation from the superstructure
Parts Manual Table of Contents
4,083 pages, 2 files
Service Manual Table of Contents
128 pages, 3 files
- Publication 99707792338 (111 pages)

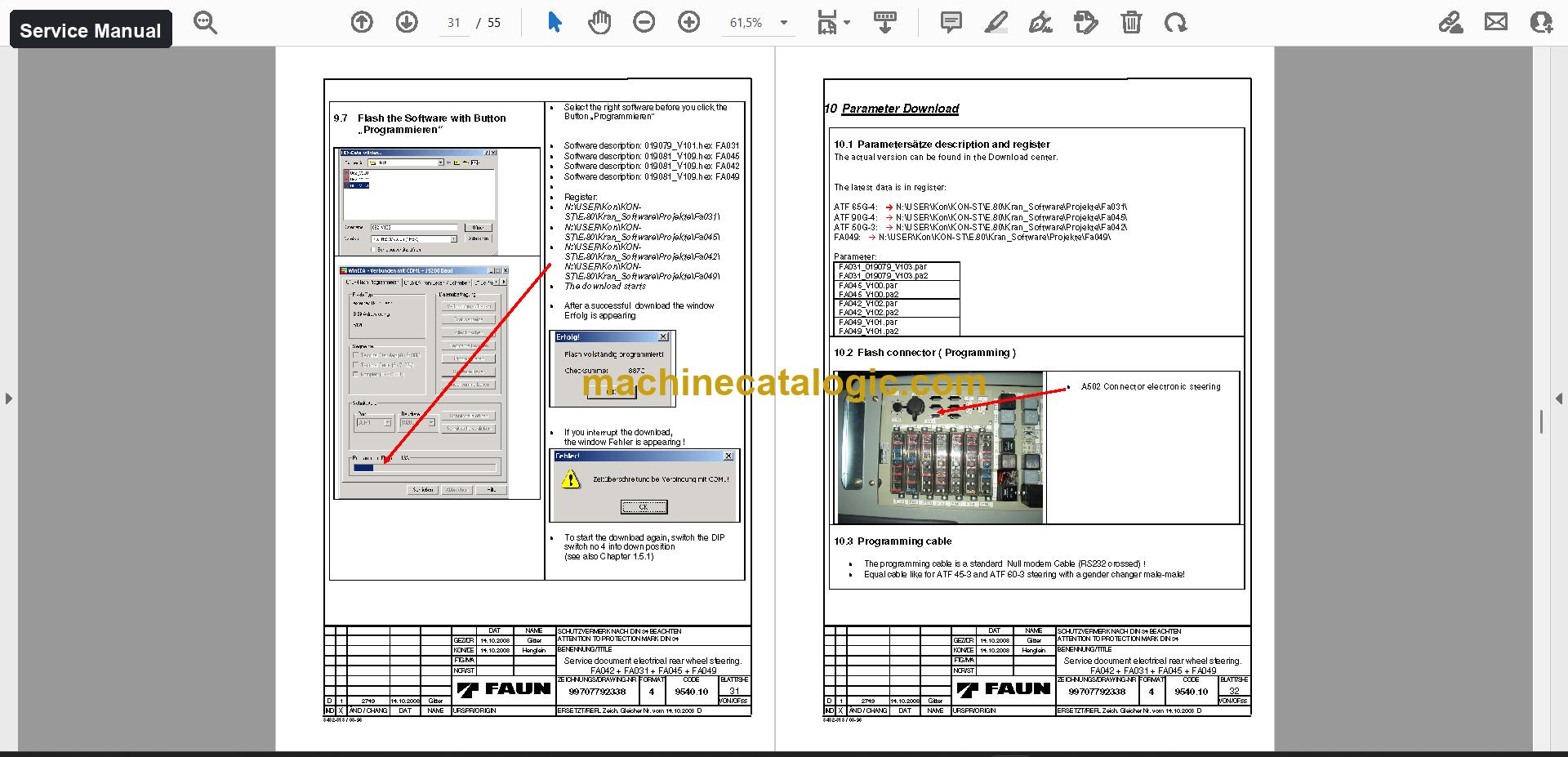

- Adjustment for steering potiometer of axle 1 + 3(2) +4(3)
