Format: PDF (Printable Document)
File Language: English
File Pages: 1,240
File Size: 59.22 MB (Speed Download Link)
File Count: 5 PDF files
Brand: Tadano
Model: AML-C
Equipment Type: Load Moment Indicator
Book No: W301-0414E
Manuals Included: 4 separate publications
Type of Document: Service Manual
Searchable: Partly, some files are scanned pages without a text layer
Delivery: Instant download after payment
$ 55
The Tadano AML-C load moment indicator monitors crane loading and keeps the operator inside the rated limits. When it throws a fault, reads wrong or needs a sensor swapped, the crane sits until someone fixes it. This service manual is for the person doing that work in the shop, on a machine that's out of warranty or came in with no paperwork.
What this manual helps you do
Who this is for
A crane service technician or rental fleet mechanic who repairs LMI systems in-house. It also suits an independent repair shop or dealer technician who needs a documented procedure instead of guesswork.
FAQ
Q: What do I receive and how is it organised?
A: You get 5 PDF files, 1,240 pages in total, in English. The sections run from the foreword through components of the AML system, user mode, maintenance mode, adjustment mode, and information and data, plus a history of revision.
Q: Which machine does it fit?
A: It is the AML-C Load Moment Indicator Service Manual, publication W301-0414E (326 pages), the main manual. The download is a set of 4 manuals: W301-0391E (231 pages), W301-0411E (218 pages), W301-0414E (326 pages) and W301-0431E (465 pages).
Q: How does it fit my repair job?
A: If you're tracing a fault, adjusting the system or replacing a component, the manual gives you the modes and system information to work from. Keep the set with the crane's records and the next fault is easier to handle.
Get the whole set, put it on the shop computer, and you've got the AML-C documented for the next time it needs work.

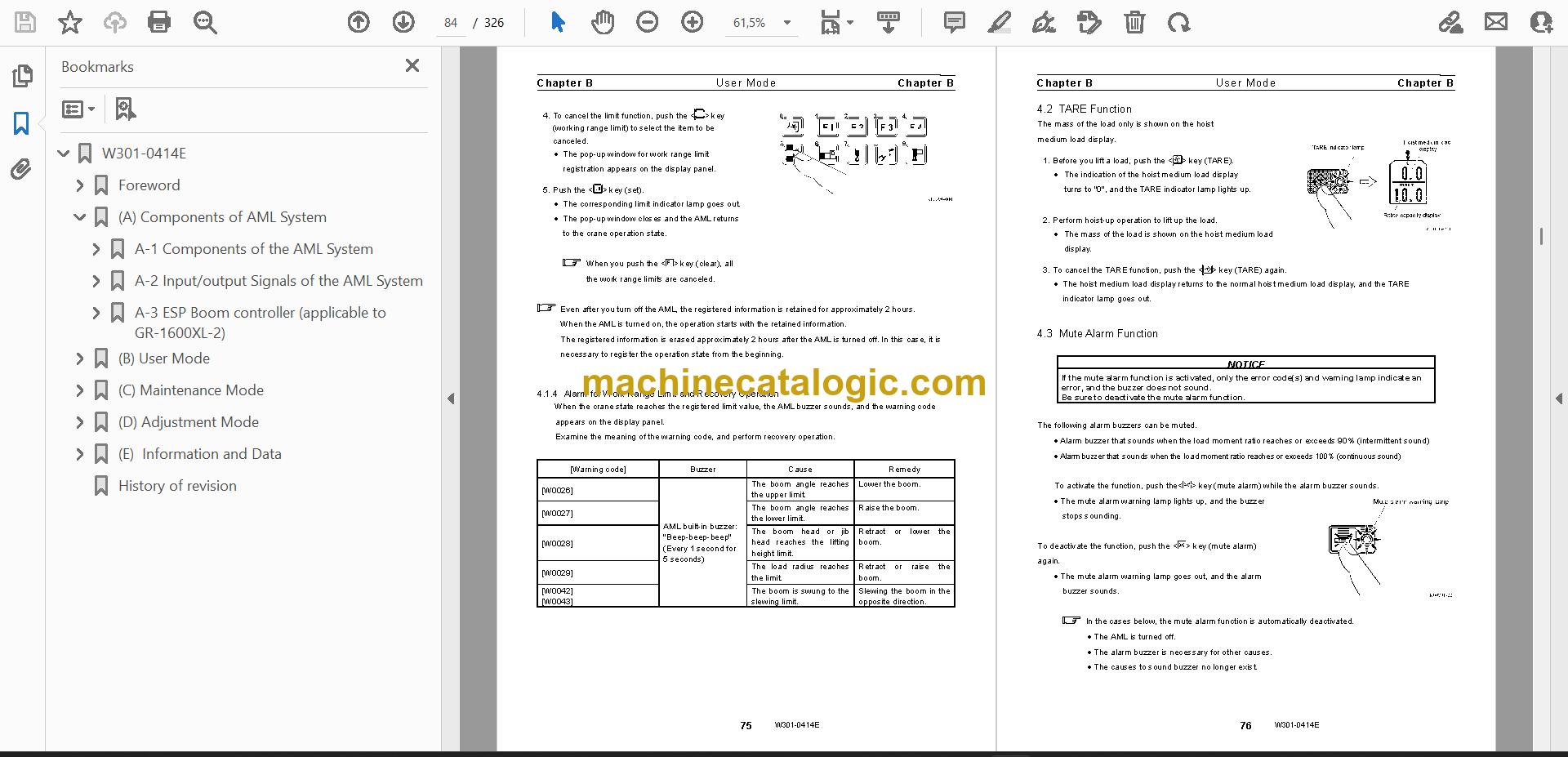

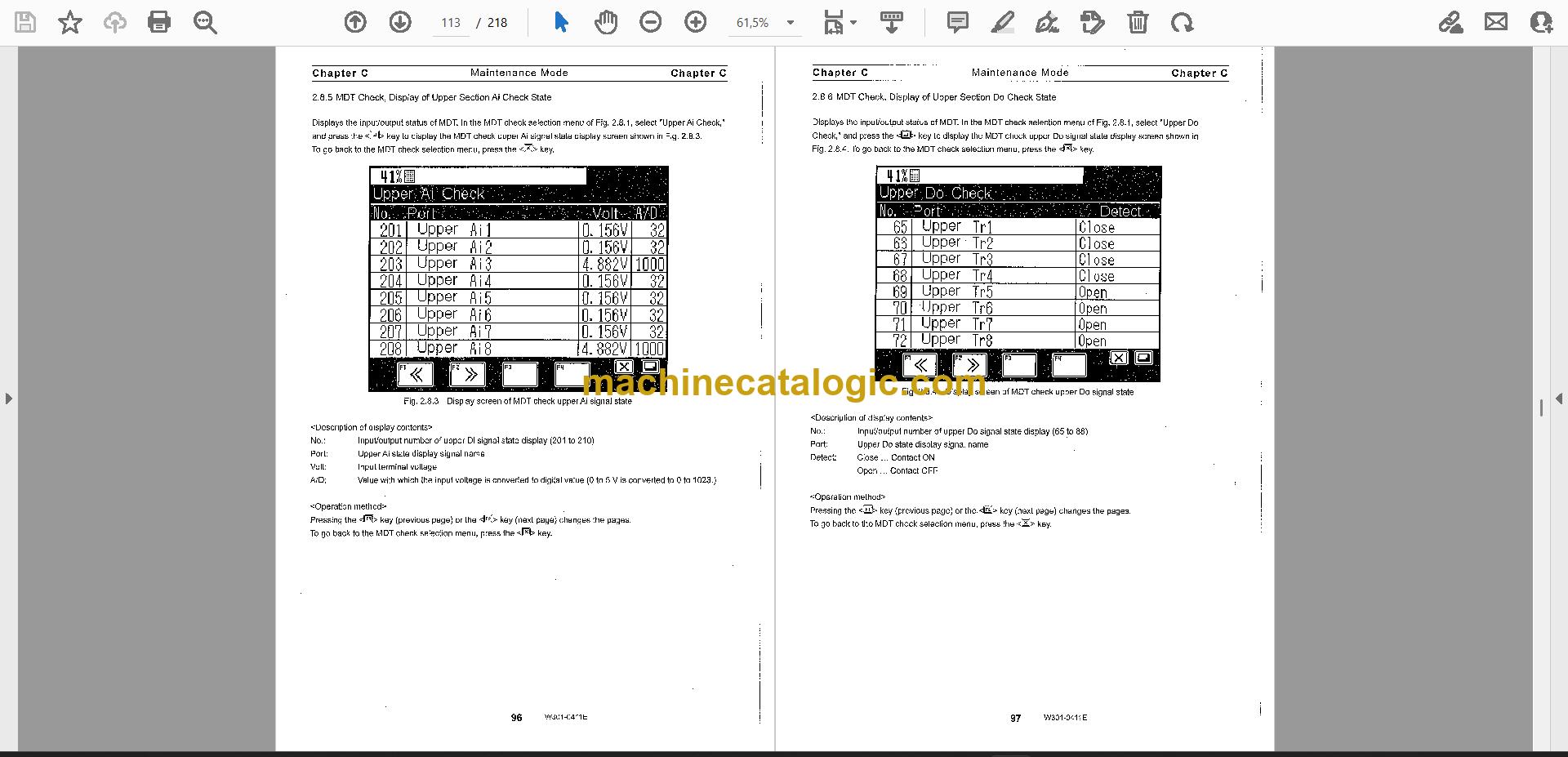

Click here to view the preview (PDF)
