Tadano SHP-S16.5 and SHP-S16.5N Axle Service Manual

The driving axle carries the crane's load and passes drive torque through the differential to the wheel ends. It also holds the parking brake. When it leaks, whines, or won't hold on a grade, someone has to pull it apart. That's when you want the service manual open on the bench, not guesswork.

What this manual helps you do

• Trace how torque flows through the differential device and the axle, so you know what you're looking at before you pull anything.
• Rebuild the differential carrier assembly with the procedure in front of you.
• Adjust the axle and differential settings after reassembly.
• Troubleshoot noise, slipping, or parking brake problems using the trouble shooting section.
• Verify a no-spin type differential with the test procedure written for it.

Who this is for

Independent repair shops and rental fleet mechanics who are fixing a Tadano SHP-S16.5 or SHP-S16.5N in-house. Also useful for a dealer technician or plant maintenance crew that inherited a machine with no paperwork.

FAQ

Q: What do I receive and how is it organised?

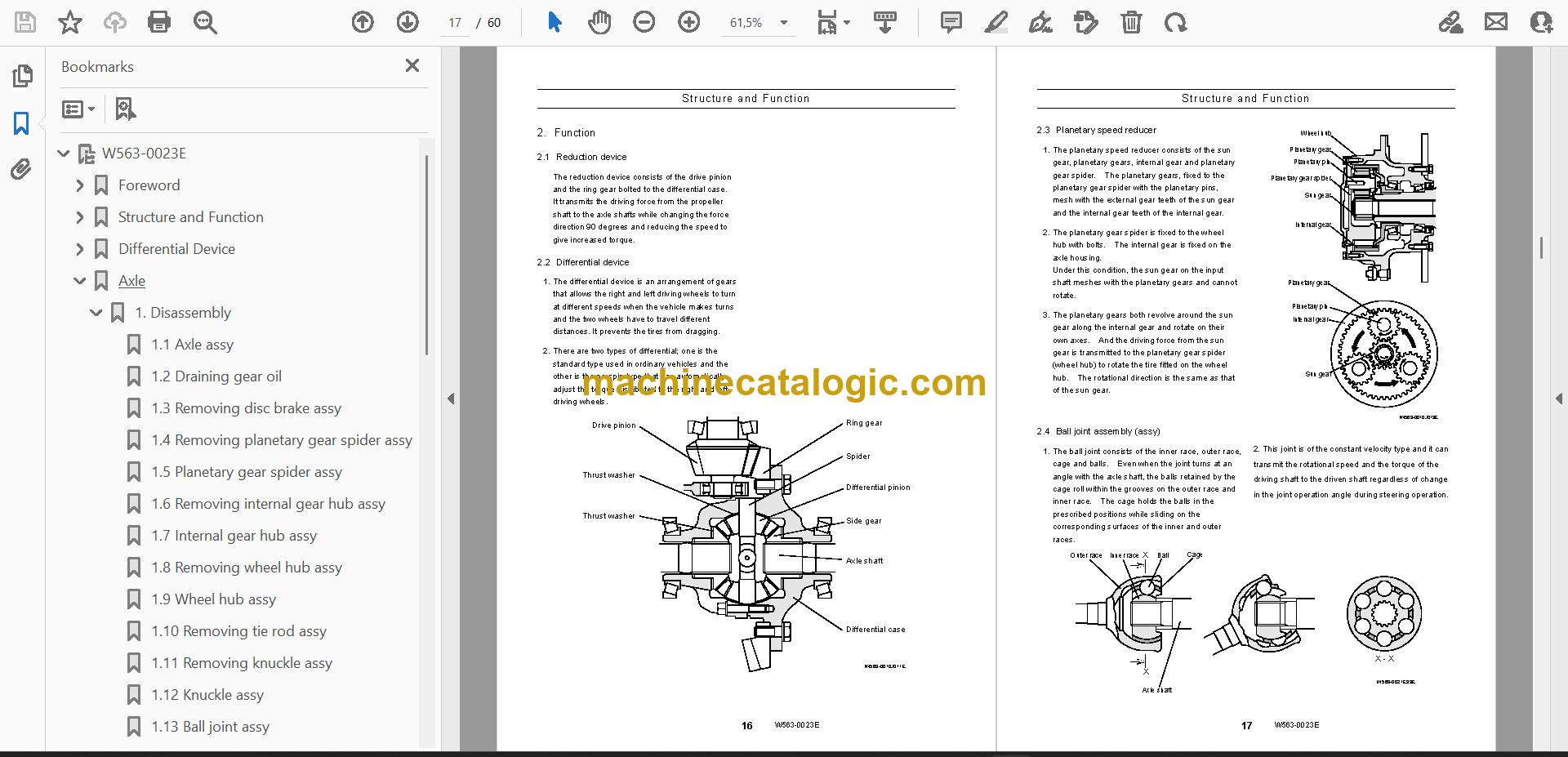

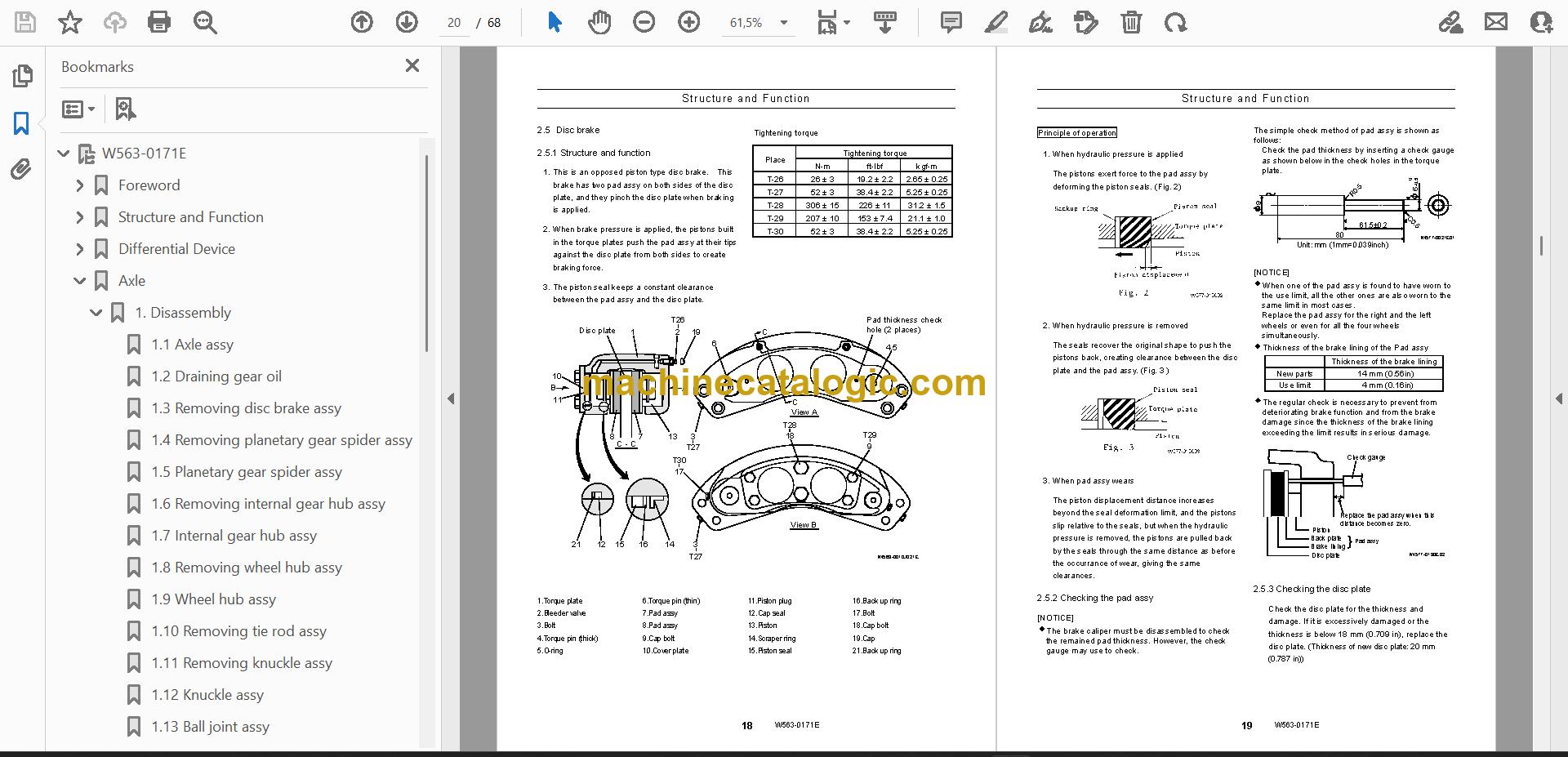

A: You get the set: 2 PDF files, 128 pages in total, in English. Publication W563-0171E is the main manual at 68 pages, and Publication W563-0023E adds 60 pages. The text is searchable and can be copied.

Q: Which machine does it fit?

A: It covers the Tadano SHP-S16.5 and SHP-S16.5N. The title on the main manual reads "SHP-S16.5 Driving Axle Service Manual".

Q: How does it fit my job?

A: A service manual like this usually has a foreword, structure and function, then the repair and adjustment sections. Here you'd expect to find differential device, axle, differential carrier assembly, parking brake, adjustment, trouble shooting, and the no-spin differential test. There's a history of revision as well.

Download it, print the pages you need for the bench, and work the axle job from start to finish.

Click here to view the preview (PDF)
