A Tadano ATF 70G-4 is a multi-axle all terrain crane. It drives to site on public roads, then works there with its telescopic boom. A workshop taking on a used ATF 70G-4 that arrived without paperwork is the typical person who wants this set: one download with the documents for that machine, so nobody is hunting for single books.
What this manual set helps you do

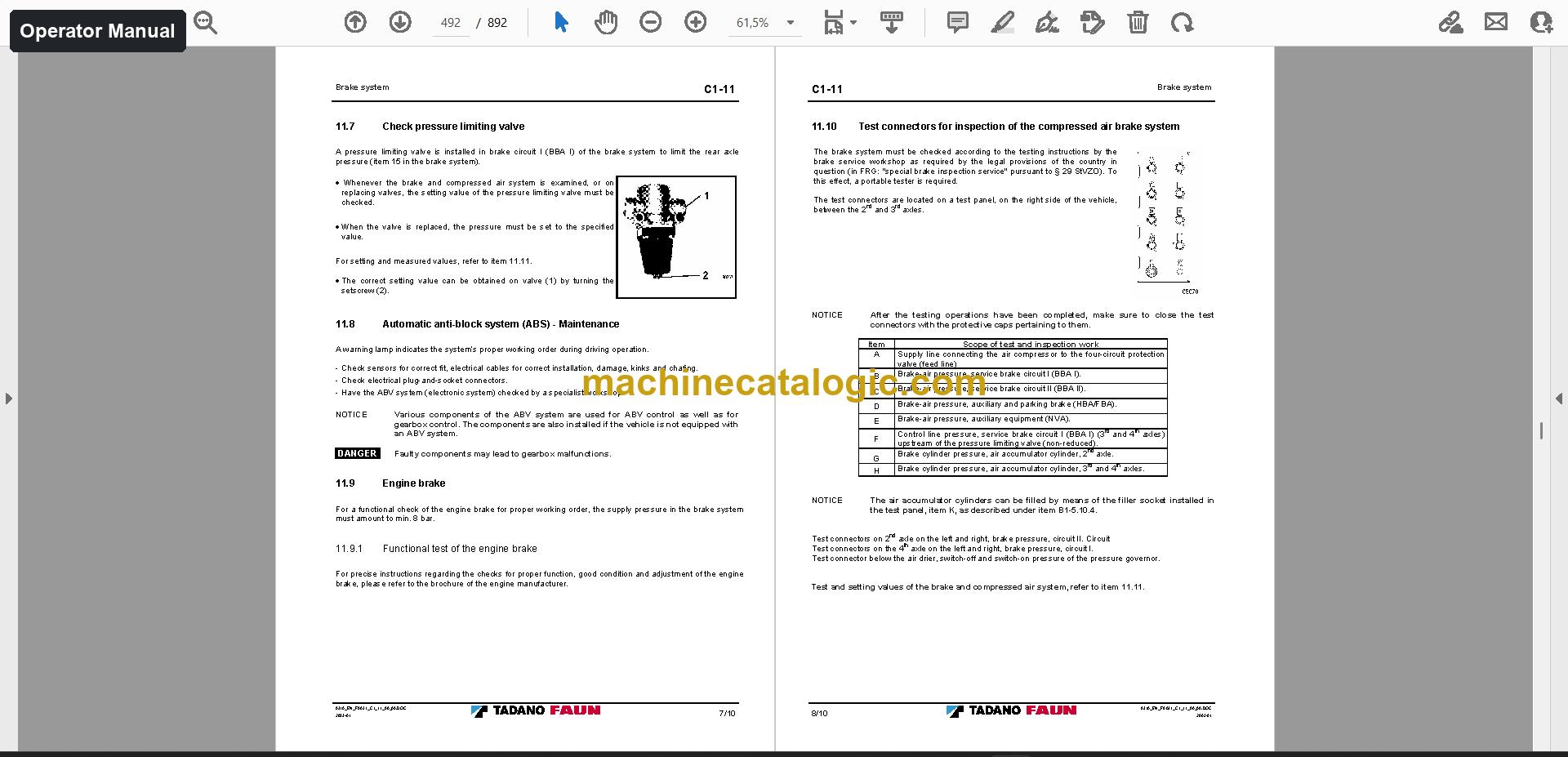

- Operate the crane by the book, using the 892-page Operating Manual for controls, setup, safe operation and daily checks.

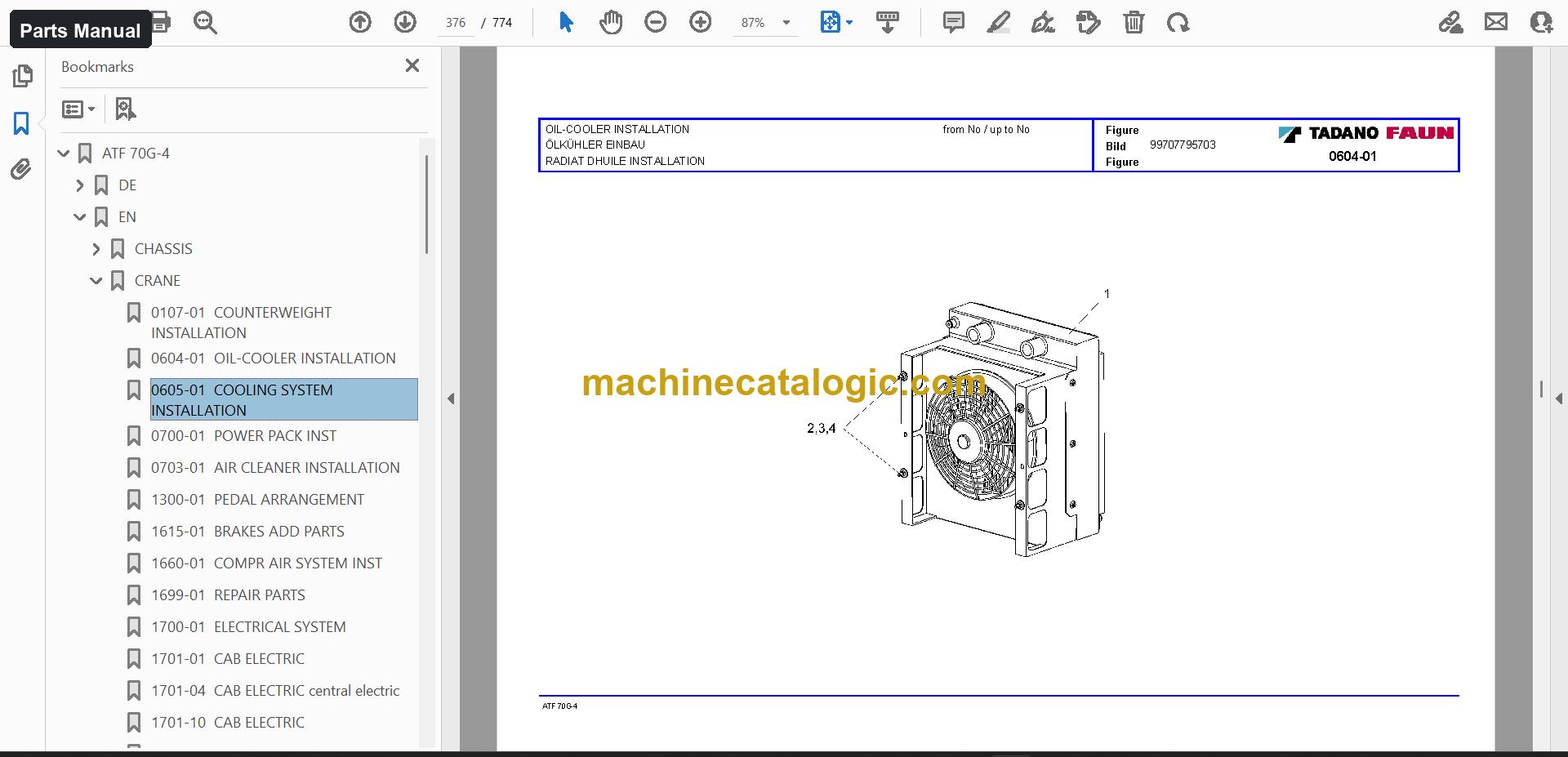

- Order the right parts from the 774-page Spare Parts List, which has exploded views and part numbers.
- Trace hydraulic and electrical faults with the schematics, 13 files and 399 pages.
- Inspect the machine against the inspection forms, 3 files and 30 pages.
- Read the technical data, service information, diagnostic documents and training documents that sit alongside the main books.
Who this is for
A workshop or service company gets the most from it. You take a used ATF 70G-4 in, and you have the operating manual, parts list and schematics at the bench from day one. A rental fleet manager can use it the same way, giving operators, mechanics and the parts desk the same documents for the same crane.
FAQ
Q: What do I receive and how is it organised?
A: You get 41 files (38 PDF) with 2,156 PDF pages in total. The Operating Manual is in English, and the Spare Parts List is in English, German and French. The text can be searched and copied, so finding a part or a procedure is quick.
Q: Which machine does it fit?

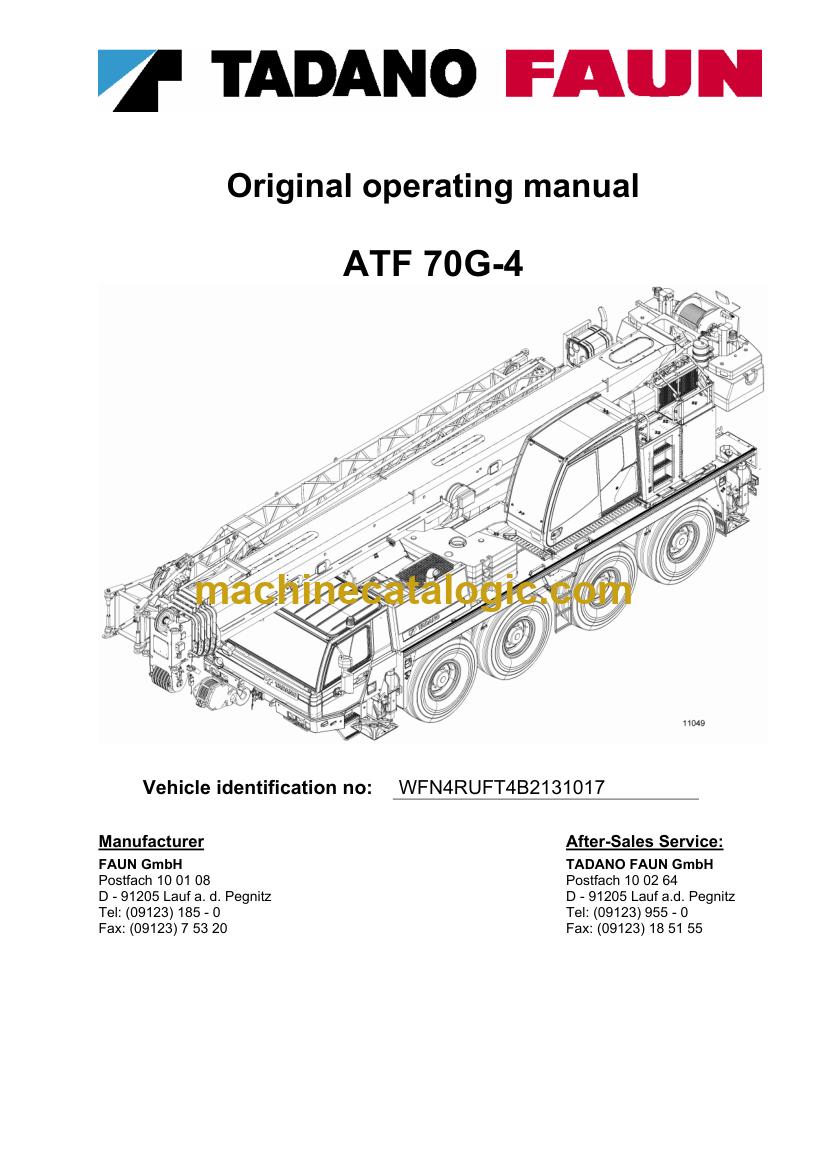

A: It is for the Tadano ATF 70G-4. The serial number printed on the main manual cover is WFN4RUFT4B2131017, so you can check it against your crane's plate.
Q: How does it fit my job?
A: A full manual set like this usually lets you cover operation, parts ordering and fault tracing from one folder. You'd expect to find the chassis and crane sections in the parts list, and the technical details and troubleshooting in the Operating Manual.
Keep it on the workshop PC, search it when a job comes in, and have everything for the ATF 70G-4 in one place.
Does this manual fit your machine?
| Model |
Serial No. |
| ATF 70G-4 |
WFN4RUFT4B2131017 |
The serial number shown is the one printed on the manual cover. Check the model and serial number on your machine's data plate before ordering.
📘 Show Index
Table of Contents:
Operator Manual Table of Contents
892 pages, 1 file
- Preface
- How to use this Operating Manual
- troubleshooting
- Handling of this Operating Manual
- Mounting locations of the vehicle identification number and of the nameplate
- Disassembly and disposal
- Part A) Technical Details
- General technical details (chassis)
- Dimensions and weights
- Driving performance data (according to DIN 70020)
- Details of components (chassis)
- Technical details of components (superstructure)
- Illustration of the vehicle
- Notes referring to the load (lifting capacity) and supporting forces charts
- Explanation regarding a load chart
- Supporting forces charts
- Part B.0) Safety Instructions
- Requirements and conditions for vehicles used in public road traffic
- Instructions for the crane operator
- Applications planning
- Steps to be taken before crane operation
- Supporting the crane by outriggers
- Instruction Sheet for Overload Safety Devices for Boom Cranes (excerpts)
- Part B) Operating Instructions – B1) Chassis
- General instructions concerning operation of the vehicle
- Warning and instruction plates
- Location of warning and instruction plates
- Components, assemblies – installation location and position
- Driver's cab
- Explanation of the control elements and of the equipment
- Seat adjustment
- Adjustment of the steering wheel
- How to put the machine into operation
- Steps to be taken and checks to be made before start-up
- Operation of the electrical equipment
- Start the engine
- Gearshift and driving operation
- Gearbox
- Transfer box
- Engaging the inter-axle and inter-wheel differential locks
- Stabilizing the vehicle by outriggers
- The vehicle must be lowered and the axle suspension must be locked
- Electrical outrigger actuation
- Outrigger operation from the chassis
- Emergency control functions and elements
- Hydraulic system
- Centering the 3rd and 4th axles
- Operation in winter
- Engine
- Gearbox
- Warming up the hydraulic oil or changing the oil type in winter
- Steps facilitating access to the superstructure
- Attachments, optional equipment and accessories
- Fog lights
- country horn (Supertone horn)
- Electronc immobilizer (FinTronic Car Bloc TTS 24/12)
- Instrument panel
- Pilot, indicator and warning lamps
- Other components
- Instruments
Parts Manual Table of Contents
774 pages, 1 file
- FAHRGESTELL
- RAHMEN
- ABSTUETZUNG KPL vorne
- HYDRAULIKPLAN AbstUEtzung vorne
- KRAN
- GEGENGEWICHT EINBAU
- OELKUEHLER EINBAU
- KUEHLANLAGE EINBAU
- ANHANG
- ANZEIGEGERAET AML
- ANZEIGEGERAET AML "USA"
- AUSGLEICHSBEHAELTER
- CHASSIS
- FRAME
- OUTRIGGER ASSY front
- HYDRAULIC PLAN outrigger front
- CRANE
- COUNTERWEIGHT INSTALLATION
- OIL-COOLER INSTALLATION
- COOLING SYSTEM INSTALLATION
- ANNEX
- INDICATOR GAUGE AML
- INDICATOR GAUGE AML "USA"
- COMPENSATING TANK
- GRUE
- CONTREPOIDS INSTALLATION
- RADIAT DHUILE INSTALLATION
- SYST REFROIDISSMENT INSTALLATION
- ANNEXE
- APPAREIL INDICAT AML
- APPAREIL INDICAT AML "USA"
- RESERVOIRE D' COMPENSATION
Also in this set
- Schematics (13 files, 399 pages)
- Technical data (7 files, 7 pages)
- Service information (1 file, 2 pages)
- Diagnostic documents and software (2 files, 24 pages)
- Training documents (10 files, 28 pages)
- Inspection forms (3 files, 30 pages)
- Other documents (3 files)
