The CT1021 is a small compact tractor you'll see mowing, moving pallets, running a loader, or doing light 3-point work on farms and acreages. The service manual is what I pull in the shop when a CT-series tractor is past warranty and something deeper than routine maintenance is going on. Buyers use it when they're chasing hydraulic issues, electrical gremlins, or doing teardown work that actually needs specs and step-by-step procedures.
What this manual helps you do
- Diagnose hard-start, low-power, or smoking issues on the small diesel engine and plan a proper repair.
- Trace hydraulic problems in the loader, 3-point, or steering system and check pressures against Bobcat specs.
- Follow teardown and reassembly procedures on major components like the front axle, transmission, and final drives.
- Troubleshoot electrical problems using wiring diagrams, connector callouts, and test procedures.
- Adjust linkages, clutches, brakes, and 3-point hitch settings after repairs so everything works like it did from the factory.
Who this is for
This is for a small contractor, farmer, rental fleet, or shop mechanic who is actually wrenching on a Bobcat CT1021 in the B54811001 to B54899999 serial range. If you only need basic controls, safety, and daily maintenance, you want the operator's handbook instead, not this manual.
FAQ

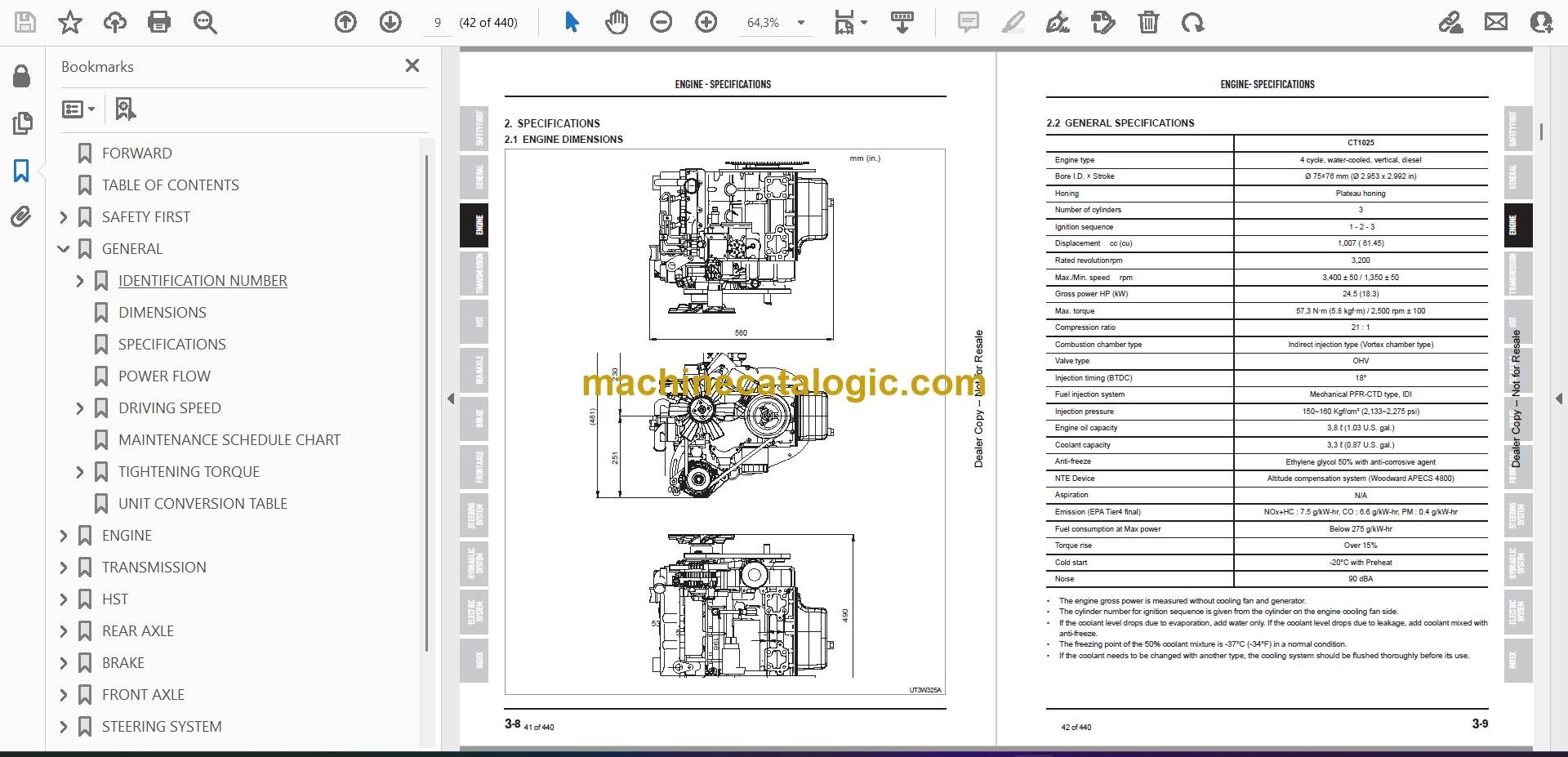

Q: Is this a searchable PDF and are the wiring diagrams readable?
A: Yes, manuals like this are normally in searchable PDF format and the wiring diagrams are laid out so you can zoom in and read pin numbers and wire colors.
Q: How do I know it fits my exact tractor?
A: Check your serial plate. If your CT1021 serial number falls between B54811001 and B54899999, this is the right service manual series.
Q: I'm just changing fluids and filters. Is this overkill?
A: More or less, yes. This manual is aimed at diagnostics and repairs; for simple service intervals, the operator's manual is usually enough.
Bottom line, if you own or service a CT1021 in that serial range and plan to do real repair work, this is the correct Bobcat service manual to buy.
📘 Show Index
Table of Contents:
- FORWARD
- TABLE OF CONTENTS
- SAFETY FIRST
- FOR SAFETY
- SAFETY TIPS
- SAFETY GEAR
- WORK PLACE
- SAFETY INSTRUCTIONS WHEN PREPARING TRACTOR
- AVOID FIRES
- CAUTIONS WHEN HANDLING THE BATTERY
- CAUTIONS FOR HIGH PRESSURE HOSES
- USE OF APPROPRIATE TOOLS AND EQUIPMENT
- HANDLING OF HAZARDOUS MATERIALS
- HANDLING OF ROTATING BLADE, SHAFT AND DRIVING BELT
- PREVENTION OF SCALD
- DISPOSAL OF ENVIRONMENTAL WASTE
- CAUTIONS WHEN HANDLING TIRES
- SAFETY DECALS
- GENERAL
- IDENTIFICATION NUMBER
- TRACTOR SERIAL NUMBER LOCATION
- ENGINE SERIAL NUMBER LOCATION
- TRANSMISSION NUMBER
- DIMENSIONS
- SPECIFICATIONS
- POWER FLOW
- DRIVING SPEED
- MAINTENANCE SCHEDULE CHART
- TIGHTENING TORQUE
- GENERAL USE SCREWS, BOLTS AND NUTS
- STUD BOLTS
- AMERICAN STANDARD SCREWS, BOLTS AND NUTS WITH UNC OR UNF THREADS
- UNIT CONVERSION TABLE
- ENGINE
- GENERAL INFORMATION
- ENGINE VIEWS
- ENGINE IDENTIFICATION
- SPECIFICATIONS
- ENGINE DIMENSIONS
- GENERAL SPECIFICATIONS
- GENERAL INFORMATION
- ENGINE VIEWS
- ENGINE IDENTIFICATION
- ENGINE DIMENSIONS
- SPECIFICATIONS
- GENERAL SPECIFICATIONS
- SERVICE SPECIFICATIONS
- CYLINDER HEAD
- VALVES
- VALVE SPRINGS
- VALVE ROCKER ARMS
- CAMSHAFT
- PISTON RINGS
- PISTONS
- CRANKSHAFT
- FUEL INJECTION NOZZLES
- INJECTION PUMP
- OIL PUMP
- RADIATOR
- THERMOSTAT
- FAN BELT
- TIGHTENING TORQUE
- STRUCTURE AND FUNCTION
- BODY AND POWER TRAIN
- CYLINDER HEAD
- CYLINDER BLOCK
- CRANKSHAFT
- PISTON AND PISTON RINGS
- CONNECTING RODS
- CAMSHAFT AND FUEL CAMSHAFT
- ROCKER ARM ASSEMBLY
- INLET AND EXHAUST VALVES
- TIMING GEARS
- FLYWHEEL
- MLS CYLINDER HEAD GASKET
- LUBRICATION SYSTEM
- ENGINE OIL FLOW
- RELIEF VALVE
- BY-PASS VALVE
- OIL PRESSURE SWITCH
- Cooling System
- OIL PUMP
- WATER PUMP
- THERMOSTAT
- THERMOSTAT
- RADIATOR
- FLOW OF FUEL
- FUEL FILTER AND BLEEDING
- BLEEDING THE FUEL SYSTEM
- FUEL SYSTEM
- FUEL FEED PUMP
- FUEL INJECTION PUMP
- GOVERNOR SYSTEM
- DISASSEMBLED VIEW
- BASIC PRINCIPLE OF GOVERNOR SYSTEM
- OPERATION OF GOVERNOR
- FLOW OF INTAKE AIR AND EXHAUST GAS
- AIR CLEANER
- MUFFLER
- INTAKE AND EXHAUST SYSTEM
- PCV VALVE
- DISASSEMBLED VIEW
- GOVERNOR SYSTEM
- BASIC PRINCIPLE OF GOVERNOR SYSTEM
- OPERATION OF GOVERNOR
- INTAKE AND EXHAUST SYSTEM
- FLOW OF INTAKE AIR AND EXHAUST GAS
- AIR CLEANER
- MUFFLER
- NTE CONTROLLER & SENSORS
- TROUBLESHOOTING
- INSPECTION AND ADJUSTMENT
- CHECKING AND ADJUSTING THE INJECTION TIMING
- ENGINE OIL PRESSURE
- INJECTION NOZZLE INSPECTION
- BUBBLE TEST FOR RADIATOR
- INTAKE AND EXHAUST VALVES
- CLEARANCE ADJUSTMENT
- VALVE SPRING INSPECTION (LENGTH, TENSION AND SQUARENESS)
- VALVE SPRING SQUARENESS (TILT)
- ROCKER ARM ASSEMBLY CHECK
- CYLINDER HEAD CHECK
- CYLINDER HEAD SURFACE FLATNESS
- CYLINDER HEAD VALVE RECESS
- PISTON CHECK
- PISTON PIN BORE
- CLEARANCE BETWEEN PISTON PIN AND BUSHING
- PISTON RING END GAP
- PISTON RING CLEARANCE
- CRANKSHAFT CHECK
- CRANKSHAFT DEFLECTION
- OIL CLEARANCE BETWEEN CRANKSHAFT JOURNAL AND BEARING 1
- OIL CLEARANCE BETWEEN CRANKSHAFT JOURNAL AND BEARING 2
- OIL CLEARANCE BETWEEN CRANK PIN AND CONNECTING ROD BIG END BEARING
- TIMING GEAR
- TIMING GEAR SETTING
- TIMING GEAR BACKLASH
- IDLE GEAR SIDE CLEARANCE
- VALVE CAMSHAFT GEAR SIDE CLEARANCE
- IDLE GEAR OIL CLEARANCE MEASUREMENT
- VALVE CAMSHAFT OIL CLEARANCE MEASUREMENT
- VALVE CAMSHAFT DEFLECTION CHECK
- VALVE CAM HEIGHT MEASUREMENT
- FLYWHEEL DEFLECTION AND CRANKSHAFT END PLAY CHECK
- OIL PUMP CHECK
- DISASSEMBLY, SERVICE AND ASSEMBLY
- ENGINE REMOVAL
- ENGINE COMPONENT DISASSEMBLY AND ASSEMBLY
- FUEL INJECTION PUMP
- SPEED CONTROL LEVER PLATE AND GOVERNOR SPRING
- FUEL CAMSHAFT (GEAR CASE)
- VALVE CAMSHAFT
- IDLE GEAR SHAFT, OIL PUMP AND OIL PAN
- PISTON, FLYWHEEL AND CRANKSHAFT
- ROCKER ARM
- INTAKE AND EXHAUST VALVES
- ENGINE COMPONENT DISASSEMBLY AND ASSEMBLY
- INJECTION NOZZLE
- PISTON ASSEMBLY
- THERMOSTAT
- WATER PUMP
- MAIN BEARING CASE ASSEMBLY
- INJECTION PUMP GEAR ASSEMBLY (FUEL CAMSHAFT GEAR)
- ENGINE OIL RELIEF VALVE
- CYLINDER BLOCK
- ENGINE EXPLODED VIEW
- OIL PAN
- CYLINDER HEAD
- GEAR CASE
- MAIN BEARING CASE
- VALVE ROCKER ARM
- CYLINDER HEAD COVER
- CAMSHAFT
- PISTON & CRANK SHAFT
- FLYWHEEL
- NOZZLE, HOLDER
- FUEL CAMSHAFT
- SPEED CONTROL PLATE
- ENGINE STOP LEVER
- GOVERNOR
- WATER HOSE
- DYNAMO
- MAINFOLD
- ECU & SENSOR
- TRANSMISSION
- SPECIFICATIONS
- GENERAL SPECIFICATIONS
- TIGHTENING TORQUE FOR MAJOR COMPONENTS
- SEALANT AND ADHESIVE SPECIFICATIONS
- STRUCTURE AND OPERATING PRINCIPLE
- MAIN GEAR SHIFT & SHUTTLE SYSTEM
- RANGE SHIFT SECTION
- PTO
- PTO CLUTCH PACK
- CALCULATION FOR REAR PTO AND MID PTO
- FRONT WHEEL DRIVE
- TROUBLESHOOTING
- EXPLODED VIEW OF TRANSMISSION TRANSMISSION
- HI-LOW GEAR
- BEVEL PINOIN GEAR
- PTO GEAR
- 4WD DRIVE
- 4WD JOINT
- SERVICING
- TRANSMISSION REMOVAL
- FWD CASE REMOVAL
- TRANSMISSION CASE DISASSEMBLY
- PTO DRIVE SECTION DISASSEMBLY
- PTO CLUTCH ASSEMBLY DISASSEMBLY
- HST
- SPECIFICATIONS
- GENERAL
- HST
- MAJOR TIGHTENING TORQUE
- OPERATING PRINCIPLE
- STRUCTURE AND FUNCTION
- POWER TRAIN
- HST COMPONENTS
- MAJOR HST COMPONENT STRUCTURE AND FUNCTION
- Circuit Diagram
- Pump, motor and swash plate
- Charge relief valve
- High pressure relief valve
- OPERATION OF HST
- Neutral status
- FORWARD DRIVING
- Reverse driving
- INSPECTION AND ADJUSTMENT
- HST NEURAL POSITION SETTING
- HST FORWARD PEDAL TRAVEL ADJUSTMENT
- PRESSUE TESTING
- HIGH PRESSURE RELIEF VALVES
- TROUBLESHOOTING
- EXPLODED VIEW OF HST
- MAIN SHAFT JOINT
- HST PEDAL
- ASSY, HST
- SERVICING
- HST REMOVAL
- HST COMPONENTS DISASSEMBLY
- REAR AXLE
- SPECIFICATIONS
- TRANSMISSION FLUID
- TIGHTENING TORQUES
- OPERATING PRINCIPLE
- POWER TRAIN OF REAR AXLE
- PRINCIPLE OF DIFFERENTIAL SYSTEM
- DIFFERENTIAL LOCK SYSTEM
- TROUBLESHOOTING
- MEASUREMENT AND ADJUSTMENT
- BACKLASH FOR DIFFERENTIAL PINION AND SIDE GEAR
- PRELOAD OF TAPER ROLLER BEARING IN DIFF.
- BACKLASH FOR SPIRAL BEVEL PINION AND RING GEAR
- TOOTH CONTACT OF SPIRAL BEVEL
- EXPLODED VIEW OF REAR AXLE
- REAR DIFFERENTIAL SYSTEM
- REAR AXLE
- SERVICING
- REAR AXLE REMOVAL
- REAR DIFFERENTIAL SYSTEM REMOVAL
- REAR DIFFERENTIAL SYSTEM ASSEMBLY DISASSEMBLY
- BRAKE
- SPECIFICATIONS
- BASIC OPERATING PRINCIPLE
- TROUBLESHOOTING
- INSPECTION AND ADJUSTMENT
- BRAKE PEDAL FREE PLAY
- BRAKE SWITCH SETTING (OPTIONAL)
- PARKING BRAKE SWITCH ADJUSTMENT
- BRAKE CAM LEVER FREE PLAY
- BRAKE COMPONENTS INSPECTION
- EXPLODED VIEW OF BRAKE
- SERVICING
- FRONT AXLE
- SPECIFICATIONS
- GENERAL SPECIFICATIONS
- SEALANT AND ADHESIVE
- TIGHTENING TORQUE FOR MAJOR COMPONENTS
- OPERATING PRINCIPLE
- POWER TRANSFER SYSTEM FOR FRONT AXLE
- DIFFERENTIAL SYSTEM
- LOAD TRANSFER
- TROUBLESHOOTING
- MEASUREMENT AND ADJUSTMENT
- TOE-IN
- BACKLASH FOR SPIRAL BEVEL PINION AND 17 SPIRAL BEVEL GEAR
- TOOTH CONTACT OF SPIRAL BEVEL GEAR
- EXPLODED VIEW OF FRONT AXLE
- FRONT AXLE SUPPORT
- BEVEL GEAR CASE
- FRONT AXLE CASE
- FRONT AXLE
- SERVICING
- FRONT AXLE REMOVAL
- FRONT AXLE DISASSEMBLY AND ASSEMBLY
- STEERING CYLINDER REMOVAL
- FRONT AXLE COVER DISASSEMBLY
- BEVEL GEAR CASE DISASSEMBLY
- FRONT DIFFERENTIAL SYSTEM DISASSEMBLY
- BEVEL PINION SHAFT REMOVAL
- STEERING SYSTEM
- SPECIFICATIONS
- STEERING CYLINDER
- STEERING UNIT
- TIGHTENING TORQUE FOR MAIN COMPONENTS
- OPERATING PRINCIPLE
- HYDRAULIC CIRCUIT FOR STEERING OPERATION
- OPERATING PRINCIPLE
- STRUCTURE
- TROUBLESHOOTING
- INSPECTION AND ADJUSTMENT
- STEERING RELIEF OPENING PRESSURE
- RELIEF VALVE PRESSURE ADJUSTMENT
- EXPLODED VIEW OF STEERING SYSTEM
- STEERING CYLINDER
- STEERING & HAND ACCEL
- POWER STEERING UNIT
- SERVICING
- STEERING CYLINDER
- STEERING UNIT REMOVAL
- DISASSEMBLY OF POWER STEERING UNIT COMPONENTS
- INSPECTION
- INSTALLATION
- STEERING HYDRAULIC TUBE LOCATION
- HYDRAULIC SYSTEM
- SPECIFICATIONS
- OPERATING PRINCIPLE
- SCHEMATIC AND CIRCUIT DIAGRAM
- HYDRAULIC SCHEMATIC AND BASIC OPERATION
- COMPONENTS
- OIL FILTER
- AUXILIARY DOUBLE ACTING VALVE (OPTIONAL)
- PCV (POSITION CONTROL VALVE)
- MOWER LIFT LINKAGE
- TROUBLESHOOTING
- INSPECTION AND ADJUSTMENT
- MAIN SYSTEM RELIEF VALVE
- AUX. DOUBLE ACTING VALVE PRESSURE (OPTIONAL)
- FEEDBACK PLATE ADJUSTMENT
- EXPLODED VIEW OF HYDRAULIC SYSTEM
- HYD.CYLINDER
- FILTER AND PIPE
- GEAR PUMP
- CONTROL VALVE
- DOUBLE ACTING VALVE
- REAR HYDRAULIC PIPE (OPTION)
- FRONT HYDRAULIC PIPE (OPTION)
- SHUT-OFF VALVE (OPTION)
- SERVICING
- HYDRAULIC CYLINDER REMOVAL & DISASSEMBLY
- DOUBLE ACTING VALVE (OPTIONAL)
- DISASSEMBLY AND ASSEMBLY
- DOUBLE ACTING VALVE COMPONENTS REMOVAL AND INSTALLATION
- GEAR PUMP DISASSEMBLY
- GEAR PUMP REMOVAL
- GEAR PUMP DISASSEMBLY
- PCV (POSITION CONTROL VALVE) DISASSEMBLY AND ASSEMBLY
- CONTROL VALVE COMPONENTS DISASSEMBLY
- ASSEMBLY
- HYDRAULIC SCHEMATIC
- ELECTRIC SYSTEM
- SPECIFICATIONS
- GENERAL INFORMATION
- SYMBOLS FOR ELECTRIC COMPONENT
- SWIRING COLOR IDENTIFICATION
- FUSE
- INSPECTION
- CAUSE FOR BLOWN FUSE
- ELECTRIC DEVICE DIAGNOSIS
- CHECKING ELECTRIC PARTS
- FUSE BOX
- SLOW-BLOW FUSE
- KEY SWITCH
- COMBINATION SWITCH
- FLASHER UNIT
- 5P RELAY
- RELAY 70 A
- HAZARD WARNING FLASHER SWITCH
- GLOW PLUG
- ENGINE STOP SOLENOID
- NTE CONTROLLER [CT1025HD]
- ACTUATOR (NTE CONTROL SOLENOID) [CT1025HD]
- BAROMETRIC SENSOR [CT1025HD
- ]PARKING BRAKE MICRO SWITCH
- BRAKE SWITCH (OPTIONAL)
- INSTRUMENT PANEL
- COMPONENTS AND LOCATIONS
- CIRCUIT DIAGRAM FOR INSTRUMENT PANEL
- GAUGES AND INDICATORS
- OIL PRESSURE SWITCH
- DUAL TEMPERATURE SWITCH
- FUEL SENDER
- ALTERNATOR
- PREHEAT CONTROLLER [CT1021HD]
- TIMER RELAY [CT1021HD]
- HEAD LAMP
- TURN SIGNAL LAMP
- TAIL LAMP
- TROUBLESHOOTING
- WHEN THE ENGINE CANNOT BE STARTED
- WHEN THE SYSTEM IS NOT CHARGED
- WHEN THE SYSTEM IS NOT PREHEATED MANUALLY [CT1021HD]
- WHEN THE SYSTEM IS NOT PREHEATED AUTOMATICALLY
- WHEN THE CRUISE SYSTEM CANNOT BE OPERATED (OPTIONAL)
- WHEN HEAD LAMP CANNOT BE OPERATED
- TACHOMETER OPERATION WITH THE ENGINE RUNNING
- FUEL GAUGE OPERATION
- TEMPERATURE GAUGE OPERATION
- HOUR METER OPERATION
- EXPLODED VIEW OF ELECTRIC SYSTEM
- BONNET ELECTRICAL SYSTEM GROUP
- BODY ELECTRICAL SYSTEM GROUP
- WIRE HARNESS GROUP
- WIRE HARNESS GROUP
- LIGHT GROUP
- MISSION ELECTRICAL SYSTEM GROUP
- FENDER
- HEAD LAMP
- ELECTRICAL SCHEMATICS
- INDEX
- 4WD DRIVE
- 4WD JOINT
- 5P RELAY
- ACTUATOR (NTE CONTROL SOLENOID) [CT1025]
- ALERT SYMBOLS
- ALTERNATOR
- AMERICAN STANDARD SCREWS, BOLTS AND NUTS WITH UNC OR UNF THREADS
- ASSY, HST
- AUX. DOUBLE ACTING VALVE PRESSURE (OPTIONAL)
- AVOID FIRES
- BACKLASH FOR DIFFERENTIAL PINION AND SIDE GEAR
- BACKLASH FOR SPIRAL BEVEL PINION AND 17 SPIRAL BEVEL GEAR
- BACKLASH FOR SPIRAL BEVEL PINION AND RING GEAR
- BAROMETRIC SENSOR [CT1025]
- BASIC OPERATING PRINCIPLE
- BASIC PRINCIPLE
- BATTERY
- BEVEL GEARCASE
- BEVEL PINOIN GEAR
- BODY AND POWER TRAIN
- BODY ELECTRICAL SYSTEM GROUP
- BONNET ELECTRICAL SYSTEM GROUP
- BRAKE
- BRAKE CAM LEVER FREEPLAY
- BRAKE COMPONENTS INSPECTION
- BRAKE PARTS REMOVAL
- BRAKE PEDAL
- BRAKE PEDAL FREEPLAY
- BRAKE SWITCH
- BRAKE SWITCH SETTING (OPTIONAL)
- BRAKING FORCE FORWARD / REVERSE DRIVING
- BUBBLE TEST FOR RADIATOR
- CAMSHAFT
- CAUTIONS FOR HIGH PRESSURE HOSES
- CAUTIONS WHEN HANDLING THE BATTERY
- CAUTIONS WHEN HANDLING TIRES
- CHECKING AND ADJUSTING THE INJECTION TIMING
- CHECKING ELECTRIC PARTS
- COMBINATION SWITCH
- COMPONENTS
- CONTROL VALVE
- COOLING SYSTEM
- CRANKSHAFT CHECK
- CYLINDER BLOCK
- CYLINDER HEAD
- CYLINDER HEAD CHECK
- CYLINDER HEAD COVER
- DIFFERENTIAL LOCK SYSTEM
- DIFFERENTIAL SYSTEM
- DIMENSTIONS
- DISASSEMBLY, SERVICE AND ASSEMBLY
- DISPOSAL OF ENVIRONMENTAL WASTE
- DOUBLE ACTING VALVE
- DOUBLE ACTING VALVE (OPTIONAL)
- DRIVING SPEED
- DUAL TEMPERATURE SWITCH
- DYNAMO
- ECU & SENSOR
- ELECTRIC DEVICE DIAGNOSIS
- ENGINE COMPONENT DISASSEMBLY AND ASSEMBLY
- ENGINE COMPONENT DISASSEMBLY AND ASSEMBLY
- ENGINE DIMENSIONS
- ENGINE DIMENSIONS
- ENGINE EXPLODED VIEW
- ENGINE IDENTIFICATION
- ENGINE IDENTIFICATION
- ENGINE OIL PRESSURE
- ENGINE REMOVAL
- ENGINE SERIAL NUMBER LOCATION
- ENGINE STOP LEVER
- ENGINE STOP SOLENOID
- ENGINE VIEWS
- ENGINE VIEWS
- EXPLODED VIEW OF BRAKE
- EXPLODED VIEW OF ELECTRIC SYSTEM
- EXPLODED VIEW OF FRONT AXLE
- EXPLODED VIEW OF HST
- EXPLODED VIEW OF HYDRAULIC SYSTEM
- EXPLODED VIEW OF REAR AXLE
- EXPLODED VIEW OF STEERING SYSTEM
- EXPLODED VIEW OF TRANSMISSION
- FAN BELT TENSION ADJUSTMENT
- FEEDBACK PLATE ADJUSTMENT
- FENDER
- FILTER AND PIPE
- FLASHER UNIT
- FLYWHEEL
- FLYWHEEL DEFLECTION AND CRANKSHAFT END PLAY CHECK
- FOR SAFETY
- FRONT AXLE
- FRONT AXLE CASE
- FRONT AXLE DISASSEMBLY AND ASSEMBLY
- FRONT AXLE REMOVAL
- FRONT AXLE SUPPORT
- FRONT HYDRAULIC PIPE (OPTION)
- FRONT WHEEL DRIVE
- FUEL CAMSHAFT
- FUEL GAUGE OPERATION
- FUEL SENDER
- FUEL SYSTEM
- FUSE
- FUSE BOX
- FWD CASE REMOVAL
- GEAR ARRANGEMENT
- GEARCASE
- GEAR PUMP
- GEAR PUMP DISASSEMBLY
- GENERAL
- GERNERAL INFORMATION
- GERNERAL INFORMATION
- GENERAL INFORMATION
- GENERAL SPECIFICATIONS
- GENERAL SPECIFICATIONS
- GENERAL SPECIFICATIONS
- GENERAL SPECIFICATIONS
- GENERAL USE SCREWS, BOLTS AND NUTS
- GLOW PLUG
- GOVERNOR
- GOVERNOR SYSTEM
- GOVERNOR SYSTEM
- HANDLING OF HAZARDOUS MATERIALS
- HANDLING OF ROTATING BLADE, SHAFT AND DRIVING BELT
- HAZARD WARNING FLASHER SWITCH
- HEAD LAMP
- HEAD LAMP
- HI-LOW GEAR
- HOUR METER OPERATION
- HST
- HST COMPONENTS
- HST COMPONENTS DISASSEMBLY
- HST FORWARD PEDAL TRAVEL ADJUSTMENT
- HST NEURAL POSITION SETTING
- HST PEDAL
- HST REMOVAL
- HYD.CYLINDER
- HYDRAULIC CIRCUIT FOR STEERING OPERATION
- HYDRAULIC CYLINDER REMOVAL & DISASSEMBLY
- IDENTIFICATION NUMBER
- INJECTION NOZZLE INSPECTION
- INSPECTION AND ADJUSTMENT
- INSPECTION AND ADJUSTMENT
- INSPECTION AND ADJUSTMENT
- INSPECTION AND ADJUSTMENT
- INSPECTION AND ADJUSTMENT
- INSTRUMENT PANEL
- INTAKE AND EXHAUST SYSTEM
- INTAKE AND EXHAUST SYSTEM
- INTAKE AND EXHAUST VALVES
- KEY SWITCH
- LIGHT GROUP
- LOAD TRANSFER
- LUBRICATION SYSTEM
- MAINBEARING CASE
- MAINFOLD
- MAIN GEAR SHIFT & SHUTTLE SYSTEM
- MAIN SHAFT JOINT
- MAIN SYSTEM RELIEF VALVE
- MAINTENANCE SCHEDULE CHART
- MAJOR HST COMPONENT STRUCTURE AND FUNCTION
- MAJOR TIGHTENING TORQUE
- MEASUREMENT AND ADJUSTMENT
- MEASUREMENT AND ADJUSTMENT
- MEASURING THE PISTON COMPRESSION PRESSURE
- MISSION ELECTRICAL SYSTEM GROUP
- NOZZLE, HOLDER
- NTE CONTROLLER [CT1025]
- NTE CONTROLLER & SENSORS
- OIL PAN
- OIL PRESSURE SWITCH
- OIL PUMP CHECK
- OPERATING PRINCIPLE
- OPERATING PRINCIPLE
- OPERATING PRINCIPLE
- OPERATING PRINCIPLE
- OPERATING PRINCIPLE
- OPERATION OF HST
- PARKING BRAKE MICRO SWITCH
- PARKING BRAKE SWITCH ADJUSTMENT
- PCV (POSITION CONTROL VALVE) DISASSEMBLY AND ASSEMBLY
- PISTON CHECK
- PISTON & CRANKSHAFT
- POWER FLOW
- POWER STEERING UNIT
- POWER TRAIN
- POWER TRAIN OF REAR AXLE
- POWER TRANSFER SYSTEM FOR FRONT AXLE
- PREHEAT CONTROLLER [CT1021]
- PRELOAD OF TAPER ROLLER BEARING IN DIFF.
- PRESSUE TESTING
- PREVENTION OF SCALD
- PRINCIPLE OF DIFFERENTIAL SYSTEM
- PTO
- PTO CLUTCH ASSEMBLY DISASSEMBLY
- PTO DRIVE SECTION DISASSEMBLY
- PTO GEAR
- RANGE SHIFT SECTION
- REAR AXLE
- REAR AXLE REMOVAL
- REAR DIFFERENTIAL SYSTEM
- REAR DIFFERENTIAL SYSTEM ASSEMBLY DISASSEMBLY
- REAR DIFFERENTIAL SYSTEM REMOVAL
- REAR HYDRAULIC PIPE (OPTION)
- RELAY 70 A
- RELIEF VALVE PRESSURE ADJUSTMENT
- ROCKER ARM ASSEMBLY CHECK
- SAFETY DECALS
- SAFETY GEAR
- SAFETY INSTRUCTIONS WHEN PREPARING TRACTOR
- SAFETY TIPS
- SCHEMATIC AND CIRCUIT DIAGRAM
- SEALANT AND ADHESIVE
- SEALANT AND ADHESIVE SPECIFICATIONS
- SERVICE SPECIFICATIONS
- SERVICING
- SERVICING
- SERVICING
- SERVICING
- SERVICING
- SERVICING
- SERVICING
- SHUT-OFF VALVE (OPTION)
- SLOW-BLOW FUSE
- SPECIFICATIONS
- SPECIFICATIONS
- SPECIFICATIONS
- SPECIFICATIONS
- SPECIFICATIONS
- SPECIFICATIONS
- SPECIFICATIONS
- SPECIFICATIONS
- SPECIFICATIONS
- SPECIFICATIONS
- SPECIFICATIONS
- SPEED CONTROL PLATE
- STEERING CYLINDER
- STEERING CYLINDER
- STEERING CYLINDER
- STEERING & HAND ACCEL
- STEERING HYDRAULIC TUBE LOCATION
- STEERING RELIEF OPENING PRESSURE
- STEERING UNIT
- STEERING UNIT REMOVAL
- STRUCTURE
- STRUCTURE AND FUNCTION
- STRUCTURE AND FUNCTION
- STRUCTURE AND OPERATING PRINCIPLE
- STUD BOLTS
- SYMBOLS FOR ELECTRIC COMPONENT
- TACHOMETER OPERATION WITH THE ENGINE RUNNING
- TAIL LAMP
- TEMPERATURE GAUGE OPERATION
- TIGHTENING TORQUE
- TIGHTENING TORQUE FOR MAIN COMPONENTS
- TIGHTENING TORQUE FOR MAJOR COMPONENTS
- TIGHTENING TORQUE FOR MAJOR COMPONENTS
- TIGHTENING TORQUES
- TIMER RELAY [CT1021]
- TIMING GEAR
- TOE-IN
- TOOTH CONTACT OF SPIRAL BEVEL
- TOOTH CONTACT OF SPIRAL BEVEL GEAR
- TRACTOR SERIAL NUMBER LOCATION
- TRANSMISSION CASE DISASSEMBLY
- TRANSMISSION FLUID
- TRANSMISSION NUMBER
- TRANSMISSION REMOVAL
- TROUBLESHOOTING
- TROUBLESHOOTING
- TROUBLESHOOTING
- TROUBLESHOOTING
- TROUBLESHOOTING
- TROUBLESHOOTING
- TROUBLESHOOTING
- TURN SIGNAL LAMP
- UNIT CONVERSION TABLE
- USE OF APPROPRIATE TOOLS AND EQUIPMENT
- VALVE ROCKER ARM
- WATER HOSE
- WHEN HEAD LAMP CANNOT BE OPERATED
- WHEN THE CRUISE SYSTEM CANNOT BE OPERATED (OPTIONAL)
- WHEN THE ENGINE CANNOT BE STARTED
- WHEN THE SYSTEM IS NOT CHARGED
- WHEN THE SYSTEM IS NOT PREHEATED AUTOMATICALLY
- WHEN THE SYSTEM IS NOT PREHEATED MANUALLY [CT1021HD]
- WIRE HARNESS GROUP
- WIRE HARNESS GROUP
- WORK PLACE
Bobcat Software
Bobcat PDF Manuals
