Tadano RF80C-76F4 and RF80M-77J0 Transmission Service Manual

A torque converter and transmission sits between the engine and the drive line on a crane like the RF80C-76F4 or RF80M-77J0. It takes engine power, multiplies torque at low speed and passes it through the gear sets to the wheels. When it slips, runs hot or shifts badly, the crane is parked. A fleet mechanic or independent shop reaches for the service manual to find the fault and fix it in-house instead of waiting on an outside rebuild.

What this manual helps you do

• Diagnose shift and drive complaints using the troubleshooting section.
• Follow the disassembly and reassembly sequence when you pull the unit apart on the bench.
• Check wear limits against the maintenance standards before you decide to reuse or replace a part.
• Verify the unit after a rebuild by running through the test section.
• Review the oil section for fluid requirements, and read the structure and function sections to understand how the clutches, shafts and gear sets work together.

Who this is for

A rental fleet mechanic or crane service technician who is repairing a transmission on one of these Tadano models without dealer support. It also suits an independent repair shop that takes in these cranes and needs the workshop procedures on hand.

FAQ

Q: What do I receive and how is it organised?

A: You get 1 PDF file of 66 pages in English, publication number W561-0101E. It runs from the foreword through structure, function, troubleshooting, disassembly, reassembly, oil, test, maintenance standards and the history of revision. The text is searchable, so you can jump straight to a symptom or a part name.

Q: Which machines does it fit?

A: It is written for the Tadano RF80C-76F4 and RF80M-77J0. The title on the manual is Torque Converter and Transmission Service Manual.

Q: How does it fit the job I'm doing?

A: If you're diagnosing, removing, rebuilding or testing the transmission, the manual follows that same order of work. You can print the disassembly pages for the bench and keep the maintenance standards open while you measure.

Print the pages you need, take them to the bench, and get the crane back on the road.

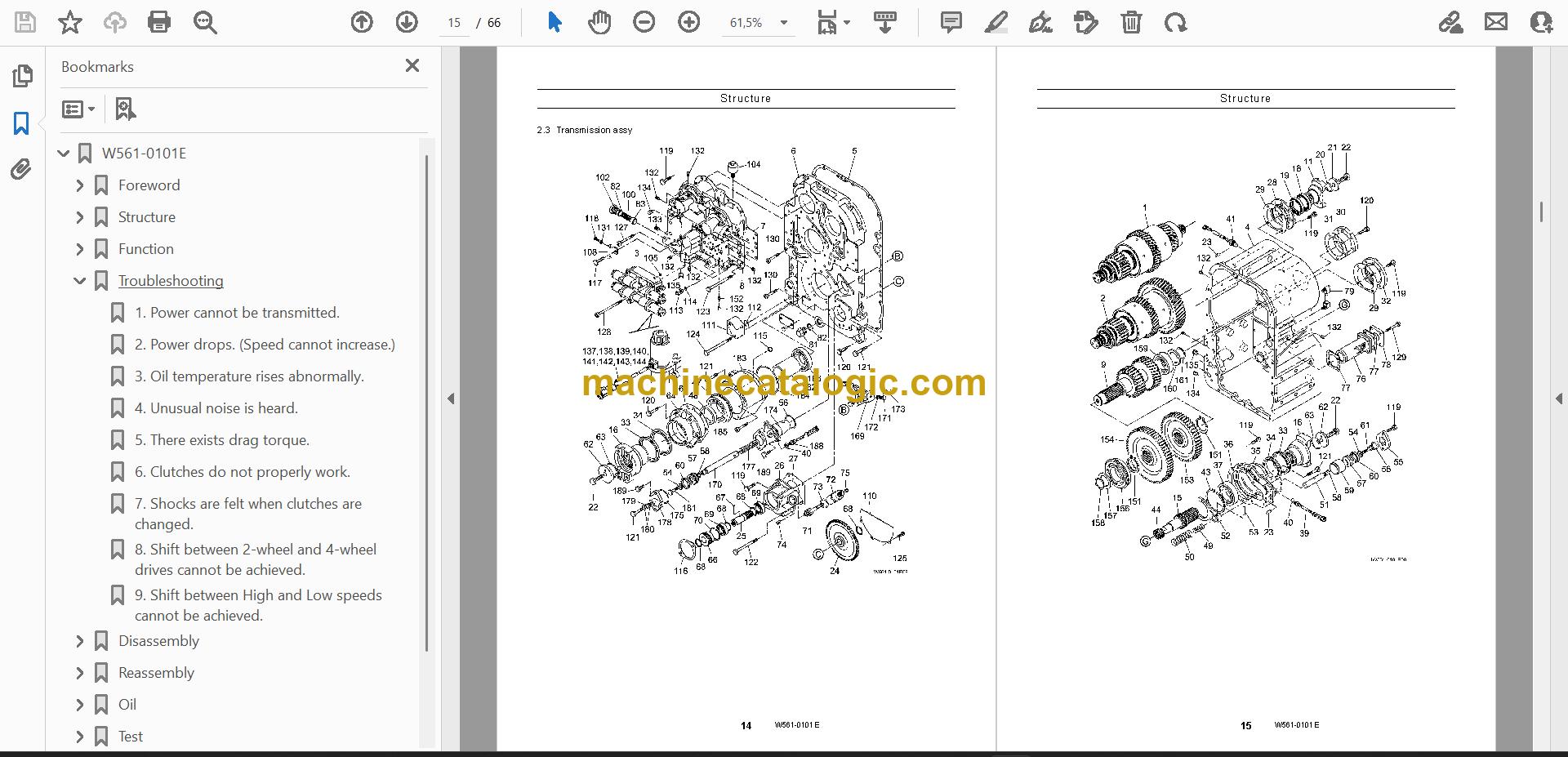

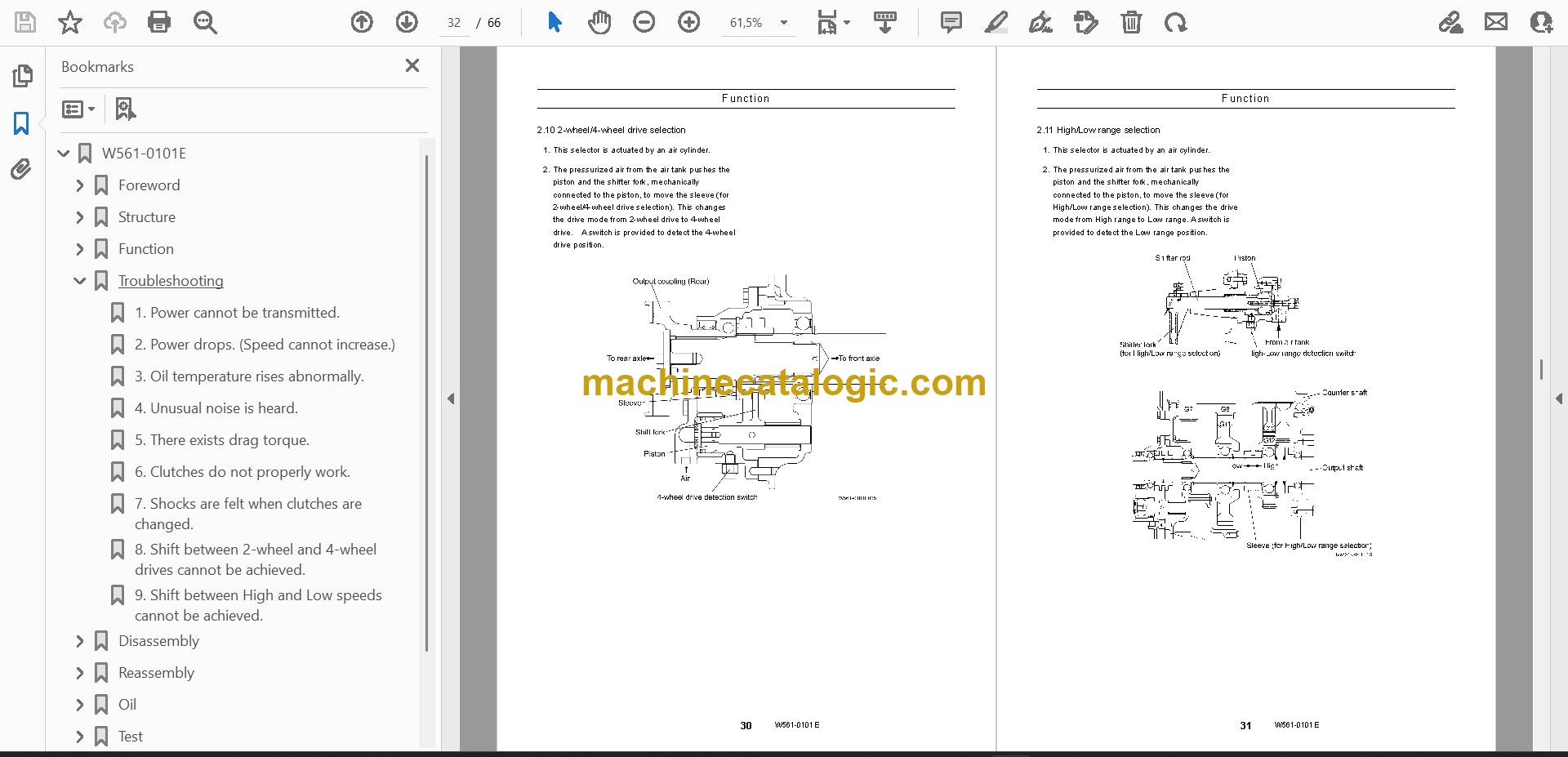

Click here to view the preview (PDF)
