Tadano GR-700EX-1 Rough Terrain Crane Parts Manual

The Tadano GR-700EX-1 is a rough terrain crane used on uneven job sites, with a telescopic boom and outriggers for setup and lifting work. Parts staff, fleet maintenance teams, and crane technicians use its parts manual to identify the correct component, check how an assembly is built, and order by the right item number.

What this manual helps you do

• Identify replacement parts from illustrated views, item numbers, descriptions, and quantities.
• Look up components by assembly, including carrier chassis, engine and drive train, hydraulic system, and electrical system.
• Match a part to the surrounding components before placing an order.
• Confirm which pieces belong together in areas such as the cab and superstructure, outriggers, and telescopic boom and hoist.
• Order the correct replacement part with a documented reference for the parts counter or service file.

Who this is for

This is for a rental fleet maintenance supervisor, parts counter, independent crane service shop, or dealer technician working on a Tadano GR-700EX-1. It gives the team a shared reference when a used crane arrives without complete documentation or a component needs identification.

FAQ

Q: What do I receive, and how is it organised?

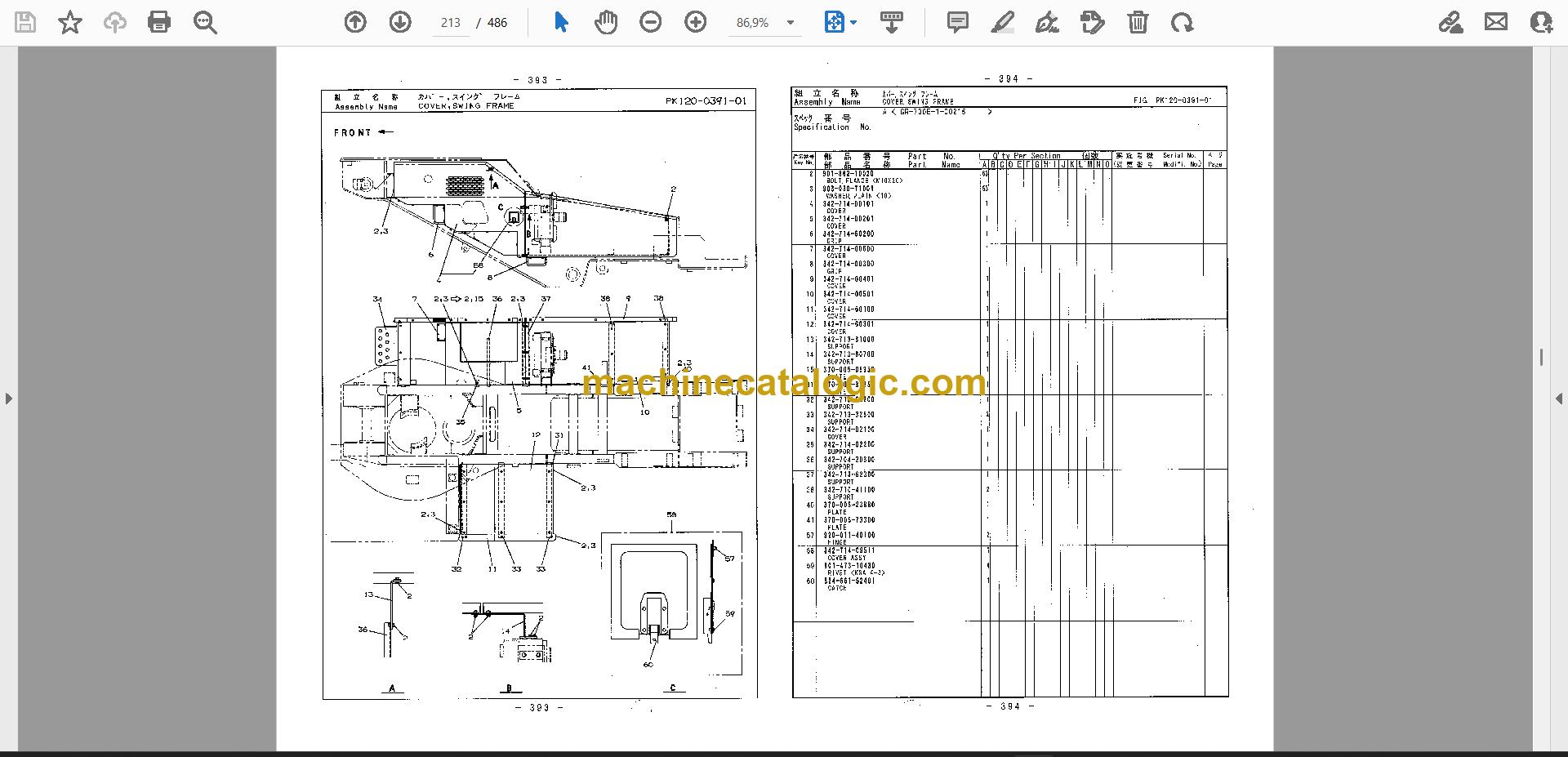

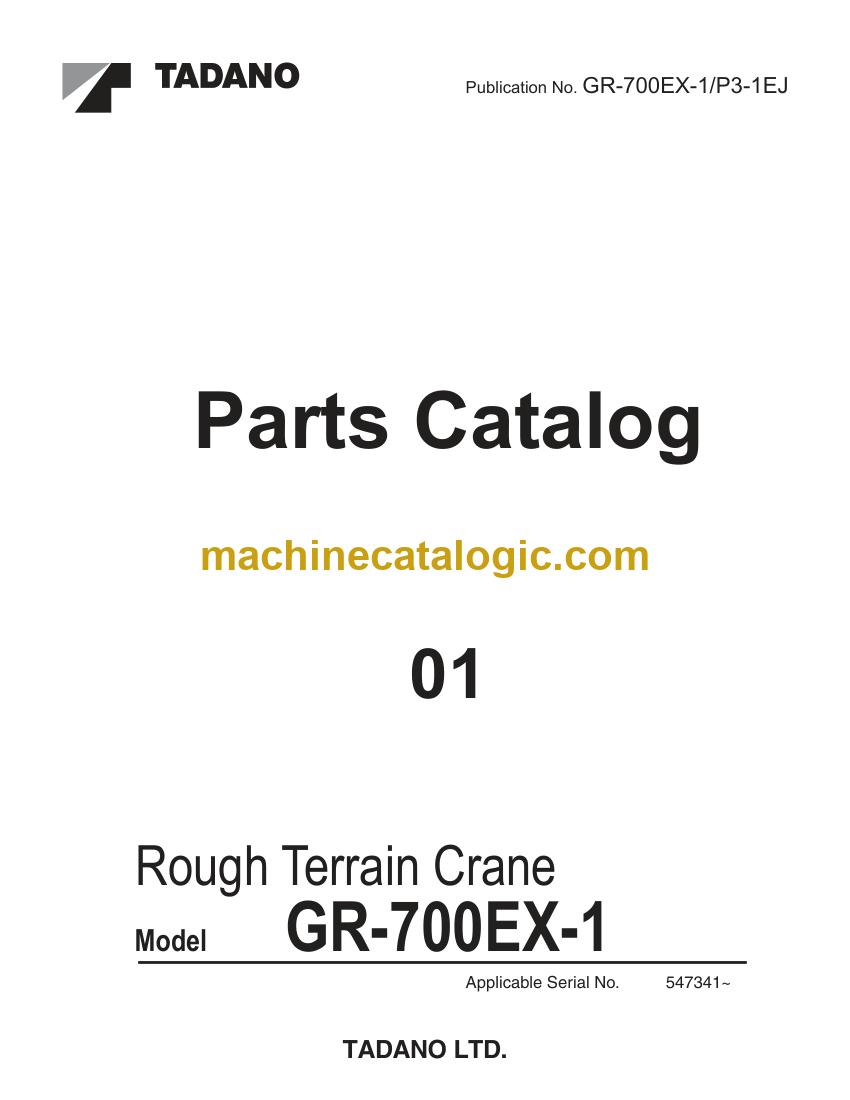

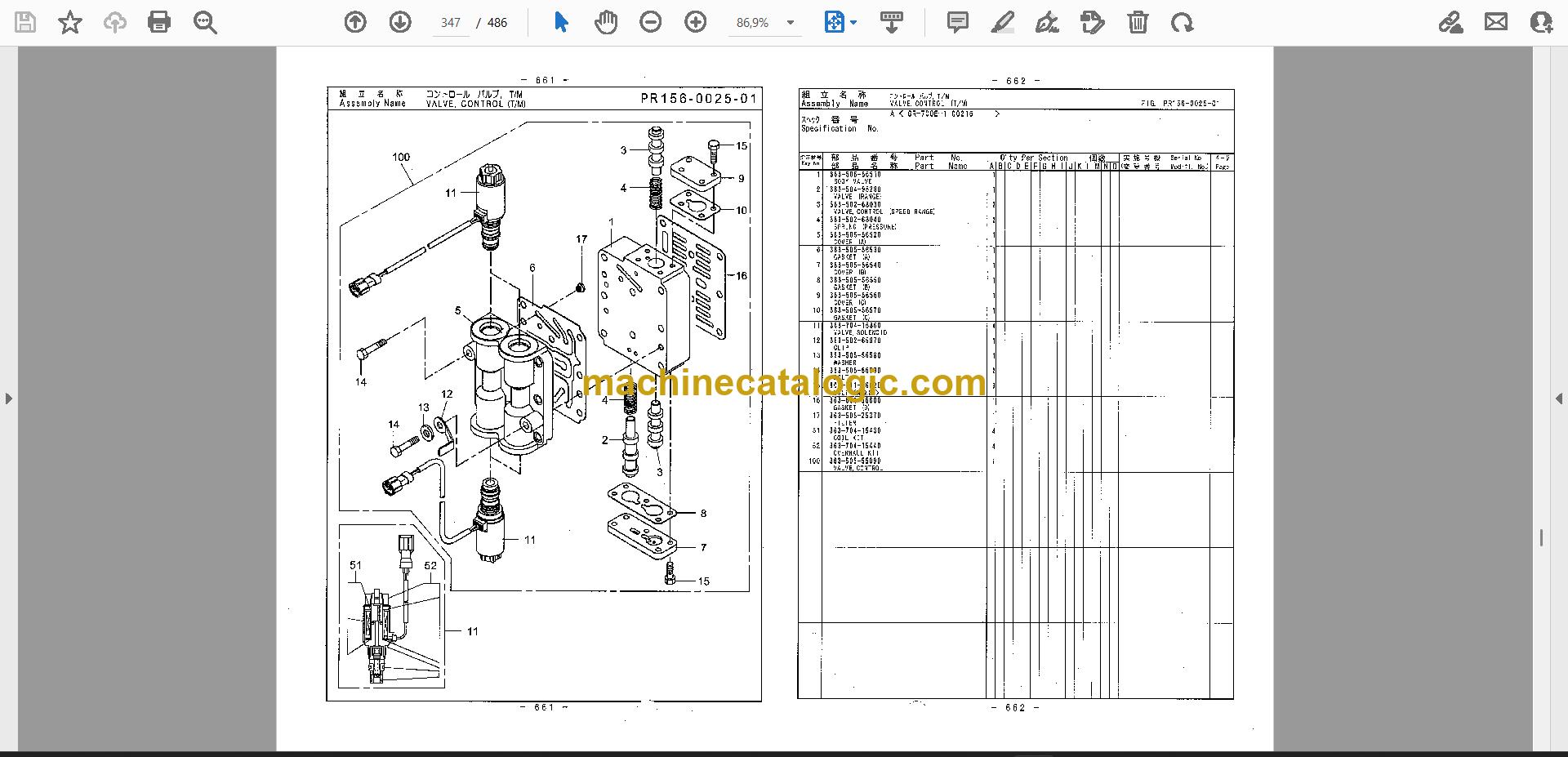

A: You receive one English PDF file with 486 pages. The publication is GR-700EX-1-P3-1EJ, titled “GR-700EX-1 Parts Catalog,” and is arranged as an illustrated parts catalog by crane assembly.

Q: Which machine and serial number does it fit?

A: It is for the Tadano GR-700EX-1 rough terrain crane. The main catalog cover shows serial number 547341 and up.

Q: How does it fit my maintenance work?

A: Use it when you need to identify a part, verify its assembly position, or give the parts counter a clear item reference for ordering. It supports day-to-day parts control and repair planning.

For the stated model and serial range, this manual gives your team a practical reference for identifying and ordering crane parts.

Click here to view the preview (PDF)

Does this manual fit your machine?

The serial number shown is the one printed on the catalog cover. Check the model and serial number on your machine's data plate before ordering.
