Tadano GR-550EX-1 Rough Terrain Crane Parts Manual

The Tadano GR-550EX-1 is a rough terrain crane used on uneven job sites, with a telescopic boom and outriggers. Parts departments, fleet maintenance teams and crane technicians use its parts manual to identify components and order the correct replacement. It gives the assembly breakdown needed when a part must be matched to the crane.

What this manual helps you do

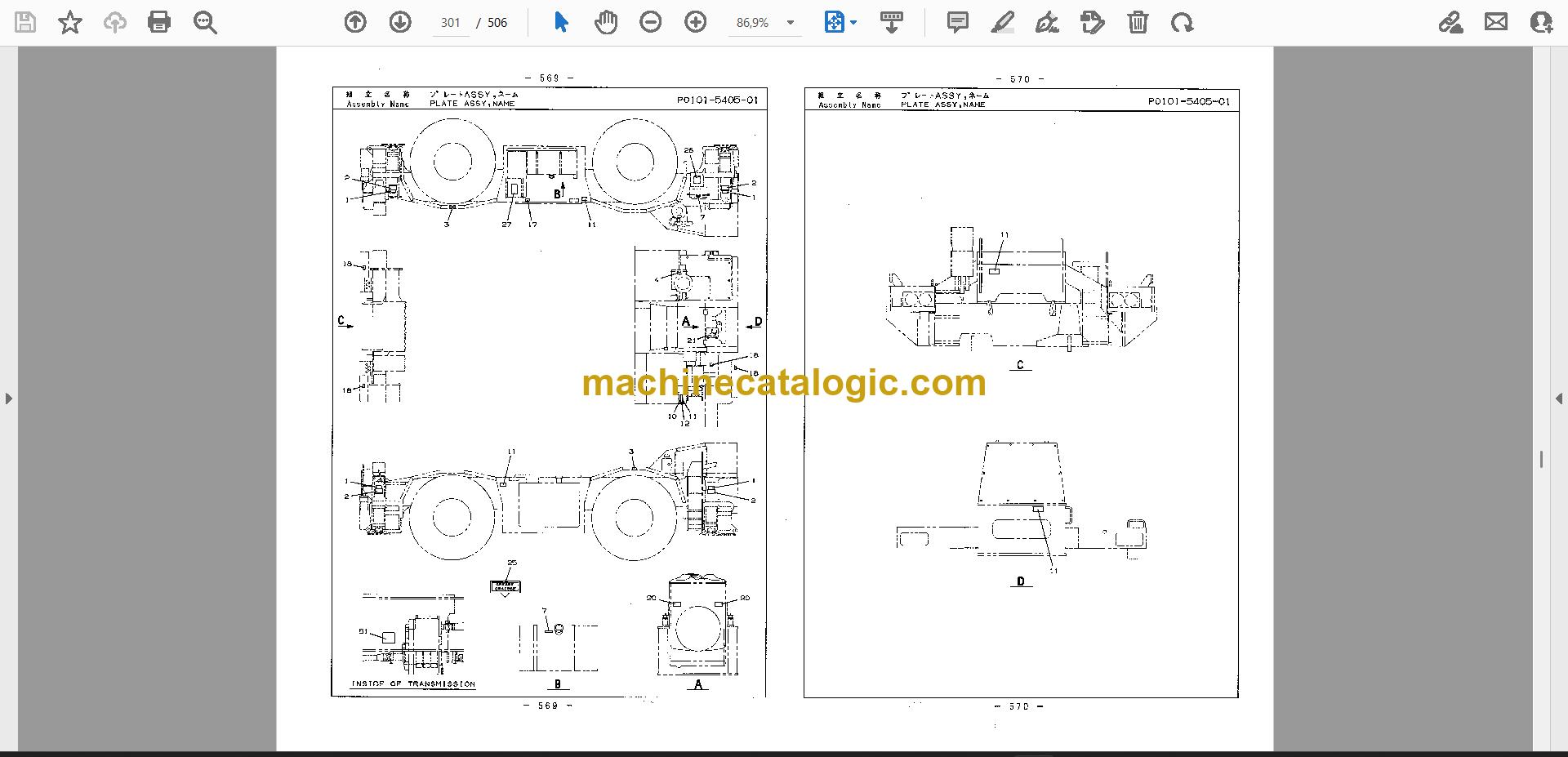

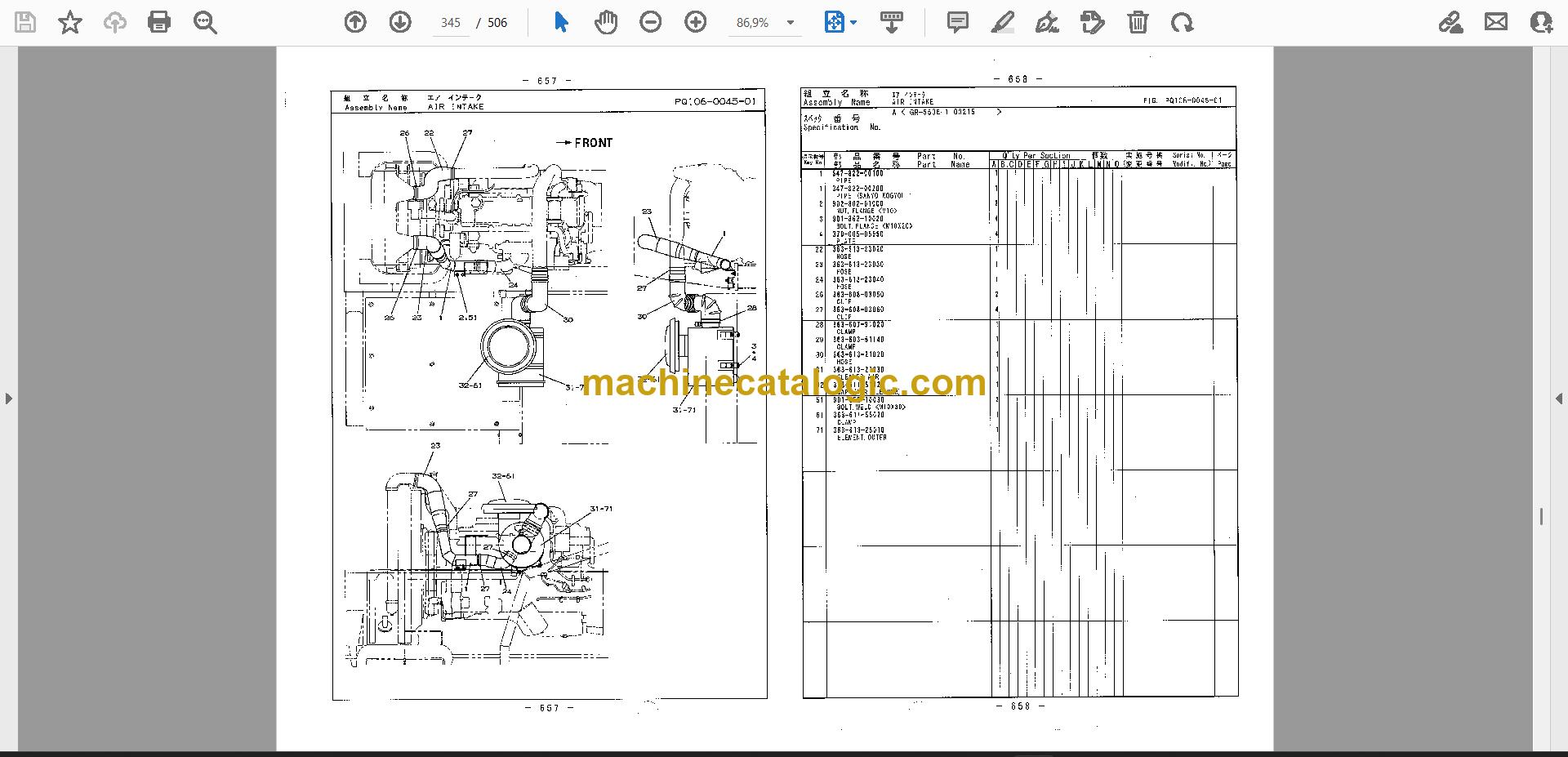

• Identify replacement parts from exploded-view drawings and item numbers.
• Look up part numbers, descriptions and quantities for ordering.
• Match components to the correct assembly, such as the hydraulic system or electrical system.
• Confirm how parts fit together before removing or ordering them.
• Order the right part using the catalog information and publication number GR-550EX-1-P4-1EJ.

Who this is for

This is for a parts counter, rental fleet maintenance team, independent crane service shop or dealer technician working on a Tadano GR-550EX-1. It is useful when the crane needs a replacement part identified by catalog reference.

FAQ

Q: What do I receive, and how is it organised?

A: You receive one English PDF file with 506 pages. It is organised as an illustrated parts catalog, with exploded views and parts information grouped by assembly.

Q: Which machine and serial number does it fit?

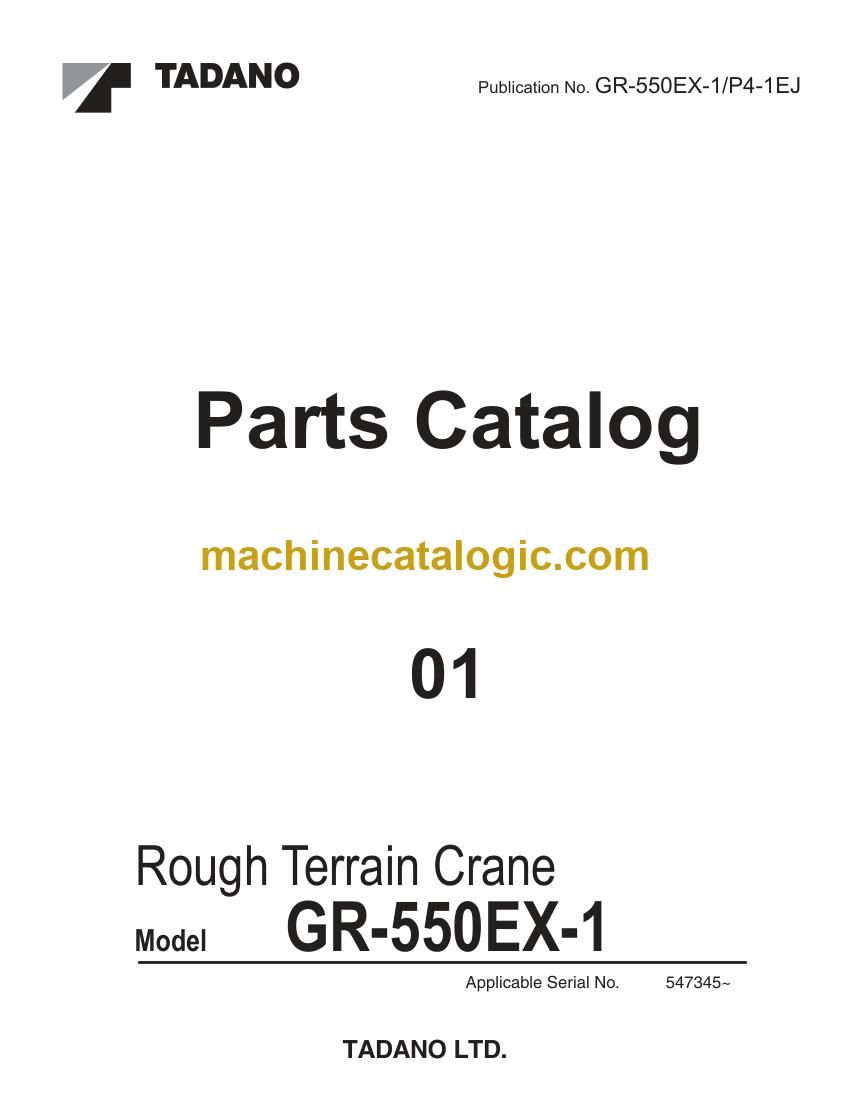

A: It is for the Tadano GR-550EX-1 Rough Terrain Crane. The catalog cover shows serial number 547345 and up, and the title is GR-550EX-1 Parts Catalog.

Q: Does it fit the job of identifying and ordering parts?

A: Yes. This is the document to open when you need to trace an assembly, identify an item number and match it to the part number, description and quantity for ordering.

Yes, choose this manual for a Tadano GR-550EX-1 with serial number 547345 and up. You can use it to identify assemblies and order the correct replacement parts.

Click here to view the preview (PDF)

Does this manual fit your machine?

The serial number shown is the one printed on the catalog cover. Check the model and serial number on your machine's data plate before ordering.
