ZF 6WG-250 Transmission Service Manual

The ZF 6WG-250 is a transmission fitted to cranes and other heavy machines. When it acts up, the machine sits, and a rental crane sitting is money lost. This service manual is for the person who has to keep it running: the mechanic doing the work in-house, or the shop that picked up a machine with no paperwork.

What this manual helps you do

• Check the technical data summary before you start, so you know what you're working against.
• Follow the installation instructions when you fit the transmission to a machine.
• Verify correct operation using the operation section after a repair or install.
• Set up a routine with the maintenance section and keep service work on schedule.

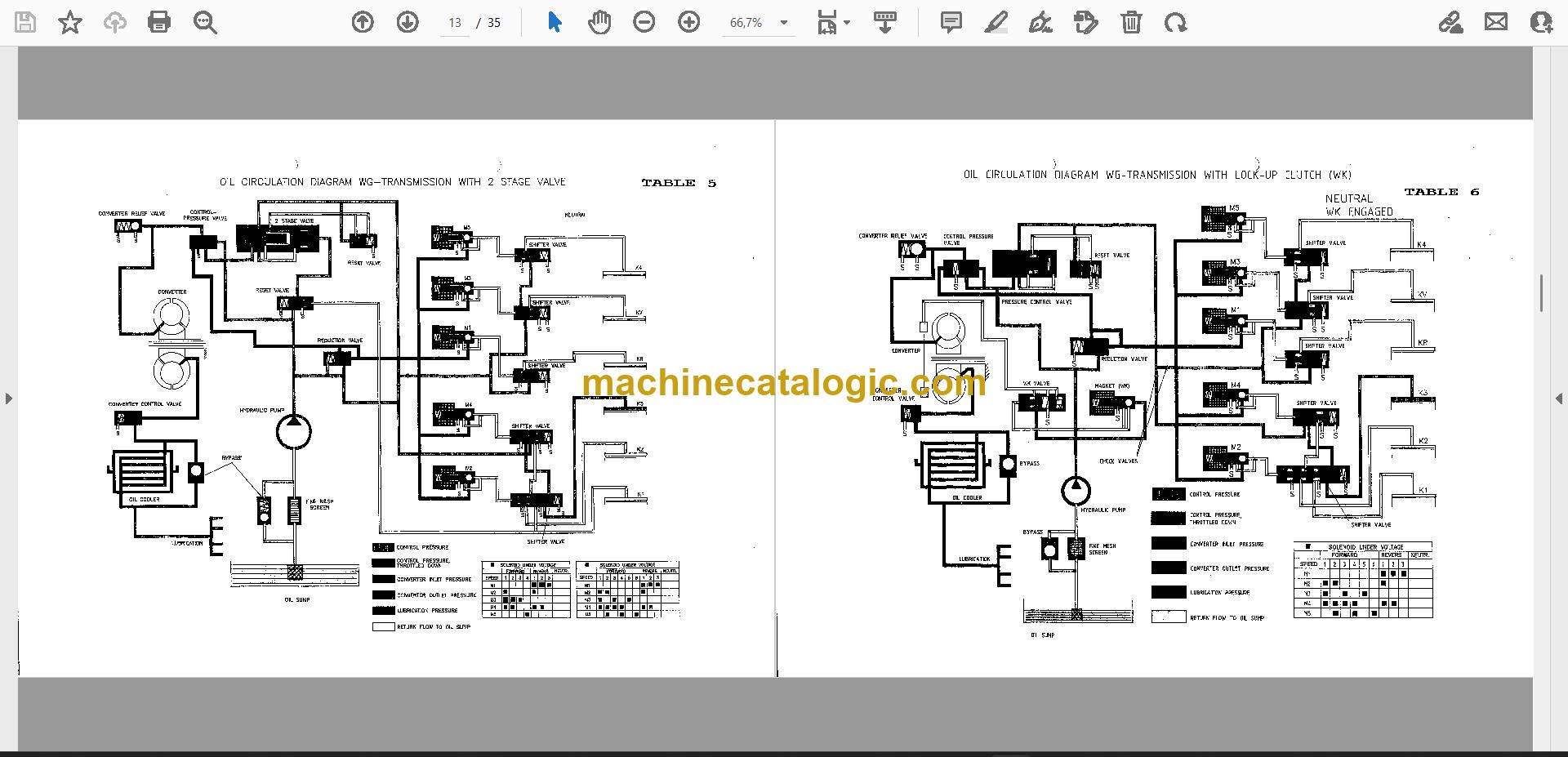

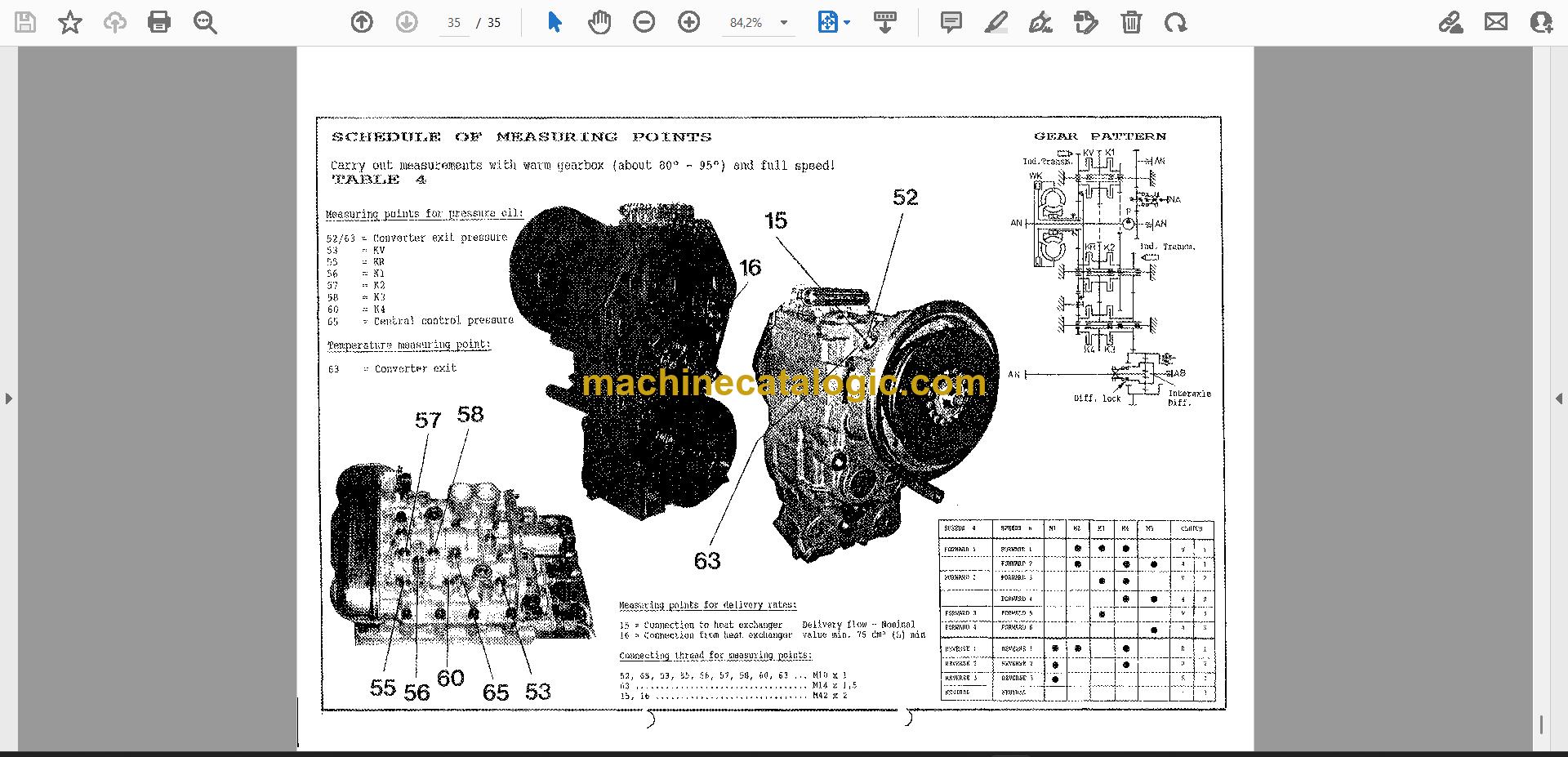

• Look up the tables in the appendix when you need reference data at the bench.

Who this is for

A rental fleet mechanic or crane service technician who handles transmission upkeep in-house. It also suits an independent repair shop that gets a machine with a 6WG-250 and wants the documentation on hand.

FAQ

Q: What do I receive and how is it organised?

A: One PDF file, 35 pages, in English. It runs through Summary of the Technical Data, Important Informations, Description, Installation Instructions, Operation and Maintenance, with an appendix of tables.

Q: Which transmission does it fit?

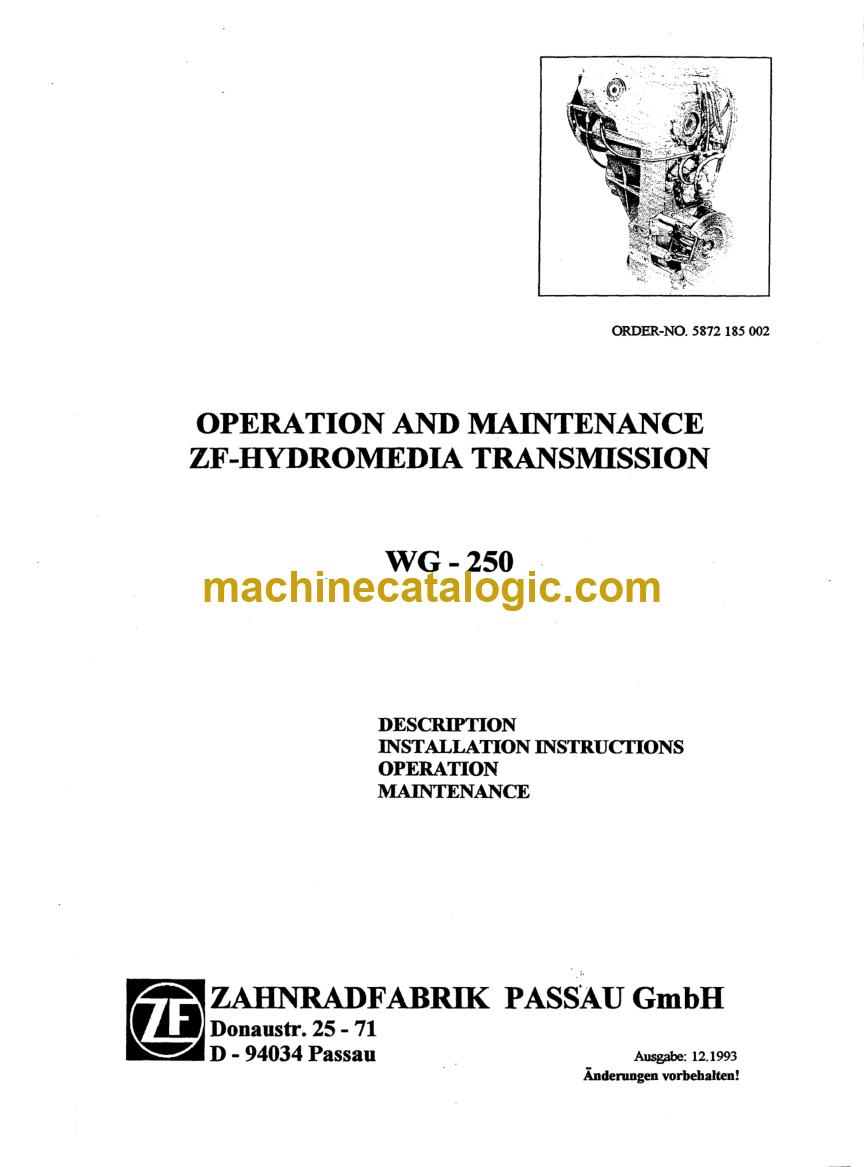

A: The ZF 6WG-250. The title wording on the manual is ZF Hydromedia WG-250 Operation and Maintenance, and the publication number is 5872 185 002.

Q: How does it fit the job I'm doing?

A: If you're installing, running or maintaining this transmission, the sections follow that order. It's the complete manual, so you can keep it with the machine's records and pull it up when the next service comes due.

Print it for the shop floor or keep the PDF on the service truck laptop, and you have the 6WG-250 documented for your fleet.

Click here to view the preview (PDF)
