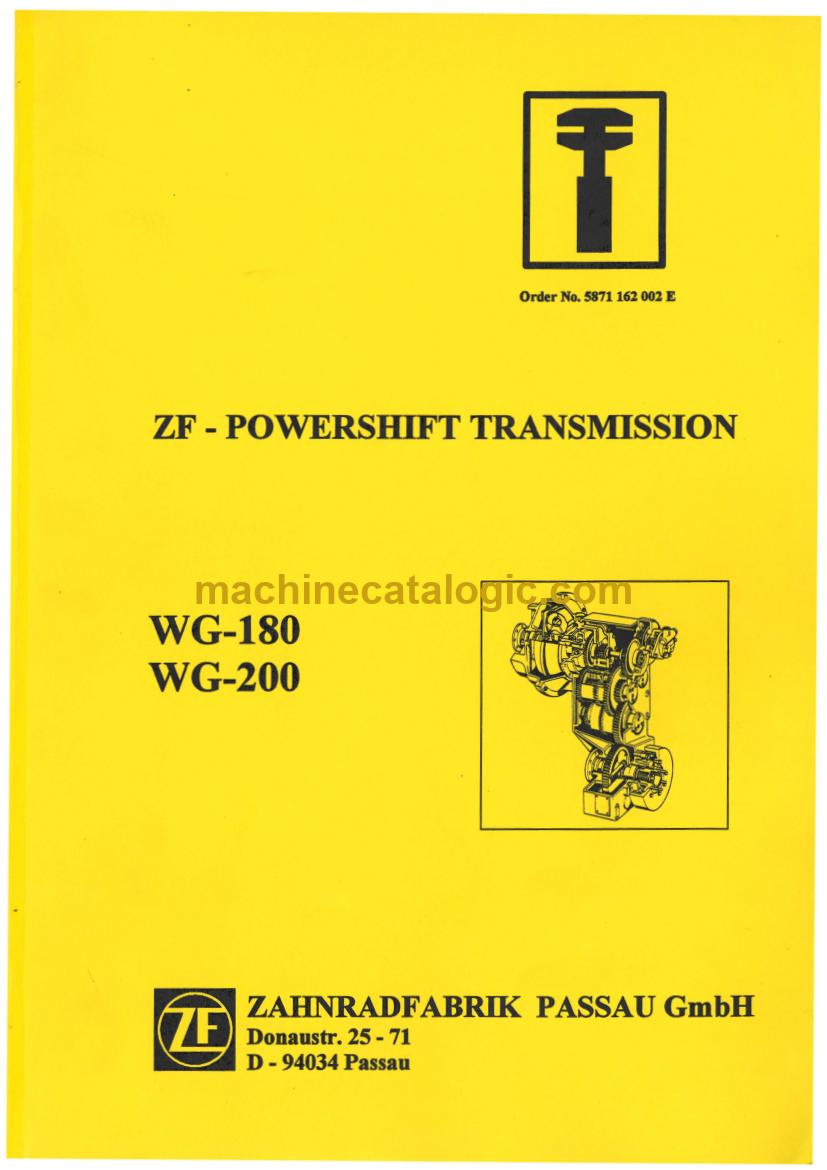

ZF WG-180 and WG-200 Transmission Service Manual

A powershift transmission like the WG-180 or WG-200 sits between the engine and the drivetrain on cranes and other heavy machines. It handles gear changes under load, and on this unit the retarder, axle declutch and power take-off sit alongside it. When one of these starts slipping, shifting hard or throwing faults, the machine is down. A fleet mechanic or in-house shop opens the service manual to find the procedure, fix the unit and get it back on the job.

What this manual helps you do

• Trace the electro-hydraulic gearbox control when a shift fault shows up
• Follow disassembly and assembly steps for the gearbox, retarder and axle declutch
• Check torque limits for screws before closing up a rebuilt unit
• Verify the right lubricant from the list of lubricants TE-ML 03
• Diagnose problems in the axle differential and the power take-off controllable under load

Who this is for

A crane service technician or rental fleet mechanic who repairs these transmissions in-house will get the most from it. Independent repair shops and plant maintenance crews working on machines with a WG-180 or WG-200 will find the same procedures useful.

FAQ

Q: What do I receive and how is it organised?

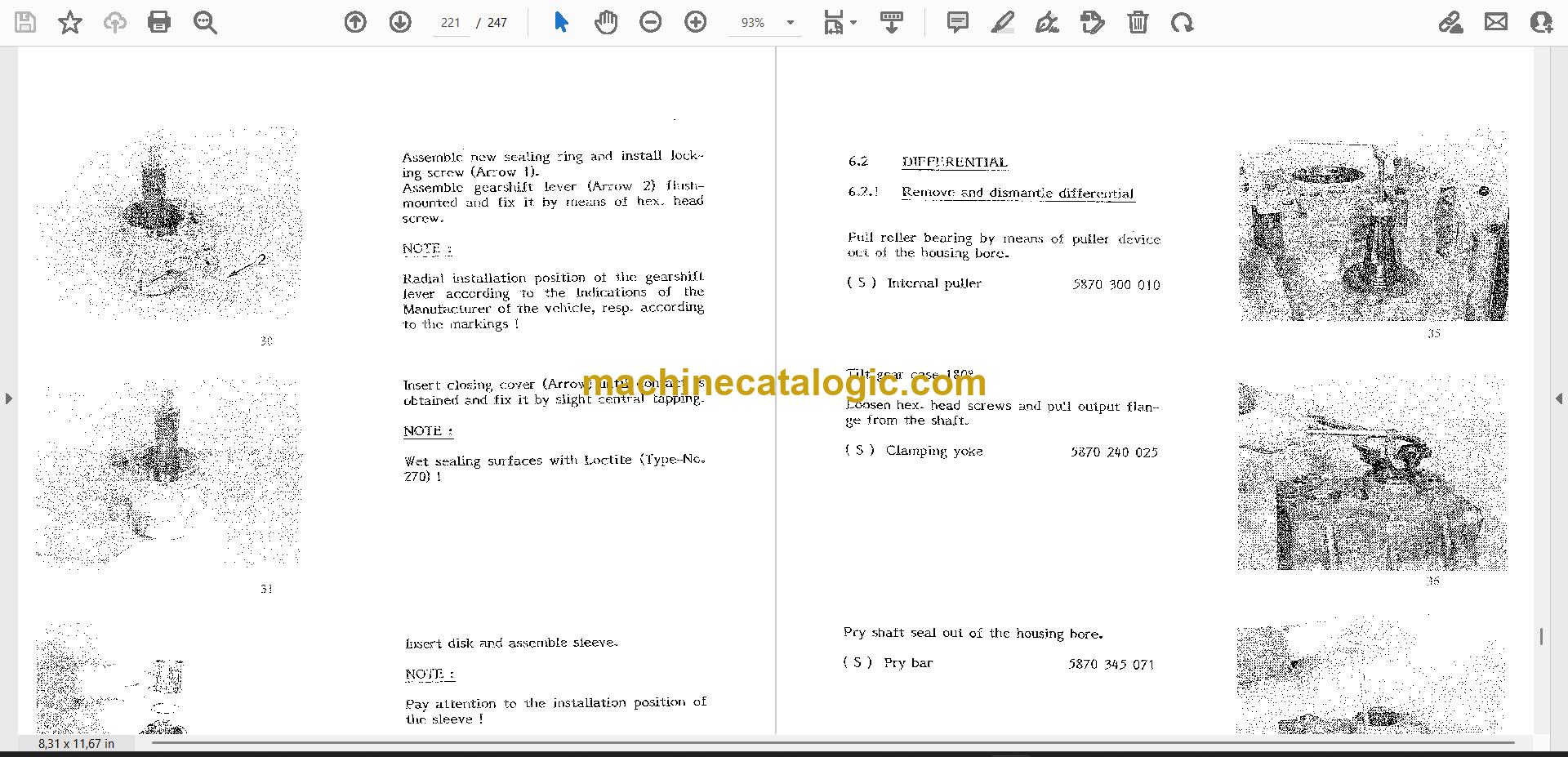

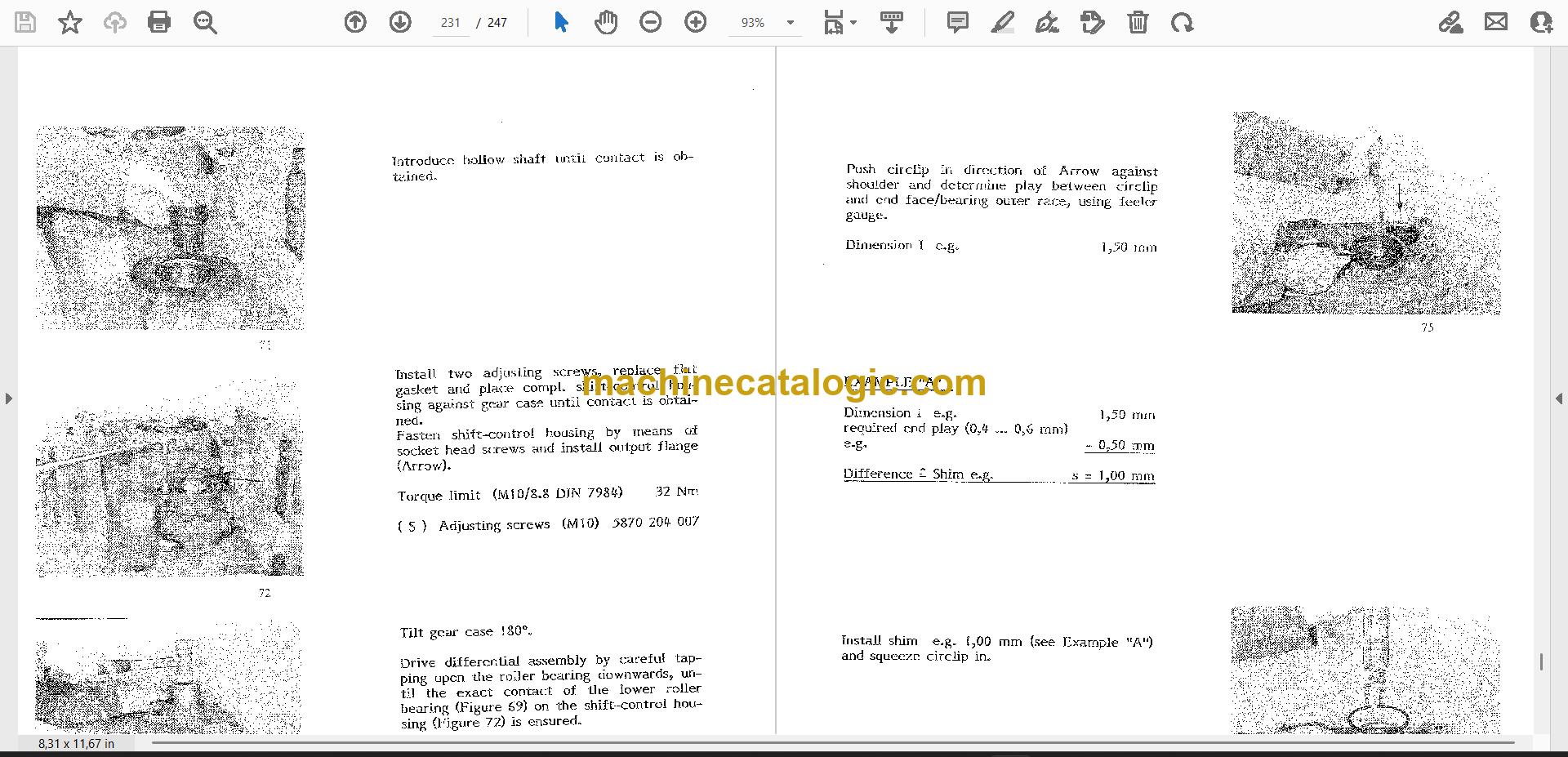

A: You get 1 PDF file of 247 pages in English, publication number 5871 162 002 E. It opens with the preface, safety instructions, conversion table and torque limits, then moves into the control, gearbox, retarder, axle declutch, axle differential and power take-off sections.

Q: Which transmissions does it fit?

A: It is written for the ZF WG-180 and WG-200 powershift transmissions, and the title on the manual says exactly that.

Q: How does it fit the job I'm doing?

A: If you're pulling a transmission, rebuilding it or chasing a fault, you'd expect to find the removal, repair and adjustment procedures you need in one file. Keep it on the shop computer and it's there the next time a unit comes in.

Download it, pull up the section for the job on your bench, and work through the repair with the procedures in front of you.

Click here to view the preview (PDF)

All Crane Manuals
