ZF AS Tronic Transmission Service Manual (1327 751 101a)

The ZF AS Tronic is an automated transmission. It handles gear selection and clutch actuation for the driveline, and this manual is documented as a component used on Liebherr machines. The people who open a service manual like this are technicians who have to diagnose a fault, adjust something, or replace a component in-house, often on a machine that's out of warranty or arrived with no paperwork.

What this manual helps you do

• Follow the maintenance steps and check the list of lubricants TE-ML 02 before you service the unit.
• Diagnose faults using the diagnosis section and the test device diagnosis tool.
• Check the ZF-Intarder using its diagnosis tool section.

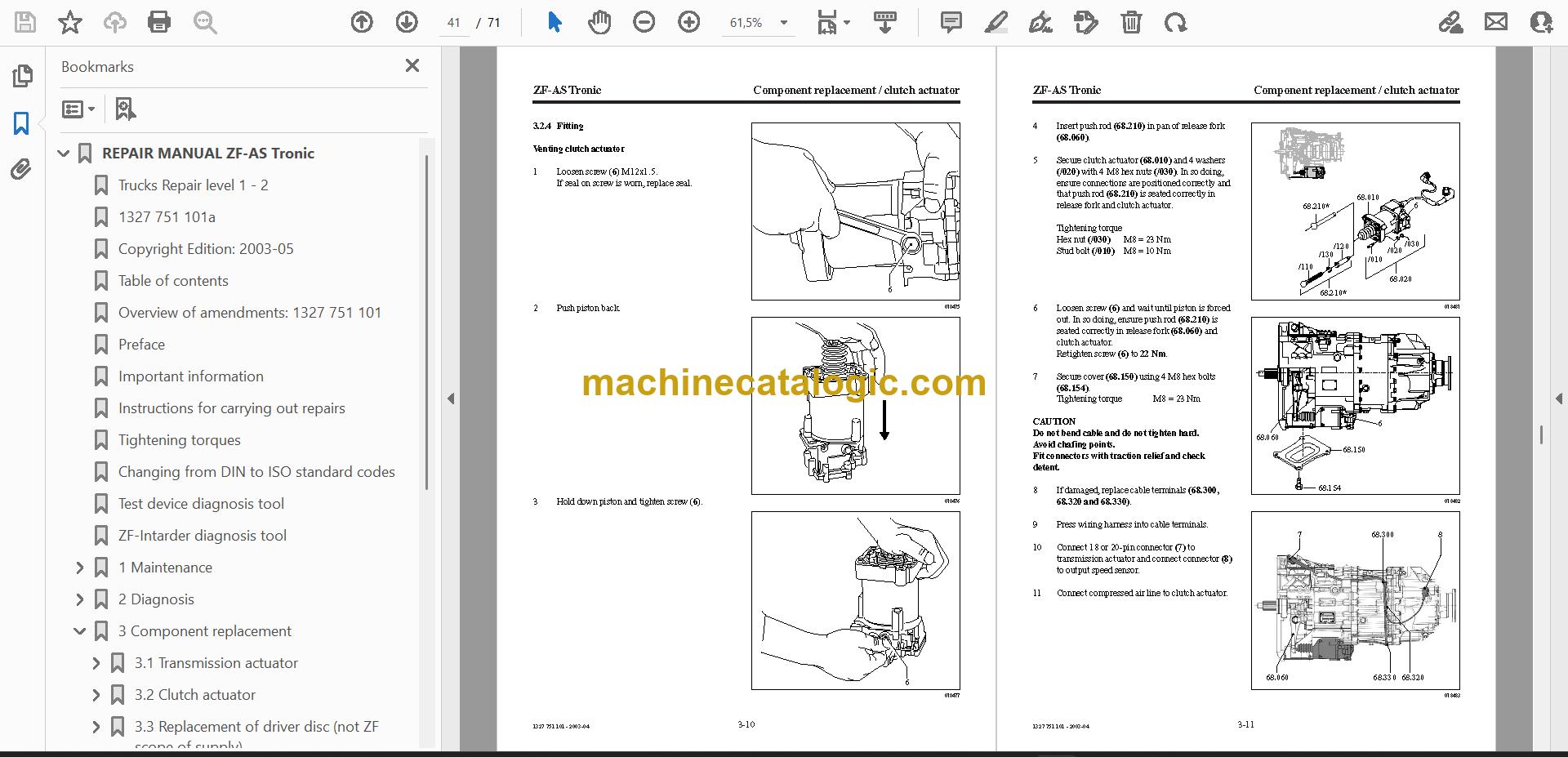

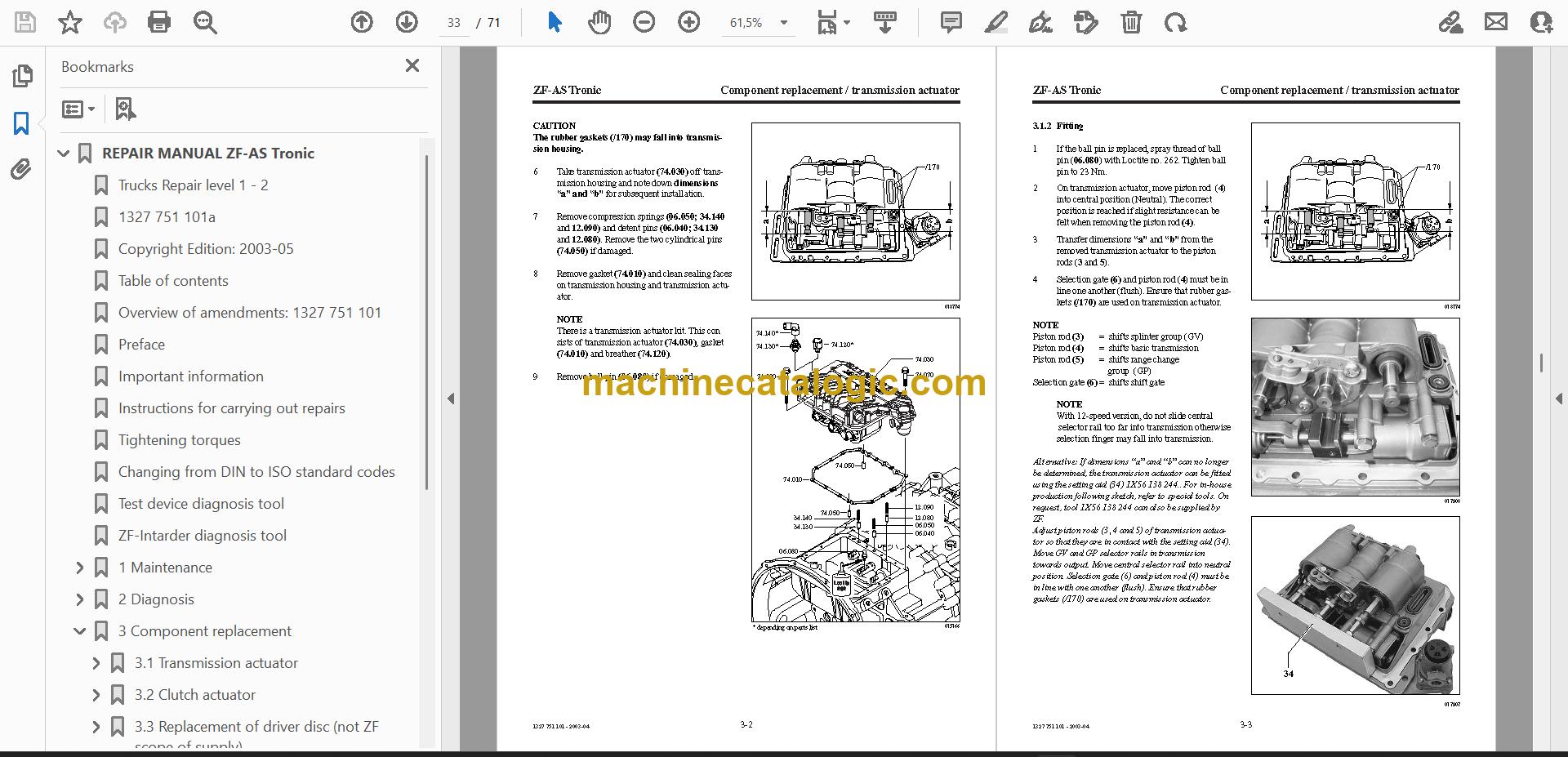

• Replace components by working through the component replacement section.
• Verify fasteners against the tightening torques section, and use the DIN to ISO standard code conversion when you read the references.

Who this is for

A crane service technician, rental fleet mechanic or independent repair shop doing transmission work in-house. It also suits a dealer technician who needs a written procedure at the bench instead of working from memory.

FAQ

Q: What do I receive and how is it organised?

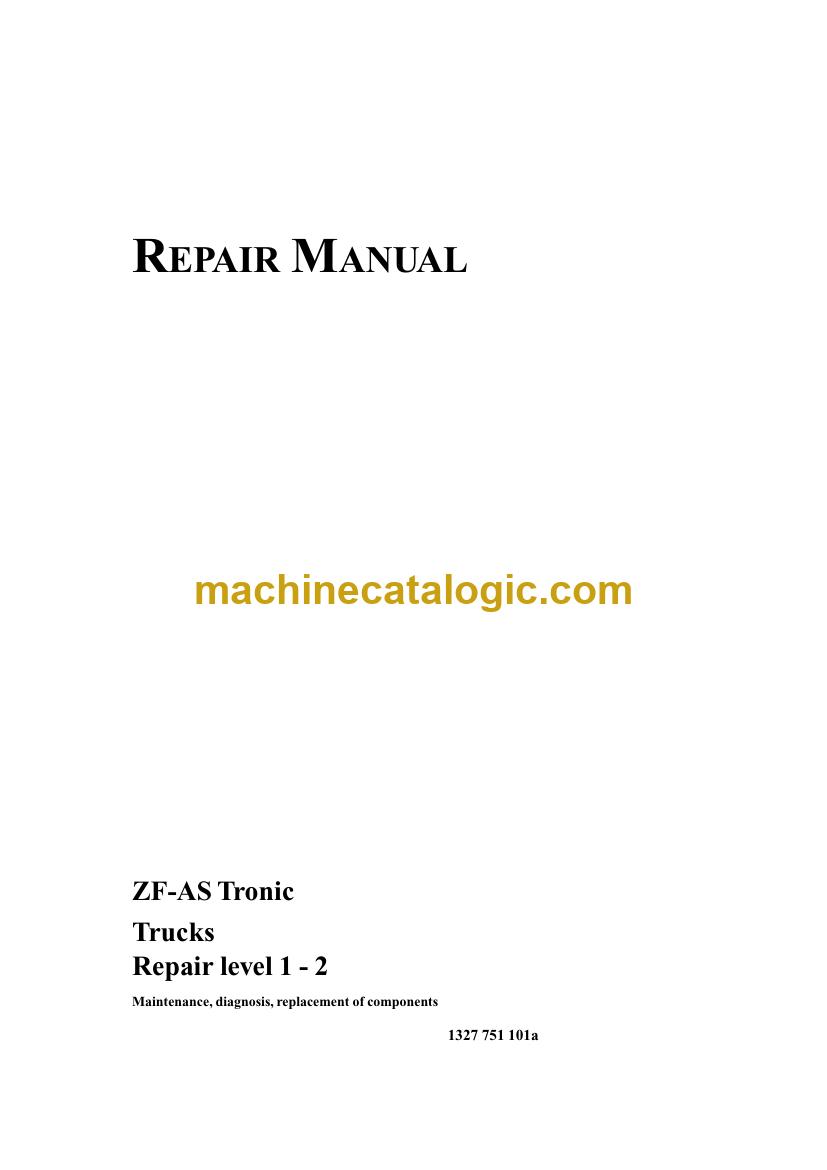

A: You get 1 PDF file, 71 pages, in English. The text is searchable, so you can jump straight to a term. It opens with the preface, important information and repair instructions, then moves into tools, maintenance, diagnosis and component replacement.

Q: Which machine or component does it fit?

A: It covers the ZF AS Tronic transmission, publication number 1327 751 101a, titled "ZF-AS Tronic Trucks Repair Manual". It comes from the Liebherr machine documentation and is used on Liebherr machines.

Q: How does it fit the job I'm doing?

A: If you're diagnosing a shifting fault, servicing the unit or swapping a component, it gives you the repair-level procedures in one file. Open it on the shop computer or print the pages you need.

Pull up the diagnosis section first, then work through the replacement or maintenance steps with the torque and lubricant references beside you.

Click here to view the preview (PDF)
