Tadano R303-Z3 Multiplex Data Transmitter Service Manual

The multiplex data transmitter on a crane carries signals between the control units over a reduced set of wires, so the cab, the superstructure and the carrier can talk to each other. When it acts up, you get odd readouts, dead functions or faults that come and go. This service manual is for the person who has to find out why and fix it. That means a tech with the unit on the bench or a crane that's down and waiting.

What this manual helps you do

• Trace the signal path through the system description before you start pulling connectors.
• Diagnose problems using the troubleshooting section instead of swapping parts on a guess.
• Follow the disassembly and reassembly steps when you remove and refit the transmitter.
• Check your readings against the data table.
• Verify wiring and connections after a repair, so the unit goes back on the crane working.

Who this is for

Crane service technicians, rental fleet mechanics and independent repair shops working on an R303-Z3 that's out of warranty. It also suits a dealer technician who wants the repair steps in front of them at the bench.

FAQ

Q: What do I receive and how is it organised?

A: You get one PDF file, 62 pages, in English. The sections are Instruction, Construction and Function, Troubleshooting, Disassembly and Reassembly, and Data Table.

Q: Which machine does it fit?

A: It is written for the Tadano R303-Z3 multiplex data transmitter. The publication number is R303-Z3-01, and the title reads "R303-Z3 Multiplex Data Transmitter Repair Manual."

Q: How does it fit the job I'm doing?

A: If you're chasing a fault, you'd expect to work from construction and function into troubleshooting. If you're pulling the unit, the disassembly and reassembly section is the one to open, with the data table beside it for reference.

Download it, open it at the troubleshooting section, and put it to work on the unit in your shop.

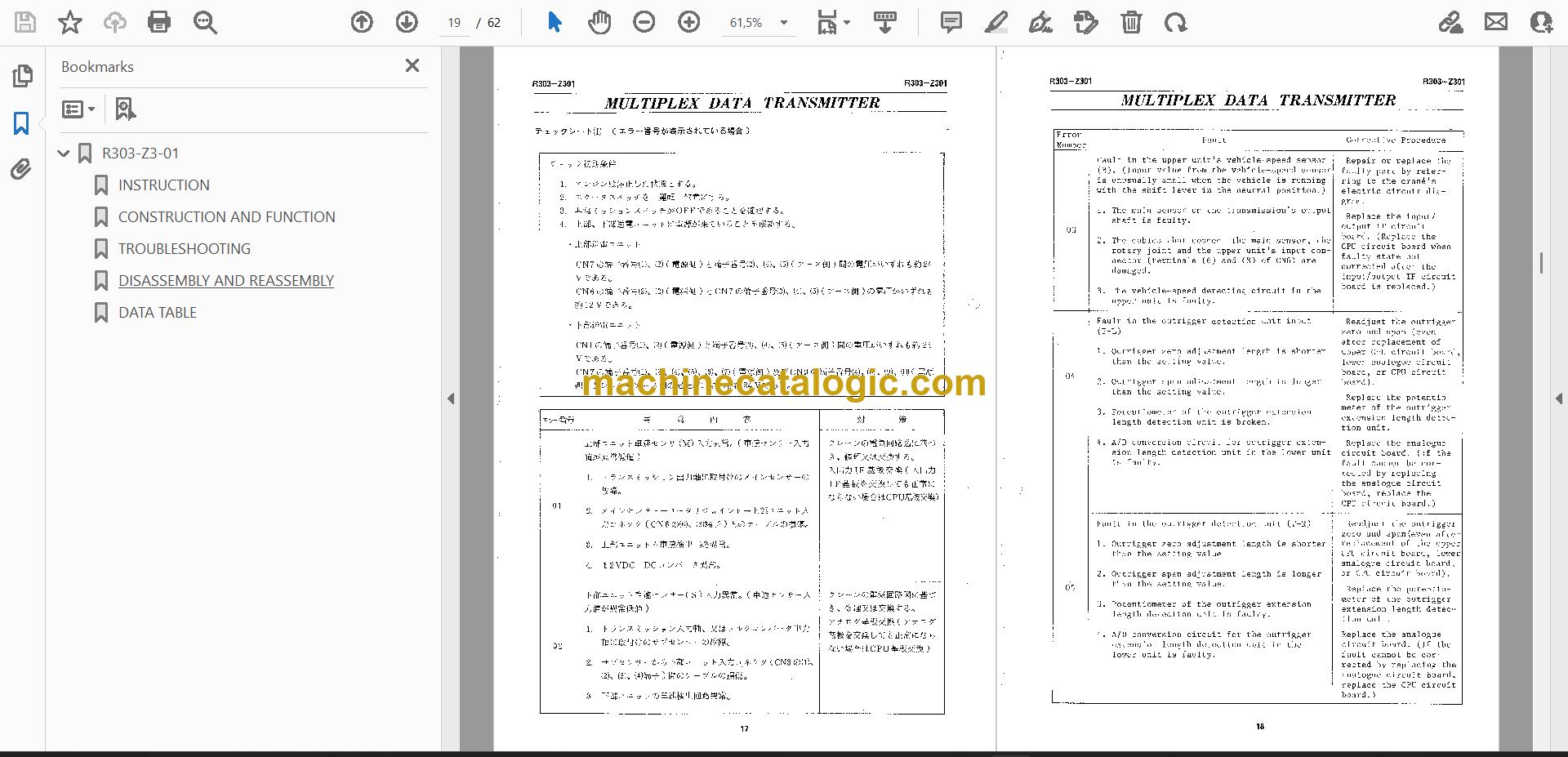

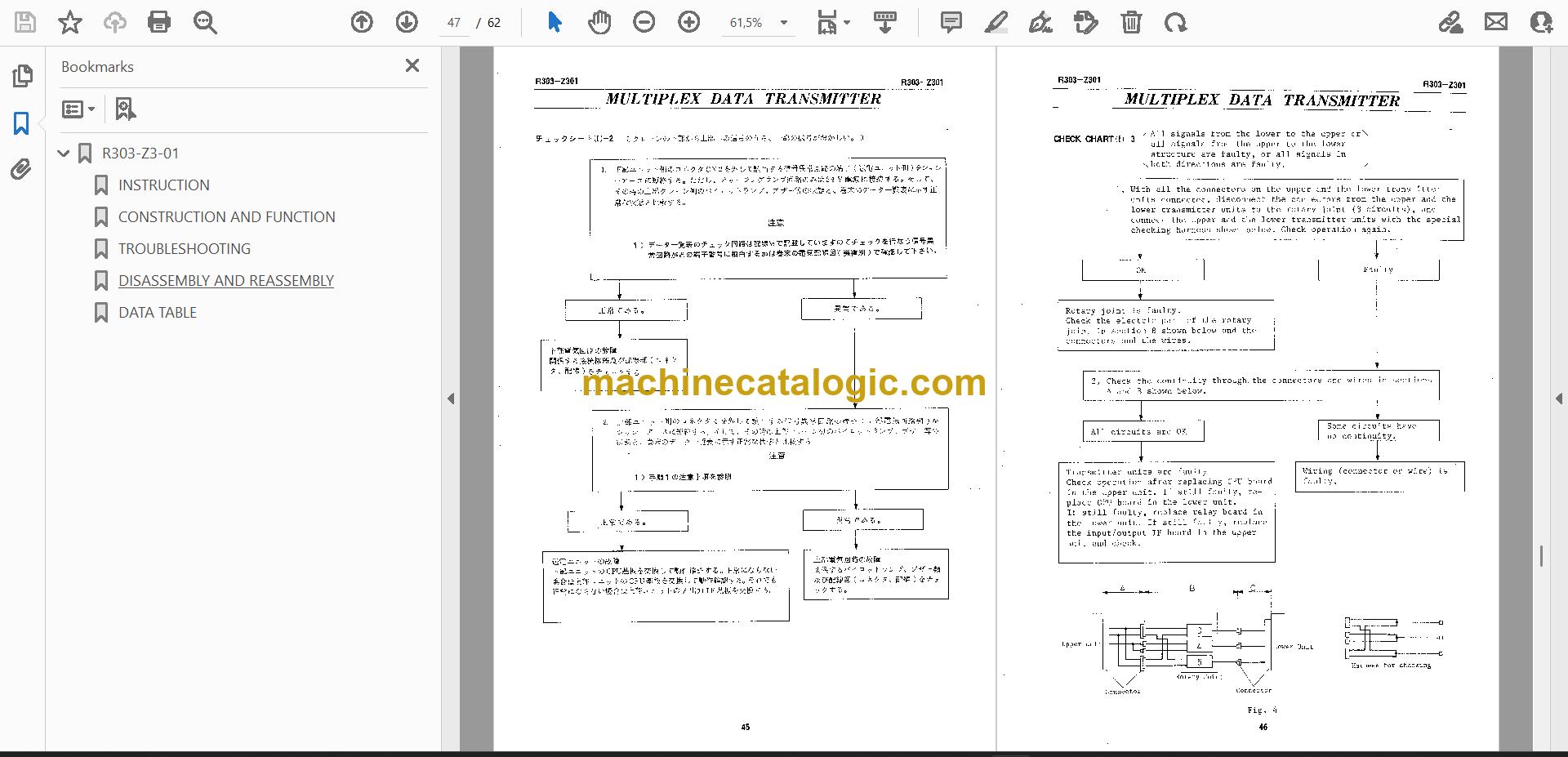

Click here to view the preview (PDF)

Table of Contents:

• INSTRUCTION
• CONSTRUCTION AND FUNCTION
• TROUBLESHOOTING
• DISASSEMBLY AND REASSEMBLY
• DATA TABLE
